Търсене в каталога
41538 резултата за "SICK" · стр. 150/2077
RE21-SAC
Safety switches | RE2 | RE21-SAC | Systemteil: Sensor with actuator | N/O contacts: 1 | N/C contacts: 1 | Signaling contacts: 0 | Connection type Detail: Plug connector, M8, 4-pin | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no
STR1-SASM03P8
Safety switches | STR1 | STR1-SASM03P8 | Actuator design: Standard | Coding: Universally coded | Assured switch on distance Sao: 10 mm | Connection type Detail: Cable, 7-wire | Length of cable: 3 m | Safe series connection: In control cabinet (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
OD1-B035H15A14
Laser distance sensors | OD Mini | OD1-B035H15A14 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
V2D8305R-1MCICXAF1AXXXX
Image-based code readers | Lector83x | V2D8305R-1MCICXAF1AXXXX | Variant: Complete device | Regulatory Model: C19MAA | Optical focus: Adjustable focus (manual) | Sensor resolution: 2,464 px x 2,048 px (5 MP) | Illumination color: White | Focal length: 12 mm | Ambient operating temperature: –35 °C ... +50 °C | Communication interface: Ethernet, CAN, Serial, USB, EtherNet/IP™, PROFINET
Mounting kit 2
Mounting systems | Brackets | Mounting kit 2 | Description: Mounting bracket for rear mounting on wall or machine, adjustable longitudinal and lateral axes, only in conjunction with mounting kit 1 (2015623) | Material: Aluminum | Details: Aluminum | Packing unit: 1 piece
PAC50-FGD
Pressure sensors | PAC50 | PAC50-FGD | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: –1 bar ... 10 bar | Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: 2 x G ¼ | Process temperature: 0 °C ... +60 °C | Communication interface: IO-Link | Output signal: IO-Link/PNP + PNP/NPN/Push-Pull | Connection type: M12 round connector x 1, 4-pin, IP65,

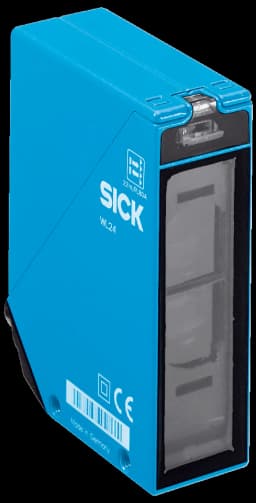

WL24-2R240
Photoelectric sensors | W24 | WL24-2R240 | Sensing range max.: 0 m ... 22 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Terminal connection with M16 gland | Adjustment: Potentiometer

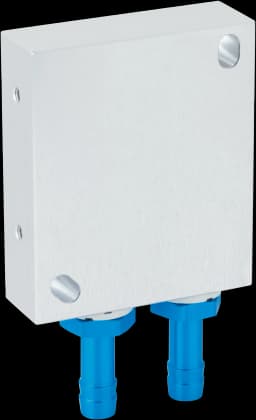

BEF-KP-Dx80
Device protection and care | Cooling devices | BEF-KP-Dx80 | Description: Cooling plate for Dx80 (for water cooling) | Usable for: Dx80
MPS-160TSTP0
Cylinder sensors | MPS-T | MPS-160TSTP0 | Measuring range: 160 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP67 | Electrical wiring: DC 4-wire | Communication interface: -
LBV330-XXAGDRAMX0800
Level sensors | LBV3xx | LBV330-XXAGDRAMX0800 | Communication interface: - | Process connection: G 1½ A PN 25 | Probe length: 800 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Double relay (DPDT) | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Aluminum | Enclosure rating: IP66, IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
ACM60B-S1KE13x06
Absolute encoders | ACM60 | ACM60B-S1KE13x06 | Singleturn or multiturn version: Multiturn | Max. resolution: 6 bit (10,485 x 64) | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: -, Current, non programmable | Connection type: Male connector, M12, 5-pin, radial

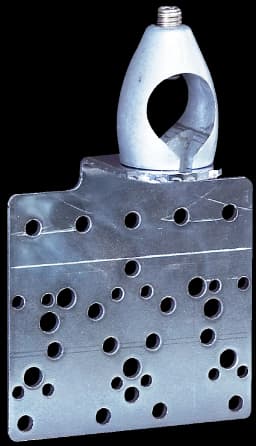

BEF-KHS-N01
Mounting systems | Brackets | BEF-KHS-N01 | Description: Universal holder for round steel arms and muting arms, for mounting sensors or reflectors
DL100-21AA2101
Laser distance sensors | Dx100 | DL100-21AA2101 | Communication interface: SSI | Measuring range: 0.15 m ... 100 m, on “diamond grade” reflective tape | Laser class: 2 | Light source: Laser, red | Minimum response time: 2 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x MF1
WL12L-2B530S06
Photoelectric sensors | W12-2 Laser | WL12L-2B530S06 | Sensing range max.: 0 mm ... 600 mm | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP, NPN | Switching mode: Light switching, Dark switching | Connection type: Plug, M12, 5-pin | Light source: Laser | Type of light: Visible red light | Laser class: 2 | Adjustment: None | Special features: Sensing range: 600 m
LFP0300-A4NMB
Level sensors | LFP Cubic | LFP0300-A4NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 300 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes | P
DFS60B-TDPK10000
Incremental encoders | DFS60 | DFS60B-TDPK10000 | Mechanical design: Through hollow shaft 10 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 10,000
IME2S12-04N4DC0
Safety switches | IME2S | IME2S12-04N4DC0 | Design: Cylindrical | Sensing range Sn: 4 mm | Dimensions: M12 x 65 mm | Thread length: 36.9 mm | Installation type: Non-flush | Connection type Detail: Male connector M12, 4-pin | Type of output: Self-monitoring semiconductor outputs (OSSDs) | Performance level: PL d
GSE6-P7111
Photoelectric sensors | G6 | GSE6-P7111 | Sensing range max.: 0 m ... 15 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Housing: Rectangular
IME08-1B5PSZT0S
Inductive proximity sensors | IME | IME08-1B5PSZT0S | Housing: Standard design | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin
FX3-GEPR00010
Safety controllers | Flexi Soft | FX3-GEPR00010 | Module: Gateway | Configuration and diagnostics interface: Mini-USB | Fieldbus, industrial network: EFI-pro, EtherNet/IP™ CIP Safety™ | Connection type: 2 × RJ45 socket | Protective coating for more challenging ambient conditions: yes
