Търсене в каталога
41538 резултата за "SICK" · стр. 148/2077
WSE4SL-3P2237
Photoelectric sensors | W4 | WSE4SL-3P2237 | Sensing range max.: 0 m ... 60 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Teach-in button | Housing: Rectangular
UC4-13345
Ultrasonic distance sensors | UC4 | UC4-13345 | Communication interface: - | Operating range, limiting range: 13 mm ... 150 mm, 250 mm | Connection type: Male connector, M8, 3-pin | Sending axis: Straight | Response time: 24 ms | Digital output: 1 x NPN
UM12-1192211
Ultrasonic distance sensors | UM12 | UM12-1192211 | Communication interface: - | Operating range, limiting range: 40 mm ... 240 mm, 350 mm | Connection type: Male connector, M12, 4-pin | Sending axis: Straight | Response time: 30 ms | Digital output: 1 x PNP
Lighting trigger unit and NPN/PNP converter
Connectors and cables | Other connectors and cables | Lighting trigger unit and NPN/PNP converter
YN2D24-200PN1MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YN2D24-200PN1MRJA4 | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, PROFINET | Cable: 20 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
WTF4SD-22162220A00
Photoelectric sensors | W4 | WTF4SD-22162220A00 | Sensing range min. / max.: 0 mm / 130 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Foreground suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, Potentiometer, Teach-Turn adjustment, IO-Link | Smart S
BEF-WN-M18-ST02
Mounting systems | Brackets | BEF-WN-M18-ST02 | Description: Mounting bracket with ball-and-socket | Material: Plastic | Details: Plastic | Items supplied: Mounting hardware included | Suitable for: GR18, MH15V, V180-2, V18
V2D610D-MMSBE4
Image-based code readers | Lector61x | V2D610D-MMSBE4 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 640 px x 480 px (0.3 MP) | Illumination color: Amber, blue | Focal length: 6 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
DSL-1285GM25034KM1
Connectors and cables | Other connectors and cables | DSL-1285GM25034KM1 | Description: Unshielded | Connection type head A: Female connector, M12, 5-pin, straight | Connection type head B: Male connector, M12, 8-pin, straight | Items supplied: Packaging unit: 2 pcs. | Cable: 0.25 m, 5-wire, PVC | Application: Zones with chemicals
IME08-03BPSZT0K
Inductive proximity sensors | IME | IME08-03BPSZT0K | Housing: Short-body | Sensing range Sn: 3 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Connector M8, 3-pin | Special features: Triple sensing range
OD7000-11001032
Laser distance sensors | OD7000 | OD7000-11001032 | Communication interface: Serial, Ethernet | Digital output: 0 | Measuring range: 64 mm ... 74 mm | Connection type: Ethernet, Female connector, RJ-45, Interface A, Terminal strip, 9-pin
YM2A15-000S01FY2A5
Connectors and cables | Y- and T-splitters | YM2A15-000S01FY2A5 | Description: Unshielded, for branching the power supply to the SLG-2 sender out of the cabling of the SLG-2 receiver | Connection type head A: Male connector, M12, 5-pin, A-coded | Connection type head B: Female connector, M12, 5-pin, A-coded | Connection type head C: Female connector, M12, 3-pin, A-coded
DOL-MS10-G30MMA2
Connectors and cables | Other connectors and cables | DOL-MS10-G30MMA2 | Description: Shielded | Connection type head A: Female connector, MS/10, 10-pin, straight | Connection type head B: Flying leads | Cable: 30 m, 11-wire
Laser module, blue
Reflectors and optics | Illuminations | Laser module, blue | Description: Laser module, blue, M12 male connector, 4-pin, focusable | Light source: Laser line with uniform output distribution (thin line) | Connection types: Pin 1: +VDC, Pin 2: Digital modulation (5 ... 24 V DC), Pin 3: GND | Ambient operating temperature: 0 °C ... +50 °C
GRF18S-E234EV
Level sensors | GRF18S | GRF18S-E234EV | Communication interface: - | Process connection: G ½ | Remote amplifier: No | Output signal: 1 x NPN | Connection type: M12 round connector x 1, 4-pin | Process temperature: –10 °C ... +55 °C | Process pressure: –0.5 bar ... 20 bar | Switching mode: NO | Wetted parts: EPDM, Stainless steel 1.4404 / 316L, polysulfon | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP67, IP69 | Display: no | PWIS-cleaned: no | Bluetooth: no

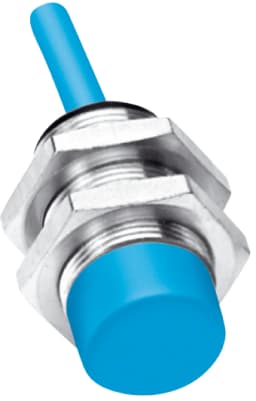

IM18-08N-N-ZW0
Inductive proximity sensors | IMN | IM18-08N-N-ZW0 | Special applications: Explosive areas | Sensing range Sn: 8 mm | Installation type: Non-flush | Switching output: NAMUR | Output function: NC | Connection type: Cable, 2-wire, 2 m | Info: II 1G Ex ia IIC T6 Ga Ta –20 °C ... +70 °C, II 2 G Ex ia IIC T6 Gb Ta: –20 °C ... +70 °C PTB 03 ATEX 2037 In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-34, we would like to point out that the traceability of the ordered device
i110-RP313
Safety switches | i110RP | i110-RP313 | Positive action N/C contacts: 3 | N/O contacts: 1 | Connection type Detail: Cable gland, 1 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Maximum cord length: 30 m
RZT7-03ZRS-KP0
Cylinder sensors | RZT7 | RZT7-03ZRS-KP0 | Connection type: Cable with connector M8, 3-pin | Output function: NO | Overrun distance, typ.: 10 mm | Enclosure rating: IP65, IP67 | Supply voltage: 5 V AC/DC ... 30 V AC/DC | Electrical wiring: AC/DC 3-wire
WSE4S-3F2130V
Photoelectric sensors | W4 | WSE4S-3F2130V | Sensing range max.: 0 m ... 5 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Dark switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: None | Housing: Rectangular
GL6-P6212
Photoelectric sensors | G6 | GL6-P6212 | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with M8 male connector, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular | Included with d
