Търсене в каталога
41538 резултата за "SICK" · стр. 147/2077
YM2AA8-050XXXM2AA8
Connectors and cables | Other connectors and cables | YM2AA8-050XXXM2AA8 | Description: Shielded | Connection type head A: Male connector, M12, 8-pin, straight, A-coded | Connection type head B: Male connector, M12, 8-pin, straight, A-coded | Cable: 5 m, 8-wire, PUR
RE11-SA05
Safety switches | RE1 | RE11-SA05 | Systemteil: Sensor with actuator | N/O contacts: 1 | N/C contacts: 1 | Signaling contacts: 0 | Connection type Detail: Cable | Length of cable: 5 m | Safe series connection: None, only individual wiring (with diagnostics) | Status display: no

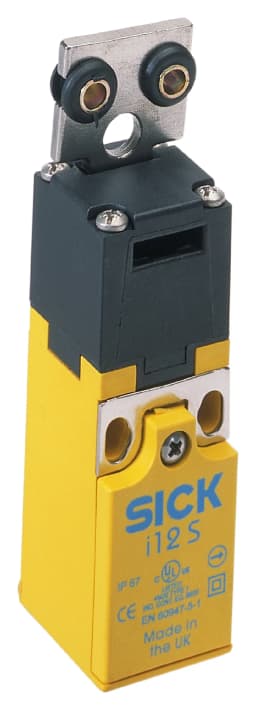

i12-SA113
Safety switches | i12S | i12-SA113 | System part: sensor | Positive action N/C contacts: 1 | N/O contacts: 1 | Housing material: Plastic | Connection type Detail: Cable gland, 1 x M16 | Safe series connection: None, only individual wiring (with diagnostics) | Retaining force: 6 N
DFS60B-S4PC10000
Incremental encoders | DFS60 | DFS60B-S4PC10000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 10,000

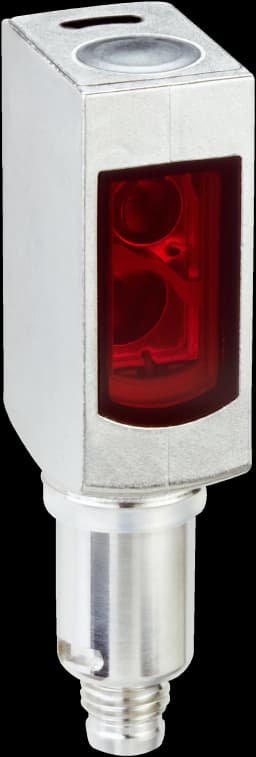

WL4SLGC-3P5232HA00
Photoelectric sensors | W4 | WL4SLGC-3P5232HA00 | Sensing range max.: 0 m ... 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach
LFP0025-A4NMB
Level sensors | LFP Cubic | LFP0025-A4NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe type: Without probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes | PWIS-cleaned: no | B
YF2A15-100UB5M2A15
Connectors and cables | Sensor-actuator cables | YF2A15-100UB5M2A15 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Male connector, M12, 5-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 10 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
C-mount lens
Reflectors and optics | Lenses | C-mount lens | Description: C-mount 1/1.8", focal length 50 mm, aperture 1.4 – 16 | Dimensions: 62.6 mm Without C-mount thread
UC40-11311B
Ultrasonic distance sensors | UC40 | UC40-11311B | Communication interface: IO-Link | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 96 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
OD1-B015C05I14
Laser distance sensors | OD Mini | OD1-B015C05I14 | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
DBS50E-S5EK02500
Incremental encoders | DBS36/50 | DBS50E-S5EK02500 | Mechanical design: Solid shaft face mount flange 8 mm x 15.5 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 2,500
IMA30-20BE1ZC0K
Inductive proximity sensors | IMA | IMA30-20BE1ZC0K | Sensing range Sn: 0 mm ... 20 mm | Installation type: Quasi-flush | Output function: Analog | Connection type: Male connector M12, 4-pin | Special features: Analog output, triple sensing range
STR1-SAXU0AC5
Safety switches | STR1 | STR1-SAXU0AC5 | Coding: Uniquely coded | Assured switch on distance Sao: 14 mm | Connection type Detail: Cable with plug M12, 5-pin | Length of cable: 0.2 m | Safe series connection: With Flexi Loop (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
TCT-2AAGE0503MZ
Temperature sensors | TCT | TCT-2AAGE0503MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Thread G ½ B | Insertion length/diameter of probe: 50 mm / 3 mm | Seal: Without seal | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -

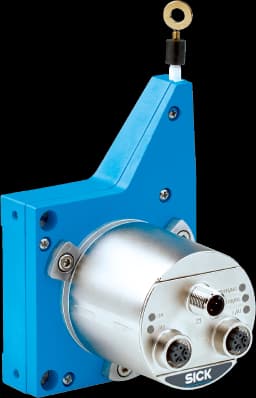

BCG08-N1BM0377
Wire draw encoders | EcoLine | BCG08-N1BM0377 | Measuring range: 0 m ... 3 m | Communication interface: PROFINET | Supply voltage: 10 V ... 32 V | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Mounted encoder: ANM58 PROFINET, ANM58B-SANNB0000101000XX018X16, 1145910 | Mounted mechanic: MRA-G080-103D3, 5322778 | Programmable/configurable: yes
MICS3-CCAZ40AN1
Safety laser scanners | microScan3 | MICS3-CCAZ40AN1 | Product version: microScan3 Pro I/O | Model: Sensor without system plug | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 4 m | Scanning angle: 275° | Number of fields: 128 | Connection type: M12

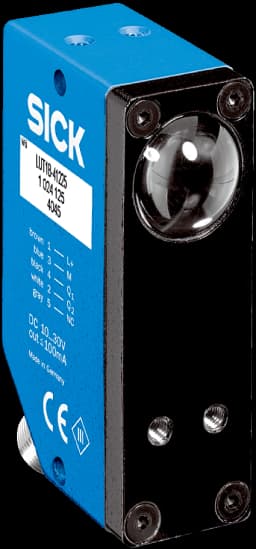

LUT1B-41235
Luminescence sensors | LUT1 | LUT1B-41235 | Light source: LED | Communication interface: - | Sensing distance: ≤ 150 mm | Housing design: Middle | Switching output: PNP | Switching mode: Light switching | Light emission: Long side | Light spot size: 6 mm x 14 mm | Connection type Detail: Plug, M12, 5-pin
UM18-211161101
Ultrasonic distance sensors | UM18 | UM18-211161101 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 4-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x PNP
Rotary pulse encoder with angle
Mounting systems | Assembly accessories | Rotary pulse encoder with angle | Description: Rotary pulse encoder with angle

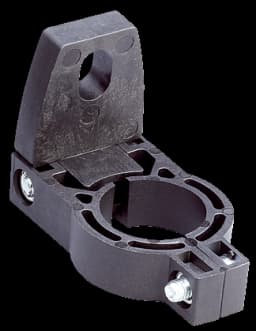

BEF-2SMKEAKU4
Mounting systems | Brackets | BEF-2SMKEAKU4 | Description: Mounting kit 1, rotatable, swivel mount | Material: Plastic | Details: Plastic | Packing unit: 4 pieces | Suitable for: All protective field heights in small housing
