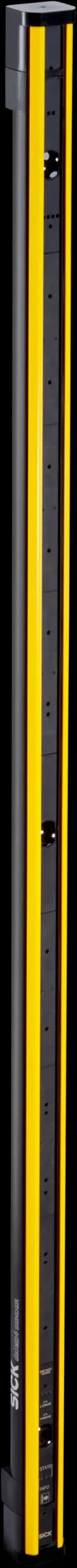

M4P-SA03400A00
Safety light-beam sensors | deTem | M4P-SA03400A00 | Product version: deTem4 | Functional principle: Sender/receiver | System part: Sender | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 90 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Depending on system plug (M12 male connector,
BEF-W100-A
Mounting systems | Brackets | BEF-W100-A | Description: Mounting bracket for wall mounting | Material: Stainless steel | Details: Stainless steel | Items supplied: Mounting hardware included | Suitable for: W8, W8G, W8 Laser, W8 Inox, G6, G6 Inox, W100 Laser, W100-2, KTM Core, KTM Prime, CSM, LUTM, W4S

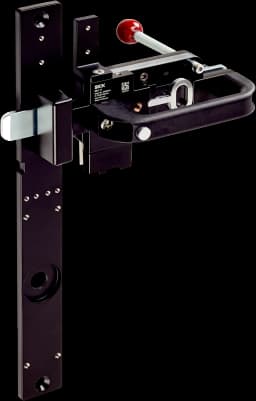

MB1-BL11
Actuators and bolts | MB1 | MB1-BL11 | Catch release button/ANSI-compliant locking mechanism: yes | Escape release: yes | Frame plate with latching function: no | Items supplied: Bolt unit, long frame plate, adapters for actuator mounting (MB1-BRLK, MB1-BRNC), safety screws for installing provided adapters, Mounting instructions, escape release | Description: Complete set consisting of bolt unit with long frame plate and adapters for actuators
VT12T-2N112
Photoelectric sensors | V12 | VT12T-2N112 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: Teach-in button, Wire/pin | Communication interface: -
TIC501
Profiling systems | TIC501 | TIC501 | Integrated application: Vehicle classification, vehicle counting | Application: Traffic management | Items supplied: 2D LiDAR sensor LMS511 SE, Traffic Controller TIC with TIC software including USB Stick with TEMS info sample client, source code for TEMS info sample client, TEMS analyzer and operating instructions
YF2A15-300UB5XLEAX
Connectors and cables | Sensor-actuator cables | YF2A15-300UB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 30 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DOL-1208-W05MAC1
Connectors and cables | Sensor-actuator cables | DOL-1208-W05MAC1 | Description: HIPERFACE®, shielded, Incremental | Connection type head A: Female connector, M12, 8-pin, angled | Connection type head B: Flying leads | Signal type: HIPERFACE®, Incremental | Cable: 5 m, 8-wire, PUR, halogen-free | Application: Zones with oils and lubricants
IME18-05BPPZC0S
Inductive proximity sensors | IME | IME18-05BPPZC0S | Housing: Standard design | Sensing range Sn: 5 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Switching output: PNP | Output function: Complementary | Connection type: Male connector M12, 4-pin
CLV631-1000
Fixed mount barcode scanners | CLV63x | CLV631-1000 | Optical focus: Fixed focus | Communication interface: PROFINET, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Type: Cable connection variant | Max. reading distance: 450 mm | Code resolution: 0.25 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Raster scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
Antenna GNSS/GPS, SMA
Antennas | GPS antennas | Antenna GNSS/GPS, SMA | Description: Antenna for GNSS/GPS with 3m RG174 cable, magnetic for TDC-X
BEF-WG-M12
Mounting systems | Brackets | BEF-WG-M12 | Description: Mounting plate for M12 sensors | Material: Steel | Details: Steel, zinc coated | Items supplied: Without mounting hardware
OD1-B035C15I14
Laser distance sensors | OD Mini | OD1-B035C15I14 | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
LBV330-XXBGDRAMX0400
Level sensors | LBV3xx | LBV330-XXBGDRAMX0400 | Communication interface: - | Process connection: G 1½ A PN 25 | Probe length: 400 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Double relay (DPDT) | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +250 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Aluminum | Enclosure rating: IP66, IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
WL12G-3P2472S03
Photoelectric sensors | W12G | WL12G-3P2472S03 | Sensing range max.: 0 m ... 0.8 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Housing material: Zinc diecast | Adjustment: Teach-in button | Special features: Sensing ra

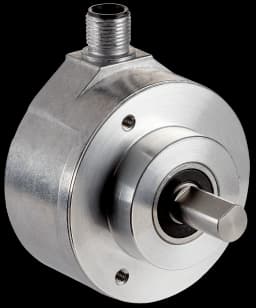

DFS60A-S4EC00720
Incremental encoders | DFS60 | DFS60A-S4EC00720 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 720
IME30-15BDOZY2S
Inductive proximity sensors | IME | IME30-15BDOZY2S | Housing: Standard design | Sensing range Sn: 15 mm | Installation type: Flush | Electrical wiring: DC 2-wire | Output function: NC | Connection type: Cable, 2-wire, 2 m
MPA-899THTP0
Cylinder sensors | MPA | MPA-899THTP0 | Measuring range: 899 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP65, IO-Link, IP67, IP68 | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
GL6-F2411V
Photoelectric sensors | G6 | GL6-F2411V | Sensing range max.: 0.03 m ... 6 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Potentiometer | Housing: Rectangular
WTB4SL-3P2264VS01
Photoelectric sensors | W4 | WTB4SL-3P2264VS01 | Sensing range max.: 25 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Teach-in button, Wire/pin | Special features: External
GTE6-P4201S57
Photoelectric sensors | G6 | GTE6-P4201S57 | Sensing range max.: 5 mm ... 110 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Housing: Rectangular
