Търсене в каталога
41538 резултата за "SICK" · стр. 142/2077
L41S-11MA1A
Safety light-beam sensors | L41 | L41S-11MA1A | System part: Sender | Safety level: PL e, SIL 3, Type 4 | Scanning range: 7 m | Diameter: M18 | Light source: LED | Type of light: Visible red light | Optical axis: Radial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
L41E-11MA1A
Safety light-beam sensors | L41 | L41E-11MA1A | System part: Receiver | Safety level: PL e, SIL 3, Type 4 | Scanning range: 7 m | Diameter: M18 | Optical axis: Radial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
WTB12-3P2433
Photoelectric sensors | W12-3 | WTB12-3P2433 | Sensing range max.: 20 mm ... 350 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Adjustment: Teach-in button | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12, incl. screws
Connection modules
Integration modules and adapters | Power supply modules | Connection modules | Description: Connection box with tamper contact for power, I/O, and RS-232/RS-422 data (not Ethernet), with three pre-wired M12 cables, 12-pin
Control panel cover
Device protection and care | Protective caps and hoods | Control panel cover | Description: Display protection cover
Test rod 24 mm
Commissioning aids and test equipment | Test equipment | Test rod 24 mm | Description: 24 mm diameter, 250 mm length
WF30-40B410
Fork sensors | WF | WF30-40B410 | Adjustment: Plus/minus button | Light source: LED | Type of light: Infrared light | Fork width/depth: 30 mm, 42 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 100 µs | Enclosure rating: IP65
OD2-P30W04I0
Laser distance sensors | OD Value | OD2-P30W04I0 | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
C2C-SA16530A10000, C2C-EA16530A10000
Safety light curtains | deTec | C2C-SA16530A10000, C2C-EA16530A10000 | Product version: deTec2 Core | System part: Pair | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Resolution: 30 mm | Scanning range: 15 m | Protective field height: 1,650 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting inst

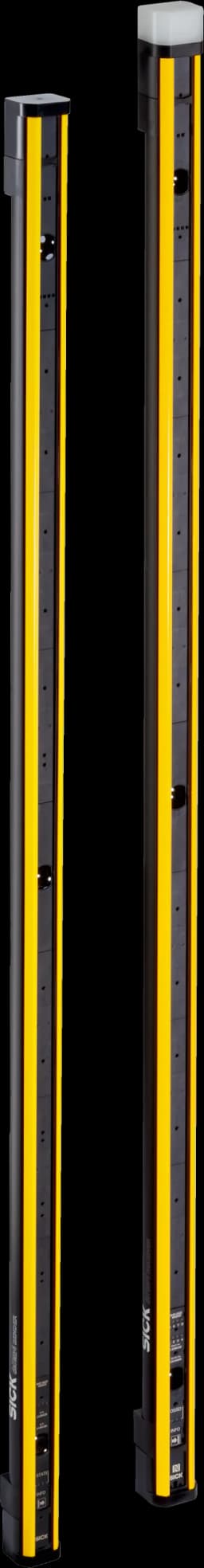

M4P-SA03400A00, M4P-EA03400D00
Safety light-beam sensors | deTem | M4P-SA03400A00, M4P-EA03400D00 | Product version: deTem4 | Functional principle: Sender/receiver | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Functions: Protective operation, beam coding, restart interlock, external device monitoring (EDM), Differentiation between person and material | Scanning range: 90 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Depending on system plug (M12 ma
TCT-2PAZZ2506MZ
Temperature sensors | TCT | TCT-2PAZZ2506MZ | Temperature measuring range: –50 °C ... +150 °C | Process connection: Without process connection | Insertion length/diameter of probe: 250 mm / 6 mm | Seal: Without seal | Output signal: Pt100, 4-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -
ANM58B-TFNNA000000400AXX018X16
Absolute encoders | ANS/ANM58 | ANM58B-TFNNA000000400AXX018X16 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 16 bit (262,144 x 65,536) | Mechanical design: Through hollow shaft 12 mm (Front clamp) | Communication interface: PROFINET, programmable | Connection type: Male connector, 1x, M12, 4-pin, radial, Female connector, 2x, M12, 4-pin, radial | Programming interface: Over PLC-Engineering-Tool
YM2D24-020PN1XLEAX
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-020PN1XLEAX | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Flying leads | Signal type: Ethernet, PROFINET | Cable: 2 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
DOS-0612G000GA3KM0
Connectors and cables | Field-wireable connectors | DOS-0612G000GA3KM0 | Description: Unshielded | Connection type head A: Female connector, M26, 12-pin, straight, A-coded | Connection systems: Crimp contacts | Permitted cross-section: 0.5 mm² ... 1.5 mm² | Note: 12 crimping contacts enclosed

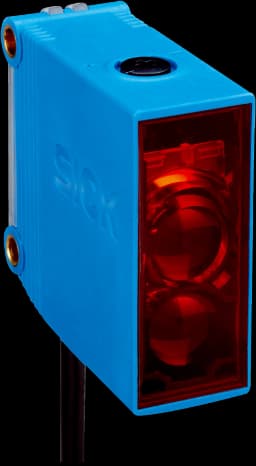

GL10-R3812
Photoelectric sensors | G10 | GL10-R3812 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 2 m | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-G10UC01, Reflector P250
T-muting arm kit, mounting on device column
Mounting systems | Muting arms | T-muting arm kit, mounting on device column | Description: Muting arm kit for 4-sensor parallel muting, pre-assembled and pre-adjusted muting sensors and reflectors, for mounting on both sides of a PP4 or PC4 device column | Items supplied: 4 × GL6G-P0211S98 muting sensor incl. cable with M12 male connector, 4-pin, angled, 2 m (2142441), 4 × P250 reflector (5304812), 8 × L-muting bracket (2113145), 4 × muting arm, long (2111923), 4 × PP4 / PC4 muting arm bracket
BF-WLL80
Device protection and care | Protective caps and hoods | BF-WLL80 | Description: Protection hood for WLL80, opens approx. 180° | Usable for: Fiber-optic sensors
FXL1-SPLMSA00
Safety switches | flexLock | FXL1-SPLMSA00 | Locking principle: Power to lock | Switching behavior of the OSSDs: Locking monitoring | Switching behavior of the application diagnostic output: Actuator monitoring | Coding: Universally coded | Auxiliary release: no | Escape release: no | Retaining force: 30 N
SLG10S-040SER11D40
Automation light grids | SLG-2 | SLG10S-040SER11D40 | Optical light exit: Slim | Beam separation: 10 mm | Operating range: 1.5 m | Detection height: 400 mm | Length of cable: 150 mm

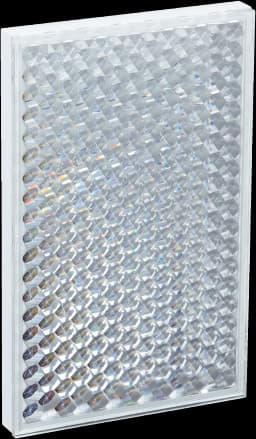

PL81
Reflectors and optics | Reflectors | PL81 | Description: Rectangular, self-adhesive | Dimensions: 50.3 mm 8.2 mm 80.2 mm | Ambient operating temperature: –20 °C ... +65 °C
