Търсене в каталога
41538 резултата за "SICK" · стр. 141/2077
i110-E0453
Safety switches | i110 Lock | i110-E0453 | Locking principle: Power to lock | Locking force FZh: 2,000 N | Connection type Detail: Cable gland, 3 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Positive action N/C solenoid monitoring contacts: 2 | N/O solenoid monitoring contacts: 0 | Positive action N/C door monitoring contacts: 2
WTB9L-3N2291
Photoelectric sensors | W9 | WTB9L-3N2291 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Adjustment: Potentiometer | Laser class: 2 | Communication interface: -
GRL18S-K2438
Photoelectric sensors | GR18 | GRL18S-K2438 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Fastening nuts (2 x)
PBS2-RB400SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-RB400SG1SSDNMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 400 bar, 0 psi ... 5,802 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal

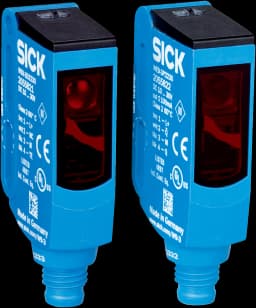

WSE9-3P2230
Photoelectric sensors | W9 | WSE9-3P2230 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: -
BEF-3SHABPKU2
Mounting systems | Brackets | BEF-3SHABPKU2 | Description: QuickFix bracket for 1 device (e.g. sender or receiver) | Material: Plastic | Details: Plastic | Packing unit: 2 pieces

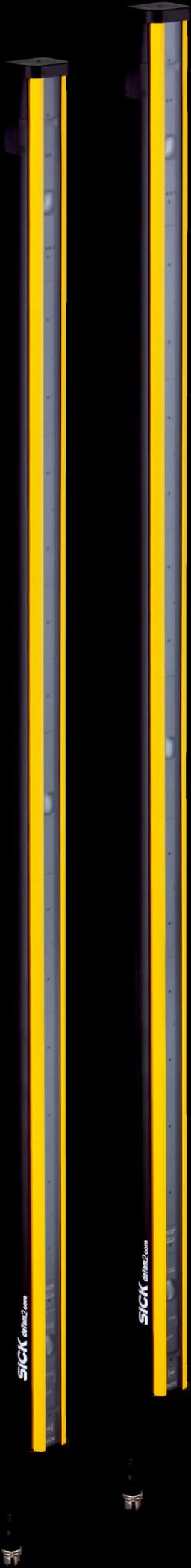

M2C-SA0340HA10, M2C-EA03400A10
Safety light-beam sensors | deTem | M2C-SA0340HA10, M2C-EA03400A10 | Product version: deTem2 Core | Functional principle: Sender/receiver | System part: Pair | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Functions: Protective operation | Scanning range: 90 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, safety instructio
DBS36E-BBEN01024
Incremental encoders | DBS36/50 | DBS36E-BBEN01024 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 1,024
YF2A6B-200UD3XLEAX
Connectors and cables | Sensor-actuator cables | YF2A6B-200UD3XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 12-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 20 m, 12-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Outdoor, Outdoor
YM2A8D-050XXXF2A8D
Connectors and cables | Other connectors and cables | YM2A8D-050XXXF2A8D | Description: Power, suitable for 2 A, shielded, Serial, CAN, Digital I/Os | Connection type head A: Female connector, M12, 17-pin, straight, A-coded | Connection type head B: Male connector, M12, 17-pin, straight, A-coded | Signal type: Power, serial, CAN, digital I/Os | Cable: 5 m, suitable for refrigeration
IHM04-0B8PSVU2S
Inductive proximity sensors | IMM | IHM04-0B8PSVU2S | Housing: Standard design | Sensing range Sn: 0.8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
BEF-KHS-N06N
Mounting systems | Brackets | BEF-KHS-N06N | Description: Plate N06N for universal clamp bracket, M18 | Material: Stainless steel, stainless steel | Details: Stainless steel 1.4571 (sheet), Stainless steel 1.4408 (clamp) | Items supplied: Universal clamp (5322627), mounting hardware | Usable for: MH15, MH15V, V180-2, V18V, W15, GR18, V18, V18 Laser, V12-2, SimpleSense, SureSense, M18 round sensors
i110-RA123
Safety switches | i110R | i110-RA123 | Actuating element type: Turning lever | Positive action N/C contacts: 1 | N/O contacts: 1 | Housing material: Metal
BEF-KHS-IS12G6
Mounting systems | Brackets | BEF-KHS-IS12G6 | Description: Clamp bar to fix G6 sensors on rods of 12 mm, clamp-on design up to 4 mm wall thickness | Material: Steel | Details: Aluminum (clamp bar), stainless steel (bracket) | Items supplied: Clamp bar mounting and clamp function, mounting bracket, mounting hardware
LBV310-XXAGDRAMX
Level sensors | LBV3xx | LBV310-XXAGDRAMX | Communication interface: - | Process connection: G 1½ A PN 25 | Probe length: 220 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Double relay (DPDT) | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Aluminum | Enclosure rating: IP66, IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
iE15-A1
Actuators and bolts | Actuators for electromechanical safety switches | iE15-A1 | Design: Angled | Actuation option: Rubber-mounted | Items supplied: Including two safety screws
WT24-2R210S03
Photoelectric sensors | W24 | WT24-2R210S03 | Sensing range max.: 100 mm ... 2,500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Terminal connection with M16 gland | Adjustment: Potentiometer
Heat protection filter for Dx80
Device protection and care | Protection filter | Heat protection filter for Dx80 | Description: Thermal shield for Dx80 with NIR filter for use with 2x cold plate BEF-KP-Dx80
STR1-SAXM0AC8
Safety switches | STR1 | STR1-SAXM0AC8 | Coding: Universally coded | Assured switch on distance Sao: 14 mm | Connection type Detail: Cable with plug M12, 8-pin | Length of cable: 0.2 m | Safe series connection: With T-connector (without diagnostics), with Flexi Loop (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
GRTE18S-P1137
Photoelectric sensors | GR18 | GRTE18S-P1137 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
