Търсене в каталога
41538 резултата за "SICK" · стр. 129/2077
IME12-04NPSVC0S
Inductive proximity sensors | IME | IME12-04NPSVC0S | Housing: Standard design | Sensing range Sn: 4 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special characteristic: Stainless-steel housing

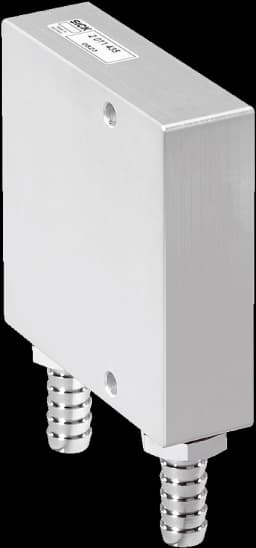

BEF-KP-W45
Device protection and care | Cooling devices | BEF-KP-W45 | Description: Water cooling plate | Material: Aluminum
YF2AA8-250UG2XLEAX
Connectors and cables | Other connectors and cables | YF2AA8-250UG2XLEAX | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 25 m, 7-wire, PUR, halogen-free | Connection systems: Flying leads | Application: Uncontaminated zones, Zones with oils and lubricants, Robot, Drag chain operation
V2D611D-MMSCE4
Image-based code readers | Lector61x | V2D611D-MMSCE4 | Variant: Complete device | Optical focus: Adjustable focus (manual) | Sensor resolution: 1,280 px x 960 px (1.2 MP) | Illumination color: Amber, blue | Focal length: 12 mm | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen | Cold storage applications: no | Note: Additional accessories may be necessary for some communication interfaces (details available online)
WTB12-3P2441S50
Photoelectric sensors | W12-3 | WTB12-3P2441S50 | Sensing range max.: 50 mm ... 100 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Adjustment: Potentiometer | Special features: Blind spots up to 40 mm, sensing range preset: 55 mm | Housing: Rectangular
MICS3-ABAZ40PZ1
Safety laser scanners | microScan3 | MICS3-ABAZ40PZ1 | Product version: microScan3 Core - PROFINET | Model: Sensor without system plug | Integration in the control system: PROFINET PROFIsafe | Protective field range: 4 m | Scanning angle: 275° | Number of fields: 8 | Connection type: M12
DFS60S-TEOC01024
Safety encoders | DFS60S Pro | DFS60S-TEOC01024 | Safety integrity level: SIL 2 (IEC 61508), SILCL2 (IEC 62061) | Performance level: PL d (EN ISO 13849) | Mechanical design: Through hollow shaft 12 mm (with feather key groove) | Communication interface: 4.5 V ... 32 V, Sin/Cos, non programmable | Connection type: Male connector, M12, 8-pin, radial | Sine/cosine periods per revolution: 1,024 | Anti-dither: no
OD5000-C30W05
Laser distance sensors | OD5000 | OD5000-C30W05 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 25 mm ... 35 mm | Repeatability: 0.05 µm | Laser class: 1 | Typ. light spot size (distance): 30 µm x 1,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
PAC50-DGD
Pressure sensors | PAC50 | PAC50-DGD | Pressure type: Gauge pressure | Pressure unit: bar | Measuring range: 0 bar ... 10 bar | Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: 2 x G ¼ | Process temperature: 0 °C ... +60 °C | Communication interface: IO-Link | Output signal: IO-Link/PNP + PNP/NPN/Push-Pull | Connection type: M12 round connector x 1, 4-pin, IP65, I
CLV620-0831S01
Fixed mount barcode scanners | CLV62x | CLV620-0831S01 | Optical focus: Fixed focus | Communication interface: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, CANopen, PROFIBUS DP | Max. reading distance: 347 mm | Code resolution: 0.2 mm ... 1 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Plastic | Cold storage applications: no | Enclosure rating: IP69K
MICS3-AAAZ40BZ1P01
Safety laser scanners | microScan3 | MICS3-AAAZ40BZ1P01 | Product version: microScan3 Core I/O AIDA | Model: Sensor (1083076) including system plug (2087958) | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 4 m | Scanning angle: 275° | Number of fields: 4 | Connection type: M12 AIDA
UM30-214112
Ultrasonic distance sensors | UM30 | UM30-214112 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 2 x PNP
BEF-MU-316G20-ALBV
Mounting systems | Assembly accessories | BEF-MU-316G20-ALBV | Description: Locking screw connection, process pressure –1 bar to 16 bar, process connection G 2 A, inner thread G 1 1/2 A | Material: Stainless steel | Details: Stainless steel 316L
BEF-HDSTRGF
Mounting systems | Brackets | BEF-HDSTRGF | Description: Hygienic design telescopic tube, straight, with bayonet lock with flange | Dimensions (W x H x L): 40 mm x 165 mm x 40 mm | Material: Stainless steel, stainless steel | Details: Hygienic Design, Stainless steel V4A (1.4404, 316L), Silicone (seal) | Suitable for: Hygienic Design BeftecHD
YF2A14-150VB3XLEAX
Connectors and cables | Sensor-actuator cables | YF2A14-150VB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 15 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
WTB4S-3F2234VS08
Photoelectric sensors | W4 | WTB4S-3F2234VS08 | Sensing range max.: 4 mm ... 280 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Dark switching | Connection type: Male connector M8, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Wire/pin, Teach-in button | Special features: Light spot diameter of 2.5
UHF Transponder, Rectangular, On-Metal, ETSI
RFID transponders | UHF transponders | UHF Transponder, Rectangular, On-Metal, ETSI | Carrier frequency: 865 MHz ... 868 MHz | Memory capacity (EPC / user memory): 496/128 Bit (EPC / User Memory) | Dimensions (L x W x H): 26 mm x 155 mm x 14.5 mm
Mounting bracket with integrated fine alignment for picoScan100
Mounting systems | Brackets | Mounting bracket with integrated fine alignment for picoScan100 | Description: Befestigungswinkel mit integrierter Ausrichtfunktion mit einer Einstellmöglichkeit von ± 3°. 1/4 Zoll UNC Gewinde zur Stativmontage. | Dimensions (W x H x L): 96 mm x 41.7 mm x 60 mm | Material: Aluminum | Details: Seawater-resistant aluminum, black anodized | Items supplied: Mounting bracket, incl. 3 x M4x6 countersunk screws for securing the device to the mounting bracket, 3 x adjustabl

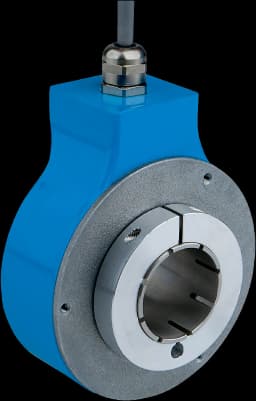

DGS80B-TSLK01024
Incremental encoders | DGS80/90 | DGS80B-TSLK01024 | Mechanical design: Through hollow shaft 30 mm (Front clamp) | Communication interface: 5 V ... 30 V, HTL, Push pull, non programmable | Connection type: Cable, 8-wire, radial, 1.5 m | Pulses per revolution: 1,024 | Flange type / stator coupling: 1-sided stator coupling with slot available for order as accessory
CM18-12NNP-EW1
Capacitive proximity sensors | CM | CM18-12NNP-EW1 | Sensing range Sn: 3 mm ... 12 mm | Installation type: Non-flush | Electrical wiring: DC 4-wire | Connection type: Cable, 4-wire | Switching output: NPN | Output function: Complementary
