DOS-1208-G
Connectors and cables | Field-wireable connectors | DOS-1208-G | Description: Unshielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: 0.25 mm² ... 0.5 mm²
IMM05-0B8PSVR8S
Inductive proximity sensors | IMM | IMM05-0B8PSVR8S | Housing: Standard design | Sensing range Sn: 0.8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with connector M8, 3-pin, 0.2 m | Special features: Visual adjustment indicator
UHF Transponder, Rectangular, On-Metal & High-Temp, ETSI
RFID transponders | UHF transponders | UHF Transponder, Rectangular, On-Metal & High-Temp, ETSI | Carrier frequency: 865 MHz ... 868 MHz | Special features: High Temperature | Memory capacity (EPC / user memory): 96/688 Bit (EPC / User Memory) | Dimensions (L x W x H): 55 mm x 36.2 mm x 7.5 mm
STR1-SASM10P5
Safety switches | STR1 | STR1-SASM10P5 | Actuator design: Standard | Coding: Universally coded | Assured switch on distance Sao: 10 mm | Connection type Detail: Cable, 5-wire | Length of cable: 10 m | Safe series connection: None, only individual wiring (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
YF2A15-C60C1BM2A15
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YF2A15-C60C1BM2A15 | Connection type head A: Female connector, M12, 5-pin, straight, A-coded | Connection type head B: Male connector, M12, 5-pin, straight, A-coded | Signal type: Fieldbus, CANopen, DeviceNet™ | Cable: 0.6 m, 4-wire, PUR, halogen-free | Description: Fieldbus, shielded, CANopen, DeviceNet™ | Application: Drag chain operation, Zones with oils and lubricants
LBV310-LKAGDRAMX
Level sensors | LBV3xx | LBV310-LKAGDRAMX | Communication interface: - | Process connection: G 1½ A PN 25 | Probe length: 220 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Double relay (DPDT) | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Aluminum | Enclosure rating: IP66, IP67 | ATEX: ATEX II 1/2G, 2G Ex db IIC T6…T1 Ga/Gb, Gb, ATEX II 1D, 1/2D,
GRTB18S-N2412
Photoelectric sensors | GR18 | GRTB18S-N2412 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)

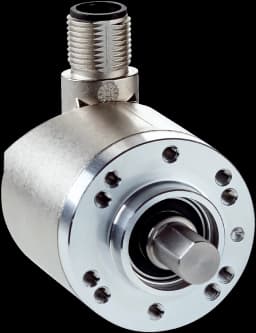

AHM36A-S5CC014x12
Absolute encoders | AHS/AHM36 | AHM36A-S5CC014x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 14 bit x 12 bit (16,384 x 4,096) | Mechanical design: Solid shaft face mount flange 8 mm x 12 mm (With flat) | Communication interface: CANopen, programmable | Connection type: Male connector, M12, 5-pin, universal | Programming interface: Over PLC-Engineering-Tool, over handheld programming tool
BEF-AP-W16
Mounting systems | Brackets | BEF-AP-W16 | Description: Adapter for mounting W16 sensors in existing W14-2/W18-3 installations or L25 sensors in existing L28 installations | Material: Plastic | Details: Plastic | Items supplied: Fastening screws included
LFP0200-B4NMB
Level sensors | LFP Cubic | LFP0200-B4NMB | Communication interface: IO-Link | Process connection: ¾" NPT | Probe length: 200 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes |
VSE180-2P42432
Photoelectric sensors | V180 | VSE180-2P42432 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (4 x)

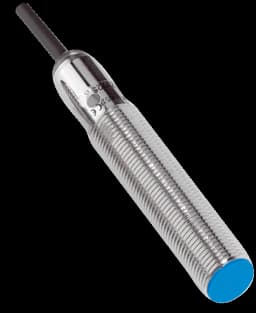

IME12-02BNSZW2S
Inductive proximity sensors | IME | IME12-02BNSZW2S | Housing: Standard design | Sensing range Sn: 2 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m
GLD20G-24112170ZZZ
Photoelectric sensors | G20 | GLD20G-24112170ZZZ | Sensing range min. / max.: 0.03 m / 20 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Type of light: Visible red light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
TSP-1QAG10606MZS
Temperature sensors | TSP | TSP-1QAG10606MZS | Temperature measuring range: –30 °C ... +130 °C | Process connection: Thread G ¼ B | Insertion length/diameter of probe: 60 mm / 6 mm | Seal: Without seal | Output signal: Pt100, 3-wire | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP67 | Communication interface: -
VSE180-2P42437
Photoelectric sensors | V180 | VSE180-2P42437 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (4 x)
VML
Track and trace systems | VML | VML | Maximum object size: 2,600 mm x 1,000 mm x 1,000 mm | Accuracy of object coverage: ± 5 mm x ± 5 mm x ± 2.5 mm ((L x W x H) up to 1 m/s), ± 5 mm x ± 5 mm x ± 5 mm ((L x W x H) up to 2 m/s), Higher conveyor speeds available upon request | Minimum object distance: 50 mm
MZT8-2V6PSTKWD
Cylinder sensors | MZT8 | MZT8-2V6PSTKWD | Connection type: Cable, 3-wire, ferrules, 10 m | Output function: NO | Electrical wiring: DC 3-wire | Communication interface: -
GTB20M-3ASD116GZZZ
Photoelectric sensors | G20 | GTB20M-3ASD116GZZZ | Sensing range min. / max.: 0.005 m / 3 m | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Relay, SPDT, electrically isolated | Switching mode: Light/dark switching | Connection type: Cable with Q6 male connector, 6-pin, AC/UC-coded, 300 mm | Light source: LED | Type of light: Infrared light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
DFS60B-BGPA10000
Incremental encoders | DFS60 | DFS60B-BGPA10000 | Mechanical design: Blind hollow shaft 14 mm (Front clamp) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 10,000
IMM04-01BNSVU2K
Inductive proximity sensors | IMM | IMM04-01BNSVU2K | Housing: Short-body | Sensing range Sn: 1 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
