Търсене в каталога
41538 резултата за "SICK" · стр. 121/2077
BEF-MS12Z-B
Mounting systems | Brackets | BEF-MS12Z-B | Description: Mounting bar, Z-shaped, 150 mm x 70 mm x 250 mm, steel | Material: Steel | Details: Steel, zinc coated | Items supplied: Without mounting hardware | Usable for: Fiber-optic sensors

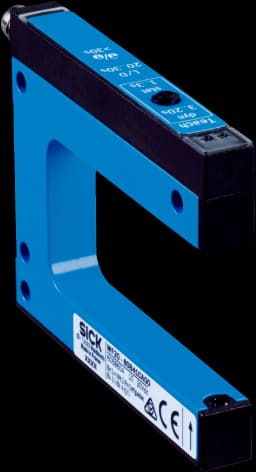

WF2-60B41CA00
Fork sensors | WF | WF2-60B41CA00 | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Light source: LED | Type of light: Infrared light | Fork width/depth: 2 mm, 59 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 15 kHz | Response time: ≤ 46 µs | Enclosure rating: IP65
FX3-MOC100000
Safety controllers | Flexi Soft | FX3-MOC100000 | Module: Motion Control module | Connection type: Male connector, Micro D-Sub, 15-pin | Encoder interface: A/B incremental encoder, TTL, A/B incremental encoder, HTL 12 V or 24 V, A/B incremental encoder, RS-422, Sin/cos encoder, SSI encoder (master / listener), HIPERFACE® | Drive safety functions: Safe stop 1 (SS1), safe stop 2 (SS2), safe operating stop (SOS), safe speed monitoring (SSM), safely-limited speed (SLS), safe direction (SDI), safe br
RAY26P-34137B30ZZZ
Photoelectric sensors | RAY26 Reflex Array | RAY26P-34137B30ZZZ | Minimum object size: 5 mm | Detection height: 24 mm | Sensing range max.: 0 m ... 1.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics), Reflex Array | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin, 270 mm | Light source: PinPoint LED | Adjustm

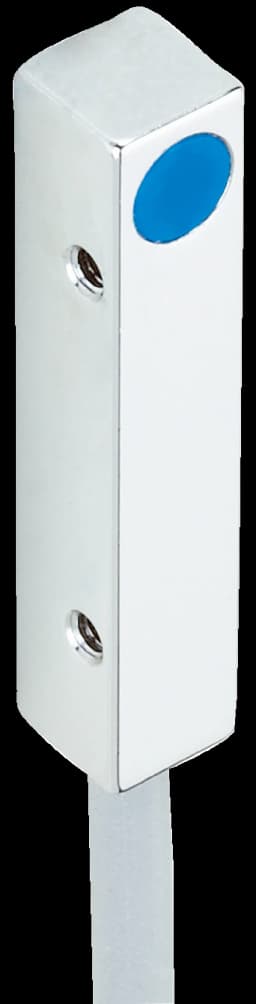

IQ05-0B8PS-ZU1
Inductive proximity sensors | IQY | IQ05-0B8PS-ZU1 | Sensing range Sn: 0.8 mm | Installation type: Flush | Cuboid shape (W x H x D): 5 mm x 25 mm x 5 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable, 3-wire, 2 m
i10-E0354 Lock
Safety switches | i10 Lock | i10-E0354 Lock | Locking principle: Power to lock | Locking force FZh: 1,000 N | Connection type Detail: Plug connector, M12, 8-pin | Safe series connection: With Flexi Loop (with diagnostics) | Positive action N/C solenoid monitoring contacts: 1 | N/O solenoid monitoring contacts: 0 | Positive action N/C door monitoring contacts: 2

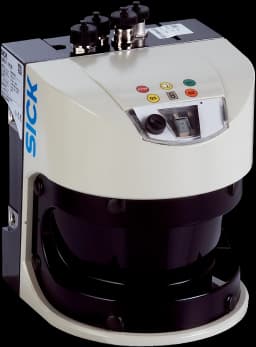

LMS511-20100 PRO
LiDAR sensors | LMS5xx | LMS511-20100 PRO | Working range: 0.2 m ... 80 m | Resolution power: High Resolution | Enclosure rating: IP65, IP67 | Color: Gray (RAL 7032) | Integrated application: Field evaluation, output of measurement data | Connection type: 4 x M12 round connector | Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
Connecting cable
Connectors and cables | Other connectors and cables | Connecting cable | Description: Shielded | Connection type head A: Male connector, Micro D-Sub, 15-pin, angled | Connection type head B: Flying leads | Cable: 2 m | Connection systems: Flying leads | Note: For direct encoder connection
WTE280-2P4331
Photoelectric sensors | W280 | WTE280-2P4331 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable gland | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W280
BEF-KHZT01MPA
Mounting systems | Brackets | BEF-KHZT01MPA | Description: For T-slot cylinders | Material: Stainless steel, brass | Details: Stainless steel V2A (bracket/mounting screw), Brass (fixing screw/sliding nut) | Usable for: MPA-107 mm ... 251 mm (sensor measuring range), 2 (recommended number of brackets), MPA-287 mm ... 431 mm (measuring range sensor), 3 (recommended number mounting brakets), MPA-467 mm ... 647 mm (measuring range sensor), 4 (recommended number mounting brakets), MPA-683 mm ... 791

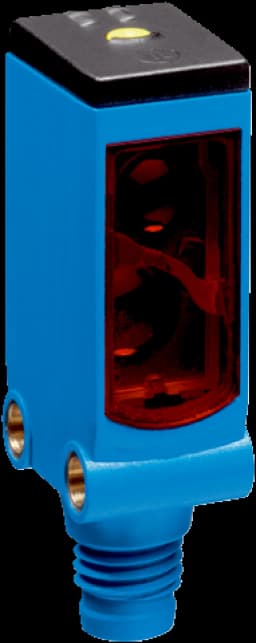

WTB4SLC-3P2262A00
Photoelectric sensors | W4 | WTB4SLC-3P2262A00 | Sensing range max.: 25 mm ... 300 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: IO-Link, Teach-in button | Communication interface: IO-Link V1.1 | Smart Sensor: E
GTB6-P3411S41
Photoelectric sensors | G6 | GTB6-P3411S41 | Sensing range max.: 6 mm ... 250 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light switching | Connection type: Connector M8, 3-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: Potentiometer | Special features: Fixed sensitivity control, sensing range preset to 180 mm based on objects
PM4-A129110000000
Reflectors and optics | Mirror | PM4-A129110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 1,294.5 mm | Mirror length: 1,102 mm | Suitable for deTec safety light curtain: Protective field height ≤ 1,050 mm | Suitable for deTem safety light-beam sensor: 4 beams, distance of l
Power supply unit
Power supply units and power supply cables | Power supply units | Power supply unit | Input voltage: 90 V AC ... 255 V AC | Output voltage: 5.2 V DC | Output current: 1 A | Description: Power supply unit with EU plug for cable-bound handheld scanners, 1 A, 5.2 V DC, 90 V AC ... 255 V AC at 50 Hz ... 60 Hz (Honeywell 46-00526)
MPS-032TSTP0
Cylinder sensors | MPS-T | MPS-032TSTP0 | Measuring range: 32 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP67 | Electrical wiring: DC 4-wire | Communication interface: -

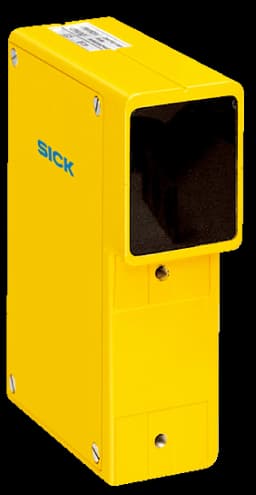

WEU26/3-103A00
Safety light-beam sensors | WSU/WEU26-3 | WEU26/3-103A00 | System part: Receiver | Safety level: PL e, SIL 3, Type 4 | Scanning range: 20 m | Housing material: Aluminum die cast | Connection type: PG gland (13,5) | Front screen heating: yes
LL3-DK06
Fiber-optic sensors | Fiber-optic cables | LL3-DK06 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)

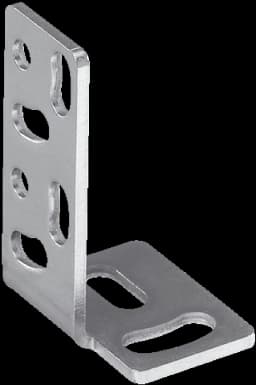

BEF-WG-W12
Mounting systems | Brackets | BEF-WG-W12 | Description: Mounting bracket, large | Material: Stainless steel | Details: Stainless steel | Items supplied: Mounting hardware included | Suitable for: W11-2, W12-3, W16
GTE6-F7431V
Photoelectric sensors | G6 | GTE6-F7431V | Sensing range max.: 30 mm ... 900 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable with plug, M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: Stainless steel V4A (1.4404, 316L) | Adjustment: Potentiometer | Housing: Rectangular

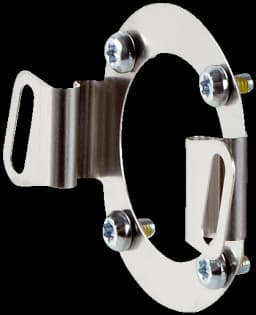

BEF-DS-DBS36
Mounting systems | Stator couplings | BEF-DS-DBS36 | Product family: Stator couplings | Description: Two-sided stator coupling, screw hole diameter 42 to 46 mm, slot width 3.2 mm
