41538 резултата за "SICK" · стр. 118/2077
WL4SL-3F2234
Photoelectric sensors | W4 | WL4SL-3F2234 | Sensing range max.: 0 m ... 12 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Wire/pin, Teach-in button | Housing: Rectangu
LBV310-GXAGDTAMX
Level sensors | LBV3xx | LBV310-GXAGDTAMX | Communication interface: - | Process connection: G 1½ A PN 25 | Probe length: 220 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: 1 x PNP/NPN | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Aluminum | Enclosure rating: IP66, IP67 | ATEX: ATEX II 1D, 1/2D, 2D Ex ta ta/tb tb IIIC Tx Da, Da/Db, Db | Display: n
ACM36-K1K0-K01
Absolute encoders | ACS/ACM36 | ACM36-K1K0-K01 | Singleturn or multiturn version: Multiturn | Max. resolution: 4 bit (2,979 x 16) | Mechanical design: Solid shaft Servo flange 6 mm x 12.4 mm (With flat) | Communication interface: -, Current | Connection type: Cable, radial, 1.5 m
RZT7-03ZRS-KWB
Cylinder sensors | RZT7 | RZT7-03ZRS-KWB | Connection type: Cable, 3-wire, stripped | Output function: NO | Overrun distance, typ.: 10 mm | Enclosure rating: IP65, IP67 | Supply voltage: 5 V AC/DC ... 30 V AC/DC | Electrical wiring: AC/DC 3-wire
DBS50E-SKEL02048
Incremental encoders | DBS36/50 | DBS50E-SKEL02048 | Mechanical design: Solid shaft face mount flange 8 mm x 13 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 3 m | Pulses per revolution: 2,048
DOS-1204-GE
Connectors and cables | Field-wireable connectors | DOS-1204-GE | Description: Ethernet, shielded | Connection type head A: Female connector, M12, 4-pin, straight, D-coded | Signal type: Ethernet | Cable: CAT5, CAT5e | Connection systems: IDC quick connection | Permitted cross-section: 0.14 mm² ... 0.34 mm²

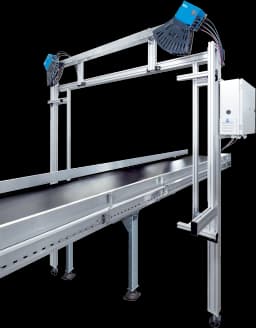

VMS4200
Track and trace systems | VMS4x00/5x00 | VMS4200 | Conveyor type: Belt conveyor | Legal-for-trade: no | Touching objects: no | Side-by-side: no | Deformation detection: no | Transport speed: ≤ 0.1 m/s 4 m/s start-stop operation possible | Accuracy of object coverage: ± 5 mm ± 5 mm ± 2 mm, ± 0.2 ″ ± 0.2 ″ ± 0.1 ″ | Maximum object size: 5,500 mm x 1,600 mm x 1,400 mm (Larger on request), 216 ″ x 63 ″ x 55 ″ (Larger on request)
LFH-EBX60G1AF20SZ0
Level sensors | LFH | LFH-EBX60G1AF20SZ0 | Communication interface: - | Process connection: Without process connection | Remote amplifier: No | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: FEP cable connection | Process temperature: –10 °C ... +85 °C | Process pressure: 0 bar ... 0.6 bar | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Specialty: Enhanced var
HSE18-A4A1AA
Photoelectric sensors | H18 Sure Sense | HSE18-A4A1AA | Device version: Standard | Communication interface: - | Mounting system type: M18, head/side (24.1 … 25.4 mm) | Sensor/ detection principle: Through-beam photoelectric sensor | Sensing range: 20 m | Light source, light type: LED, Infrared light | Voltage type: DC | Switching output Q1: PNP, Dark switching | Switching output Q2: NPN, Dark switching | Potentiometer, right: None | Potentiometer, left: None | Connection type: Male connector M12
DFS60B-S1EA00300
Incremental encoders | DFS60 | DFS60B-S1EA00300 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 10 V ... 32 V, HTL, Push pull | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 300

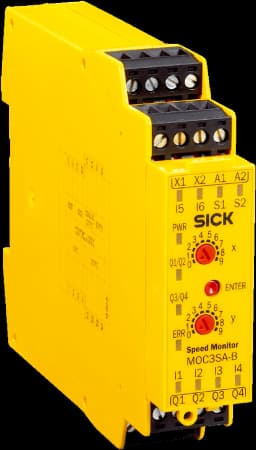

MOC3SA-AAB43D31
Safe motion monitoring and control | Speed Monitor | MOC3SA-AAB43D31 | Selectable speed limit: 0.1 Hz ... 9.9 Hz | Connection type: Screw-type terminals
STR1-SACM0PR5
Safety switches | STR1 | STR1-SACM0PR5 | Actuator design: Compact | Coding: Universally coded | Assured switch on distance Sao: 10 mm | Connection type Detail: Cable with plug M12, 5-pin | Length of cable: 0.2 m | Safe series connection: With Flexi Loop (with diagnostics) | Auxiliary contact (AUX): 1 (switching behavior equivalent to actuator in the protected switch-on state)
PICS150-01000 Core-2 6 I/O
LiDAR sensors | picoScan100 | PICS150-01000 Core-2 6 I/O | Working range: 0.05 m ... 25 m | Scanning range: 25 m at 90% remission factor, 12 m at 10% remission factor | Angular resolution: 0.25°, 0.33°, 1° | Scanning frequency: 15 Hz, 25 Hz | Integrated application: Output of measurement data, 2D Object Detection | Digital add-ons: Data Reduction & Data Preparation package, Reliability package, Multi-echo technology, LMDscandata (data format), Reflector detection, IMU (Inertial Measurement Unit)
DFS60B-BECC01000
Incremental encoders | DFS60 | DFS60B-BECC01000 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,000

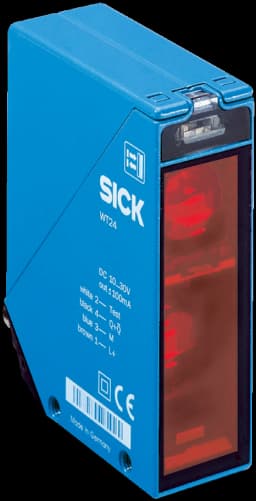

WT24-2R210
Photoelectric sensors | W24 | WT24-2R210 | Sensing range max.: 100 mm ... 2,500 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: Relay | Switching mode: Light/dark switching | Connection type: Terminal connection with M16 gland | Adjustment: Potentiometer
YG2A14-020UB3XLEAX
Connectors and cables | Sensor-actuator cables | YG2A14-020UB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 2 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
YI2AP4-050VB3XLEAX
Connectors and cables | Sensor-actuator cables | YI2AP4-050VB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, angled | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 4-wire, PVC | Connection systems: Flying leads | Note: This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind., Not resistant against lactic acid & hydroge
WL280-2R4331
Photoelectric sensors | W280 | WL280-2R4331 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: Relay | Switching mode: Light switching | Connection type: Cable gland | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Mounting bracket BEF-W280, Reflector P250
WL12-3N1131
Photoelectric sensors | W12-3 | WL12-3N1131 | Sensing range max.: 0 m ... 7 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Type of light: Visible red light | Adjustment: Potentiometer | Housing: Rectangular | Included with delivery: 2 x clamps BEF-KH-W12, incl.
IQ20-07BPSDP0S
Inductive proximity sensors | IQV | IQ20-07BPSDP0S | Sensing range Sn: 7 mm | Installation type: Flush | Cuboid shape (W x H x D): 20 mm x 32 mm x 8 mm | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with connector M8, 3-pin, 0.3 m
