Mounting bracket
Mounting systems | Brackets | Mounting bracket | Description: Mounting bracket for mounting ICLxxx | Items supplied: Bracket and screws included

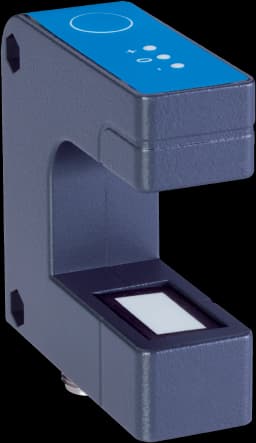

UFW3-43B717ZZZ
Fork sensors | UFW | UFW3-43B717ZZZ | Communication interface: IO-Link | Adjustment: Teach-in button, cable | Fork width/depth: 30 mm, 43 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Response time: 5.1 ms | Enclosure rating: IP67
MPS-M50TUH03E45CZZ
Cylinder sensors | MPS-M | MPS-M50TUH03E45CZZ | Connection type: Cable with plug, M12, 4-pin, 0.3 m | Output function: Analog, IO-Link | Measuring range: 50 mm | Diagnostic functionality: Actuator diagnosis | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
L40S-11MA1A, L40E-11MA1A
Safety light-beam sensors | L4000 Systems | L40S-11MA1A, L40E-11MA1A | System part: Pair | Safety level: PL e, SIL 3, Type 4 | Scanning range: 7 m | Diameter: M18 | Optical axis: Radial | Housing material: Nickel-plated brass | Connection type: Male connector M12, 4-pin
UHF Transponder, Rectangular, On-Metal, FCC
RFID transponders | UHF transponders | UHF Transponder, Rectangular, On-Metal, FCC | Carrier frequency: 902 MHz ... 928 MHz | Special features: High Temperature | Memory capacity (EPC / user memory): 96/32 bits (EPC / User Memory) | Dimensions (L x W x H): 32 mm x 10.8 mm x 6 mm
MPS-032TSNP0
Cylinder sensors | MPS-T | MPS-032TSNP0 | Measuring range: 32 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP67 | Electrical wiring: DC 4-wire | Communication interface: -
GRTB18-N1187
Photoelectric sensors | GR18 | GRTB18-N1187 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Cable, 4-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
LL3-TA05
Fiber-optic sensors | Fiber-optic cables | LL3-TA05 | Functional principle: Through-beam system | Thread diameter (housing): M2.6
YG8U13-100UB1XLEAX
Connectors and cables | Sensor-actuator cables | YG8U13-100UB1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M8, 3-pin, angled, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 10 m, 3-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
WL4SLG-3P2232
Photoelectric sensors | W4 | WL4SLG-3P2232 | Sensing range max.: 0 m ... 4.5 m | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: Without reflector minimum distance (autocollimation/coaxial optics) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M8, 4-pin | Light source: Laser | Type of light: Visible red light | Laser class: 1 | Housing material: Novodur | Adjustment: Teach-in button | Housing: Rectangula
LUM-FT
Commissioning aids and test equipment | Alignment aids | LUM-FT | Description: Thick chalk, red fluorescent, 12 units

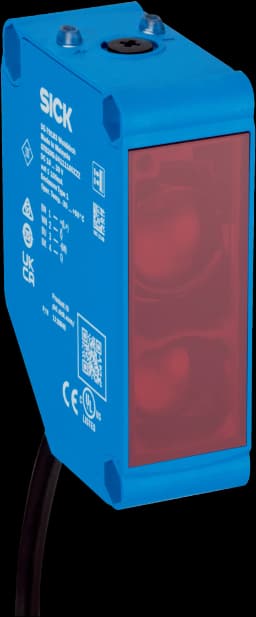

GTE20M-1IRC1170ZZZ
Photoelectric sensors | G20 | GTE20M-1IRC1170ZZZ | Sensing range min. / max.: 0.005 m / 3.5 m | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: Relay, SPDT, electrically isolated | Switching mode: Light/dark switching | Connection type: Cable, 5-wire, 2 m | Light source: LED | Type of light: Infrared light | Housing material: ABS | Adjustment: Potentiometer | Housing: Rectangular
PICS150-01000 Core w/o add-ons
LiDAR sensors | picoScan100 | PICS150-01000 Core w/o add-ons | Working range: 0.05 m ... 25 m | Scanning range: 25 m at 90% remission factor, 12 m at 10% remission factor | Angular resolution: 0.25°, 0.33°, 1° | Scanning frequency: 15 Hz, 25 Hz | Integrated application: Output of measurement data | Connection type: 1 “Ethernet” connection, 4-pin M12 female connector, D-coded, 1 “POWER” connection, 5-pin M12 plug, A-coded | System plug: See system plug 2116047 | Variant: Standard (not pre-configu
BEF-KHSQ12ZR01
Mounting systems | Brackets | BEF-KHSQ12ZR01 | Description: Q-Lock, bar clamp system for G10 and reflector P250 | Material: Zinc diecast, steel | Details: Die-cast zinc, steel, zinc coated | Items supplied: Incl. slot-in sheet clamp | Suitable for: G10 and reflector P250
AS30-PBM434I110ZZZ
Array sensors | AS30 | AS30-PBM434I110ZZZ | Communication interface: IO-Link | Sensor principle: Proximity system | Functional principle: Web guiding, positioning | Principle of operation (default): Positioning | Light source: LED | Measuring range / sensing distance: 45 mm / 100 mm | Switching output: Push-pull: PNP/NPN | Connection type Detail: Plug, M12, 5-pin | Repeatability: 0.2 mm | Switching frequency: 500 Hz | Analog output: 4 mA ... 20 mA

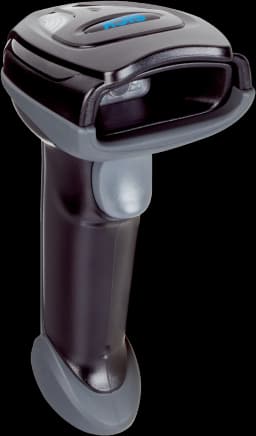

IDM241-411S
Mobile handheld scanners | IDM | IDM241-411S | Readable code structures: 1D codes, 2D codes, Stacked | Reading distance: 30 mm ... 400 mm | Application: Standard application | Scanner design: Wireless variant | Note: Additional accessories may be necessary for some communication interfaces (details available online) | Communication interface: Ethernet, PROFINET, EtherCAT®, Serial, PROFIBUS DP, USB, Bluetooth | Ambient operating temperature: –10 °C ... +50 °C | Code resolution: ≥ 0.07 mm, ≥ 0.13
GRTE18-P2452
Photoelectric sensors | GR18 | GRTE18-P2452 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
MLG02N-0895H13201
Automation light grids | MLG-2 | MLG02N-0895H13201 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 2.5 mm | Operating range: 2 m | Detection height: 895 mm | Length of cable: 0.22 m, 0.21 m | Response time: 29 ms | Software feature (default setting - see technical data/features): 01
WS/WE100-2P1439
Photoelectric sensors | W100 | WS/WE100-2P1439 | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A
STS030-HN030-AK22
Motor feedback systems | STS | STS030-HN030-AK22 | Communication interface: HIPERFACE® | Sine/cosine periods per revolution: 70 | Safety system: no | Mechanical design: Through hollow shaft | Connection type: Male connector, 8-pin | Inner diameter of hollow shaft: 30 mm | Operating temperature range: –30 °C ... +105 °C, –30 °C ... +100 °C | Items supplied: Mounting screws not included with delivery.
