YF2A18-C25UA5M2A18
Connectors and cables | Sensor-actuator cables | YF2A18-C25UA5M2A18 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Connection type head B: Male connector, M12, 8-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 0.25 m, 8-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
UP56-214112
Level sensors | UP56 | UP56-214112 | Communication interface: - | Process connection: G 2 A PN 6 | Remote amplifier: No | Output signal: 2 x PNP | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –25 °C ... +70 °C | Process pressure: 0 bar ... 6 bar | Wetted parts: Stainless steel 1.4571, FFKM | Housing material: Stainless steel 1.4571, PBT, TPU | Measuring range in tank: 350 mm ... 3,400 mm | Measuring range immersion tube: 350 mm ... 8,000 mm | Enclosure rating: IP67 | Di
MLG02A-0295B13201
Automation light grids | MLG-2 | MLG02A-0295B13201 | Device version: Pro - Extended functionality | Inputs/outputs: 2 x analog + 2 x Q (IO-Link) | Option: None | Beam separation: 2.5 mm | Operating range: 2 m | Detection height: 295 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 10.5 ms | Software feature (default setting - see technical data/features): 01

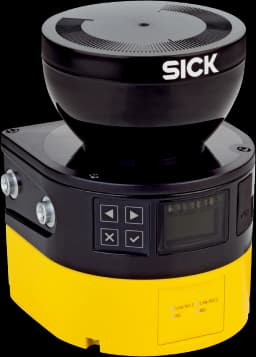

MICS3-ABAZ55IZ1
Safety laser scanners | microScan3 | MICS3-ABAZ55IZ1 | Product version: microScan3 Core - EtherNet/IP | Model: Sensor without system plug | Integration in the control system: CIP Safety™ over EtherNet/IP™ | Protective field range: 5.5 m | Scanning angle: 275° | Number of fields: 8 | Connection type: M12
LFP3000-E4NMB
Level sensors | LFP Cubic | LFP3000-E4NMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 3,000 mm | Probe type: Cable probe | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V | Connection type: Round connector M12 x 1, 5-pin | Process temperature: –20 °C ... +100 °C | Process pressure: –1 bar ... 10 bar | Wetted parts: Stainless steel 1.4404 / 316L, PTFE, FKM | Housing material: PBT | Enclosure rating: IP67 | Display: yes
Mounting kit 2a
Mounting systems | Brackets | Mounting kit 2a | Description: Alignment bracket, alignment with cross-wise axis and depth axis possible, distance between mounting surface and device: 22.3 mm, only in conjunction with mounting kit 1a (2073851) or 1b (2074242) | Material: Stainless steel | Details: Stainless steel V2A (1.4301), powder-coated IGP-DURA face 5803A | Color: RAL 9005 (black) | Packing unit: 1 piece
Connection cable
Connectors and cables | Other connectors and cables | Connection cable | Description: Shielded | Connection type head A: Male connector, D-Sub-HD, 15-pin, straight | Connection type head B: Male connector, D-Sub, 9-pin, straight | Cable: 10 m | Note: To connect two motor feedback splitter boxes
YM2A15-020UB5XLEAX
Connectors and cables | Sensor-actuator cables | YM2A15-020UB5XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 5-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 2 m, 5-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
DAXLAN-0350BA480000D00
Linear encoders | DAX | DAXLAN-0350BA480000D00 | Design: DAX Low Profile | Communication interface: - / Current | Current output: 4 mA ... 20 mA | Connection type: Male connector, M12, 5-pin | Measurement range: 0 mm ... 350 mm | Supply voltage: 24 V DC (± 20%) | Sequence of signals: Rising | Unusable range (zero zone/damping zone): 55 mm / 63 mm | Magnet type: Large block magnet MAG-B-200-01
IMM04-01BPSVR8S
Inductive proximity sensors | IMM | IMM04-01BPSVR8S | Housing: Standard design | Sensing range Sn: 1 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with connector M8, 3-pin, 0.2 m | Special features: Visual adjustment indicator

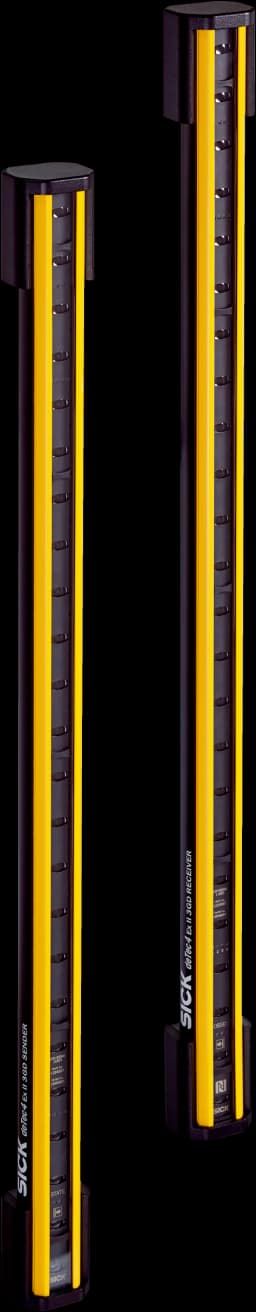

C4P-SX18031A00, C4P-EX18031C00
Safety light curtains | deTec | C4P-SX18031A00, C4P-EX18031C00 | Product version: deTec4 Ex II 3GD | System part: Pair | Application: Explosive areas | Ex-approvals: Ex II 3G/3D | Safety level: PL e, SIL 3, Type 4 | Resolution: 30 mm | Scanning range: 30 m | Protective field height: 1,800 mm | Connection type: Depending on system plug (M12 male connector, 5-pin or 8-pin) | Extension connection: Depending on system plug (without extension connection or with M12 female connector, 5-pin) | Enclosur
KUP-0606-B
Shaft adaptation | Shaft couplings | KUP-0606-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular +/- 4°; max. speed 10,000 rpm, –30 °C to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum hub
WTF26P-24161420A00
Photoelectric sensors | W26 | WTF26P-24161420A00 | Sensing range min. / max.: 0 mm / 800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Foreground suppression | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Type of light: Visible red light | Housing material: VISTAL® | Adjustment: Teach-in button, IO-Link, Potentiometer, Teach-Turn adjustment | Commu
CDM420-0006
Junction boxes | CDM | CDM420-0006 | Brief description: Modular connection module for one sensor, 2 A fuse | Communication interface: EthernetSerialCANPROFIBUS DPDeviceNet™ | Communication Interface detail: RS-232 | Supported products: Lector seriesRFID read/write deviceCLV61x - CLV65xCLV69x
DBS50E-SKEJ02048
Incremental encoders | DBS36/50 | DBS50E-SKEJ02048 | Mechanical design: Solid shaft face mount flange 8 mm x 13 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, universal, 0.5 m | Pulses per revolution: 2,048
SGS4-S108P3PS1W00
Automation light grids | SLG | SGS4-S108P3PS1W00 | Optical light exit: Slim | Aluminum stabilizer: Without stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Parallel beam active | Operating range: 3 m | Detection height: 1,080 mm | Response time: 19 ms
YM08U13-0002K1823A
Connectors and cables | Field-wireable connectors | YM08U13-0002K1823A | Description: Sensor/actuator cable | Connection type head A: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Connection systems: IDC quick connection | Permitted cross-section: 0.08 mm² ... 0.25 mm²

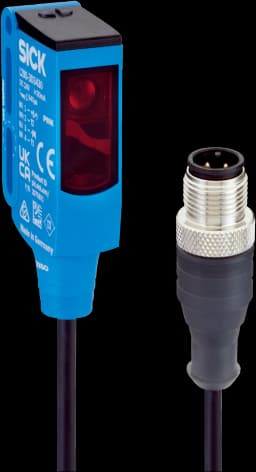

L29S-3D3430
Safety light-beam sensors | L29 | L29S-3D3430 | System part: Sender | Safety level: PL c, SIL 1, Type 2 | Scanning range: 6 m | Light source: LED | Type of light: Visible red light | Housing material: VISTAL® | Connection type: Male connector M12, 4-pin
YM2D24-030EB2MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-030EB2MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 8-pin, straight | Signal type: Ethernet, PROFINET | Cable: 3 m, 4-wire, AWG26, PVC | Description: Ethernet, shielded, PROFINET

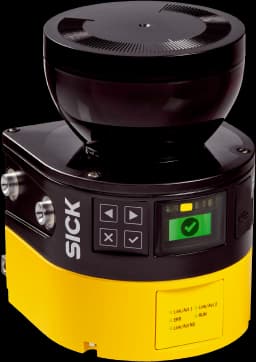

MICS3-CBAZ40EN1P01
Safety laser scanners | microScan3 | MICS3-CBAZ40EN1P01 | Product version: microScan3 Pro - EtherCAT | Model: Sensor (1108227) including system plug (2081021), pre-mounted on the underside | Integration in the control system: EtherCAT® FSoE | Protective field range: 4 m | Scanning angle: 275° | Number of fields: 128 | Connection type: M12
