41538 резултата за "SICK" · стр. 110/2077
SRS50-HAV0-K21
Motor feedback systems | SRS/SRM50 | SRS50-HAV0-K21 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: For integration | Sine/cosine periods per revolution: 1,024 | Safety system: no | Mechanical design: Plug-in shaft, Rubber support | Connection type: Cable, 8-wire, radial, 0.2 m | Technology: Optical | Operating temperature range: –30 °C ... +115 °C | Items supplied: Mounting screws for stator coupling or servo clamps not included with delivery.
DOS-1208-GA01
Connectors and cables | Field-wireable connectors | DOS-1208-GA01 | Description: Incremental, shielded, SSI | Connection type head A: Female connector, M12, 8-pin, straight, A-coded | Signal type: Incremental, SSI | Cable: CAT5, CAT5e | Connection systems: IDC quick connection | Permitted cross-section: 0.14 mm² ... 0.34 mm²
GRTE18-P2412
Photoelectric sensors | GR18 | GRTE18-P2412 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Energetic | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
MAX30N-72A10BM0060
Linear encoders | MAX | MAX30N-72A10BM0060 | Type: Ø 30 mm 31f7 - IN Cylinder Mounting Ø31H8 | Pipe diameter / Damping zone / End cap: 30 mm / Flat | Supply voltage: 24 V DC (+8 V DC ... +32 V DC) | Communication interface: - / Current | Connection type: Male connector, M12 type S (20x20 mm), 4-pin | Measuring range: 0 mm ... 60 mm
IMM05-1B5PSVQ8S
Inductive proximity sensors | IMM | IMM05-1B5PSVQ8S | Housing: Standard design | Sensing range Sn: 1.5 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Cable with plug, M12, 4-pin, 0.2 m | Special features: Visual adjustment indicator

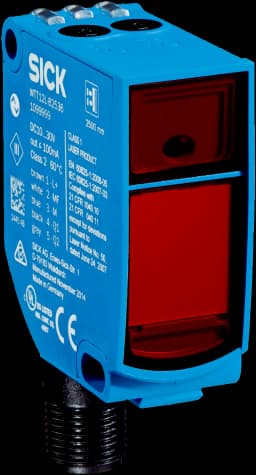

WTT12L-B2546
Laser distance sensors | WTT12 PowerProx | WTT12L-B2546 | Product version: PowerProx Precision | Sensing range max.: 50 mm ... 1,800 mm | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression, Optical time-of-flight | Switching output: Push-pull: PNP/NPN | Switching mode: Light switching | Connection type: Plug, M12, 5-pin | Analog output: - | Communication interface: -
PBS2-RB600SG1SSDNMA0Z
Pressure sensors | PBS plus | PBS2-RB600SG1SSDNMA0Z | Pressure type: Gauge pressure | Pressure unit: bar psi | Measuring range: 0 bar ... 600 bar, 0 psi ... 8,702 psi | Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2)) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –20 °C ... +85 °C | Seal: NBR | Communication interface: IO-Link | Output signal
IMF12-08NPSNC0SX02
Inductive proximity sensors | IMF | IMF12-08NPSNC0SX02 | Housing: Standard design | Special applications: Hygienic and washdown zones, Difficult application conditions, Explosive areas | Sensing range Sn: 8 mm | Installation type: Non-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Info: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X In the framework of directive 2014/34 / EU (ATEX) and DIN EN ISO/IEC 80079-
Muting arm for passive unit
Mounting systems | Muting arms | Muting arm for passive unit | Description: Muting arm with mounted reflectors for passive unit
LL3-DW01
Fiber-optic sensors | Fiber-optic cables | LL3-DW01 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 1,000 mm | Thread diameter (housing): M6 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer
KTM-MN11181P
Contrast sensors | KTM | KTM-MN11181P | Light source: LED | Communication interface: - | Sensing distance: 12.5 mm | Switching output: NPN | Light spot size: 1.5 mm x 6.5 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Male connector M8, 4-pin | Adjustment: Teach-in button | Teach-in mode: 2-point teach-in static/dynamic + proximity to mark, ET: Teach-in dynamic | Housing material: Plastic
MLG10S-2240D10504
Automation light grids | MLG-2 | MLG10S-2240D10504 | Device version: Prime - Standard functionality | Inputs/outputs: 3 x Q (IO-Link) | Option: None | Beam separation: 10 mm | Operating range: 5 m | Detection height: 2,240 mm | Length of cable: 0.22 m, 0.22 m | Response time: 24.8 ms | Software feature (default setting - see technical data/features): 04
i14-M0303 Lock
Safety switches | i14 Lock | i14-M0303 Lock | Locking principle: Power to release | Locking force FZh: 770 N | Connection type Detail: Cable gland, 1 x M20 | Safe series connection: None, only individual wiring (with diagnostics) | Positive action N/C solenoid monitoring contacts: 3 | N/O solenoid monitoring contacts: 0 | Positive action N/C door monitoring contacts: 0
UM30-213115
Ultrasonic distance sensors | UM30 | UM30-213115 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 1 x NPN
YF2A14-010UB3XLEAX
Connectors and cables | Sensor-actuator cables | YF2A14-010UB3XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 1 m, 4-wire, PUR, halogen-free | Application: Drag chain operation, Zones with oils and lubricants, Robot, Drag chain operation
YG2A15-150C1BN2A15
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YG2A15-150C1BN2A15 | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Male connector, M12, 5-pin, angled, A-coded | Signal type: Fieldbus, CANopen, DeviceNet™ | Cable: 15 m, 5-wire, PUR, halogen-free | Description: Fieldbus, shielded, CANopen, DeviceNet™ | Note: A-coded
PGT-15-M12
Programming devices | PGT-15 | PGT-15-M12 | Product segment: Programming devices | Product: PGT-15 | Description: PC programming unit for programmable TMS/TMM22B inclination sensors. Connects the M12 male connector of the sensor to a PC/laptop, enabling parameterization and diagnostics via SOPAS ET. The cable of the programming unit must not be extended. | Items supplied: 1 x PGT-15-M12 PC programming unit
UM30-213111
Ultrasonic distance sensors | UM30 | UM30-213111 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 1 x PNP
YM2D34-300PN4MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D34-300PN4MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, PROFINET | Cable: 30 m, 4-wire, CAT5, CAT5e, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Cold bending resistant, Outdoor, Zones with oils and lubricants, seawater resistant
USB cable
Connectors and cables | Other connectors and cables | USB cable | Description: USB | Connection type head A: Male connector, USB-A | Connection type head B: Male connector, RJ45 | Signal type: USB | Cable: 3 m, straightened cable
