Търсене в каталога
41538 резултата за "SICK" · стр. 107/2077
BEF-3SHABPKU4
Mounting systems | Brackets | BEF-3SHABPKU4 | Description: QuickFix bracket for 2 devices (e.g. sender and receiver) | Material: Plastic | Details: Plastic | Packing unit: 4 pieces
DBS60E-S4EM05000
Incremental encoders | DBS60 | DBS60E-S4EM05000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 8-wire, universal, 5 m | Pulses per revolution: 5,000 | Flange type / stator coupling: Flange with 3 x M3 and 3 x M4
OD2-P120W60I0
Laser distance sensors | OD Value | OD2-P120W60I0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
MPA-287THTP0
Cylinder sensors | MPA | MPA-287THTP0 | Measuring range: 287 mm | Connection type: Cable with M8 male connector, 4-pin, 0.3 m | Switching output / output function / enclosure rating: Analog, IP65, IO-Link, IP67, IP68 | Electrical wiring: DC 4-wire | Smart Sensor: Enhanced Sensing, efficient communication, diagnosis | Communication interface: IO-Link
LBV331-XXAGCTKMX0250
Level sensors | LBV301 | LBV331-XXAGCTKMX0250 | Communication interface: - | Process connection: G 1, DIN 3852-A, PN 16 / 316L | Probe length: 250 mm | Probe type: Rod probe | Remote amplifier: No | Output signal: 1 x PNP/NPN | Connection type: M20 x 1.5 | Process temperature: –50 °C ... +150 °C | Process pressure: –1 bar ... 16 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Plastic | Enclosure rating: IP66, IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
GSE6-P1112P03
Photoelectric sensors | G6 | GSE6-P1112P03 | Sensing range max.: 0 m ... 2 m | Functional principle: Through-beam photoelectric sensor | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Cable, 3-wire, 2 m | Light source: PinPoint LED | Type of light: Visible red light | Housing material: ABS/PC | Adjustment: None | Special features: With BEF-SLIT MASK-G6 | Housing: Rectangular | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A
DLS40E-BEGV00600
Incremental encoders | DLS40 | DLS40E-BEGV00600 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 27 V, HTL, Push pull | Connection type: Cable, 5-wire, radial, 2 m | Pulses per revolution: 600
IMM05-0B8NSVU2S
Inductive proximity sensors | IMM | IMM05-0B8NSVU2S | Housing: Standard design | Sensing range Sn: 0.8 mm | Installation type: Flush | Electrical wiring: DC 3-wire | Switching output: NPN | Output function: NO | Connection type: Cable, 3-wire, 2 m | Special features: Visual adjustment indicator
DOS-1204-GX
Connectors and cables | Field-wireable connectors | DOS-1204-GX | Description: Unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm²
DFS60B-S4CA02000
Incremental encoders | DFS60 | DFS60B-S4CA02000 | Mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M23, 12-pin, radial | Pulses per revolution: 2,000
C4C-SA06010A10000, C4C-EA06010A10000
Safety light curtains | deTec | C4C-SA06010A10000, C4C-EA06010A10000 | Product version: deTec4 Core | System part: Pair | Application: Normal industrial environment | Safety level: PL e, SIL 3, Type 4 | Resolution: 14 mm | Scanning range: 10 m | Protective field height: 600 mm | Connection type: Plug, M12, 5-pin | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, test rod with diameter corresponding to the resolution of the safety light curtain, safety instruction, Mounting instru
BEF-W280
Mounting systems | Brackets | BEF-W280 | Description: Mounting bracket | Material: Stainless steel | Details: Stainless steel V2A (1.4301) | Items supplied: 2 screws, 2 nuts, 2 circlips, 2 washers for mounting the sensor | Suitable for: W280-2, G20
STR1-SASF10P5
Safety switches | STR1 | STR1-SASF10P5 | Actuator design: Standard | Coding: Permanently coded | Assured switch on distance Sao: 10 mm | Connection type Detail: Cable, 5-wire | Length of cable: 10 m | Safe series connection: None, only individual wiring (with diagnostics) | Auxiliary contact (AUX): 1 (Switching behavior complementary to OSSDs)
DLS40E-S3AV01000
Incremental encoders | DLS40 | DLS40E-S3AV01000 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, radial, 2 m | Pulses per revolution: 1,000
V2D8512R-1WCIDXAF2SXXXX
Image-based code readers | Lector85x | V2D8512R-1WCIDXAF2SXXXX | Variant: Complete device | Regulatory Model: Z6ARAA | Optical focus: Adjustable focus (manual) | Sensor resolution: 6,048 px x 2,048 px (12 MP) | Illumination color: White | Focal length: 16 mm | Ambient operating temperature: 0 °C ... +50 °C | Communication interface: Ethernet, EtherNet/IP™, CAN, Serial, USB, PROFINET
IM18-05BUO-ZU0
Inductive proximity sensors | IMO | IM18-05BUO-ZU0 | Housing: Standard design | Sensing range Sn: 5 mm | Installation type: Flush | Electrical wiring: AC/DC 2-wire | Output function: NC | Connection type: Cable, 2-wire, 2 m
V2D654P-2MEWHA6
Machine vision | InspectorP64x/InspectorP65x | V2D654P-2MEWHA6 | License included: Quality Inspection License | Illumination: Integrated | Illumination color: White, Blue | Sensor resolution: 2,048 px x 2,048 px (4.2 MP) | Sensor: CMOS monochrome | Optical focus: Dynamic focus control

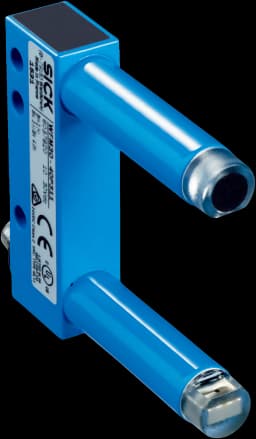

WFM30-40N311
Fork sensors | WFM | WFM30-40N311 | Adjustment: None | Light source: LED | Type of light: Visible red light | Fork width/depth: 30 mm, 42 mm | Switching output: NPN | Switching mode: Light switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 4 kHz | Response time: ≤ 125 µs | Enclosure rating: IP67
DL1000-S11102
Laser distance sensors | Dx1000 | DL1000-S11102 | Target: Reflector | Measuring range: 0.2 m ... 1,500 m, on “diamond grade” reflective tape | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm See measurement accuracy diagram | Communication interface: Ethernet, PROFIBUS DP, Serial, SSI | Type of analog output: Current output
TBS-1LSG11006NM
Temperature sensors | TBS | TBS-1LSG11006NM | Temperature measuring range: –20 °C ... +80 °C | Process connection: Thread G ¼ A | Insertion length/diameter of probe: 100 mm / 6 mm | Seal: NBR | Output signal: IO-Link/PNP + PNP | Connection type: M12 round connector x 1, 4-pin | Enclosure rating: IP65, IP67 | Communication interface: IO-Link
