Търсене в каталога
41538 резултата за "SICK" · стр. 104/2077
PET-1CB6X0G1NSAMA
Pressure sensors | PET | PET-1CB6X0G1NSAMA | Pressure type: Compound pressure | Pressure unit: bar | Measuring range: –1 bar ... 5 bar | Accuracy: ≤ ± 1.2 %, of span (at room temperature) | Process connection: G ¼ A (ISO 1179-2) | Pressure port: Standard | Process temperature: –30 °C ... +100 °C | Seal: NBR | Communication interface: - | Output signal: 4 mA ... 20 mA, 2-wire | Connection type: M12 round connector x 1, 4-pin, IP67 | Supply voltage: 8 V DC ... 30 V DC
CM30-16BPP-EC1
Capacitive proximity sensors | CM | CM30-16BPP-EC1 | Sensing range Sn: 0 mm ... 16 mm | Installation type: Flush | Electrical wiring: DC 4-wire | Connection type: Male connector M12, 4-pin | Switching output: PNP | Output function: Complementary
KTX-WB9114125UZZZZ
Contrast sensors | KTX | KTX-WB9114125UZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
IME18-12BPSZC0K
Inductive proximity sensors | IME | IME18-12BPSZC0K | Housing: Short-body | Sensing range Sn: 12 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NO | Connection type: Male connector M12, 4-pin | Special features: Triple sensing range
SAS4-S044P3TS2W0F
Automation light grids | SLG | SAS4-S044P3TS2W0F | Optical light exit: Slim | Aluminum stabilizer: With stabilizer | Parameterization: None | Beam separation: 40 mm | Cross beam/parallel beam: Cross beam active | Operating range: 3 m | Detection height: 440 mm | Response time: 57 ms
GL2S-F5311
Photoelectric sensors | G2 | GL2S-F5311 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
OD1-B035C15I25
Laser distance sensors | OD Mini | OD1-B035C15I25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
IM30-15NUS-ZUD
Inductive proximity sensors | IMO | IM30-15NUS-ZUD | Housing: Standard design | Sensing range Sn: 15 mm | Installation type: Non-flush | Electrical wiring: AC/DC 2-wire | Output function: NO | Connection type: Cable, 2-wire, 6 m
IMX12-09BPOZU2S
Inductive proximity sensors | IMX | IMX12-09BPOZU2S | Housing: Standard design | Special applications: Zones with coolants and lubricants | Sensing range Sn: 9 mm | Installation type: Quasi-flush | Electrical wiring: DC 3-wire | Switching output: PNP | Output function: NC | Connection type: Cable, 3-wire, 2 m | Special features: Quadruple sensing range, Resistant against coolant lubricants, Visual adjustment indicator
RE27-SA68LS04
Safety switches | RE2 | RE27-SA68LS04 | Systemteil: Sensor with actuator | N/O contacts: 2 | N/C contacts: 0 | Signaling contacts: 1 | Connection type Detail: Cable with plug M12, 8-pin | Length of cable: 0.2 m | Safe series connection: With Flexi Loop (with diagnostics) | Status display: yes
PM4-A099110000000
Reflectors and optics | Mirror | PM4-A099110000000 | Model: PM4 Mirror Column | Description: PM4 mirror column with fixed mirror for beam deflection. Allows multi-sided access protection. | Description: PM4 mirror column with fixed mirror for beam deflection., Allows multi-sided access protection. | Column height: 994.5 mm | Mirror length: 802 mm | Suitable for deTec safety light curtain: Protective field height ≤ 750 mm | Suitable for deTem safety light-beam sensor: 2 beams, distance of lowest
PLOC2D-8305-25
Robot guidance systems | PLOC2D | PLOC2D-8305-25 | Localization accuracy: ± 0.5 px, ± 0.1° | Sensor resolution: 2,464 px x 2,048 px (5.1 MP) | Calibration: no | Items supplied: Camera, complete with integrated optics and illumination unit as well as installed PLOC2D software app | Dimensions, system (L x W x H): 63 mm x 85 mm x 108 mm

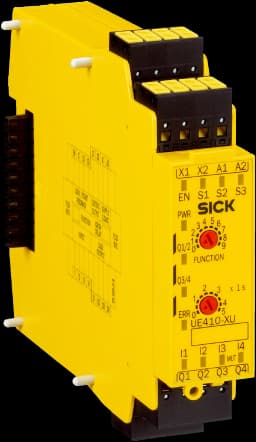

UE410-XU4T5
Safety controllers | Flexi Classic | UE410-XU4T5 | Module: I/O module | Specialization: Universal | Inputs: 4 safety inputs, 4 switching inputs | Number of muting sensors: 0 / 2 | Outputs: 4 safety outputs, 2 test outputs | Delay time (outputs Q3/Q4): 0 s ... 5 s | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no
DFS60E-BECC01024
Incremental encoders | DFS60 | DFS60E-BECC01024 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 10 V ... 32 V, TTL, RS-422 | Connection type: Male connector, M12, 8-pin, radial | Pulses per revolution: 1,024

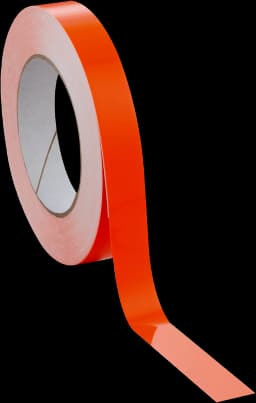

TAPE 7510-038-20-25
Codes | Positioning codes | TAPE 7510-038-20-25 | Description: Luminescent rugged PVC adhesive tape for easy application to all types of flooring, width 2 cm, length 25 m, neon orange | Suitable for: OLS, LUTS/LUTX, LUTM, GLS100
DFS60I-S1MC65536
Incremental encoders | DFS60 | DFS60I-S1MC65536 | Mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat) | Communication interface: 4.5 V ... 32 V, TTL, HTL, programmable | Connection type: Male connector, M12, 12-pin, radial | Pulses per revolution: 65,536 | Encoder material / Enclosure rating: Stainless steel V2A / IP67
TR4-SFM02CB
Safety switches | TR4 Direct | TR4-SFM02CB | System part: Sensor with actuator | Coding: Universally coded | Assured switch on distance Sao: 15 mm | Connection type Detail: Cable with plug M12, 5-pin | Length of cable: 0.2 m | Safe series connection: With Flexi Loop (with diagnostics) | Status display: yes | Boundary area indication: yes
IME2S12-04B4DQ9
Safety switches | IME2S | IME2S12-04B4DQ9 | Design: Cylindrical | Sensing range Sn: 4 mm | Dimensions: M12 x 63 mm | Thread length: 40.9 mm | Installation type: Flush | Connection type Detail: Cable with plug, M12, 4-pin | Type of output: Self-monitoring semiconductor outputs (OSSDs) | Performance level: PL d

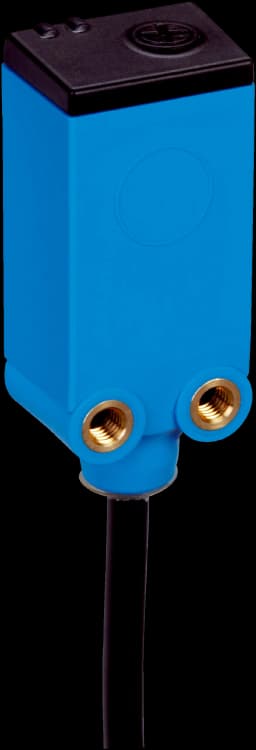

CQ4-08EPSKP1
Capacitive proximity sensors | CQ | CQ4-08EPSKP1 | Sensing range Sn: 1 mm ... 8 mm1 mm ... 6 mm | Installation type: Non-flush, flush | Electrical wiring: DC 3-wire | Connection type: Cable with connector M8, 3-pin | Switching output: PNP | Output function: NO
YM2D24-050PN1XLEAX
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-050PN1XLEAX | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Flying leads | Signal type: Ethernet, PROFINET | Cable: 5 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
