GTB2S-F5331
Photoelectric sensors | G2 | GTB2S-F5331 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Dark switching | Connection type: Cable with connector M8, 3-pin, 200 mm | Light source: PinPoint LED | Adjustment: None | Communication interface: -
KHK53-AXS00038
Linear encoders | KH53 | KHK53-AXS00038 | System part: Read head | Communication interface: SSI | Measuring range: 0 m ... 38 m | Resolution: 0.1 mm | Repeatability: 0.3 mm | Supply voltage: 10 V ... 32 V | Connection type: Cable, 12-wire, 3 m
YN2D24-100PN1XLEAX
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YN2D24-100PN1XLEAX | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Connection type head B: Flying leads | Signal type: Ethernet, PROFINET | Cable: 10 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
DFS60E-BEAK01024
Incremental encoders | DFS60 | DFS60E-BEAK01024 | Mechanical design: Blind hollow shaft 12 mm (Front clamp) | Communication interface: 4.5 V ... 5.5 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 1.5 m | Pulses per revolution: 1,024
YM2A1D-050UV1XLEAX
Connectors and cables | Sensor-actuator cables | YM2A1D-050UV1XLEAX | Description: Sensor/actuator cable, unshielded | Connection type head A: Male connector, M12, 17-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 17-wire, PUR | Application: Zones with oils and lubricants, Zones with oils and lubricants, Robot, Drag chain operation

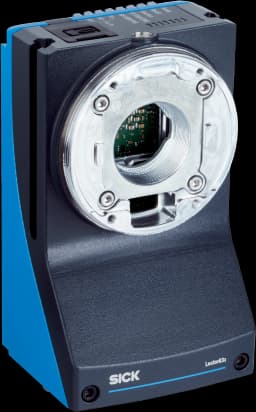

V2D8303R-1MCXXXAF0SXXXX
Image-based code readers | Lector83x | V2D8303R-1MCXXXAF0SXXXX | Variant: Main unit | Regulatory Model: C19MAA | Optical focus: Adjustable focus (manual) | Sensor resolution: 2,048 px x 1,536 px (3.15 MP) | Ambient operating temperature: 0 °C ... +50 °C | Communication interface: Ethernet, CAN, Serial, USB, EtherNet/IP™, PROFINET
SRS50S-HFA0-K21
Safe motor feedback systems | SRS/SRM50-S | SRS50S-HFA0-K21 | Communication interface: HIPERFACE® | Model: Absolute Singleturn | Type: For integration | Sine/cosine periods per revolution: 1,024 | Safety system: yes | Mechanical design: Tapered shaft, Spring mounting plate | Connection type: Male connector, 8-pin, radial | Technology: Optical | Operating temperature range: –30 °C ... +115 °C | Items supplied: Mounting screws for stator coupling or servo clamps not included with delivery.
DBS36E-S3EP02048
Incremental encoders | DBS36/50 | DBS36E-S3EP02048 | Mechanical design: Solid shaft face mount flange 6 mm x 12 mm (With flat) | Communication interface: 7 V ... 30 V, HTL, Push-Pull | Connection type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m | Pulses per revolution: 2,048
AFM60A-BFIB018x12
Absolute encoders | AFS/AFM60 Ethernet | AFM60A-BFIB018x12 | Singleturn or multiturn version: Multiturn | Max. resolution: 18 bit x 12 bit (262,144 x 4,096) | Mechanical design: Blind hollow shaft 1/2″ (Front clamp) | Communication interface: EtherNet/IP™, programmable | Connection type: Male connector, 1x, M12, 4-pin, axial, Female connector, 2x, M12, 4-pin, axial | Programming interface: Over webserver, over PLC-Engineering-Tool
GRTB18-N2412V
Photoelectric sensors | GR18 | GRTB18-N2412V | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: NPN | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Fastening nuts (2 x)
YF2A14-015VB3M2A14
Connectors and cables | Sensor-actuator cables | YF2A14-015VB3M2A14 | Description: Sensor/actuator cable, unshielded | Connection type head A: Female connector, M12, 4-pin, straight, A-coded | Connection type head B: Male connector, M12, 4-pin, straight, A-coded | Signal type: Sensor/actuator cable | Cable: 1.5 m, 4-wire, PVC | Application: Uncontaminated zones, Zones with chemicals
KTS-WB91141152ZZZZ
Contrast sensors | KTS | KTS-WB91141152ZZZZ | Light source: LED | Communication interface: - | Device type: Standard | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 0.9 mm x 3.8 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Plug, M12, 5-pin | Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode | Delivery status: 2-point teach-in | Housing material: Plastic
SX0B-B1114G
System plugs and extension modules | System plugs S300 | SX0B-B1114G | Cable: 14 m, 11-wire, PVC | Description: Pre-assembled, unshielded, Not for use of incremental encoders, integrated configuration storage | Connection systems: Flying leads
DBS36E-BBCN00050
Incremental encoders | DBS36/50 | DBS36E-BBCN00050 | Mechanical design: Blind hollow shaft 8 mm (Front clamp) | Communication interface: 7 V ... 30 V, TTL, RS-422 | Connection type: Cable, 8-wire, universal, 10 m | Pulses per revolution: 50
PLB-51D0700
Robot guidance systems | PLB | PLB-51D0700 | Items supplied: C57 camera, PLB Application Software | Part size: Depends on part geometry and application | Part characteristics: Simple and complex part shapes | Bin size: Large
SLG10S-020SBR11D41
Automation light grids | SLG-2 | SLG10S-020SBR11D41 | Optical light exit: Slim | Beam separation: 10 mm | Operating range: 6 m | Detection height: 200 mm | Length of cable: 150 mm
GL10-P4110P03
Photoelectric sensors | G10 | GL10-P4110P03 | Functional principle: Photoelectric retro-reflective sensor | Functional principle detail: With minimum distance to reflector (dual lens system) | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Male connector M12, 4-pin | Light source: PinPoint LED | Adjustment: None | Communication interface: - | Included with delivery: Q-Lock mounting system BEF-KHSQ12R01 (2x), Reflector P250
WTB8-P2131
Photoelectric sensors | W8 | WTB8-P2131 | Functional principle: Photoelectric proximity sensor | Functional principle detail: Background suppression | Switching output: PNP | Switching mode: Light/dark switching | Connection type: Connector M8, 3-pin | Light source: LED | Adjustment: Potentiometer | Communication interface: - | Included with delivery: Stainless steel mounting bracket (1.4301/304) BEF-W100-A
WF50-40B410
Fork sensors | WF | WF50-40B410 | Adjustment: Plus/minus button | Light source: LED | Type of light: Infrared light | Fork width/depth: 50 mm, 42 mm | Switching output: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Male connector M8, 4-pin | Switching frequency: 10 kHz | Response time: ≤ 100 µs | Enclosure rating: IP65
GLL170-P332
Fiber-optic sensors | GLL170 | GLL170-P332 | Device type: Fiber-optic amplifier | Device type detail: Stand-alone | Switching output: PNP | Connection type: Cable, 3-wire | Type of light: Visible red light | Adjustment: Potentiometer | Display: LED
