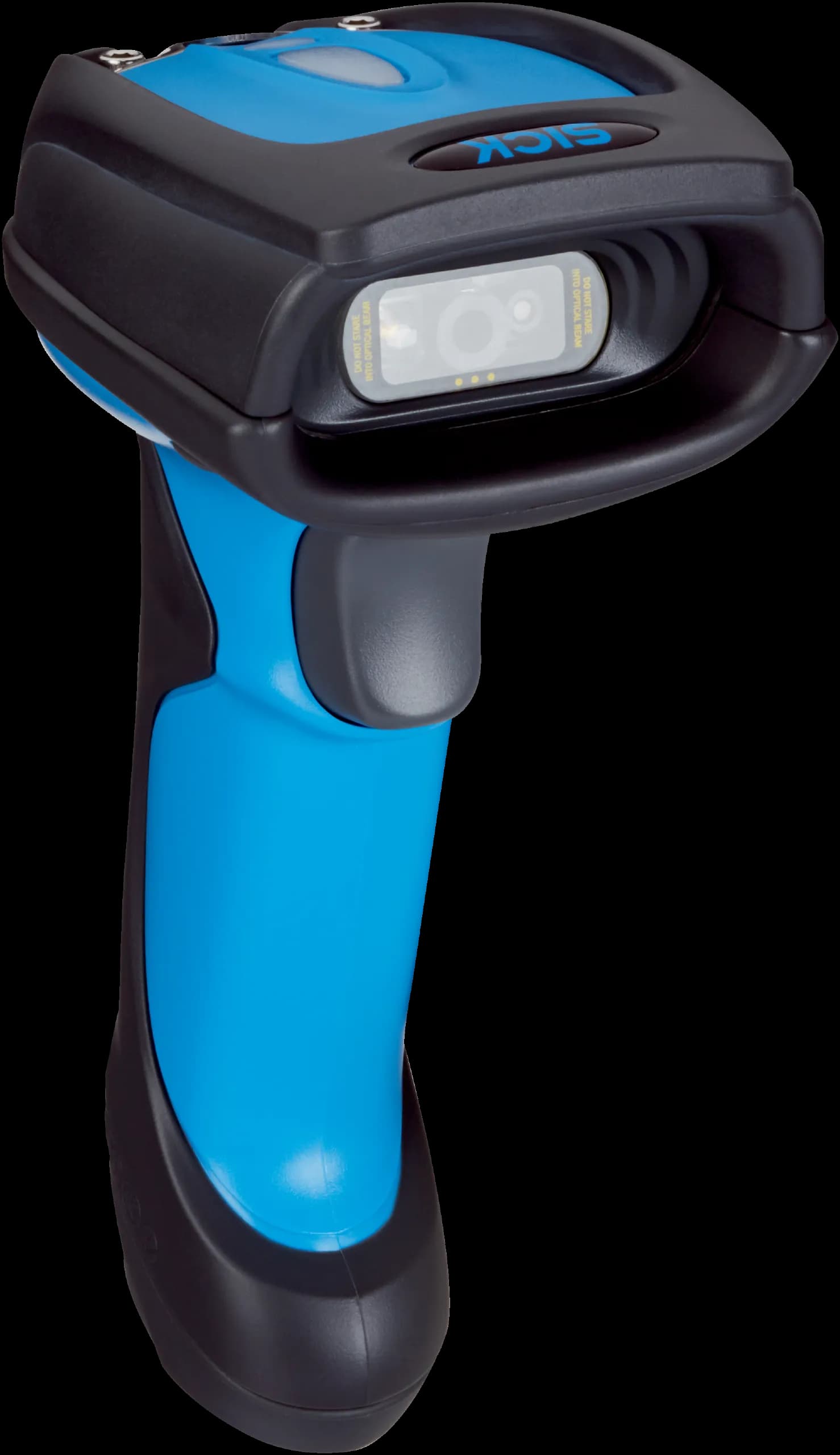

IDM261E-411S

Производител: SICK#6086916

Характеристики

Приложение: Industrial application
Описание: The cable-free IDM261E-411S incl. UltraCap™ supercapacitor serves as the batteryless voltage supply. The UltraCap™ supercapacitor is characterized by its long service life and thereby lowers the operating costs of the mobile handheld scanner. At the same time, it produces less electronic waste than battery-operated devices. The cable-free IDM261E-411S incl. UltraCap™ supercapacitor is not a hazardous good and is therefore unproblematic to ship. Moreover, the supercapacitor is easy to replace.
Технология: Image-based code reading
Конструкция на скенера: Wireless variant
Разделителна способност на сензора: 1,280 px x 800 px
Светлинен източник: LED, Visible, Red, 660 nm
Средство за подравняване: Laser, Red, 630 nm
Клас на лазера: 1 (EN/IEC 60825-1:2014)
Разстояние на четене: 30 mm ... 400 mm
Разделителна способност на кода: ≥ 0.07 mm ; ≥ 0.13 mm

Четими кодови структури: 1D codes, 2D codes, Stacked
Типове баркодове: Code 39, Code 39 Full ASCII, Code 32, Code 128, GS1-128, Codabar, Code 11, Code 93, GS1 DataBar, Standard and Industrial 2 of 5, Interleaved & Matrix 2 of 5, IATA, UPC / EAN / JAN, UPC / EAN / JAN (with addition), Telepen, MSI/Plessey, UK/Plessey, Australian Post, China Post, German Post, US Planet, US Postnet, British Post, Intelligent Mail, Japan Post, Korea Post, Dutch KIX Post, Posi LAPA 4 State Code
Видове 2D кодове: Data Matrix, MaxiCode, QR code, Aztec, MicroQR-Code, GS1 QR code, GS1 Data-Matrix
Видове многоредови кодове: PDF417, MicroPDF417, Code 49, Code 16K, Composite, Codablock F
Захранване от батерия: UltraCap™: Over 4,200 scans when fully charged
Буфер за кодове: 5,000 Codes (EAN, for scanning in batch mode), 100,000 Codes (EAN, for out of range scanning)

Ethernet: ✔ , TCP/IP
Тип на интеграцията с полевата шина: Optional, over external connection module CDF600-2
PROFINET: ✔
Тип на интеграцията с полевата шина: Optional over external fieldbus module CDF600-2
Функция: PROFINET Single Port, PROFINET Dual Port
EtherCAT®: ✔
Тип на интеграцията с полевата шина: Optional over external fieldbus module CDF600
Сериен интерфейс: ✔ , RS-232
PROFIBUS DP: ✔
Тип на интеграцията с полевата шина: Optional over external fieldbus module CDF600-2
USB: ✔
Функция: Keyboard wedge, COM-Port emulation
Bluetooth: ✔
Забележка: Bluetooth™ V4.0, 2.402 ... 2.4830 GHz
Функция: Wireless operating range up to 100 m (free view), batch function for expansion of the wireless radius, up to seven scanners communicate with one base station
Светлинни индикатори: 2 LEDs (good read, charge of battery , radio connection status)
Звукови индикатори: Beeper, can be switched off
Вибрации: Yes
Софтуер за конфигуриране: IDM Setup Tool

Комплект на доставката: The rechargeable battery is included with delivery
Забележка: A base station, a connecting cable, and possibly also a power supply unit are required for commissioning.; Not free of paint wetting impairment substances.
