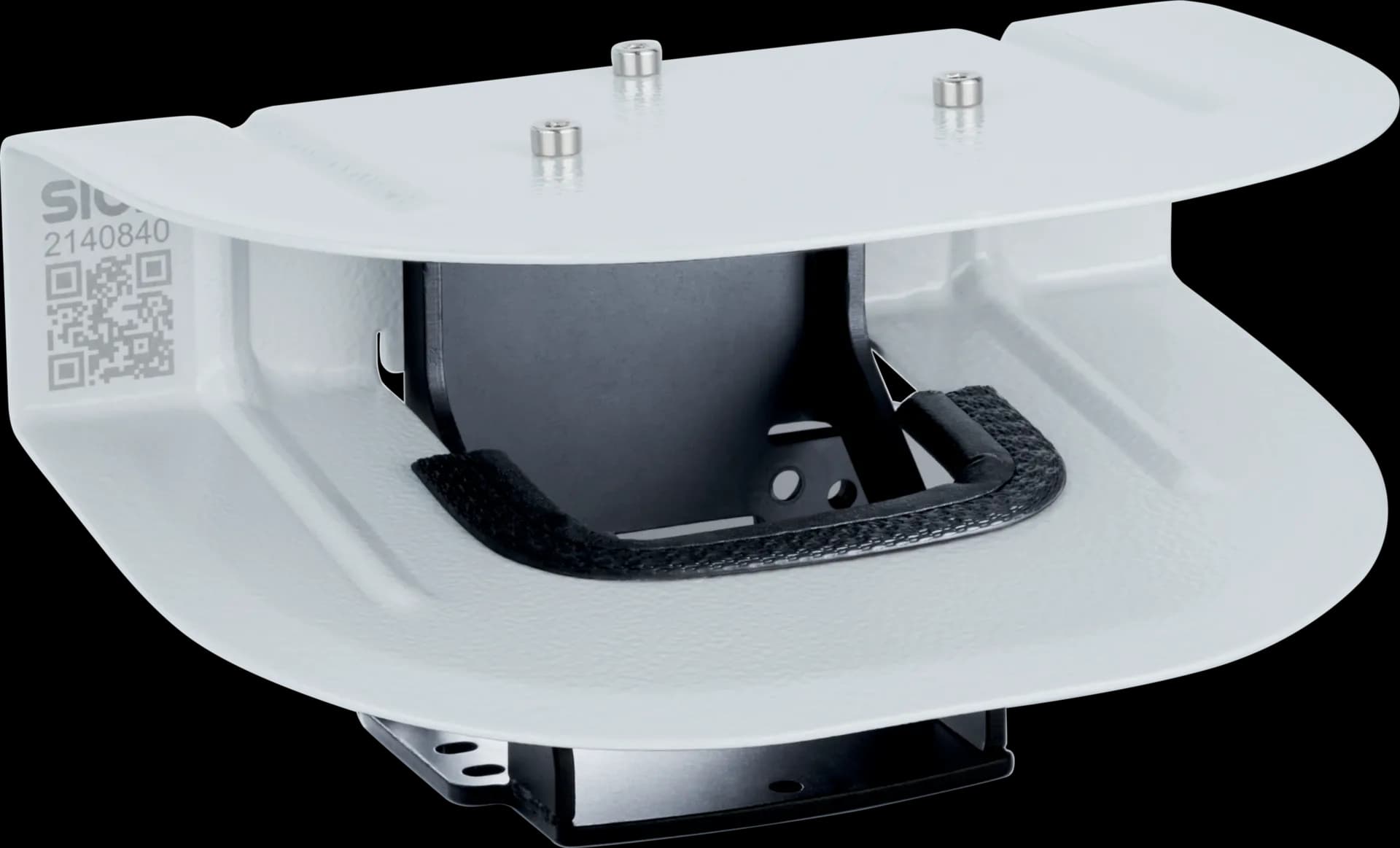

Mounting bracket with integrated 200° weather protection

Производител: SICK#2140840

Характеристики

Група аксесоари: Mounting systems
Фамилия аксесоари: Brackets
Описание: Mounting bracket with weather protection 200° opening angle Weather protection shield for LMS221 (180°), vertical mounting
Подходящ за: picoScan100
Материал: Bracket: Seawater-resistant aluminum. 3 mm black anodized; Weather protection attachment: Seawater-resistant aluminum, 1.5 mm powder-coated RAL7035 Screws: Stainless steel A2
Комплект на доставката: Mounting bracket, incl. 5 x M4x6 countersunk screws as per DIN7991 (but with SW 3) for fastening the device to the mounting bracket; 3x M4x5 cylinder head screws for fastening the weather protection attachment
Размери (Ш×В×Д): 180 mm x 100.5 mm x 120.3 mm
Тегло: 294 g
Синусоидално резонансно сканиране, синусоидално изпитване, изпитване с шум: 10 Hz, 10 Hz, 10 Hz ... 1,000 Hz, 500 Hz, 250 Hz, 5 g, 4.24 g RMS, 10 frequency cycles, 5 h
Устойчивост на удар: 50 g, 11 ms, ± 3 single shocks/axis ; 25 g, 6 ms, ± 1,000 continuous shocks/axis ; 50 g, 3 ms, ± 5,000 continuous shocks/axis
Тип на монтажната система: Brackets
