Характеристики
- Продуктов сегмент
- Device protection and care
- Продукт
- Protective housing
- Описание
- Min. cooling water flow rate 2 l/min, max. water pressure 6 bar. The housing and the optional protective tube can be flushed out with compressed air (max. 100 mbar). The housing can be opened from the top without a tool. Due to space constraints, connecting cables with 90° angled, pre-assembled male connectors/female connectors are required.
- Комплект на доставката

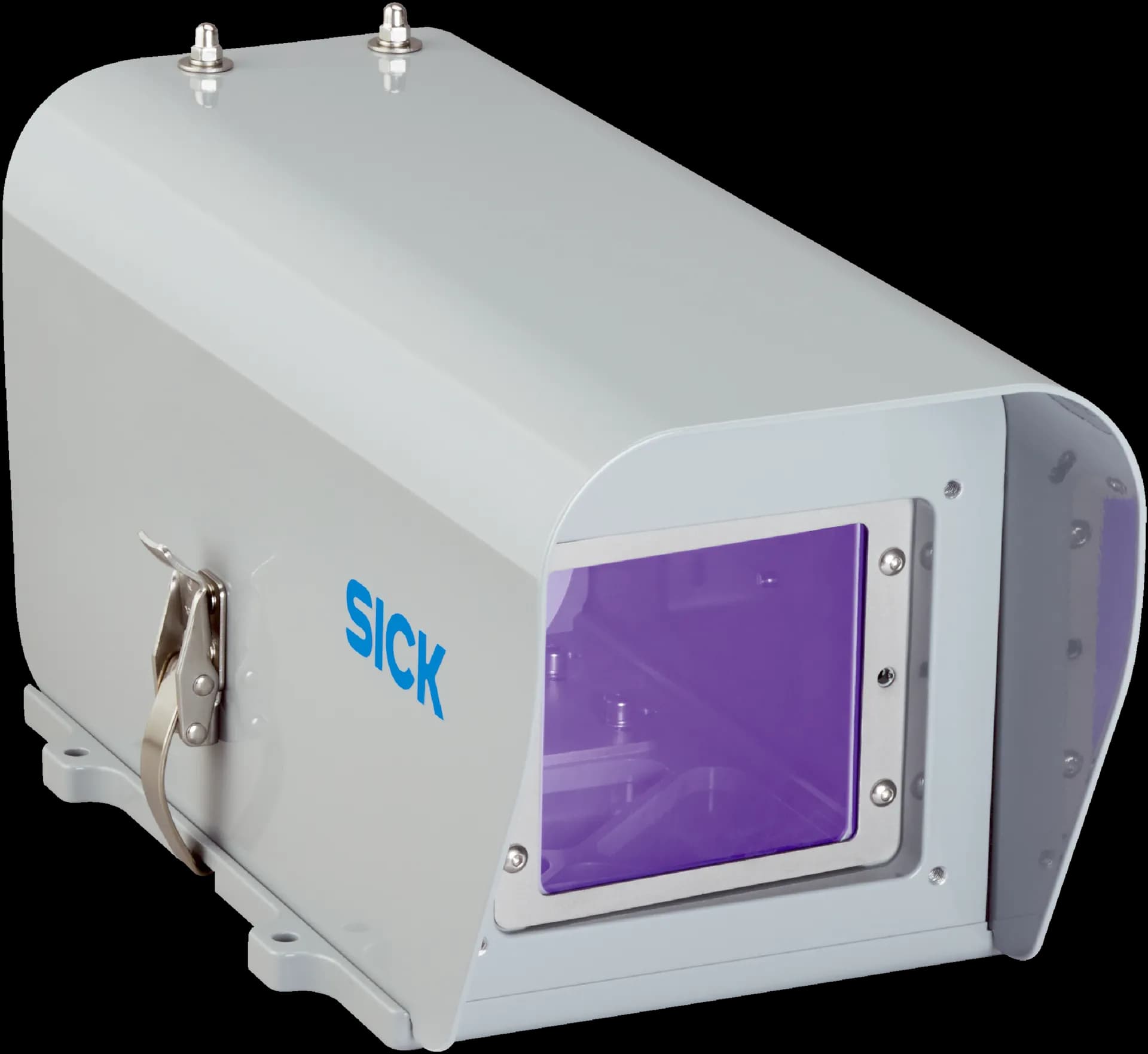

- Heavy-duty protective housing with water cooling, alignment bracket and front screen (pre-installed). The tube for the heavy-duty protective housing is not included with delivery.
- Материал
- Housing: aluminum. Attachments: stainless steel, zinc coated and passivated steel, plastic, EPDM, NBR, elastomer, glass
- Работна температура на околната среда
- +95 °C, at a cooling water temperature of 20 °C; +80 °C, at a cooling water temperature of 30 °C; +75 °C, at a cooling water temperature of 35 °C
- Тегло
- 4.2 kg
Класификации
- ECLASS 5.1.4
- 27371205
- ECLASS 6.0
- 27371205
- ECLASS 7.0
- 27371205
- ECLASS 8.0
- 27371205
- ECLASS 9.0
- 27371205
- ECLASS 10.0
- 27371205
- ECLASS 11.0
- 27371205
- ECLASS 12.0
- 27371205
- ECLASS 13.0
- 27371205
- ECLASS 14.0
- 27371205
- ECLASS 15.0
- 27371205
- ETIM 6.0
- EC001195
- ETIM 7.0
- EC001195
- ETIM 8.0
- EC001195
- ETIM 9.0
- EC001195
- ETIM 10.0
- EC001195
- UNSPSC 091201.0
- 32131000
- UNSPSC 100501.0
- 32131000
- UNSPSC 111201.0
- 32131000
- UNSPSC 120901.0
- 32131000
- UNSPSC 131201.0
- 32131023
- UNSPSC 140801.0
- 32131023
- UNSPSC 151101.0
- 32131023
- UNSPSC 160901.0
- 32131023
- UNSPSC 171001.0
- 32131023
- UNSPSC 180801.0
- 32131023
- UNSPSC 190501.0
- 32131023
- UNSPSC 200601.0
- 32131023
- UNSPSC 210901.0
- 32131023
- UNSPSC 220601.0
- 32131023
- UNSPSC 230701.0
- 32131023
- UNSPSC 240301.0
- 32131023
- UNSPSC 250901.0
- 32131023
- UNSPSC 260801.0
- 32131023
