Характеристики
- Група аксесоари
- Mounting systems
- Фамилия аксесоари
- Assembly accessories
- Описание

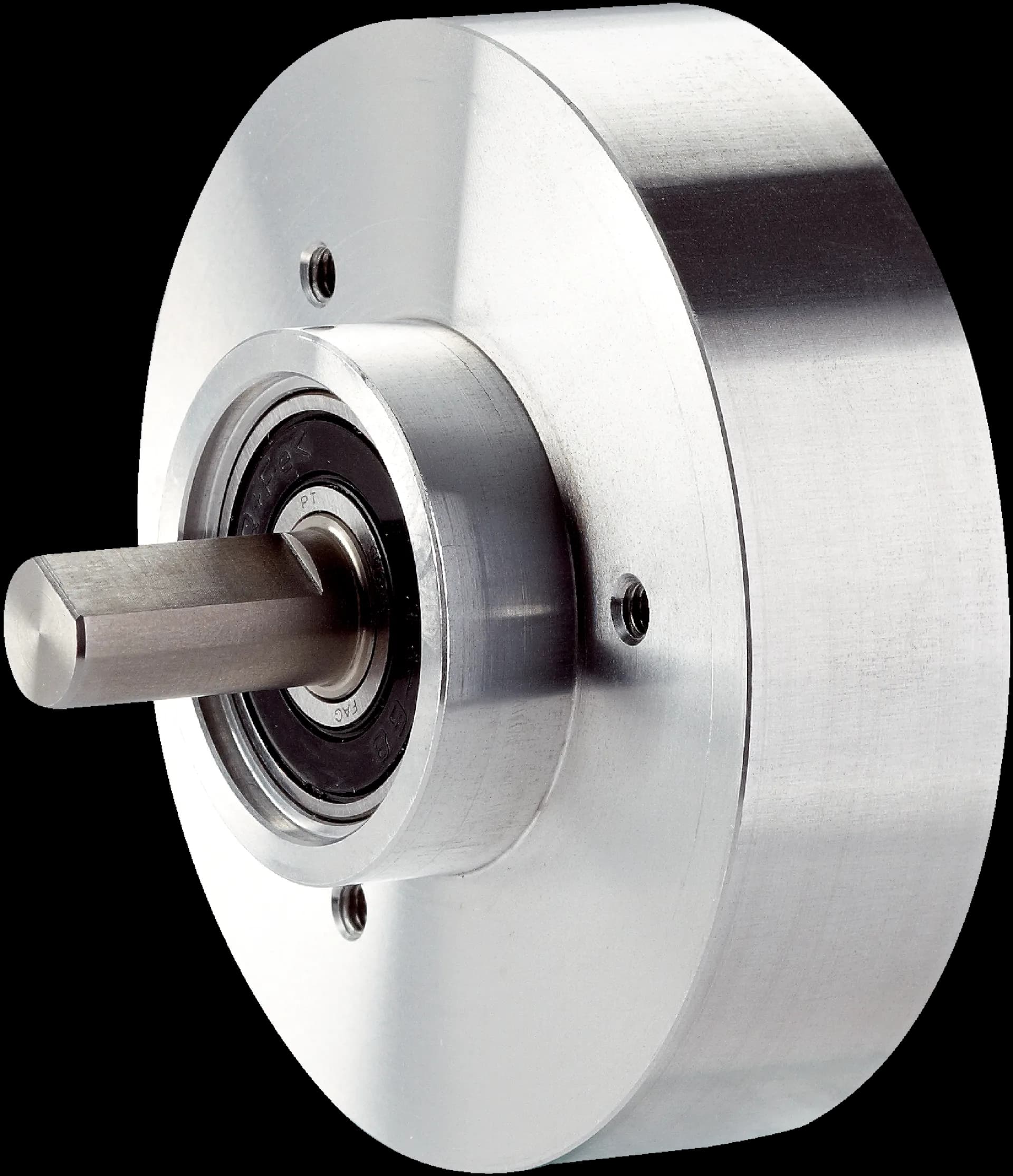

- Bearing bracket for hollow shaft encoders, fastening screws included the Bearing Block is intended for very large radial and axial shaft loads. Particularly for application on: Belt pulleys, Chain pinions, Friction wheels. It is designed this way to enable fitting of encoder with blind hollow shaft with ø 12 mm. Operating speed max. 6,000 rpm^-1, axial shaft load 100 N, radial shaft load 100 N, bearing service life 3.6 x 10^9 revolutions Heavy-duty flange adapter for encoder with blind hollow shaft 12 mm, flange shaft 10 mm x 19 mm and flange diameter 75 mm, supports large radial and axial shaft loads
- Комплект на доставката
- Fastening screws included
Сертификати
- China RoHS
- ✔
Класификации
- ECLASS 5.1.4
- 27279202
- ECLASS 6.0
- 27279202
- ECLASS 7.0
- 27279202
- ECLASS 8.0
- 27279202
- ECLASS 9.0
- 27273701
- ECLASS 10.0
- 27273701
- ECLASS 11.0
- 27273701
- ECLASS 12.0
- 27273701
- ECLASS 13.0
- 27273701
- ECLASS 14.0
- 27273701
- ECLASS 15.0
- 27273701
- ETIM 6.0
- EC000163
- ETIM 7.0
- EC000163
- ETIM 8.0
- EC000163
- ETIM 9.0
- EC000163
- ETIM 10.0
- EC000163
- UNSPSC 091201.0
- 32131000
- UNSPSC 100501.0
- 32131000
- UNSPSC 111201.0
- 32131000
- UNSPSC 120901.0
- 32131000
- UNSPSC 131201.0
- 32131023
- UNSPSC 140801.0
- 32131023
- UNSPSC 151101.0
- 32131023
- UNSPSC 160901.0
- 32131023
- UNSPSC 171001.0
- 32131023
- UNSPSC 180801.0
- 32131023
- UNSPSC 190501.0
- 32131023
- UNSPSC 200601.0
- 32131023
- UNSPSC 210901.0
- 32131023
- UNSPSC 220601.0
- 32131023
- UNSPSC 230701.0
- 32131023
- UNSPSC 240301.0
- 32131023
- UNSPSC 250901.0
- 32131023
- UNSPSC 260801.0
- 32131023
