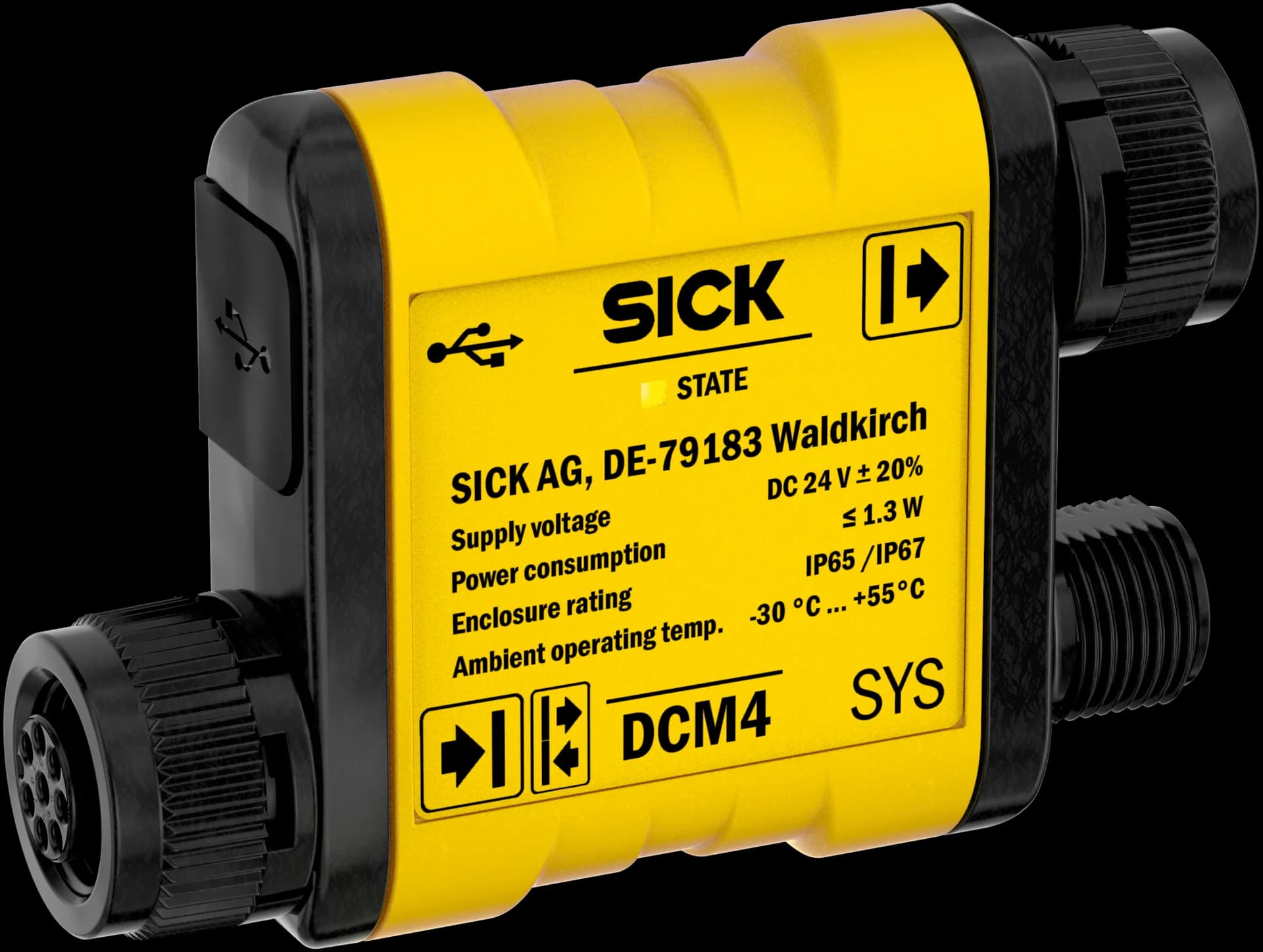

DCM4-AA100A0A0

Производител: SICK#1125888

Характеристики

Описание: The DCM4 extension module extends the functional scope of an electro-sensitive protective equipment (ESPE). The extended functional scope of the ESPE is referred to as function package DCM4. The extension module has several inputs to which the ESPE and other devices or sensors can be connected.
Съвместими устройства: deTec4, deTem4, deTem4 A/P for a specific version number or higher (functional scope)
Предавател: V1.1.0 or higher
Приемник: V1.3.0 or higher
Предавател: V1.0.0 or higher
Приемник: V1.0.0 or higher
Активен модул: V1.1.0 or higher
Комплект на доставката: DCM4 extension module; USB protective cover; Protective caps for M12 round connectors; Safety instruction; Mounting instructions; Operating instructions for download; Safety Designer configuration software for download

Забележка: The scope of the function package DCM4 depends on the connected ESPE.
Защитна светлинна завеса deTec4: Beam coding; Restart interlock; Smart restart interlock; External device monitoring (EDM); Application diagnostic output (ADO); Cascading; Smart presence detection; Reduced resolution (Basic); Reduced resolution (Advanced); Manual adjustment of the protective field width; Transmitting power adjustment; Muting (2-signal muting); Partial muting; Operating modes; Configurable multiple sampling; Smart Box Detection; Fixed blanking; Teach-in for fixed blanking; Floating blanking; Object pattern recognition
Защитна светлинна бариера deTem4: Beam coding; Restart interlock; External device monitoring (EDM); Application diagnostic output (ADO); Manual adjustment of the protective field width; Transmitting power adjustment; Muting (2-signal muting); Partial muting; Operating modes
Защитна светлинна бариера deTem4 A/P: Beam coding; Restart interlock; External device monitoring (EDM); Application diagnostic output (ADO); Muting (2-signal muting); Operating modes

Размери (Ш×В×Д): 69.8 mm x 48 mm x 18 mm
Монтаж: The extension module can be mounted either using a cable tie or a C-Fix bracket.

Степен на защита: IP65 / IP67 (IEC 60529)
Работна температура на околната среда: –30 °C ... +55 °C
Температура на съхранение: –30 °C ... +70 °C
Влажност на въздуха: 15 % ... 95 %, Non-condensing
Устойчивост на вибрации: 5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6)
Устойчивост на удар: 15 g / 6 ms (EN 60068-2-27)
Клас: 3M4 (IEC TR 60721-4-3)
Електромагнитна съвместимост (EMC): According to IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4
