SYS/SPOS7VE4SASA02MS3

Name: SYS/SPOS7VE4SASA02MS3
Brand: SICK
SKU: 1119559

Производител: SICK#1119559

Виж в сайта на производителя →

Запитване за оферта Datasheet PDF

Характеристики

Вариант: Siemens S7
Тип продукт: System (hardware and software)

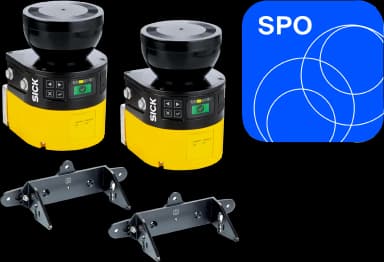

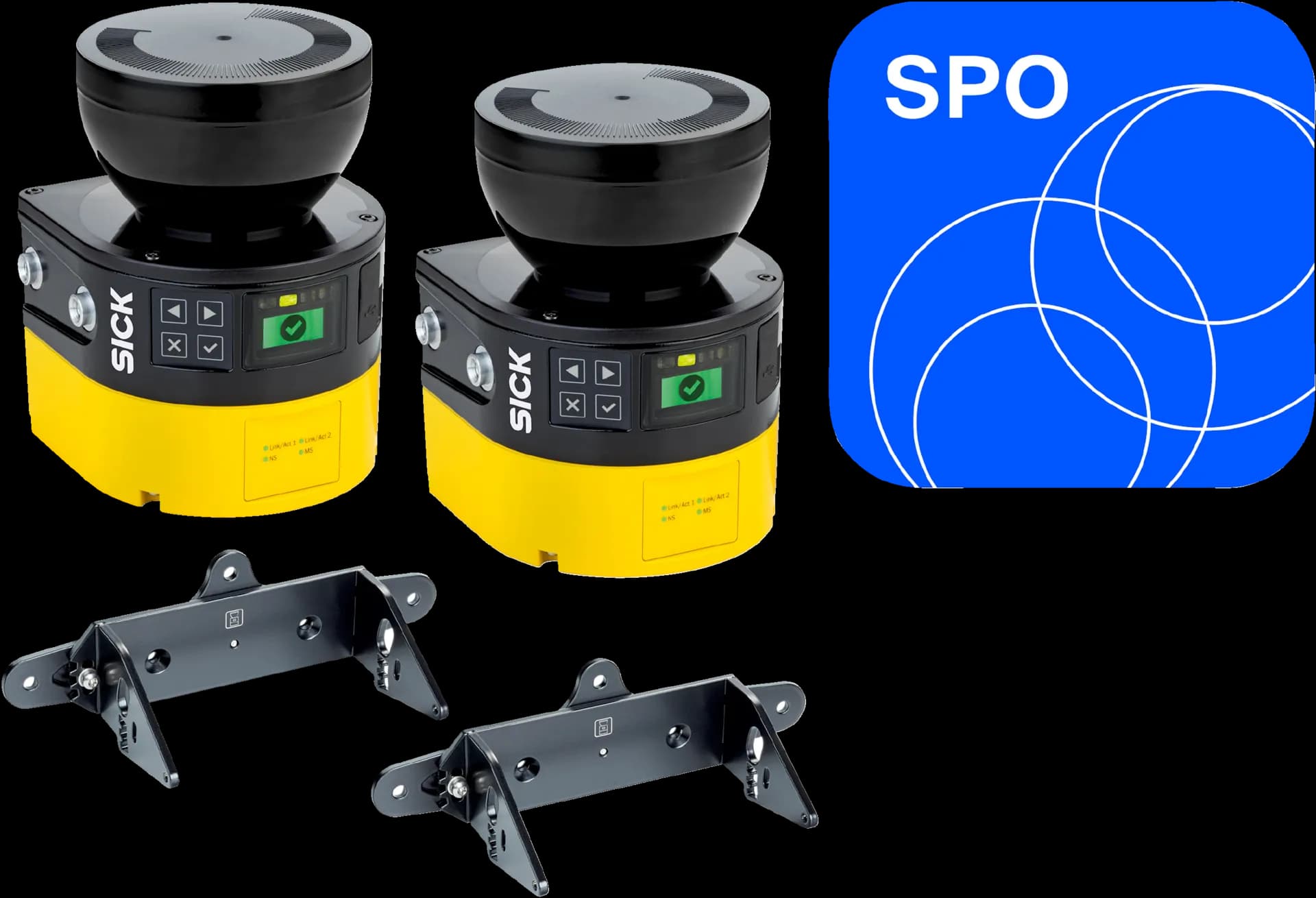

Описание: The TÜV-certified Safe Portal safety system is used for efficient access monitoring at material transfer stations. It comprises two safety laser scanners and a function block for the Siemens S7 controller and fulfills the requirements of ISO 13849. ; The vertically aligned safety laser scanners seamlessly and reliably protect applications up to PL d using intelligent protective field evaluation. Compared to other solutions for human-material differentiation, this ensures personal safety in any situation. Objects with predefined contours can simultaneously pass through the gantry safely at any time. This enables a very flexible production process with high productivity.
Лазерни скенери за безопасност: microScan3 Pro - PROFINET
Системни изисквания: SIMATIC STEP 7 TIA Portal: V14 SP1; SIMATIC STEP 7 Safety Advanced: V14
Тип на свързване: M12 female connector, 4-pin, D-coded
Безопасно състояние при повреда: The safety-related semiconductor outputs are in the OFF state.
Задача за безопасност: Access protection
Работна температура на околната среда: –10 °C ... +50 °C
Температура на съхранение: –25 °C ... +50 °C
Влажност на въздуха: 90% at 50 °C (EN 61131-2)
Захранващо напрежение Vs: 24 V DC (16.8 V DC ... 28.8 V DC)
