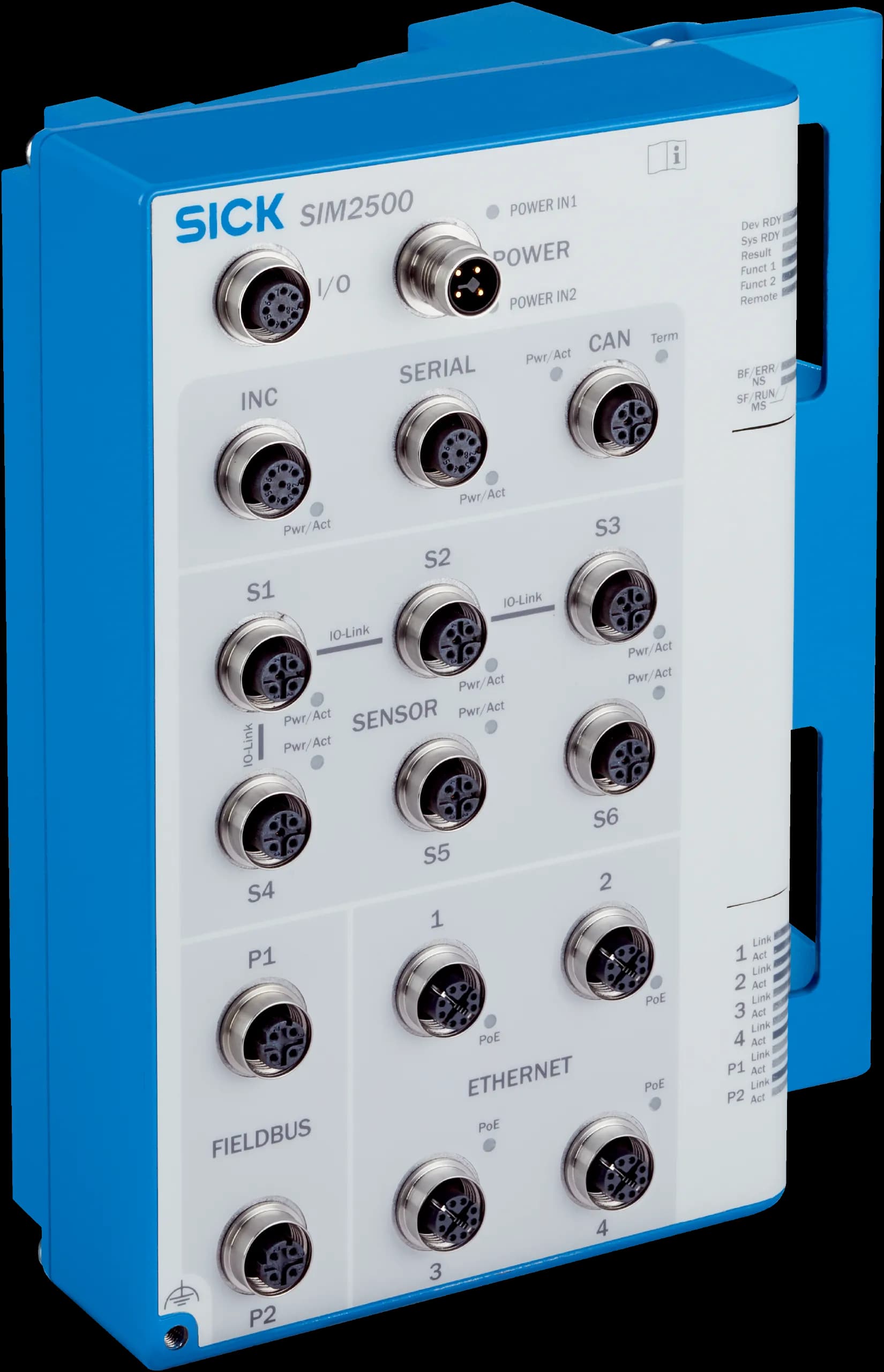

Характеристики
- Продуктова категория
- Programmable
- Поколение
- Second generation
- Поддържани продукти
- 2D and 3D cameras from SICK or based on the GigE machine vision standard; 2D and 3D LiDAR sensors; Image-based code readers; Bar code scanners; RFID read/write device; Displacement measurement sensors; Incremental and absolute encoders; Photoelectric sensors
- Процесор
- 8-core ARM Cortex-A72 CPU with NEON accelerator; FPGA co-processor for image (pre-)processing
- Оперативна памет (RAM)
- 4 GB DDR4
- Флаш памет
- 7 GB eMMC, of which 5 GB are available for applications
- Софтуер за програмиране
- SICK AppStudio; Can be programmed within the SICK AppSpace environment
- Набор от инструменти
- SICK algorithm API; HALCON (image processing library)
- Допълнителни функции
- FPGA for I/O handling; Dedicated fieldbus controller
Механика/електроника
- I/O, захранване, SERIAL, INC, полева шина, CAN, SENSOR S1-S4, SENSOR S5-S6, Ethernet с PoE, USB
- 1 x M12, 8-pin female connector, A-coded, 1 x M12, 4-pin male connector, T-coded, 1 x M12, 8-pin female connector, A-coded, 1 x M12, 8-pin female connector, A-coded, 2 x M12, 4-pin female connector, D-coded, 1 x M12, 5-pin female connector, A-coded, 4 x M12, 5-pin female connector, A-coded, 2 x M12, 5-pin female connector, A-coded, 4 x M12, 8-pin female connector, X-coded, 1 x Micro-B, Under the servicing panel, Under the servicing panel
- Захранващо напрежение
- 24 V DC, ± 10 %
- Консумирана мощност
- Typ. 45 W, without connected sensor
- Изходна мощност
- 140 W, total, all connections
- Сензор S1-S4
- ≤ 1 A (on power supply pin)
- Сензор S5-S6
- ≤ 2.5 A (on power supply pin)
- Сензор S5-S6
- ≤ 3.2 A (≤ 10 kHz, rise time/fall time/delay < 10μs when power gate-API used)
- CAN
- ≤ 1 A (on power supply pin)
- Сериен интерфейс
- ≤ 0.5 A (on power supply pin)
- INC
- ≤ 500 mA (on power supply pin)
- I/O
- ≤ 500 mA (on power supply pin)
- Степен на защита
- IP65
- Клас на защита
- III
- Електрическа безопасност
- EN 61010
- Материал на корпуса
- Aluminum die cast
- Цвят на корпуса
- Light blue (RAL 5012)
- Тегло
- 1,995 g
- Размери (Д×Ш×В)
- 176 mm x 83 mm x 196 mm
Интерфейси
- Ethernet
- ✔ (4) , TCP/IP, FTP, OPC UA, MQTT
- Забележка
- GigE machine vision/GenICAM, Fieldbus ports, in preparation
- Функция
- Data output, Configuration, firmware update, image transmission
- Скорост на предаване на данни
- 20 kbit/s ... 230 kBaud, 10/100/1,000/2,500 Mbit/s
- PROFINET
- ✔ (2) , RS-232, RS-422, RS-485
- Забележка
- Fieldbus-Ports
- Функция
- Dual port Ethernet-based fieldbus, Also configurable as RS-422, firmware update
- Скорост на предаване на данни
- ≤ 1 Mbit/s, 10/100 MBit/s
- EtherNet/IP™
- ✔ (2) , RS-422
- Забележка
- Fieldbus ports, in preparation
- Функция
- Dual port Ethernet-based fieldbus, diagnosis
- Скорост на предаване на данни
- 10/100 MBit/s
- EtherCAT®
- ✔ (2) , USB 2.0
- Забележка
- Fieldbus ports, in preparation
- Функция
- Dual port Ethernet-based fieldbus
- Скорост на предаване на данни
- 10/100 MBit/s
- IO-Link
- ✔ (4) , RS-232
- Забележка
- SENSOR S1-S4
- Функция
- IO-Link Master 1.1
- Скорост на предаване на данни
- RS-232: 115,2 kBaud, RS-422/RS-485: 2 MBaud
- Сериен интерфейс
- ✔ , RS-422
- Функция
- Can also be configured as an encoder interface, max. frequency 2 MHz
- Скорост на предаване на данни
- Max. frequency 2 MHz; RS-422: 2 MBaud
- Инкрементален
- ✔ (4)
- Функция
- Interface for encoder
- CAN
- ✔
- Функция
- SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) with activatable termination resistor
- USB
- ✔
- Функция
- For configuration
- Потребителски интерфейси
- Web server (GUI), SICK AppStudio (programming), SICK AppManager (app installation, firmware update)
- Съхранение и извличане на данни
- Image and data logging via optional microSD memory card, internal RAM and external FTP
- Карта(и) с памет
- Industry-grade microSD memory card (flash card), max. 32 GB, optional
- I/O
- 2 opto-decoupled inputs (Max. frequency: 30 kHz)
- I/O
- 2 inputs/outputs (can be configured) (Max. frequency: 30 kHz)
- Сензор S1-S4
- 1 input each (Max. frequency: 30 kHz)
- Сензор S1-S4
- 1 input/output each (can be configured) (Max. frequency: 30 kHz)
- Сензор S5-S6
- 1 input each (Max. frequency: 10 kHz)
- Сензор S5-S6
- 2 inputs/outputs each (can be configured) (Max. frequency: 30 kHz)
- Елементи за управление
- 1 selector switch (under the servicing panel); 1 functional button (under the servicing panel)
Условия на околната среда
- Електромагнитна съвместимост (EMC)
- IEC 61000-6-2:2016; EN IEC 61000-6-2:2019; IEC 61000-6-3:2020
- Ударно натоварване
- IEC 60068-2-27:2008
- Работна температура на околната среда
- 0 °C ... +50 °C
- Температура на околната среда, съхранение
- –20 °C ... +70 °C
Сертификати
- ЕС декларация за съответствие
- ✔
- Декларация за съответствие (UK)
- ✔
- Декларация за съответствие ACMA
- ✔
- China RoHS
- ✔
