Характеристики
- Продуктов сегмент
- Reflectors and optics
- Продукт
- Reflectors
- Версия на продукта
- Special reflectors
- Описание

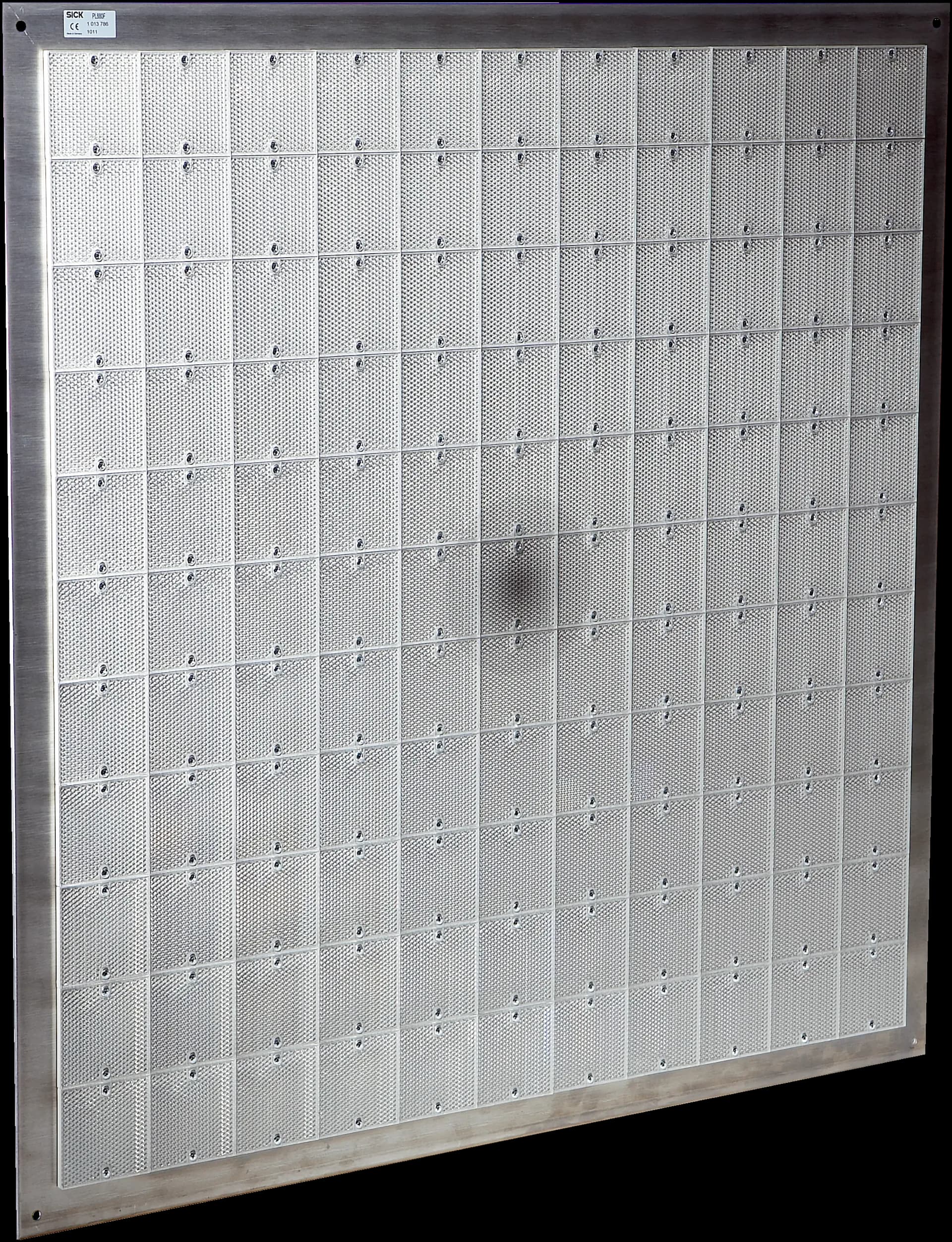

- Reflector, 1000 mm x 1000 mm x 12.5 mm (11x11 PL80A = 926 mm x 926 mm), aluminum plate (AIMG3) with adhesive foil (filter foil OBF-PL880F/4031159 at center), with polarization effect
- Специални приложения
- For DME3000, DML40
- Тип на монтажната система
- Screw-on
- Работна температура на околната среда
- –25 °C ... +65 °C
- Размери (Ш×В×Д)
- 1,000 mm x 12.5 mm x 1,000 mm
Класификации
- ECLASS 5.1.4
- 27279203
- ECLASS 6.0
- 27279203
- ECLASS 7.0
- 27279203
- ECLASS 8.0
- 27279203
- ECLASS 9.0
- 27273601
- ECLASS 10.0
- 27273601
- ECLASS 11.0
- 27273601
- ECLASS 12.0
- 27273601
- ECLASS 13.0
- 27273601
- ECLASS 14.0
- 27273601
- ECLASS 15.0
- 27273601
- ETIM 6.0
- EC002467
- ETIM 7.0
- EC002467
- ETIM 8.0
- EC002467
- ETIM 9.0
- EC002467
- ETIM 10.0
- EC002467
- UNSPSC 091201.0
- 39111800
- UNSPSC 100501.0
- 39111800
- UNSPSC 111201.0
- 39111800
- UNSPSC 120901.0
- 39111827
- UNSPSC 131201.0
- 39111827
- UNSPSC 140801.0
- 39111827
- UNSPSC 151101.0
- 39111827
- UNSPSC 160901.0
- 39111827
- UNSPSC 171001.0
- 39111827
- UNSPSC 180801.0
- 39111827
- UNSPSC 190501.0
- 39111827
- UNSPSC 200601.0
- 39111827
- UNSPSC 210901.0
- 39111827
- UNSPSC 220601.0
- 39111827
- UNSPSC 230701.0
- 39111827
- UNSPSC 240301.0
- 39111827
- UNSPSC 250901.0
- 39111827
- UNSPSC 260801.0
- 39111827
