Модел
- Модел на продукта

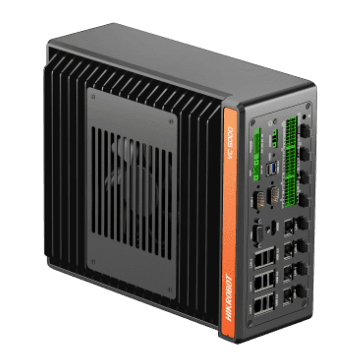

- MV-VC5714-256G70-NN
- Тип
- VC5000 Vision Controller，12th-I7，16GB+256G SSD，Unsupported PCIE
Работни характеристики
- Процесор (CPU)
- Intel® CoreTM i7-12700
- Памет
- 16 GB
- Памет за съхранение
- 256 GB SSD
- Графичен процесор (GPU)
- Intel® UHD Graphics 770
- Операционна система
- Unactivated Windows 10
- Чипсет
- H610
Интерфейс
- Видеоизход
- HDMI interface × 1, VGA interface × 1 Supports independent display output at the same time Max. resolution 1920 × 1080 @ 60 Hz
- Цифрови I/O
- Opto-isolated input × 8 Opto-isolated output × 12 ( supports NPN/PNP switching) Digital-isolated low-side driver output × 8 Non-isolated bi-directional differential I/O × 4
- Мрежов интерфейс
- GigE interface × 7, including interface for PoE × 4
- USB интерфейс
- USB 2.0 × 4 USB 3.0 × 4 Built-in USB 2.0 × 1
- Сериен порт
- RS-232 × 2 by default, supports switching to RS-485 and RS-422
- Интерфейс за осветление
- 24 VDC constant voltage × 8 (Max. power consumption of single channel is 72 W, total max. power consumption 190 W)
- Разширителен интерфейс
- SATA 3.0 interface × 2
Електрически характеристики
- Захранване
- 24 VDC (4-pin interface for system power supply)
- Консумирана мощност
- Typ. 264 W (4-pin interface for system power supply)
Механични характеристики
- Габаритни размери
- 302.3 mm × 248 mm × 105.2 mm (11.9" × 9.8" × 4.1")
- Тегло
- Approx. 6 kg (13.2 lb.)
- Температура
- 0 °C to 50 °C (32 °F to 122 °F)
- Влажност
- 20% RH to 95% RH (no condensation)
Общи данни
- Сертификати
- CE, KC
Основни характеристики
- Adopts 12th generation Intel® CPU to offer strong performance.
- Supports 32-channel GPIO and some models support NPN/PNP switching for output.
- Adopts GigE interfaces for stable data transmission.
- Supports multiple-channel light source for synchronous control.
