Модел
- Модел на продукта

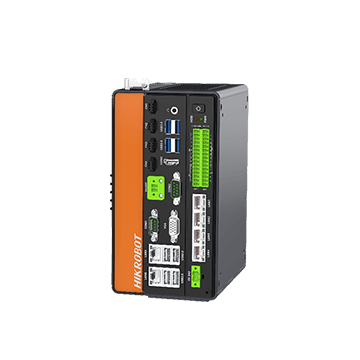

- MV-VC3503H-128G60
- Тип
- VC3000H Vision Controller, I5-8500，8GB+128GSSD+2THDD， POE， PCI-E
Работни характеристики
- Процесор (CPU)
- Intel® CoreTM i5-8500
- Памет
- 8 GB
- Памет за съхранение
- 128 GB SSD + 2 TB HDD
- Графичен процесор (GPU)
- Intel® HD Graphics 630
- Операционна система
- Unactivated 64-bit Windows 10
Външен интерфейс
- Видеоизход
- HDMI interface × 1, VGA interface × 1 Supports independent display outputs at the same time Max. resolution 1920 × 1080 @ 60 Hz
- Цифрови I/O
- Opto-isolated input × 8 Opto-isolated output × 16 (supports NPN/PNP switching)
- Мрежов интерфейс
- GigE interface × 6, including GigE interface with PoE × 4 between I/O interface and power supply interface*
- USB интерфейс
- USB 2.0 × 4 USB 3.0 × 4 Built-in USB 2.0 × 1
- Сериен порт
- RS-232 × 2, supports switching to RS-485 and RS-422
- Интерфейс за осветление
- 24 VDC constant voltage × 4 (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.)
- Разширителен интерфейс
- PCIe 3.0 ×16 ( × 1)
Електрически характеристики
- Захранване
- 24 VDC
- Консумирана мощност
- Typ. 144 W
Механични характеристики
- Габаритни размери
- 161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2")
- Тегло
- Approx. 2.1 kg (4.6 lb.)
- Температура
- 0 °C to 50 °C (32 °F to 122 °F)
- Влажност
- 20% RH to 95% RH (no condensation)
Общи данни
- Сертификати
- CE, KC
Основни характеристики
- Adopts 8th generation Intel® CPU to offer strong performance.
- Provides extended slot to connect with image frame grabbers.
- Supports 24-channel GPIO and NPN/PNP switching for output.
- Adopts GigE interfaces for stable data transmission.
- Supports PCIe 3.0 ×16 interface.
- Built-in USB interface for on-site maintenance is optional.
