Модел
- Модел на продукта

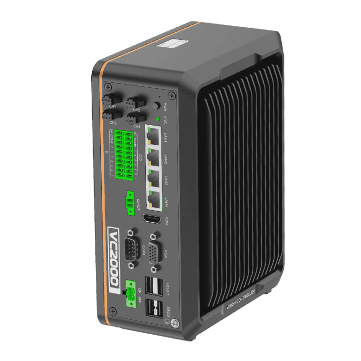

- MV-VC2143-128G40-1T
- Тип
- VC2100 Vision Controller，N97，8GB+128G SSD+ 1THDD，Supported POE；
Работни характеристики
- Процесор (CPU)
- Intel® Processor N97
- Памет
- 8 GB
- Памет за съхранение
- 128 GB SSD + 1 TB HDD
- Графичен процесор (GPU)
- Intel® UHD Graphics
- Операционна система
- Unactivated 64-bit Windows 10 LTSC 21H2
Криптиране
- Метод на криптиране
- Not support
Външен интерфейс
- Видеоизход
- HDMI interface × 1, VGA interface × 1 Supports independent display outputs at the same time Max. resolution 1920 × 1080 @ 60 Hz
- Цифрови I/O
- Opto-isolated input × 8 Opto-isolated output × 8
- Интерфейс за осветление
- Light interface with 24 VDC constant voltage × 4 (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control)
- Мрежов интерфейс
- GigE interface × 4, supports PoE (The total loading is 20 W)
- USB интерфейс
- USB 2.0 × 2 USB 3.0 × 2
- Сериен порт
- RS-232 × 1, supports switching to RS-485 or RS-422
Електрически характеристики
- Захранване
- 24 VDC
- Консумирана мощност
- Typ. 71 W (without light source)
Механични характеристики
- Габаритни размери
- 166 mm × 205.6 mm × 86 mm (6.5" × 8.1" × 3.4")
- Тегло
- Approx. 2 kg (4.4 lb.)
- Температура
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Влажност
- 20% RH to 80% RH (no condensation)
Общи данни
- Сертификати
- CE, KC
Основни характеристики
- Adopts Intel® Alder Lake-N processor to provide calculation.
- Supports GPIO function.
- Supports 4-channel light source control.
- Adopts GigE interfaces for stable data transmission.
- Built-in USB interface or dongle is optional.
