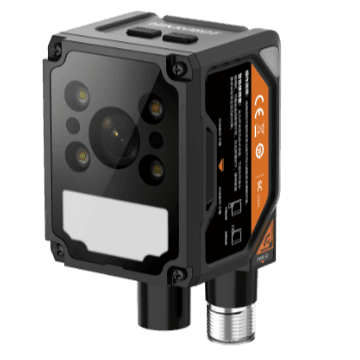

MV-SC3060XM-16M-WBN

Производител: Hikrobot#MV-SC3060XM-16M-WBN

Модел

Инструменти за машинно зрение: Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection Industry tools: OCR and defect detection
Капацитет за решения: Supports importing and exporting solutions, up to 32 solutions can be stored.
Комуникационен протокол: RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

Интерфейс за данни: Fast Ethernet (100 Mbit/s)
Цифрови I/O: 12-pin M12 connector provides power and I/O, including isolated input (Line 0/1/2) × 3, isolated output (Line 3/4/5) × 3, RS-232 × 1 Supports device triggering via pressing top trigger button
Захранване: 12 VDC to 24 VDC
Консумирана мощност: Avg.: 6.6 W @ 24 VDC (light source enabled) Max.: 22 W @ 24 VDC (light source enabled)

Байонет на обектива: M12-mount, mechanical focus supported
Фокусно разстояние: 16 mm
Капачка на обектива: Half-polarized lens cap by default. Transparent or fully-polarized lens cap is optional.
Светлинен източник: Focused white light by default. Red, blue, IR, or UV light is optional.
Система за прицелване: 2 LEDs
Индикатори: 360° visual indicator
Габаритни размери: Straight angle: 80.1 mm × 43 mm × 43.5 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 64.6 mm (2.3" × 1.7" × 2.5")
Тегло: Approx. 190 g (0.4 lb.)
Степен на защита (IP): IP67 (under proper installation of waterproof lens cap)
Температура: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Влажност: 20% RH to 95% RH (no condensation)
Устойчивост на вибрации: Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Устойчивост на удар: Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)

Основни характеристики

Adopts embedded hardware platform to realize high-speed image processing.
Built-in high-precision positioning, measurement and recognition algorithms for counting, defects, existence, positioning and other functions.
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes.
Adopts multiple IO interfaces for input and output signals.
Supports viewing the device's status in real time via 360° visual indicator, convenient for debugging and maintenance.
Rotatable cable tail design, suitable for narrow space.
Adopts polarized and full-transparent multiple optical lighting with good environmental adaptability.
IP67 protection without fear of harsh industrial application environments.
