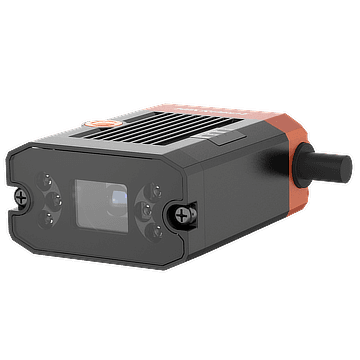

MV-SC2004EM-12S-WBN

Производител: Hikrobot#MV-SC2004EM-12S-WBN

Модел

Инструменти за машинно зрение: Measurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, and line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence Count: Spot count, edge count, contour count, and pattern count Recognition: Category recognition, classification registration, and OCR Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison Location: Fixture
Капацитет за решения: Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
Комуникационен протокол: RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

Интерфейс за данни: Fast Ethernet (100 Mbit/s)
Цифрови I/O: 17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON)
Захранване: 12 VDC to 24 VDC
Консумирана мощност: Avg. 6 W @ 24 VDC Max. 22 W @ 24 VDC

Байонет на обектива: M12-mount, adjusting focus manually supported
Фокусно разстояние: 12.4 mm
Капачка на обектива: Transparent lens cap
Светлинен източник: White LED lamp
Индикатори: Power indicator (PWR), network indicator (LNK), and status indicator (STS)
Габаритни размери: 46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0")
Тегло: Approx. 220 g (0.5 lb.)
Степен на защита (IP): IP65
Температура: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Влажност: 20% RH to 95% RH (no condensation)
Устойчивост на вибрации: Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Устойчивост на удар: Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)

Основни характеристики

Adopts embedded hardware platform for high-speed image processing.
Adopts built-in positioning and measurement algorithms to for counting, existence, measurement detection, and recognition.
Multiple IO interfaces for input and output signals.
Multiple indicators for displaying device status.
Adopts light source to ensure uniform brightness in the illuminated area.
Supports multiple communication protocols, including RS-232, TCP, UDP, FTP, PROFINET, Modbus, Ethernet/IP, etc.
