Модел
- Модел на продукта

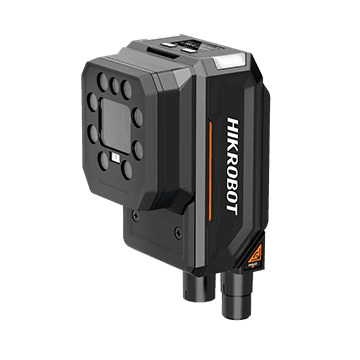

- MV-ID5050XM-12L-RBN
- Тип
- MV-ID5050XM-12L-RBN
Работни характеристики
- Поддържани кодове
- 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin 2D stacked codes: PDF417, MicroPDF417
- Макс. кадрова честота
- 92 fps
- Макс. скорост на четене
- 120 codes/sec
- Тип на сензора
- CMOS, global shutter
- Размер на пиксела
- 3.45 μm × 3.45 μm
- Размер на сензора
- 1/1.45"
- Разделителна способност
- 2432 × 2048
- Време на експозиция
- 38 μs to 3 ms
- Усилване
- 0 dB to 37 dB
- Монохромна/цветна
- Mono
Електрически характеристики
- Интерфейс за данни
- Gigabit Ethernet (1000 Mbit/s)
- Комуникационен протокол
- SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, Fins, UDP
- Цифрови I/O
- 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Supports device triggering via pressing on touchscreen.
- Захранване
- 24 ± 10% VDC
- Консумирана мощност
- Avg.: 11 W @ 24 VDC (light source enabled) Max.: 36 W @ 24 VDC (light source enabled)
Механични характеристики
- Фокусно разстояние
- 12 mm
- Байонет на обектива
- D14-mount, liquid lens focus supported
- Капачка на обектива
- Half polarization lens cap by default. Transparent and full polarization caps are optional.
- Светлинен източник
- Red light by default. White/blue/IR light is optional.
- Индикатори
- Multi-directional device body indicator
- Материал на корпуса
- Metal
- Габаритни размери
- Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4") Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
- Тегло
- Approx. 405 g (0.9 lb.)
- Степен на защита (IP)
- IP67 (under proper installation of waterproof lens cap)
- Температура
- Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Влажност
- 20% RH to 95% RH (no condensation)
- Устойчивост на вибрации
- Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
- Устойчивост на удар
- Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Общи данни
- Клиентски софтуер
- IDMVS
- Сертификати
- CE, RoHS, KC
Основни характеристики
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts a built-in touchscreen to view the statistical data and adjust parameters via pressing on the screen.
- Adopts multiple indicators to show device status from different sides.
- Rotatable cable design for flexible mounting.
- Adopts controllable light source design to provide diversified light according to workpiece material.
- Adopts I/O interfaces for input and output signals.
- Supports high-precision sensors to get the installation position.
- Supports broad selection of accessories, such as multi-color light source or wafer light source, for improving code-reading ability and scene adaptability.
- Supports HDR function to provide high-contrast image.
- Provides multiple lens mounts, such as C-mount lens, mechanical focus lens, or liquid focus lens.
- The device with multi-color light source supports red/green/blue/white light source, and you can switch the light source.
