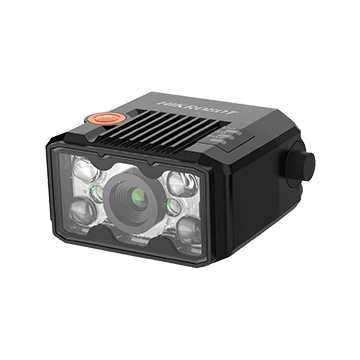

MV-ID3018M-16PT

Производител: Hikrobot#MV-ID3018M-16PT

Модел

Поддържани кодове: 1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode<br/>2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin<br/>Stacked codes: PDF 417
Макс. кадрова честота: 60 fps
Макс. скорост на четене: 45 codes/sec
Тип на сензора: CMOS, global shutter
Размер на пиксела: 3.45 μm × 3.45 μm
Размер на сензора: 1/2.9"
Разделителна способност: 1408 × 1024
Време на експозиция: 16 μs to 20000 μs
Усилване: 0 dB to 15 dB
Монохромна/цветна: Mono
Комуникационен протокол: TCP Server, Serial, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP, and Fins

Интерфейс за данни: Fast Ethernet (100 Mbit/s)
Цифрови I/O: 17-pin M12 connector provides power and I/O, including non-isolated input (Line 2) × 1, non-isolated output (Line 3) × 1, configurable bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1.<br/>Supports device triggering via pressing button on side.
Захранване: 12 VDC to 24 VDC
Макс. консумирана мощност: Approx. 4 W @ 12 VDC

Фокусно разстояние: 16 mm
Байонет на обектива: M12-mount
Работно разстояние: 100 mm to 400 mm
Околна осветеност: 0 lux to 50000 lux
Светлинен източник: Red, polarized
Система за прицелване: Orange LED
Индикатори: Power indicator (PWR), network indicator (LNK), and status indicator (STS).
Габаритни размери: 46 mm × 40 mm × 25 mm (1.8" × 1.6" × 1.0")
Тегло: Approx. 135 g (0.3 lb.)
Степен на защита (IP): IP65
Температура: Working temperature: 0 °C to 50 °C (32 °F to 122 °F)<br/>Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Влажност: 20% RH to 95% RH (no condensation)

Основни характеристики

Supports high-speed focus adjustment for switching working distance.
Compact design and small in size, and can be installed in narrow space.
Adopts LED aiming light to aim targets.
Adopts multiple IO interfaces and plug-in power interface for easy wiring.
Supports multiple communication protocols, including TCP Server, Serial, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP, and Fins.
