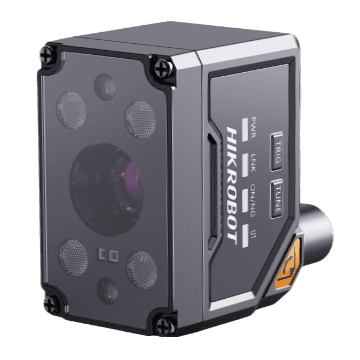

MV-ID2013XM-16L-RBN

Производител: Hikrobot#MV-ID2013XM-16L-RBN

Модел

Модел на продукта: MV-ID2013XM-16L-RBN
Тип: 1.3MP, 16mm focal length, red light, semi-polarized, network port liquid auto-focus smart code reader

Поддържани кодове: 1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode (one/two-track) 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code Stacked codes: PDF417, MicroPDF417
Макс. кадрова честота: 60 fps
Макс. скорост на четене: 80 codes/sec
Тип на сензора: Global shutter, mono, 1/4", 2.7 μm × 2.7 μm
Разделителна способност: 1280 × 1024
Време на експозиция: 35 μs to 1 sec
Усилване: 0 dB to 30 dB

Интерфейс за данни: Fast Ethernet (100 Mbit/s)
Комуникационен протокол: SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, ModBus RTU, Fins, UDP
Цифрови I/O: 17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1) × 2, isolated output (LineOut 3/4) × 2, RS-232 × 1. Supports device triggering and factory reset via pressing side button.
Захранване: 24 VDC
Консумирана мощност: Avg.: 5 W @ 24 VDC (light source enabled) Max.: 12 W @ 24 VDC (light source enabled)

Фокусно разстояние: 16 mm
Зрително поле: 12° (H) × 9° (V)
Байонет на обектива: D14-mount, liquid lens focus supported
Капачка на обектива: Half-polarized lens cap by default. Transparent, fully-polarized, and ESD protective caps are optional.
Светлинен източник: Red light by default. White/blue/IR/UV/two-color (red/blue) light is optional.
Система за прицелване: 2 green LED lights
Индикатори: Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1)
Материал на корпуса: Aluminum alloy
Габаритни размери: Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6") Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4")
Тегло: Approx. 100 g (0.2 lb.)
Степен на защита (IP): IP65
Температура: Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Влажност: 20% RH to 95% RH (no condensation)
Устойчивост на вибрации: Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Устойчивост на удар: Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)

Основни характеристики

Adopts high-robustness algorithm to accurately identify difficult codes, such as stained code, skewed code, low-contrast code, and code on laser-marked metal surfaces.
Integrates digital WDR image processing algorithm, and combines with 4-channel light source control and multiple optical accessories for enhancing code clarity.
Adopts modular design, rotatable cable, separated cable, and multi-surface mounting interfaces for flexible mounting.
Supports multi-channel isolated I/O and multiple industrial protocols for integration into diverse automation systems.
Compatible with IDMVS client software V5.0.0 and later, it can achieve functions such as auto focusing and one-click tuning for fast debugging.
