Модел
- Модел на продукта

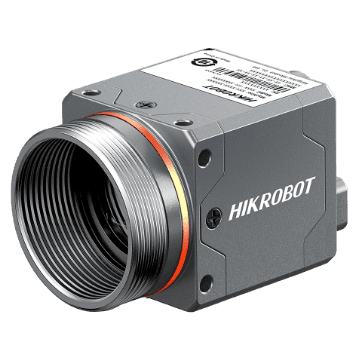

- MV-CT1CU0089/G/NN/NN
- Тип
- 8.9MP Area Scan Camera, 3rd Gen., USB3.0, Color, PRO
Работни характеристики
- Тип на сензора
- CMOS, global shutter
- Модел на сензора
- Stacked BSI
- Размер на пиксела
- 3.45 μm × 3.45 μm
- Размер на сензора
- 1"
- Разделителна способност
- 4096 × 2160
- Макс. кадрова честота
- 42 fps @ 4096 × 2160 Bayer GB 8
- Динамичен обхват
- 67.4 dB
- Отношение сигнал/шум (SNR)
- 43.9 dB
- Усилване
- 0 dB to 12 dB
- Време на експозиция
- 20 μs to 10 sec
- Режим на експозиция
- Off/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
- Формат на пикселите
- Mono 8, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
- Монохромна/цветна
- Color
- Обединяване на пиксели (binning)
- Supports 1 × 1, 2 × 2, 4 × 4
- Децимация
- Supports 1 × 1, 2 × 2, 4 × 4
- Огледално изображение
- Supports horizontal and vertical reverse image output
Електрически характеристики
- Интерфейс за данни
- USB 3.0, compatible with USB 2.0
- Тип на интерфейса за данни
- Type-C interface
- Управляващ интерфейс
- Not supported
- Цифрови I/O
- 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Захранване
- 9 VDC to 24 VDC, supports USB 3.0 power supply
- Консумирана мощност
- Typ. 2.1 W @ 5 VDC (USB 3.0 provides power supply and fast heat balance not enabled)
Механични характеристики
- Байонет на обектива
- C-mount
- Габаритни размери
- 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
- Тегло
- Approx. 70 g (0.2 lb.)
- Степен на защита (IP)
- IP67 (under proper lens and lens cap installation and wiring)
- Температура
- Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Влажност
- 20% RH to 95% RH (no condensation)
Общи данни
- Клиентски софтуер
- MVS or third-party software meeting with USB3 Vision Protocol
- Операционна система
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
- Съвместимост
- USB3 Vision, GenICam
- Сертификати
- CE, RoHS, KC
Основни характеристики
- The devices with PRO version and MAX version support waterproof connector.
- The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.
- The color devices with PRO version and MAX version support auto color correction based on multi-spectral fusion technology.
- The device with MAX version integrates lens and light source, enabling lens focusing and light source control.
- Adopts Type-C interface and supports higher transmission bandwidth.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
