Модел
- Модел на продукта

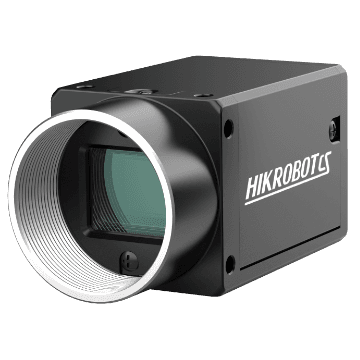

- MV-CS050-60GC V5
- Тип
- 5MP Area Scan Camera, GigE, V5, Color
Работни характеристики
- Тип на сензора
- CMOS, global shutter
- Модел на сензора
- Stacked BSI
- Размер на пиксела
- 3.45 μm × 3.45 μm
- Размер на сензора
- 2/3"
- Разделителна способност
- 2448 × 2048
- Макс. кадрова честота
- 24.4 fps @ 2448 × 2048 Bayer GR 8
- Динамичен обхват
- 73.9 dB
- Отношение сигнал/шум (SNR)
- 42.4 dB
- Усилване
- High full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
- Време на експозиция
- High full well capacity: 45 μs to 10 sec High sensitivity: 5 μs to 10 sec
- Режим на експозиция
- Off/Once/Continuous exposure mode
- Монохромна/цветна
- Color
- Формат на пикселите
- Mono 8, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
- Обединяване на пиксели (binning)
- Supports 1 × 1, 2 × 2, 4 × 4
- Децимация
- Supports 1 × 1, 2 × 2, 4 × 4
- Огледално изображение
- Supports horizontal and vertical reverse image output
Електрически характеристики
- Интерфейс за данни
- Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
- Цифрови I/O
- 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Захранване
- 9 VDC to 24 VDC, supports PoE
- Консумирана мощност
- Typ. 1.4 W @ 12 VDC
Механични характеристики
- Байонет на обектива
- C-mount
- Габаритни размери
- 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
- Тегло
- Approx. 100 g (0.2 lb.)
- Степен на защита (IP)
- IP40 (under proper lens installation and wiring)
- Температура
- Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Влажност
- 20% RH to 95% RH (no condensation)
Общи данни
- Клиентски софтуер
- MVS or third-party software meeting with GigE Vision Protocol
- Операционна система
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Съвместимост
- GigE Vision V2.0, GenICam
- Сертификати
- CE, RoHS, KC
Основни характеристики
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc., and supports Sequencer function.
- Supports ISP functions like CCM, Super Palette, and Super Bayer to provide high-quality images.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
