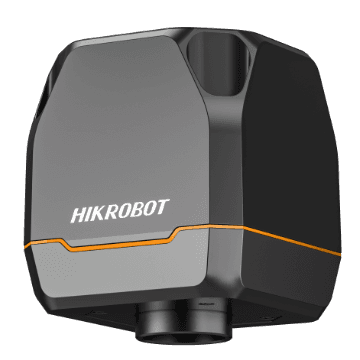

MV-CM3120C-1H

Производител: Hikrobot#MV-CM3120C-1H

Модел

Тип на сензора: CMOS, rolling shutter
Размер на пиксела: 2 μm × 2 μm
Размер на сензора: 1/1.56"
Разделителна способност: 4096 × 3024
Макс. кадрова честота: 30 fps
Усилване: 0 dB to 18 dB
Време на експозиция: 300 μs to 100 ms
Монохромна/цветна: Color
Режим на експозиция: Auto/manual
Инструменти за машинно зрение: Image process: White balance, brightness, sharpness, contrast, saturation, digital gain, Gamma correction, digital WDR, noise reduction. Auxiliary functions: Image reverse, cross line, grid line, ruler, scale, image freezing, capture, recording, storage. Measurement: Report export, calibration, point measurement, line measurement, circle measurement, angle measurement, polygon measurement, polyline measurement, curve measurement, line/circle auto measurement.

Байонет на обектива: C-mount
Габаритни размери: 75 mm × 75 mm × 87.3 mm (3.0" × 3.0" × 3.4")
Тегло: Approx. 461 g (1.0 lb.)
Степен на защита (IP): IP30 (under proper lens installation and wiring)
Температура: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Влажност: 20% RH to 95% RH (no condensation)

Основни характеристики

Supports 12 MP high-quality image and 30 fps frame rate.
Provides HDMI interface to connect to a monitor directly.
Provides USB interface to connect to a mouse or a USB flash disk.
Provides USB 3.0 interface to connect to the PC for operation on the client software.
Supports image storage and image-related parameter adjustment.
Supports measurement functions and report generation.
