Модел
- Модел на продукта

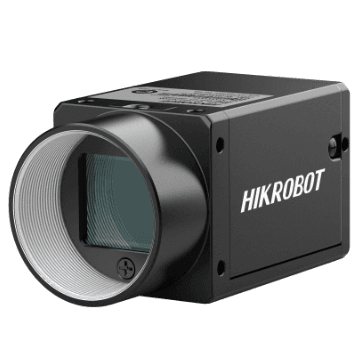

- MV-CI050-Y1S-NN
- Тип
- 5MP SWIR area scan camera, IMX992, 1link CXP-12, fanless, without heat sink
Работни характеристики
- Тип на сензора
- InGaAs, global shutter
- Модел на сензора
- Sony® IMX992
- Размер на пиксела
- 3.45 μm × 3.45 μm
- Размер на сензора
- 1/1.4"
- Разделителна способност
- 2592 × 2056
- Макс. кадрова честота
- 120 fps @ 2592 × 2056 Mono 8
- Динамичен обхват
- 50.6 dB
- Отношение сигнал/шум (SNR)
- 47.7 dB
- Усилване
- 0 dB to 18 dB
- Време на експозиция
- UltraShort exposure mode: 8 μs to 14 μs SuperShort exposure mode: 15 μs to 22 μs Standard exposure mode: 23 μs to 100 ms
- Режим на експозиция
- Off/Once/Continuous exposure mode
- Монохромна/цветна
- Mono
- Формат на пикселите
- Mono 8/10/12
- Обединяване на пиксели (binning)
- Supports 1 × 1, 2 × 2, 3 × 3, 4 × 4
- Децимация
- Supports 1 × 1, 2 × 2, 4 × 4
- Огледално изображение
- Supports horizontal and vertical reverse image output
Електрически характеристики
- Интерфейс за данни
- CoaXPress with Micro-BNC interface
- Цифрови I/O
- 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
- Захранване
- 9 VDC to 24 VDC, supports PoCXP
- Консумирана мощност
- Typ. 4.2 W @ 12 VDC
Механични характеристики
- Байонет на обектива
- C-mount
- Габаритни размери
- Device with heat sink: 29 mm × 85.6 mm × 42 mm (1.1" × 3.4" × 1.7") Device without heat sink: 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
- Тегло
- Device with heat sink: Approx. 170 g (0.4 lb.) Device without heat sink: Approx. 90 g (0.2 lb.)
- Степен на защита (IP)
- IP40 (under proper lens installation and wiring)
- Температура
- Working temperature: –10 °C to 40 °C (14 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Влажност
- 20% RH to 95% RH (no condensation)
Общи данни
- Клиентски софтуер
- MVS or frame grabber software meeting with CoaXPress Protocol
- Операционна система
- 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
- Съвместимост
- CoaXPress, GenlCam
- Сертификати
- CE, RoHS, KC
Основни характеристики
- Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
- Supports multiple ISP functions like digital noise reduction, contrast ratio, etc.
- Adopts compact structure and design to meet spatial requirements.
- Adopts CXP-12 interface to transmit data.
- Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
