Серия WFE
10 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

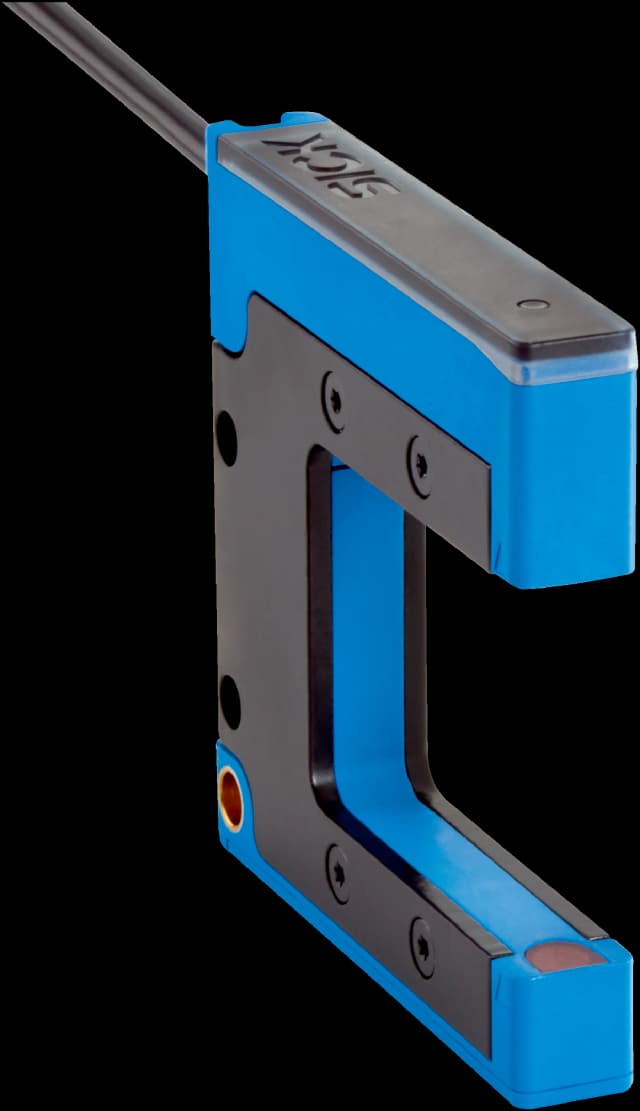

WFE-030040B121
Fork sensors | WFE | WFE-030040B121 | Adjustment: No adjustment possibility | Light source: LED | Type of light: Visible red light | Fork width/depth: 30 mm, 40 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type Detail: Cable, open-ended, 3-wire | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

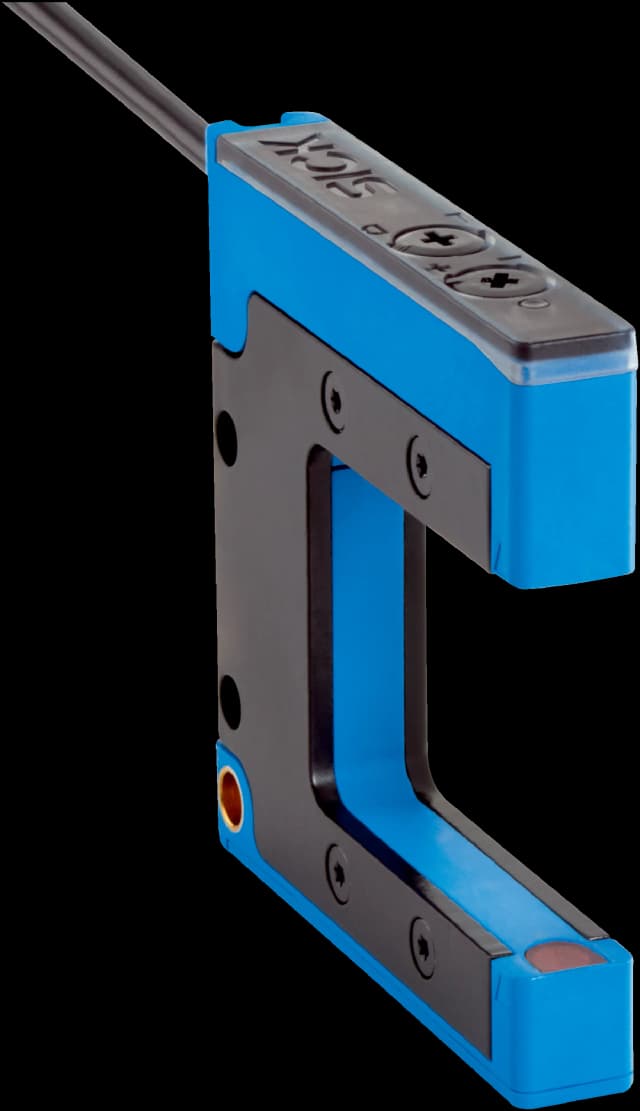

WFE-030040B137
Fork sensors | WFE | WFE-030040B137 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 30 mm, 40 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Cable, open-ended, 3-wire | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

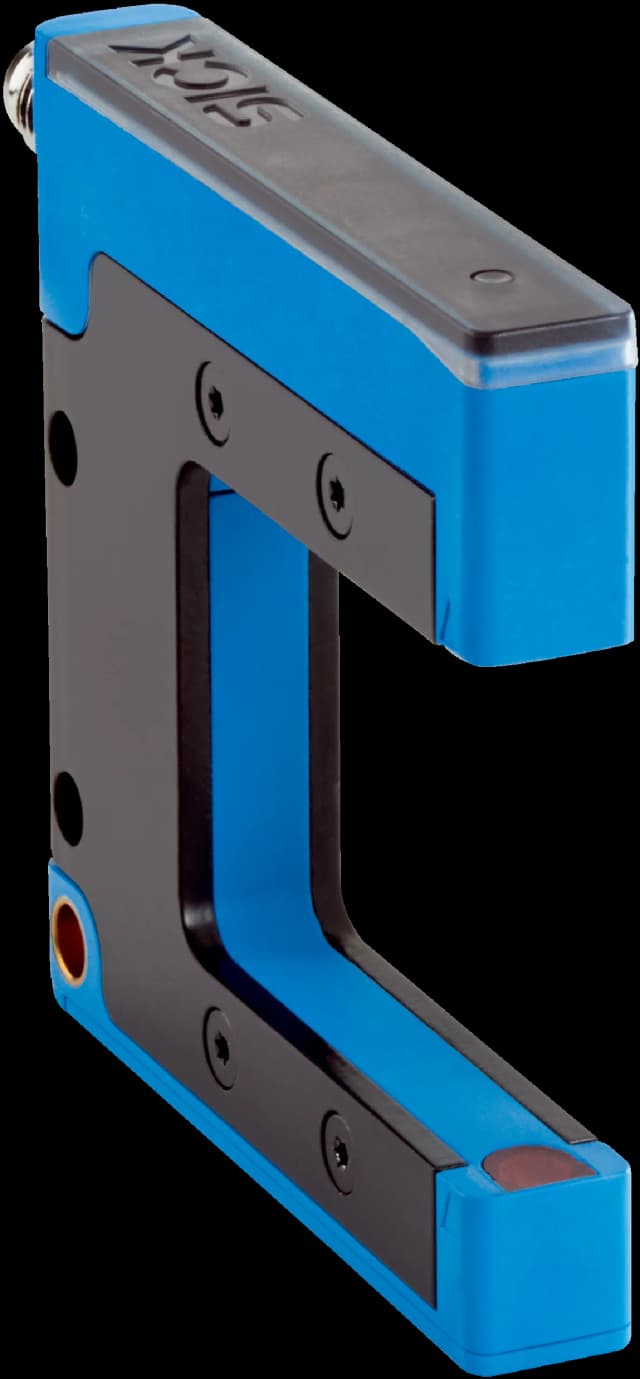

WFE-030040B321
Fork sensors | WFE | WFE-030040B321 | Adjustment: No adjustment possibility | Light source: LED | Type of light: Visible red light | Fork width/depth: 30 mm, 40 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67
WFE-030040B321S01
Fork sensors | WFE | WFE-030040B321S01 | Adjustment: No adjustment possibility | Light source: LED | Type of light: Visible red light | Fork width/depth: 30 mm, 40 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 1 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

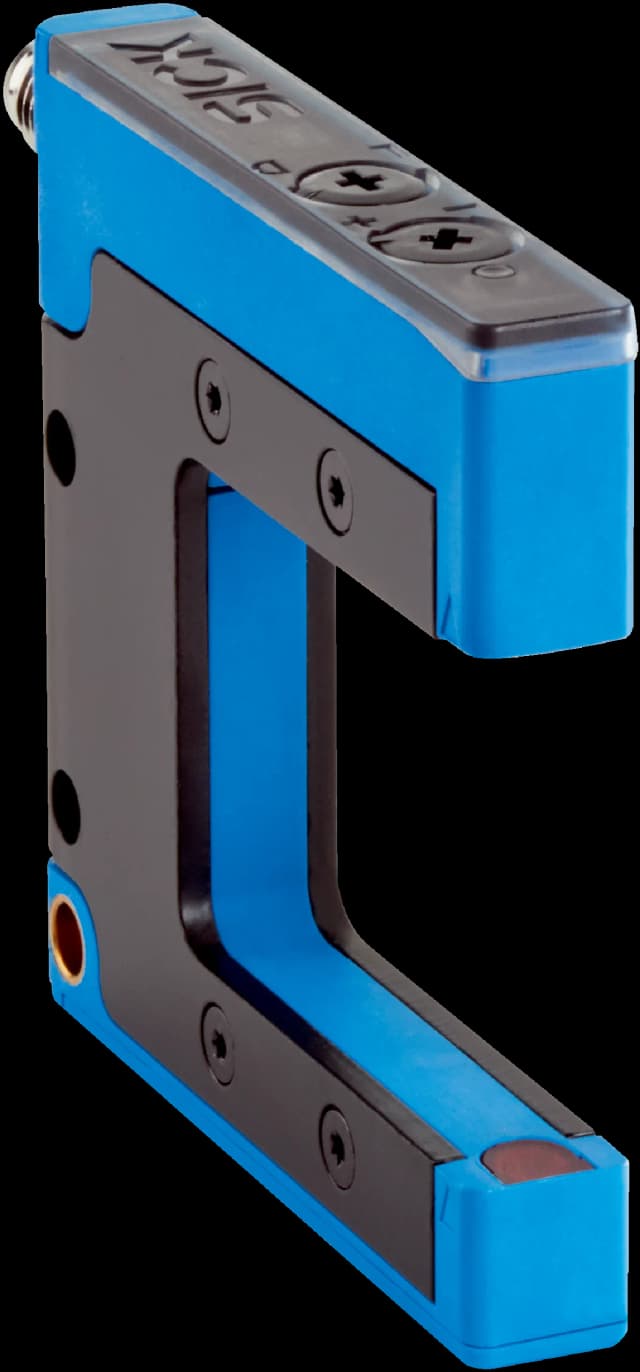

WFE-030040B337
Fork sensors | WFE | WFE-030040B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 30 mm, 40 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

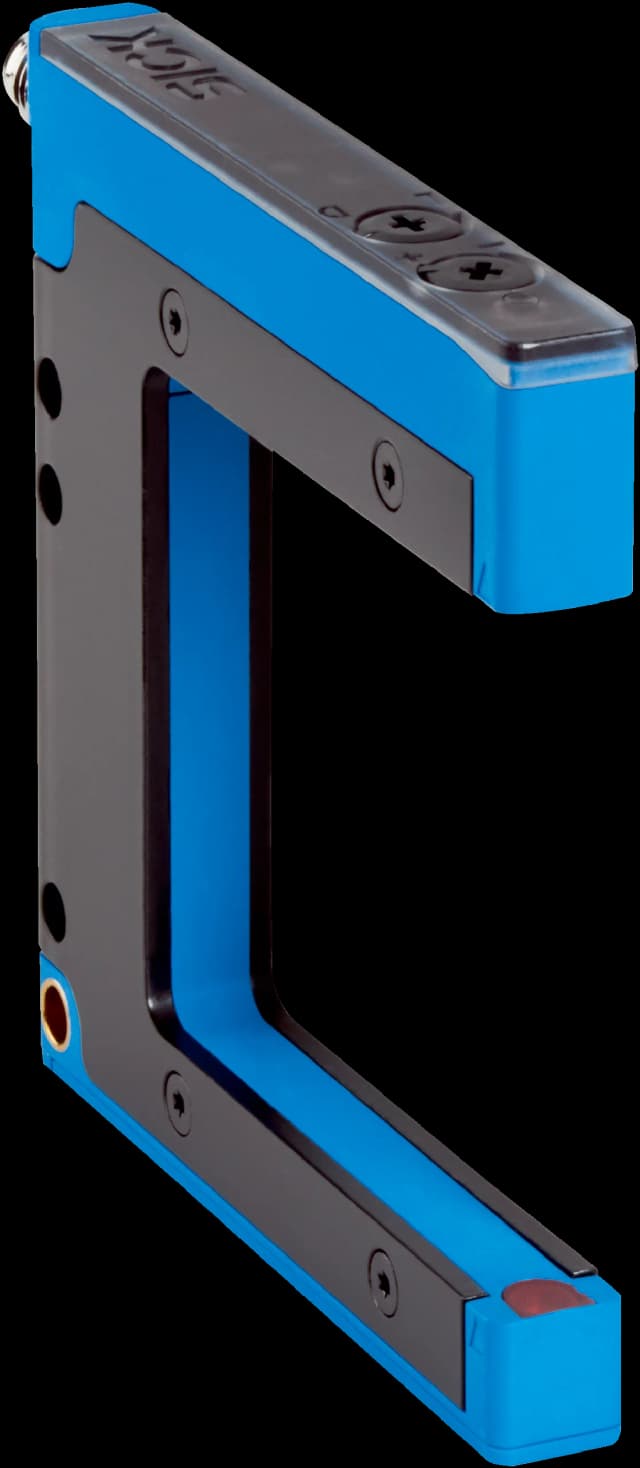

WFE-050060B337
Fork sensors | WFE | WFE-050060B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 50 mm, 60 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67
WFE-050060B337S02
Fork sensors | WFE | WFE-050060B337S02 | Adjustment: No adjustment possibility | Light source: LED | Type of light: Visible red light | Fork width/depth: 50 mm, 60 mm | Note: Dark switching mode and minimum sensitivity set as default., both potentiometers secured by glued-on covers. | Switching output: Push-pull: PNP/NPN | Switching mode: Dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

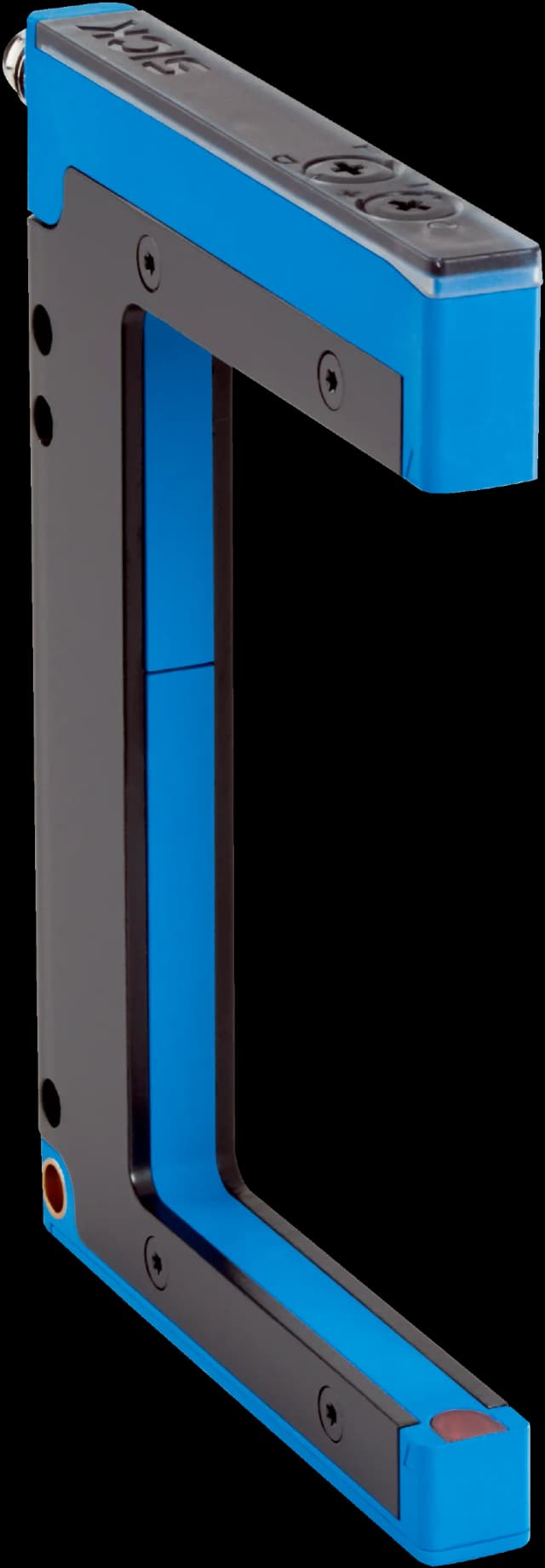

WFE-080060B337
Fork sensors | WFE | WFE-080060B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 80 mm, 60 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

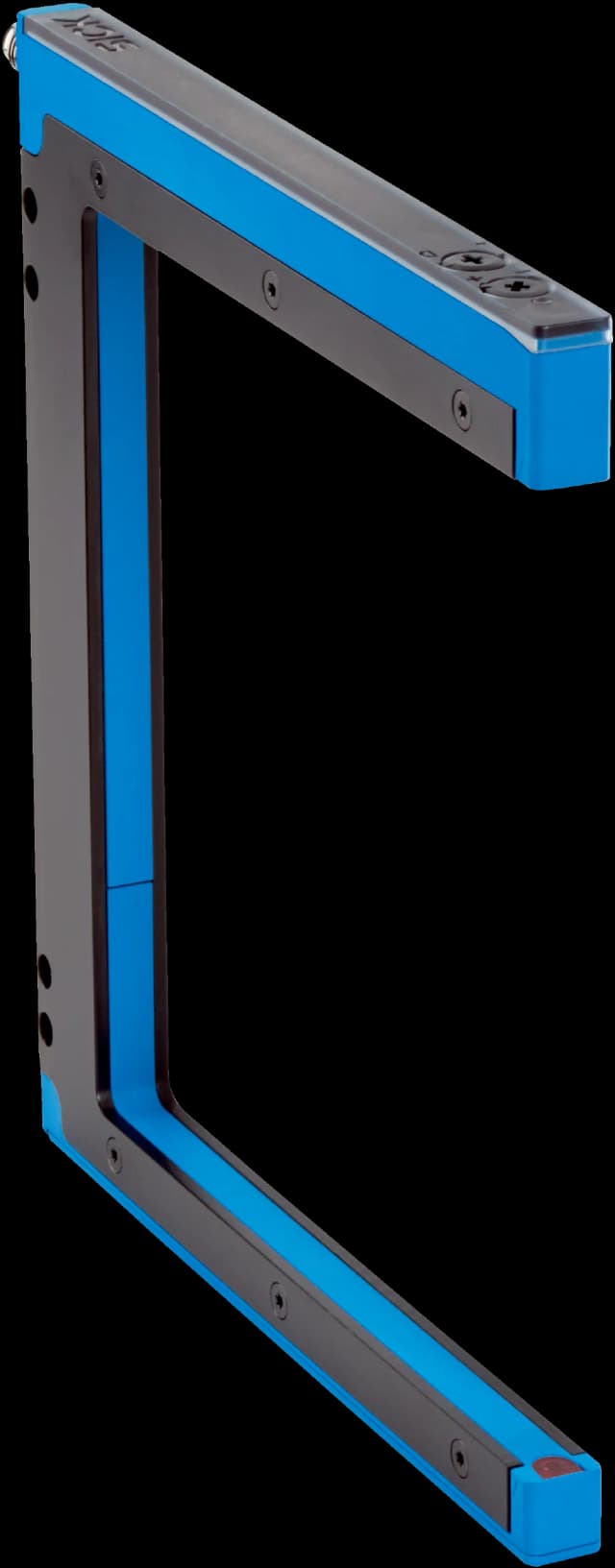

WFE-120120B337
Fork sensors | WFE | WFE-120120B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 120 mm, 120 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67

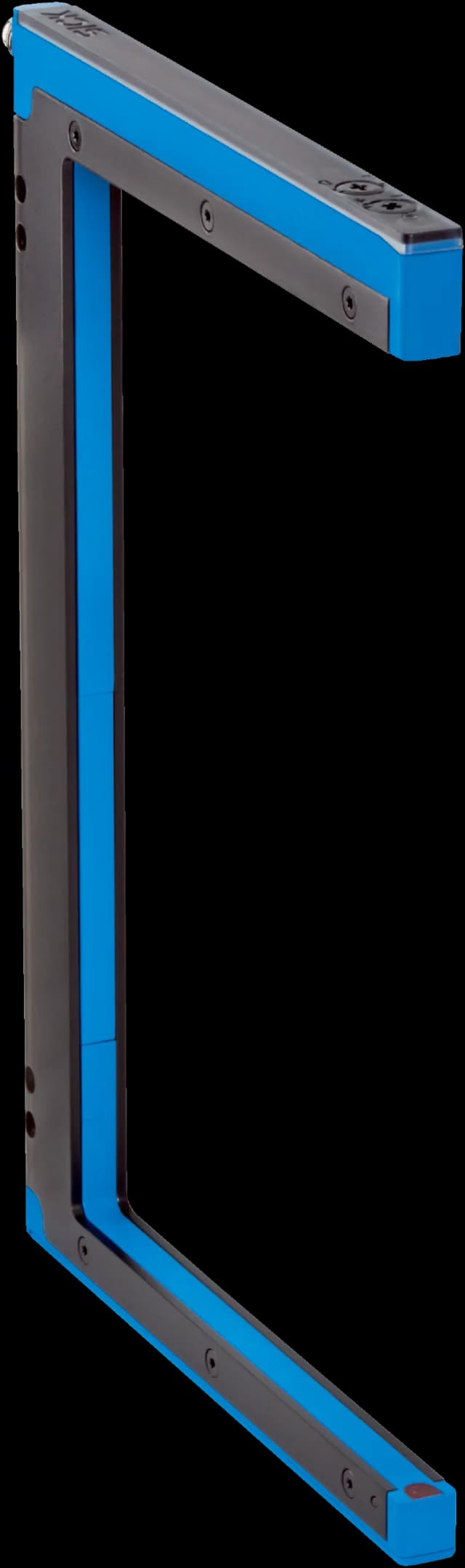

WFE-180120B337
Fork sensors | WFE | WFE-180120B337 | Adjustment: Potentiometer, light/dark switching | Light source: LED | Type of light: Visible red light | Fork width/depth: 180 mm, 120 mm | Switching output: Push-pull: PNP/NPN | Switching mode: Light/dark switching | Connection type Detail: Connector M8, 3-pin | Switching frequency: 5 kHz | Response time: ≤ 100 µs | Enclosure rating: IP67
