Серия UM30
37 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

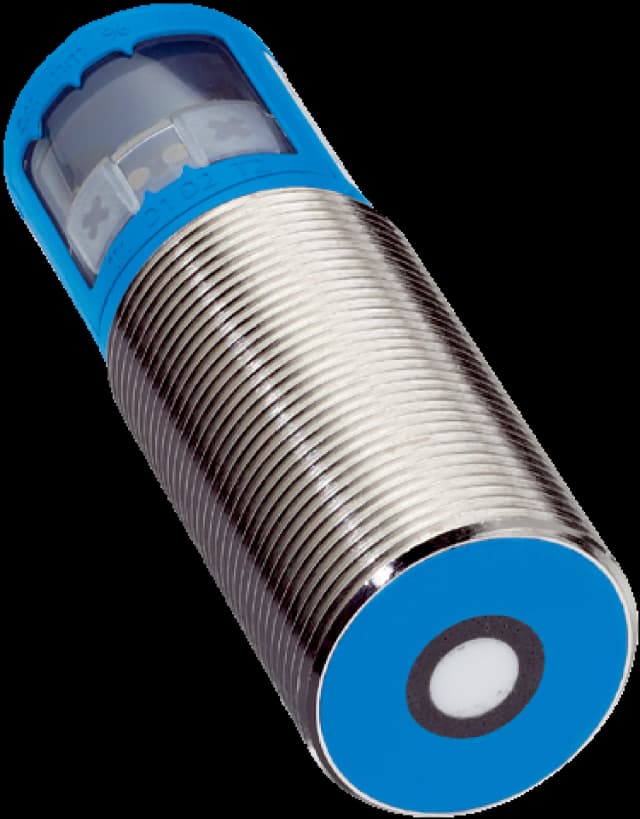

UM30-211111
Ultrasonic distance sensors | UM30 | UM30-211111 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x PNP
UM30-211112
Ultrasonic distance sensors | UM30 | UM30-211112 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 2 x PNP
UM30-211113
Ultrasonic distance sensors | UM30 | UM30-211113 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Type of analog output: Current output / voltage output
UM30-211114
Ultrasonic distance sensors | UM30 | UM30-211114 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 2 x NPN
UM30-211115
Ultrasonic distance sensors | UM30 | UM30-211115 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x NPN
UM30-211118
Ultrasonic distance sensors | UM30 | UM30-211118 | Communication interface: - | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x PNP | Type of analog output: Current output / voltage output
UM30-21111B
Ultrasonic distance sensors | UM30 | UM30-21111B | Communication interface: IO-Link | Operating range, limiting range: 30 mm ... 250 mm, 350 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 32 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
UM30-212111
Ultrasonic distance sensors | UM30 | UM30-212111 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 1 x PNP
UM30-212111S10
Ultrasonic distance sensors | UM30 | UM30-212111S10 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 1 x PNP
UM30-212112
Ultrasonic distance sensors | UM30 | UM30-212112 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 2 x PNP
UM30-212113
Ultrasonic distance sensors | UM30 | UM30-212113 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Type of analog output: Current output / voltage output
UM30-212114
Ultrasonic distance sensors | UM30 | UM30-212114 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 2 x NPN
UM30-212115
Ultrasonic distance sensors | UM30 | UM30-212115 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 1 x NPN
UM30-212118
Ultrasonic distance sensors | UM30 | UM30-212118 | Communication interface: - | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 1 x PNP | Type of analog output: Current output / voltage output
UM30-21211B
Ultrasonic distance sensors | UM30 | UM30-21211B | Communication interface: IO-Link | Operating range, limiting range: 65 mm ... 350 mm, 600 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 64 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
UM30-213111
Ultrasonic distance sensors | UM30 | UM30-213111 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 1 x PNP
UM30-213111S12
Ultrasonic distance sensors | UM30 | UM30-213111S12 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 1 x PNP
UM30-213112
Ultrasonic distance sensors | UM30 | UM30-213112 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 2 x PNP
UM30-213113
Ultrasonic distance sensors | UM30 | UM30-213113 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Type of analog output: Current output / voltage output
UM30-213114
Ultrasonic distance sensors | UM30 | UM30-213114 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 2 x NPN
UM30-213115
Ultrasonic distance sensors | UM30 | UM30-213115 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 1 x NPN
UM30-213118
Ultrasonic distance sensors | UM30 | UM30-213118 | Communication interface: - | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 1 x PNP | Type of analog output: Current output / voltage output
UM30-21311B
Ultrasonic distance sensors | UM30 | UM30-21311B | Communication interface: IO-Link | Operating range, limiting range: 200 mm ... 1,300 mm, 2,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 92 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1

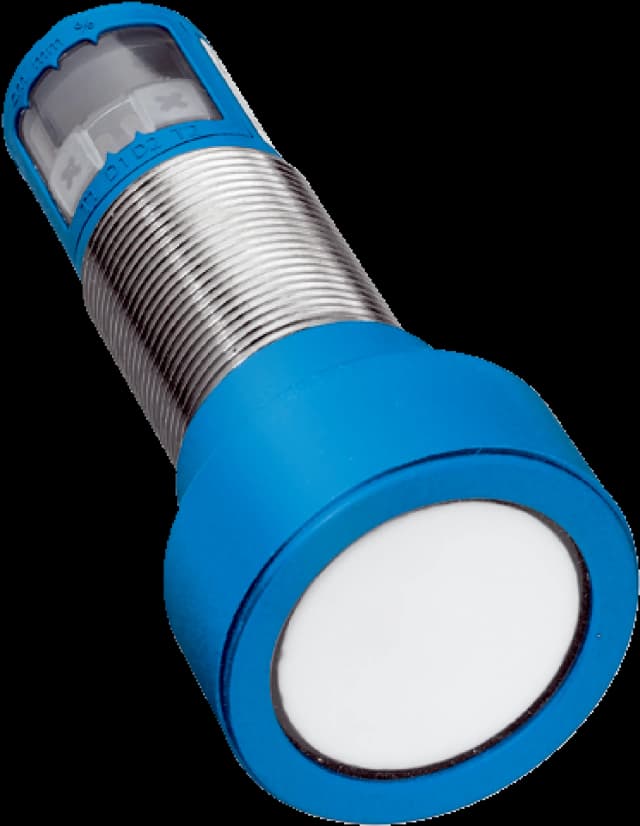

UM30-214111
Ultrasonic distance sensors | UM30 | UM30-214111 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 1 x PNP
UM30-214112
Ultrasonic distance sensors | UM30 | UM30-214112 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 2 x PNP
UM30-214113
Ultrasonic distance sensors | UM30 | UM30-214113 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Type of analog output: Current output / voltage output
UM30-214114
Ultrasonic distance sensors | UM30 | UM30-214114 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 2 x NPN
UM30-214115
Ultrasonic distance sensors | UM30 | UM30-214115 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 1 x NPN
UM30-214118
Ultrasonic distance sensors | UM30 | UM30-214118 | Communication interface: - | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 1 x PNP | Type of analog output: Current output / voltage output
UM30-21411B
Ultrasonic distance sensors | UM30 | UM30-21411B | Communication interface: IO-Link | Operating range, limiting range: 350 mm ... 3,400 mm, 5,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 180 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1

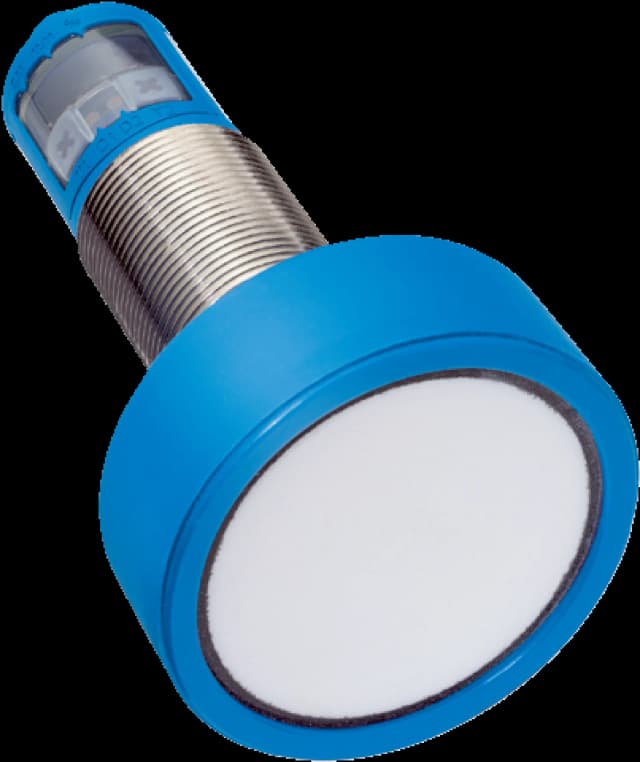

UM30-215111
Ultrasonic distance sensors | UM30 | UM30-215111 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Digital output: 1 x PNP
UM30-215112
Ultrasonic distance sensors | UM30 | UM30-215112 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Digital output: 2 x PNP
UM30-215113
Ultrasonic distance sensors | UM30 | UM30-215113 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Type of analog output: Current output / voltage output
UM30-215114
Ultrasonic distance sensors | UM30 | UM30-215114 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Digital output: 2 x NPN
UM30-215115
Ultrasonic distance sensors | UM30 | UM30-215115 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Digital output: 1 x NPN
UM30-215118
Ultrasonic distance sensors | UM30 | UM30-215118 | Communication interface: - | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Digital output: 1 x PNP | Type of analog output: Current output / voltage output
UM30-21511B
Ultrasonic distance sensors | UM30 | UM30-21511B | Communication interface: IO-Link | Operating range, limiting range: 600 mm ... 6,000 mm, 8,000 mm | Connection type: Male connector, M12, 5-pin | Sending axis: Straight | Response time: 240 ms | Digital output: 1 x push-pull: PNP/NPN | Communication Interface detail: IO-Link V1.1
