Серия position magnets
27 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.
MAG-0625-A
Magnets | Position magnets | MAG-0625-A | Product segment: Magnets | Product: Position magnets | Description: Magnet without mounting hole, Ø 6 mm, height 25 mm | Material: Aluminum-nickel-cobalt
MAG-1003-S
Magnets | Position magnets | MAG-1003-S | Product segment: Magnets | Product: Position magnets | Description: Magnet without mounting hole, Ø 10 mm, height 3 mm | Material: Samariumkobalt
MAG-1005-N
Magnets | Position magnets | MAG-1005-N | Product segment: Magnets | Product: Position magnets | Description: Neodym - Note: Direct or indirect sale of the Neodym magnets we supply or end products manufactured from these magnets is prohibited in the following countries: USA, Canada and Japan.
MAG-2006-B
Magnets | Position magnets | MAG-2006-B | Product segment: Magnets | Product: Position magnets | Description: Magnet with mounting hole for M4 countersunk screw, Ø 20 mm, height 6.5 mm | Material: Strontium ferrite
MAG-2308-B
Magnets | Position magnets | MAG-2308-B | Product segment: Magnets | Product: Position magnets | Description: Magnet with mounting hole for M5 flat head screw, Ø 23 mm, height 8 mm | Material: Barium ferrite
MAG-3010-B
Magnets | Position magnets | MAG-3010-B | Product segment: Magnets | Product: Position magnets | Description: Magnet without mounting hole, Ø 30 mm, height 10 mm | Material: Barium ferrite
MAG-3015-B
Magnets | Position magnets | MAG-3015-B | Product segment: Magnets | Product: Position magnets | Description: Magnet with mounting hole for M5 flat head screw, Ø 31 mm, height 15 mm | Material: Barium ferrite
MAG-3515-B
Magnets | Position magnets | MAG-3515-B | Product segment: Magnets | Product: Position magnets | Description: Magnet with mounting hole for M5 flat head screw, Ø 36 mm, height 19.5 mm | Material: Barium ferrite with plastic coating
MAG-B-180-01
Magnets | Position magnets | MAG-B-180-01 | Product segment: Magnets | Product: Position magnets | Description: Small block magnet for magnetostrictive linear encoders
MAG-B-200-01
Magnets | Position magnets | MAG-B-200-01 | Product segment: Magnets | Product: Position magnets | Description: Large block magnet for magnetostrictive linear encoders
MAG-C-250-01
Magnets | Position magnets | MAG-C-250-01 | Product segment: Magnets | Product: Position magnets | Description: C-position magnet for magnetostrictive linear encoder, Ø 25.0 mm max. axial surface pressure 20 N/mm²
MAG-C-330-01
Magnets | Position magnets | MAG-C-330-01 | Product segment: Magnets | Product: Position magnets | Description: C-position magnet for magnetostrictive linear encoder, Ø 33.0 mm max. axial surface pressure 40 N/mm²
MAG-O-174-01
Magnets | Position magnets | MAG-O-174-01 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –30 °C ... +95 °C Dimensions: 17.4x12x10.6 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)
MAG-O-174-05
Magnets | Position magnets | MAG-O-174-05 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –30 °C ... +95 °C Dimensions: 17.4x12x10.6 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)
MAG-O-174-10
Magnets | Position magnets | MAG-O-174-10 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –30 °C ... +95 °C Dimensions: 17.4x12x10.6 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)
MAG-O-174-50
Magnets | Position magnets | MAG-O-174-50 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –30 °C ... +95 °C Dimensions: 17.4x12x10.6 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)

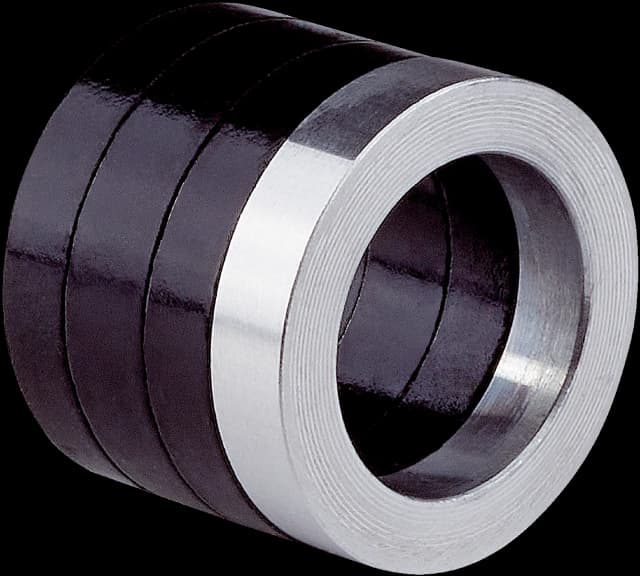

MAG-O-174-50-S01
Magnets | Position magnets | MAG-O-174-50-S01 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –30 °C ... +95 °C Dimensions: 17.4x12x14 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)

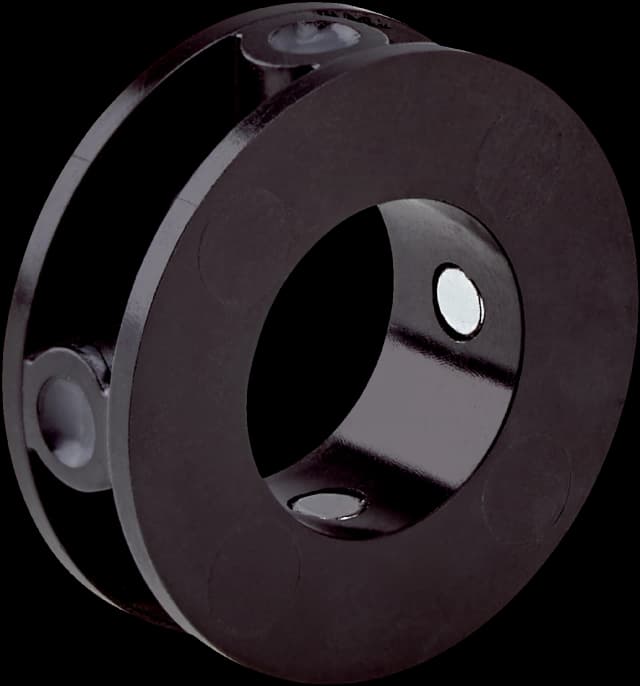

MAG-O-255-01
Magnets | Position magnets | MAG-O-255-01 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoder, Ø 25.5 mm max. axial surface pressures 20 N/mm²

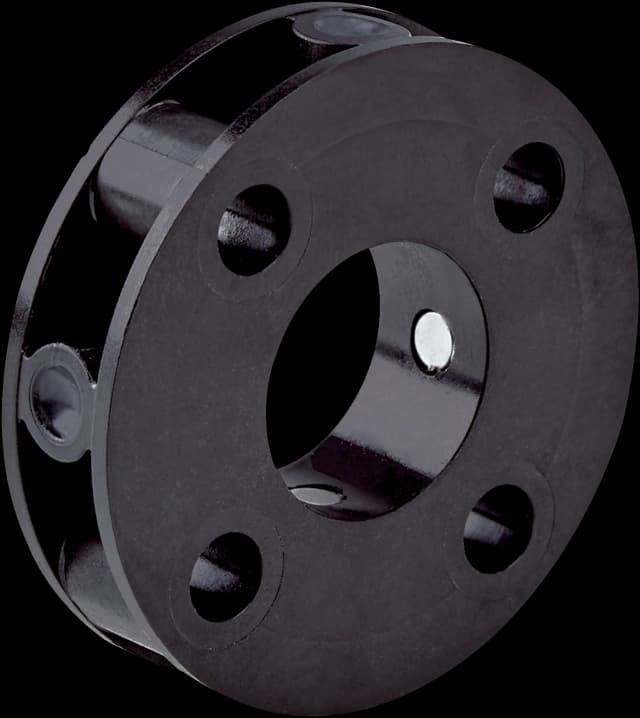

MAG-O-330-01
Magnets | Position magnets | MAG-O-330-01 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoder, Ø 33.0 mm max. axial surface pressure 40 N/mm²

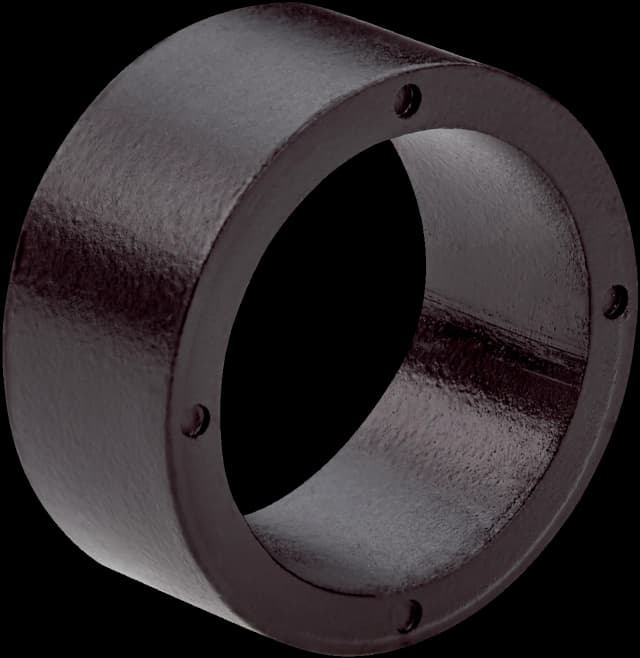

MAG-O-S174-01
Magnets | Position magnets | MAG-O-S174-01 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –40 °C ... +100 °C Dimensions: 17.4x13.5x7.9 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)
MAG-O-S174-05
Magnets | Position magnets | MAG-O-S174-05 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –40 °C ... +100 °C Dimensions: 17.4x13.5x7.9 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)
MAG-O-S174-10
Magnets | Position magnets | MAG-O-S174-10 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –40 °C ... +100 °C Dimensions: 17.4x13.5x7.9 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)
MAG-O-S174-50
Magnets | Position magnets | MAG-O-S174-50 | Product segment: Magnets | Product: Position magnets | Description: Position magnet for magnetostrictive linear encoders Installation: in hydraulic cylinder using corrugated spring washer SICK part no. 2116431 Temperature range: –40 °C ... +100 °C Dimensions: 17.4x13.5x7.9 mm Media: lubricants, hydraulic oils, no aggressive fluids (e.g., acids or bases)

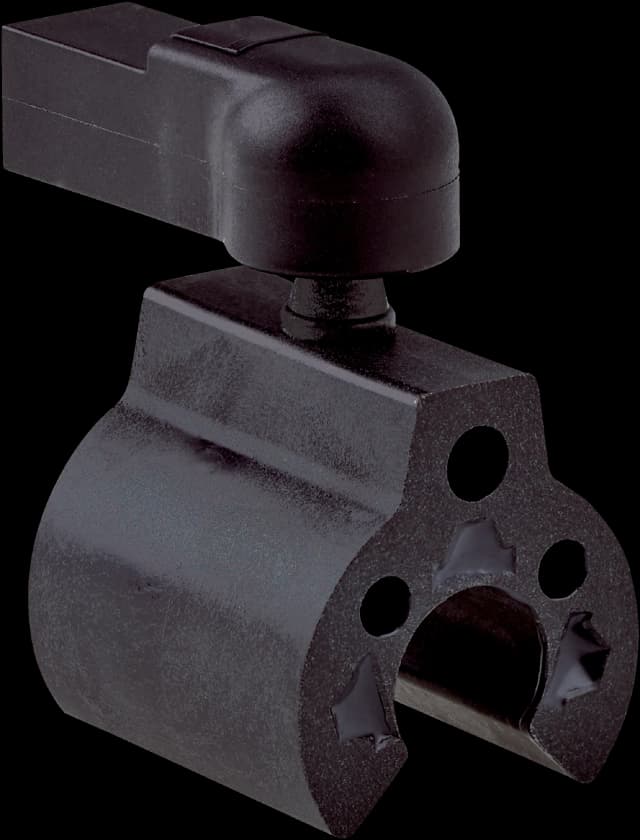

MAG-S-H29-01
Magnets | Position magnets | MAG-S-H29-01 | Product segment: Magnets | Product: Position magnets | Description: Slide magnet for magnetostrictive linear encoders

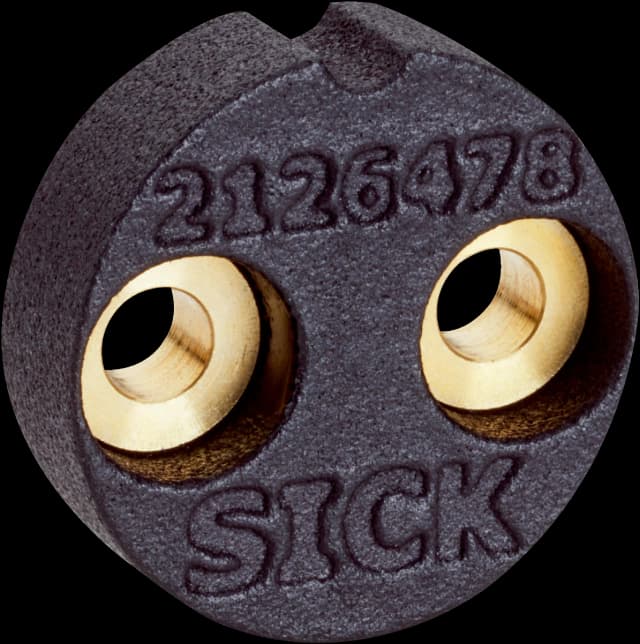

MAGH-1004-N
Magnets | Position magnets | MAGH-1004-N | Product segment: Magnets | Product: Position magnets | Description: Magnet with bracket, Neodym - Note: Direct or indirect sale of the Neodym magnets we supply or end products manufactured from these magnets is prohibited in the following countries: USA, Canada and Japan. | Material: PA
MAGH-1004-SMCO
Magnets | Position magnets | MAGH-1004-SMCO | Product segment: Magnets | Product: Position magnets | Description: Magnet with bracket, samarium cobalt | Material: PA

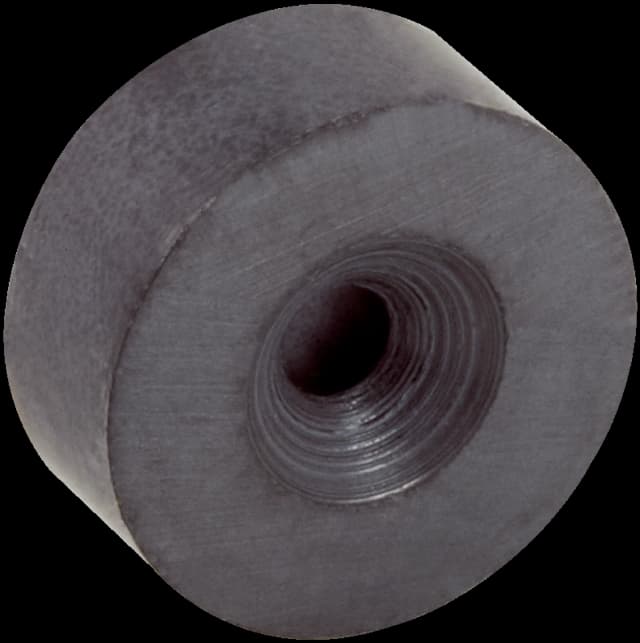

Magnet
Magnets | Position magnets | Magnet | Product segment: Magnets | Product: Position magnets | Description: Magnet with mounting hole for M3 countersunk screw, Ø 15.2 mm, height 6 mm | Material: Hard ferrite
