Серия OD5000
8 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

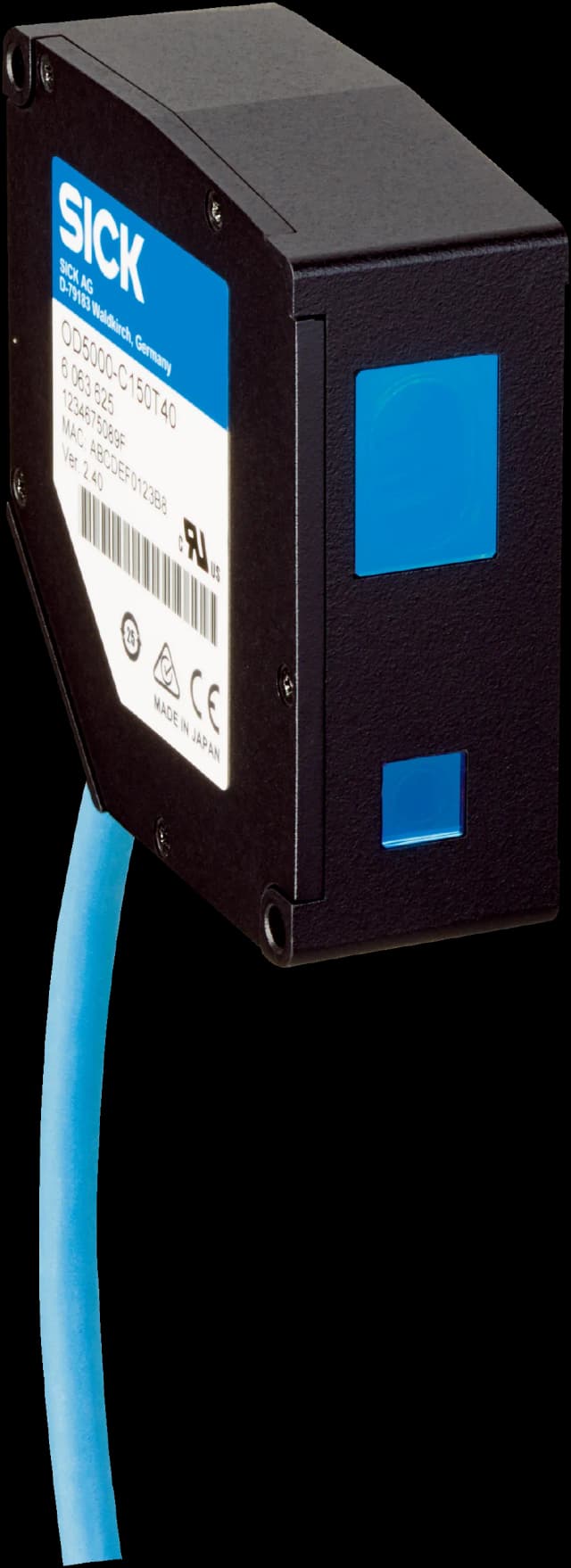

OD5000-C150T40
Laser distance sensors | OD5000 | OD5000-C150T40 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 110 mm ... 190 mm | Repeatability: 0.2 µm | Laser class: 1 | Typ. light spot size (distance): Ø 120 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C150W40
Laser distance sensors | OD5000 | OD5000-C150W40 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 110 mm ... 190 mm | Repeatability: 0.2 µm | Laser class: 1 | Typ. light spot size (distance): 120 µm x 4,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm

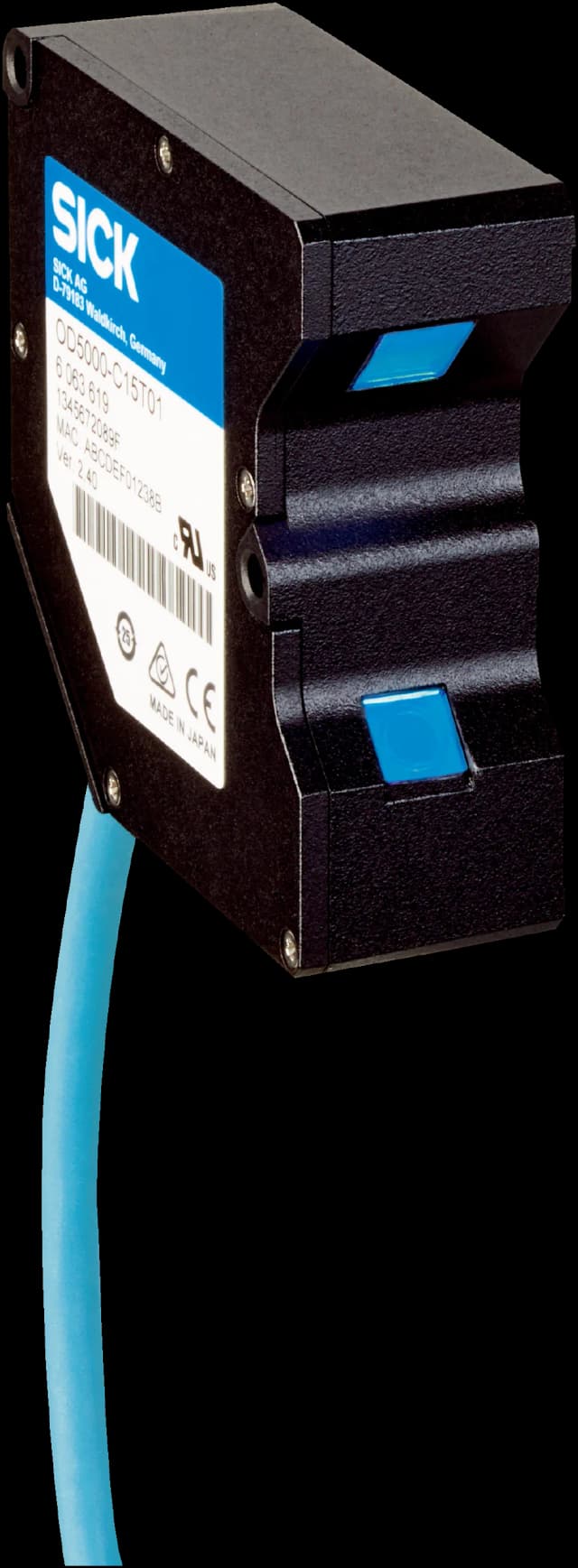

OD5000-C15T01
Laser distance sensors | OD5000 | OD5000-C15T01 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 14 mm ... 16 mm | Repeatability: 0.01 µm | Laser class: 1 | Typ. light spot size (distance): Ø 30 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C15W01
Laser distance sensors | OD5000 | OD5000-C15W01 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 14 mm ... 16 mm | Repeatability: 0.01 µm | Laser class: 1 | Typ. light spot size (distance): 30 µm x 1,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm

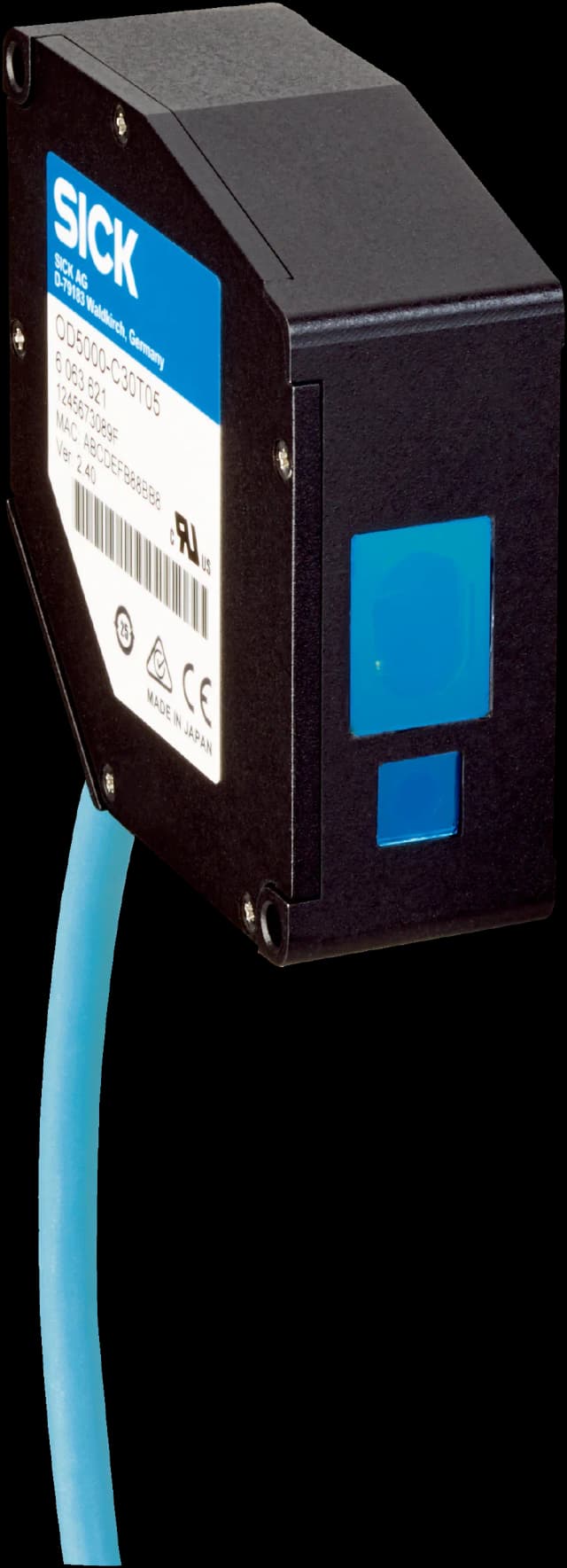

OD5000-C30T05
Laser distance sensors | OD5000 | OD5000-C30T05 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 25 mm ... 35 mm | Repeatability: 0.05 µm | Laser class: 1 | Typ. light spot size (distance): Ø 30 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C30W05
Laser distance sensors | OD5000 | OD5000-C30W05 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 25 mm ... 35 mm | Repeatability: 0.05 µm | Laser class: 1 | Typ. light spot size (distance): 30 µm x 1,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm

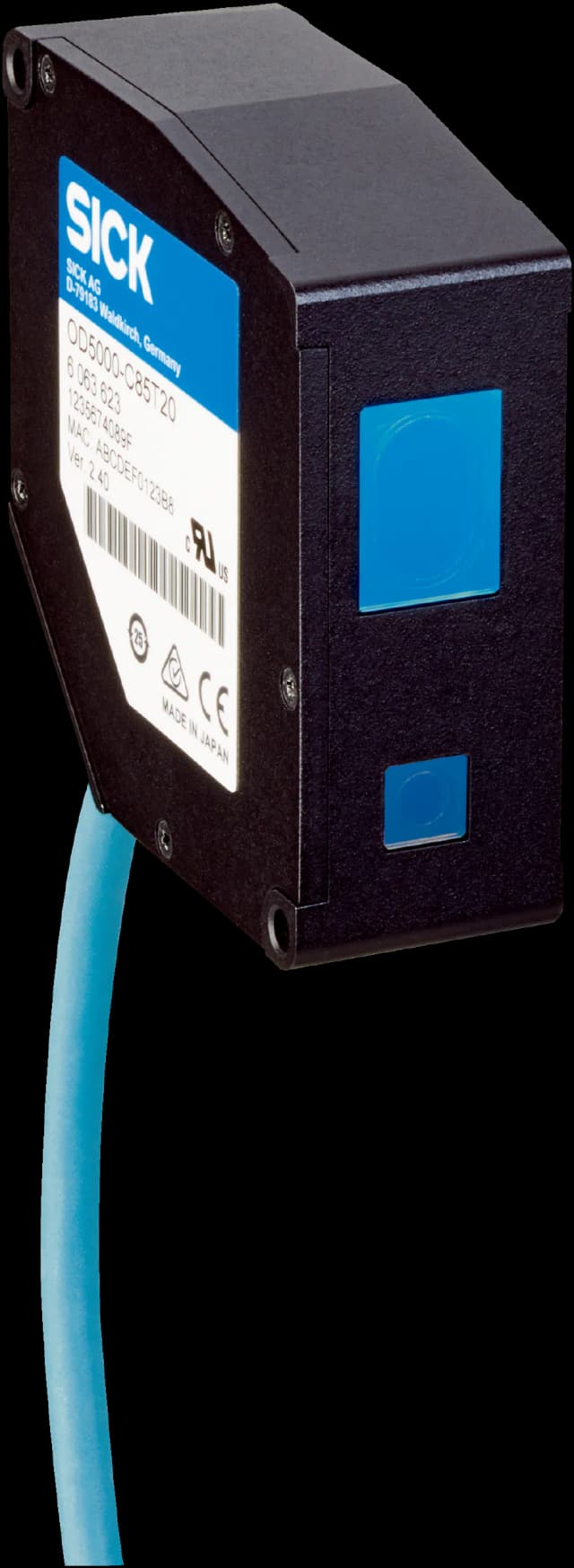

OD5000-C85T20
Laser distance sensors | OD5000 | OD5000-C85T20 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 0.1 µm | Laser class: 1 | Typ. light spot size (distance): Ø 70 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
OD5000-C85W20
Laser distance sensors | OD5000 | OD5000-C85W20 | Communication interface: Ethernet | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 0.1 µm | Laser class: 1 | Typ. light spot size (distance): 70 µm x 2,000 µm | Housing material: Metal | Connection type: Cable with male connector, M12, 8-pin, A-coded, 50 cm
