Серия OD200
3 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

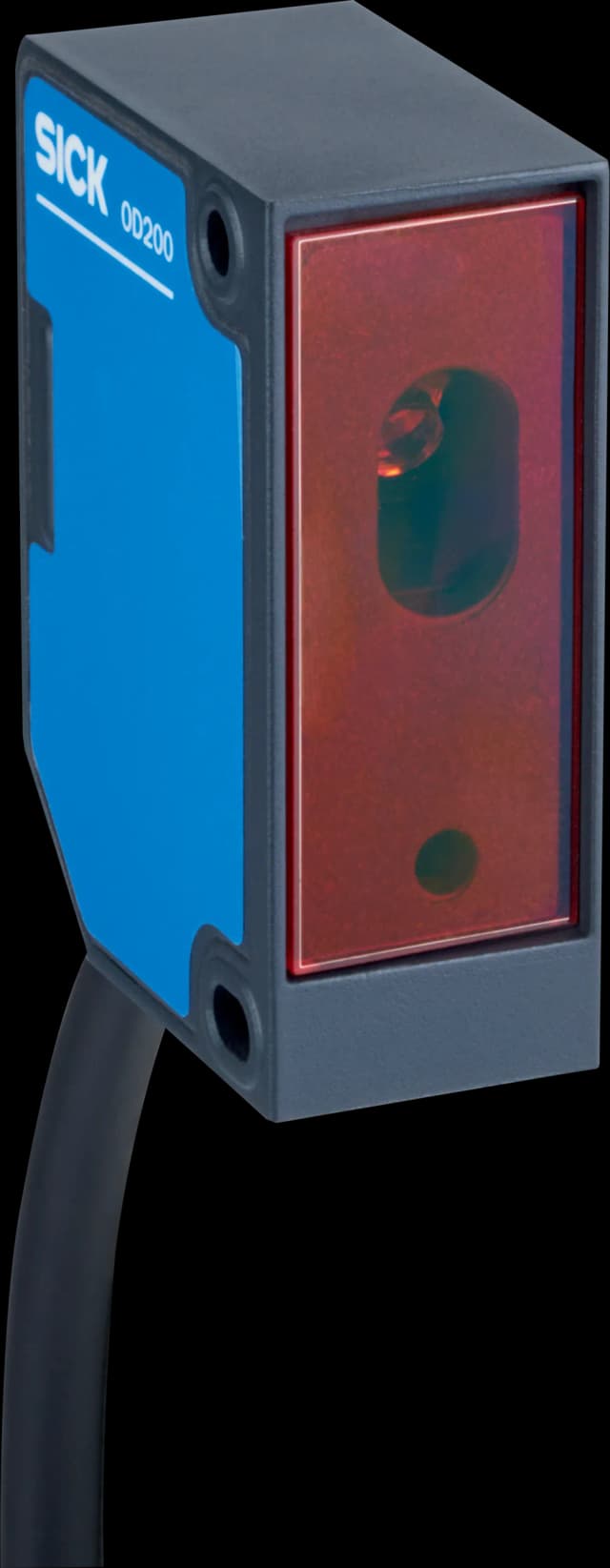

OD200-0301W15
Laser distance sensors | OD200 | OD200-0301W15 | Communication interface: IO-Link | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 25 mm ... 35 mm | Repeatability: 2 µm | Laser class: 1 | Typ. light spot size (distance): 0.2 mm x 0.5 mm (30 mm) | Housing material: Metal | Connection type: Cable with plug M12, 5-pin, 345 mm
OD200-0501W15
Laser distance sensors | OD200 | OD200-0501W15 | Communication interface: IO-Link | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 35 mm ... 65 mm | Repeatability: 5 µm | Laser class: 1 | Typ. light spot size (distance): 0.3 mm x 0.7 mm (50 mm) | Housing material: Metal | Connection type: Cable with plug M12, 5-pin, 345 mm
OD200-1101W15
Laser distance sensors | OD200 | OD200-1101W15 | Communication interface: IO-Link | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output / voltage output | Measuring range: 60 mm ... 160 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 0.5 mm x 1.6 mm (110 mm) | Housing material: Metal | Connection type: Cable with plug M12, 5-pin, 345 mm
