Серия OD Value
45 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

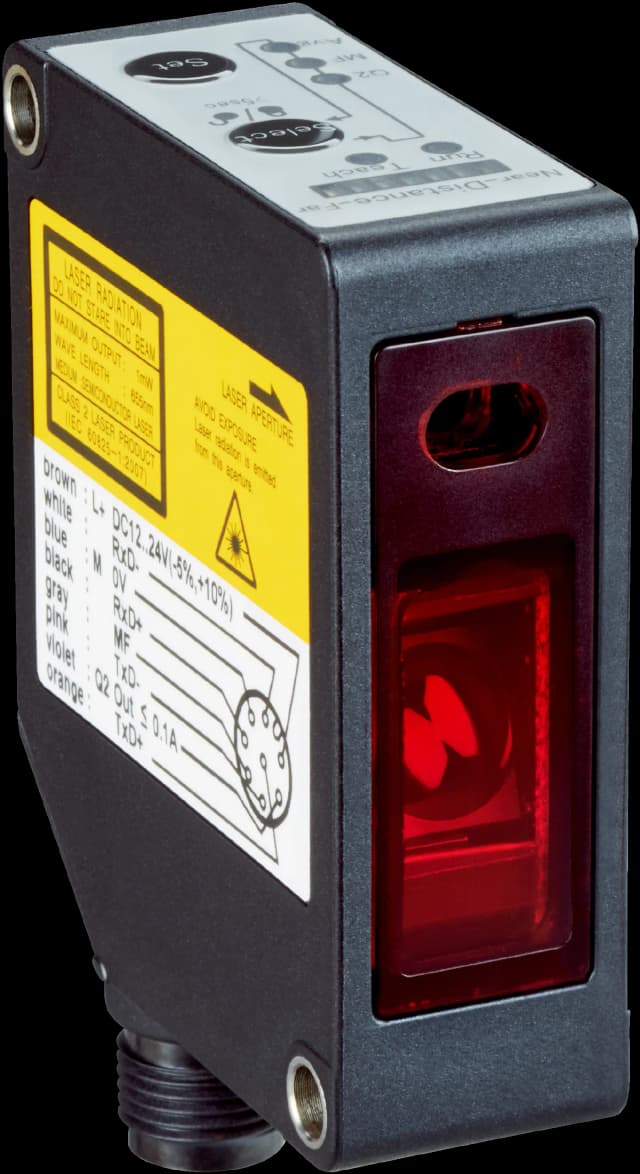

OD2-N120W60A2
Laser distance sensors | OD Value | OD2-N120W60A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N120W60I0
Laser distance sensors | OD Value | OD2-N120W60I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N120W60I2
Laser distance sensors | OD Value | OD2-N120W60I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N120W60U2
Laser distance sensors | OD Value | OD2-N120W60U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N250W150A2
Laser distance sensors | OD Value | OD2-N250W150A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N250W150I0
Laser distance sensors | OD Value | OD2-N250W150I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N250W150I2
Laser distance sensors | OD Value | OD2-N250W150I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N250W150U2
Laser distance sensors | OD Value | OD2-N250W150U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N30W04A2
Laser distance sensors | OD Value | OD2-N30W04A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N30W04I2
Laser distance sensors | OD Value | OD2-N30W04I2 | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N30W04U2
Laser distance sensors | OD Value | OD2-N30W04U2 | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N50W10A2
Laser distance sensors | OD Value | OD2-N50W10A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N50W10I0
Laser distance sensors | OD Value | OD2-N50W10I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N50W10I2
Laser distance sensors | OD Value | OD2-N50W10I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N50W10U2
Laser distance sensors | OD Value | OD2-N50W10U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N85W20A2
Laser distance sensors | OD Value | OD2-N85W20A2 | Communication interface: Serial | Digital output: 1 x NPN | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N85W20I0
Laser distance sensors | OD Value | OD2-N85W20I0 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-N85W20I2
Laser distance sensors | OD Value | OD2-N85W20I2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-N85W20U2
Laser distance sensors | OD Value | OD2-N85W20U2 | Communication interface: - | Digital output: 2 x NPN | Type of analog output: Voltage output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P120W60A0
Laser distance sensors | OD Value | OD2-P120W60A0 | Communication interface: Serial | Digital output: 1 x PNP | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P120W60A2
Laser distance sensors | OD Value | OD2-P120W60A2 | Communication interface: Serial | Digital output: 1 x PNP | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P120W60I0
Laser distance sensors | OD Value | OD2-P120W60I0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P120W60I2
Laser distance sensors | OD Value | OD2-P120W60I2 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P120W60U0
Laser distance sensors | OD Value | OD2-P120W60U0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P120W60U2
Laser distance sensors | OD Value | OD2-P120W60U2 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 60 mm ... 180 mm | Repeatability: 30 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.5 mm (120 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P135W75I0
Laser distance sensors | OD Value | OD2-P135W75I0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 60 mm ... 210 mm | Repeatability: 60 µm | Laser class: 2 | Typ. light spot size (distance): 1 mm x 1.4 mm (135 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P250W150A2
Laser distance sensors | OD Value | OD2-P250W150A2 | Communication interface: Serial | Digital output: 1 x PNP | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P250W150I0
Laser distance sensors | OD Value | OD2-P250W150I0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P250W150I2
Laser distance sensors | OD Value | OD2-P250W150I2 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P250W150U0
Laser distance sensors | OD Value | OD2-P250W150U0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P250W150U2
Laser distance sensors | OD Value | OD2-P250W150U2 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 100 mm ... 400 mm | Repeatability: 75 µm | Laser class: 2 | Typ. light spot size (distance): 1.8 mm x 3.5 mm (250 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P300W200I0
Laser distance sensors | OD Value | OD2-P300W200I0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 500 mm | Repeatability: 100 µm | Laser class: 2 | Typ. light spot size (distance): 1.9 mm x 3.9 mm (300 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P30W04A2
Laser distance sensors | OD Value | OD2-P30W04A2 | Communication interface: Serial | Digital output: 2 x PNP | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P30W04I0
Laser distance sensors | OD Value | OD2-P30W04I0 | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P30W04I2
Laser distance sensors | OD Value | OD2-P30W04I2 | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P30W04U0
Laser distance sensors | OD Value | OD2-P30W04U0 | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 26 mm ... 34 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.1 mm x 0.1 mm (30 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P50W10A2
Laser distance sensors | OD Value | OD2-P50W10A2 | Communication interface: Serial | Digital output: 1 x PNP | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P50W10I0
Laser distance sensors | OD Value | OD2-P50W10I0 | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P50W10I2
Laser distance sensors | OD Value | OD2-P50W10I2 | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P50W10U0
Laser distance sensors | OD Value | OD2-P50W10U0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 40 mm ... 60 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 0.5 mm x 1 mm (50 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P85W20A2
Laser distance sensors | OD Value | OD2-P85W20A2 | Communication interface: Serial | Digital output: 1 x PNP | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P85W20I0
Laser distance sensors | OD Value | OD2-P85W20I0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P85W20I2
Laser distance sensors | OD Value | OD2-P85W20I2 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Current output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
OD2-P85W20U0
Laser distance sensors | OD Value | OD2-P85W20U0 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Male connector, M12, 8-pin, swivel connector unit
OD2-P85W20U2
Laser distance sensors | OD Value | OD2-P85W20U2 | Communication interface: - | Digital output: 2 x PNP | Type of analog output: Voltage output | Measuring range: 65 mm ... 105 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 0.8 mm x 1.3 mm (85 mm) | Housing material: Plastic | Connection type: Cable, 2 m
