Серия OD Precision
10 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

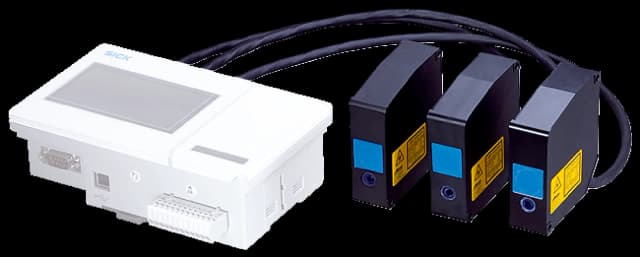

OD5-150T40
Laser distance sensors | OD Precision | OD5-150T40 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 110 mm ... 190 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): Ø 180 µm (150 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-150W40
Laser distance sensors | OD Precision | OD5-150W40 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 110 mm ... 190 mm | Repeatability: 2 µm | Laser class: 2 | Typ. light spot size (distance): 0.33 mm x 1.6 mm (150 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-25T01
Laser distance sensors | OD Precision | OD5-25T01 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 24 mm ... 26 mm | Repeatability: 0.02 µm | Laser class: 1 | Typ. light spot size (distance): 25 µm x 35 µm (25 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-25W01
Laser distance sensors | OD Precision | OD5-25W01 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 24 mm ... 26 mm | Repeatability: 0.02 µm | Laser class: 1 | Typ. light spot size (distance): 100 µm x 700 µm (25 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-30T05
Laser distance sensors | OD Precision | OD5-30T05 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 25 mm ... 35 mm | Repeatability: 0.2 µm | Laser class: 2 | Typ. light spot size (distance): 30 µm x 100 µm (30 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-30W05
Laser distance sensors | OD Precision | OD5-30W05 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 25 mm ... 35 mm | Repeatability: 0.2 µm | Laser class: 2 | Typ. light spot size (distance): 260 µm x 1,000 µm (30 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-350W100
Laser distance sensors | OD Precision | OD5-350W100 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 250 mm ... 450 mm | Repeatability: 5 µm | Laser class: 2 | Typ. light spot size (distance): 700 µm x 2,400 µm (350 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-500W200
Laser distance sensors | OD Precision | OD5-500W200 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 300 mm ... 700 mm | Repeatability: 10 µm | Laser class: 2 | Typ. light spot size (distance): 1,000 µm x 3,700 µm (500 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-85T20
Laser distance sensors | OD Precision | OD5-85T20 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 65 mm ... 105 mm | Repeatability: 1 µm | Laser class: 2 | Typ. light spot size (distance): 70 µm x 290 µm (85 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
OD5-85W20
Laser distance sensors | OD Precision | OD5-85W20 | Communication interface: Serial | Digital output: 5 x PNP, NPN | Type of analog output: Current output / voltage output | Measuring range: 65 mm ... 105 mm | Repeatability: 1 µm | Laser class: 2 | Typ. light spot size (distance): 260 µm x 1,200 µm (85 mm) | Housing material: Metal | Connection type: Cable with male connector, 0.5 m
