Серия OD Mini
35 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

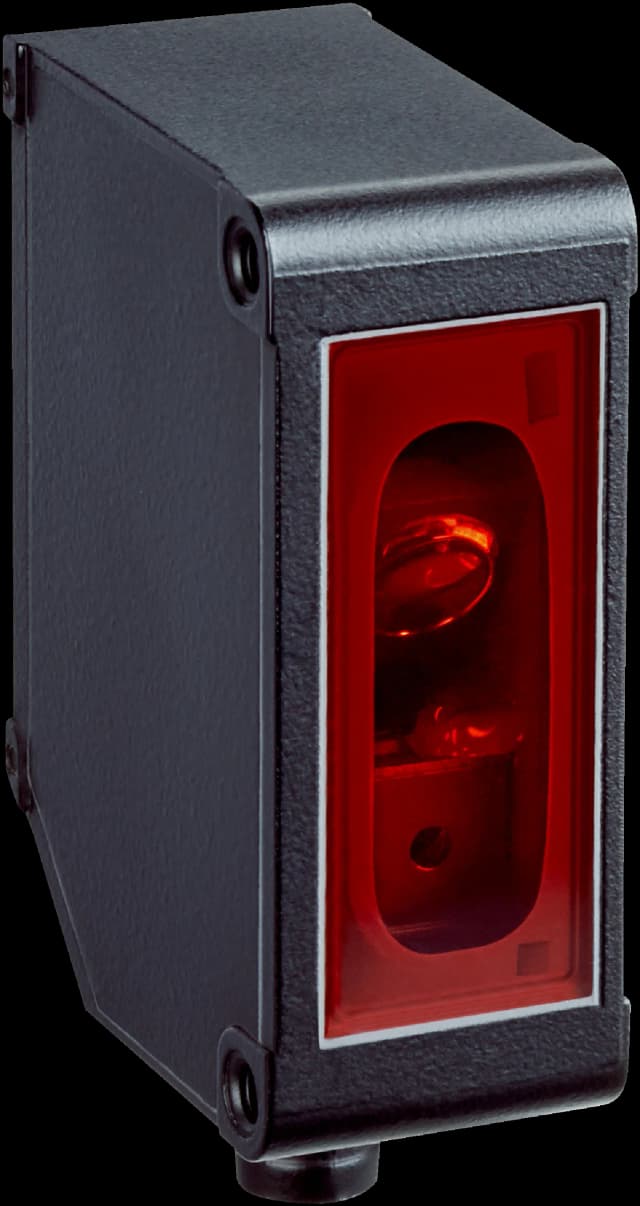

OD1-B015C05A14
Laser distance sensors | OD Mini | OD1-B015C05A14 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin

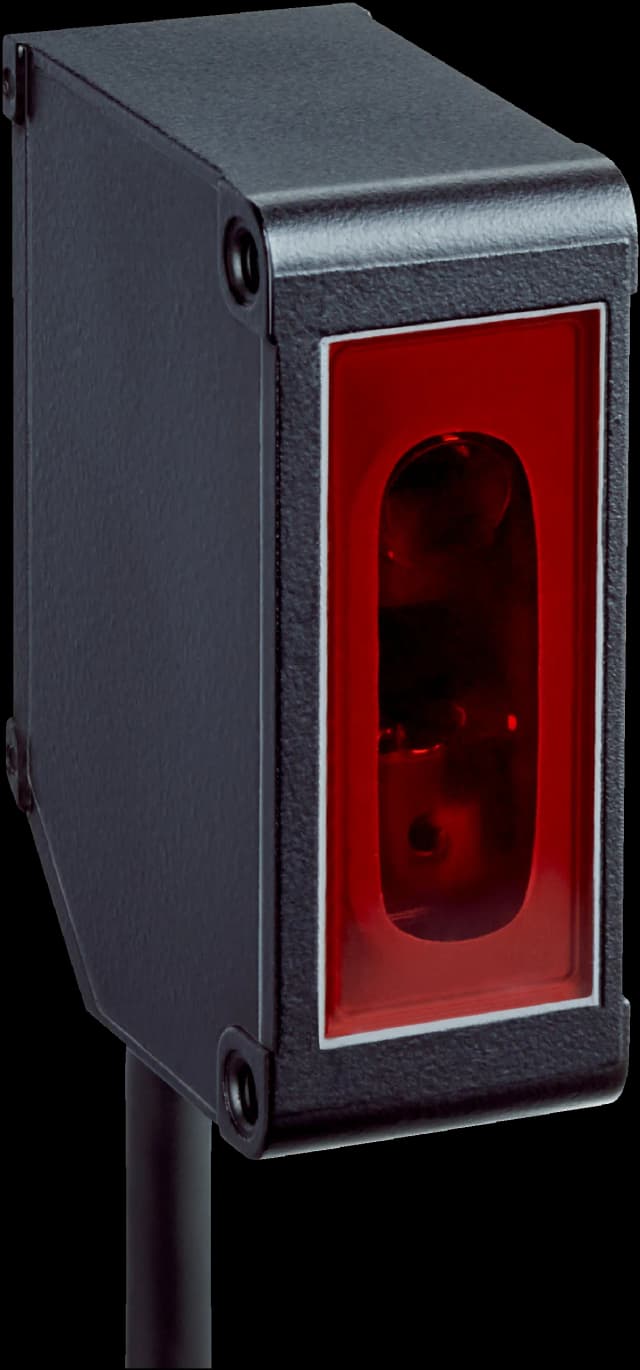

OD1-B015C05A15
Laser distance sensors | OD Mini | OD1-B015C05A15 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B015C05I14
Laser distance sensors | OD Mini | OD1-B015C05I14 | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B015C05I25
Laser distance sensors | OD Mini | OD1-B015C05I25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm

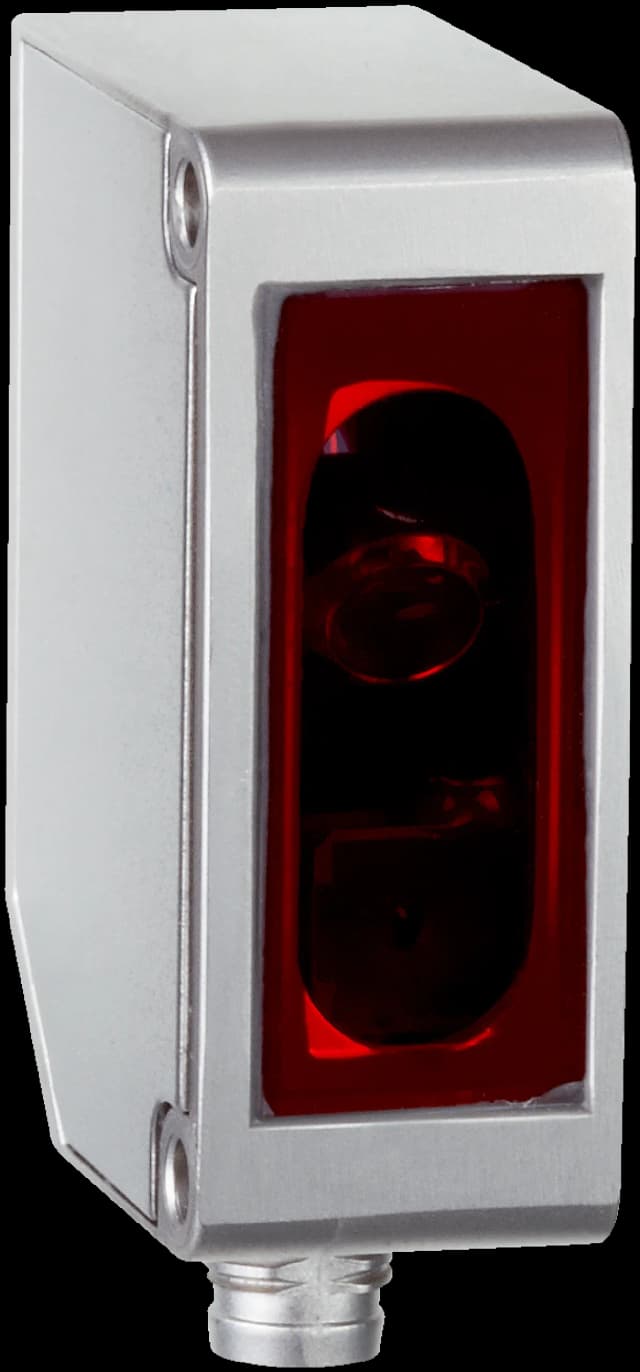

OD1-B015H05A14
Laser distance sensors | OD Mini | OD1-B015H05A14 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin

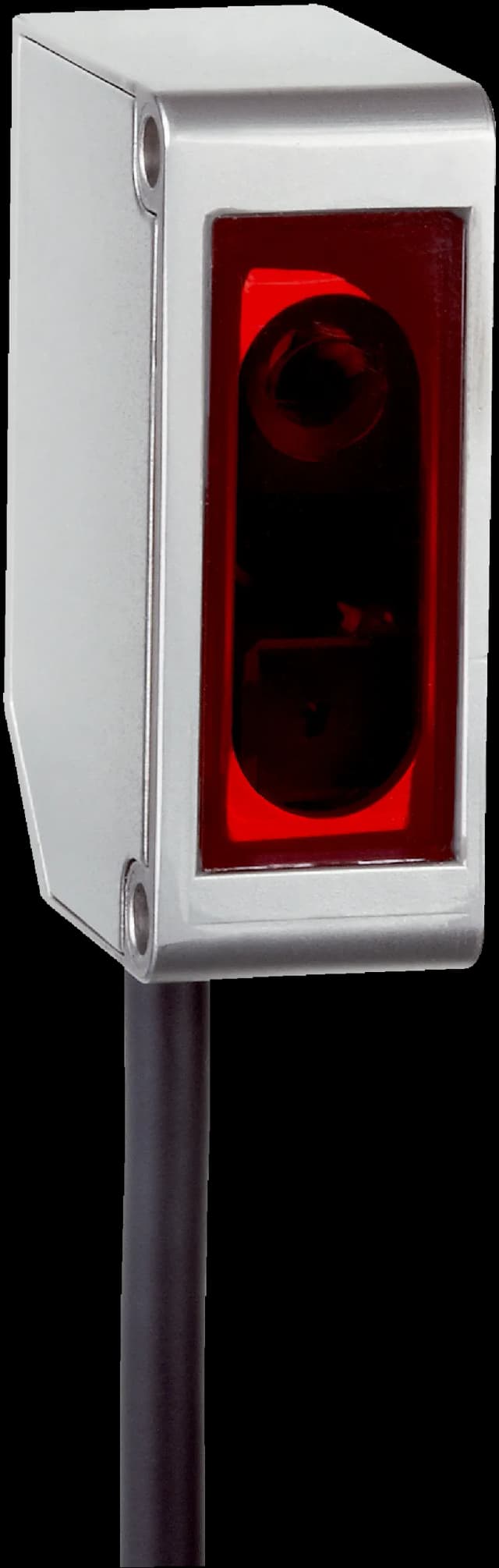

OD1-B015H05A15
Laser distance sensors | OD Mini | OD1-B015H05A15 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B015H05I14
Laser distance sensors | OD Mini | OD1-B015H05I14 | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B015H05I25
Laser distance sensors | OD Mini | OD1-B015H05I25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B015H05I25S02
Laser distance sensors | OD Mini | OD1-B015H05I25S02 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 50 cm
OD1-B015H05U14
Laser distance sensors | OD Mini | OD1-B015H05U14 | Type of analog output: Voltage output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B015H05U25
Laser distance sensors | OD Mini | OD1-B015H05U25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Voltage output | Measuring range: 10 mm ... 20 mm | Repeatability: 1 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 500 µm (15 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B035C15A14
Laser distance sensors | OD Mini | OD1-B035C15A14 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B035C15A15
Laser distance sensors | OD Mini | OD1-B035C15A15 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B035C15I14
Laser distance sensors | OD Mini | OD1-B035C15I14 | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B035C15I25
Laser distance sensors | OD Mini | OD1-B035C15I25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B035C15Q14
Laser distance sensors | OD Mini | OD1-B035C15Q14 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 20 mm ... 50 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 1.6 mm x 1 mm (35 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B035C15Q15
Laser distance sensors | OD Mini | OD1-B035C15Q15 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 20 mm ... 50 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 1.6 mm x 1 mm (35 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B035H15A14
Laser distance sensors | OD Mini | OD1-B035H15A14 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B035H15A15
Laser distance sensors | OD Mini | OD1-B035H15A15 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B035H15I14
Laser distance sensors | OD Mini | OD1-B035H15I14 | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B035H15I25
Laser distance sensors | OD Mini | OD1-B035H15I25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B035H15U14
Laser distance sensors | OD Mini | OD1-B035H15U14 | Type of analog output: Voltage output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B035H15U25
Laser distance sensors | OD Mini | OD1-B035H15U25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Voltage output | Measuring range: 20 mm ... 50 mm | Repeatability: 6 µm | Laser class: 1 | Typ. light spot size (distance): 800 µm x 450 µm (35 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B100C50A14
Laser distance sensors | OD Mini | OD1-B100C50A14 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B100C50A15
Laser distance sensors | OD Mini | OD1-B100C50A15 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B100C50I14
Laser distance sensors | OD Mini | OD1-B100C50I14 | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B100C50I25
Laser distance sensors | OD Mini | OD1-B100C50I25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B100H50A14
Laser distance sensors | OD Mini | OD1-B100H50A14 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B100H50A15
Laser distance sensors | OD Mini | OD1-B100H50A15 | Communication interface: Serial, PROFIBUS DP | Digital output: 1 ... 3 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B100H50I14
Laser distance sensors | OD Mini | OD1-B100H50I14 | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B100H50I25
Laser distance sensors | OD Mini | OD1-B100H50I25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B100H50U14
Laser distance sensors | OD Mini | OD1-B100H50U14 | Type of analog output: Voltage output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Male connector, M8, 4-pin
OD1-B100H50U25
Laser distance sensors | OD Mini | OD1-B100H50U25 | Digital output: 1 x PNP/NPN, selectable | Type of analog output: Voltage output | Measuring range: 50 mm ... 150 mm | Repeatability: 20 µm | Laser class: 1 | Typ. light spot size (distance): 700 µm x 600 µm (100 mm) | Housing material: Stainless steel | Connection type: Cable with male connector, M12, 5-pin, 30 cm
OD1-B150F0AQ14
Laser distance sensors | OD Mini | OD1-B150F0AQ14 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 50 mm ... 250 mm | Repeatability: 200 µm | Laser class: 2 | Typ. light spot size (distance): 2 mm x 1.3 mm (150 mm) | Housing material: Metal | Connection type: Male connector, M8, 4-pin
OD1-B150F0AQ15
Laser distance sensors | OD Mini | OD1-B150F0AQ15 | Digital output: 1 x PNP/NPN, selectable | Measuring range: 50 mm ... 250 mm | Repeatability: 200 µm | Laser class: 2 | Typ. light spot size (distance): 2 mm x 1.3 mm (150 mm) | Housing material: Metal | Connection type: Cable with male connector, M12, 5-pin, 30 cm
