Серия Measuring wheel mechanics
14 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.
BEF-MK-YOKE2A
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MK-YOKE2A | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Mounting bracket for dual wheeled encoder systems, overbelt yoke mount
BEF-MK-YOKEUB
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MK-YOKEUB | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Mounting bracket for dual wheeled encoder systems, spring tension underbelt yoke mount

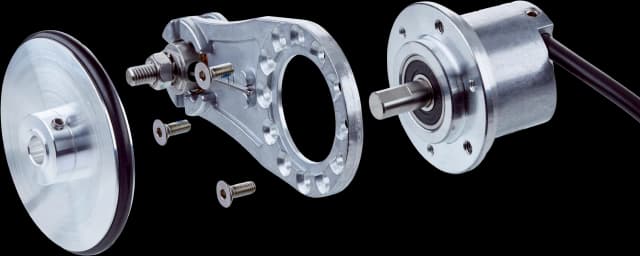

BEF-MRS-08-U
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MRS-08-U | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: SICK modular measuring wheel system for DBS50E-S5; spare part for DBV50 | Items supplied: Measuring wheel for 8 series shaftSpring armM6 serrated lock washerM6 counter nut3 M4x10 screwsPositioning disc | Suitable for: DBS50E-S5

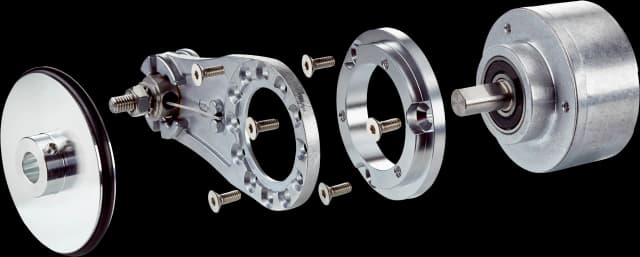

BEF-MRS-10-U
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MRS-10-U | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: SICK modular measuring wheel system for face mount flange encoder with S4 mechanical design (10 mm x 19 mm solid shaft), e.g., DFS60-S4: with O-ring measuring wheel, circumference 200 mm | Suitable for: Face mount flange encoder DFS60, DBS60, AFM60, AFS60, mechanical design S4 (solid shaft 1
BEF-MRS-10-U-300
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MRS-10-U-300 | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: SICK modular measuring wheel system for face mount flange encoder with S4 mechanical design (10 mm x 19 mm solid shaft), e.g., DFS60-S4: with O-ring measuring wheel, circumference 300 mm | Suitable for: Face mount flange encoder DFS60, DBS60, AFM60, AFS60, mechanical design S4 (solid sha

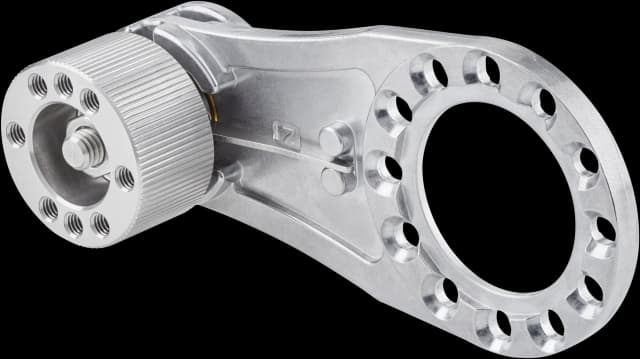

BEF-MWS075-ARM
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MWS075-ARM | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Spring arm for linear measurement of material movement and speed with contact. Spring contact pressure manually adjustable without tools in one step to a constant 14 N contact pressure. Can be combined with separately available encoders and measuring wheels – see MWS075. | Items supplied:

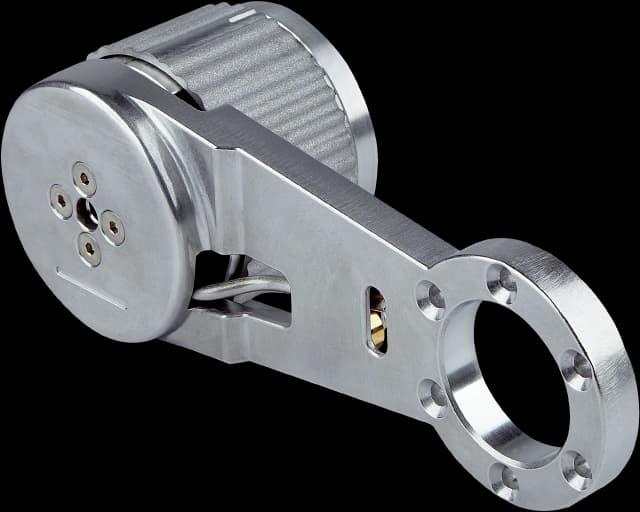

BEF-MWS120-ARM
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MWS120-ARM | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Spring arm for linear measurement with contact, spring contact pressure manually adjustable without tools in 6 increments of 4 N from 0 ... 24 N, can be combined with separately available encoders and measuring wheels. | Items supplied: MWS120 spring arm (part number: 2118239), 3 pcs. M4 x
BEF-MWS120-S01
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MWS120-S01 | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Spring arm for linear measurement with contact, spring contact pressure manually adjustable without tools in 6 increments of 4 N from 0 ... 24 N, can be combined with separately available encoders and measuring wheels. | Items supplied: Spring arm, M6 serrated lock washer, M6 counter nut,

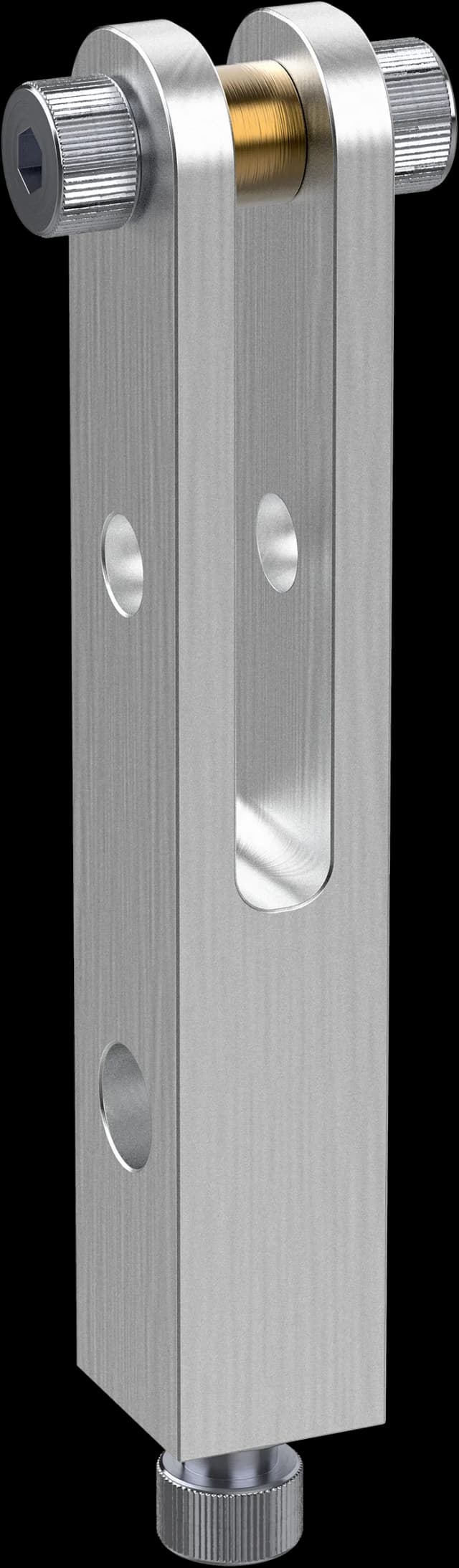

BEF-MWS250-OBM
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MWS250-OBM | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Mounting bracket for dual wheeled encoder systems, overbelt yoke mount

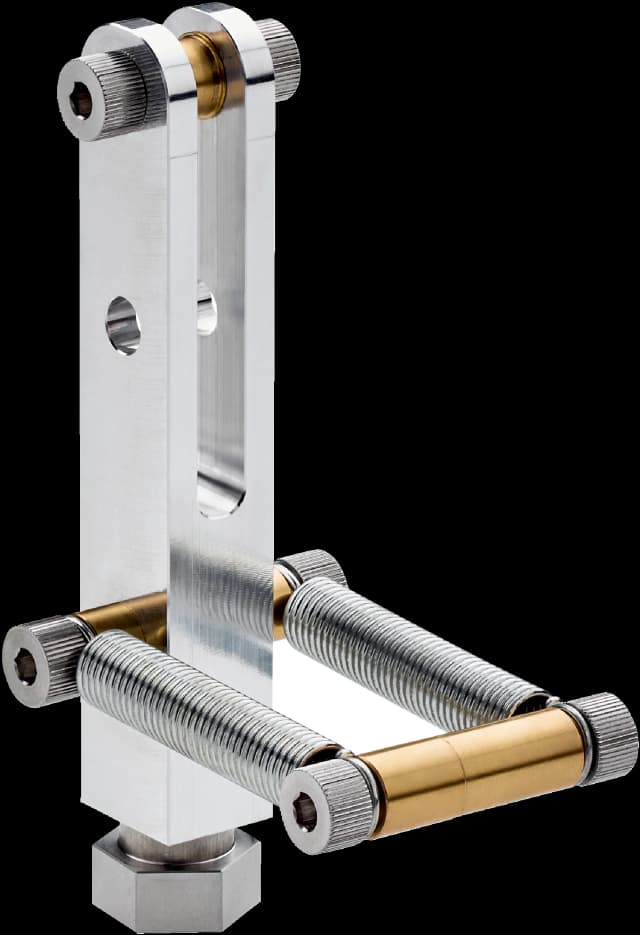

BEF-MWS250-UBM
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-MWS250-UBM | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: Mounting bracket for dual wheeled encoder systems, spring tension underbelt yoke mount
BEF-OR-053-040
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-OR-053-040 | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: O-ring for measuring wheels (circumference 200 mm) | Items supplied: 2 pieces
BEF-OR-083-050
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-OR-083-050 | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: O-ring for measuring wheels (circumference 300 mm) | Items supplied: 2x O-ring
BEF-OR-145-050
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | BEF-OR-145-050 | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: O-ring for measuring wheels (circumference 500 mm)
O-ring SET DKV60
Measuring wheels and measuring wheel mechanics | Measuring wheel mechanics | O-ring SET DKV60 | Product segment: Measuring wheels and measuring wheel mechanics | Product: Measuring wheel mechanics | Description: O-ring set for DKV60 encoder | Suitable for: DKV60 measuring wheel encoder
