Серия flanges and nozzles
138 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.
Показани 97–138 · страница 3 от 3
BEF-HA-TCLI10-LFP2
Mounting systems | Flanges and nozzles | BEF-HA-TCLI10-LFP2 | Description: Hygienic process connection adapter, Tri-Clamp 1” and 1 ½”, including acceptance test certificate 3.1; Ra ≤ 0.4 µm, hygienic in accordance with EHEDG in combination with T-seals or Tri-Clamp seals from Combifit International B.V.
BEF-HA-TCLI10-LFP3
Mounting systems | Flanges and nozzles | BEF-HA-TCLI10-LFP3 | Description: Hygienic process connection adapter, Tri-Clamp 1'' and 1 ½'' with leakage indication port according to 3-A guidelines

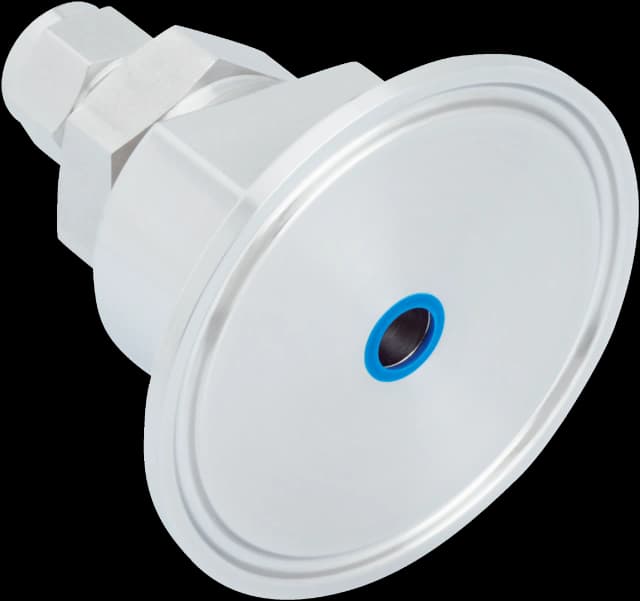

BEF-HA-TCLI20-FTS1
Mounting systems | Flanges and nozzles | BEF-HA-TCLI20-FTS1 | Description: Hygienic process adapter for T-Easic FTS, clamp (DIN 32676), DN 50 (2'') | Material: Stainless steel | Details: Stainless steel 1.4404 / 316L | Usable for: FKM

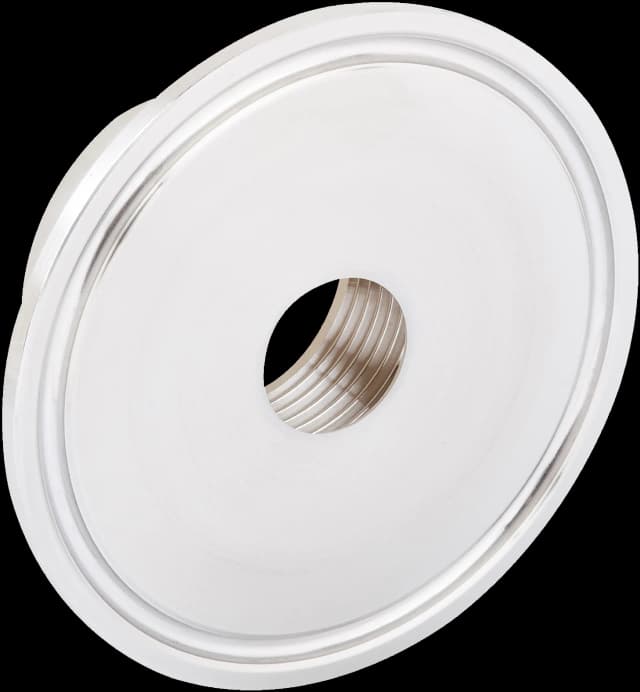

BEF-HA-TCLI20-LFP1
Mounting systems | Flanges and nozzles | BEF-HA-TCLI20-LFP1 | Description: Hygienic process connection adapter, Tri-Clamp 2''; hygienic in accordance with EHEDG in combination with T-seals or Tri-Clamp seals from Combifit International B.V.
BEF-HA-TCLI20-LFP2
Mounting systems | Flanges and nozzles | BEF-HA-TCLI20-LFP2 | Description: Hygienic process connection adapter, Tri-Clamp 2”; including acceptance test certificate 3.1; Ra ≤ 0.4 µm, hygienic in accordance with EHEDG in combination with T-seals or Tri-Clamp seals from Combifit International B.V.

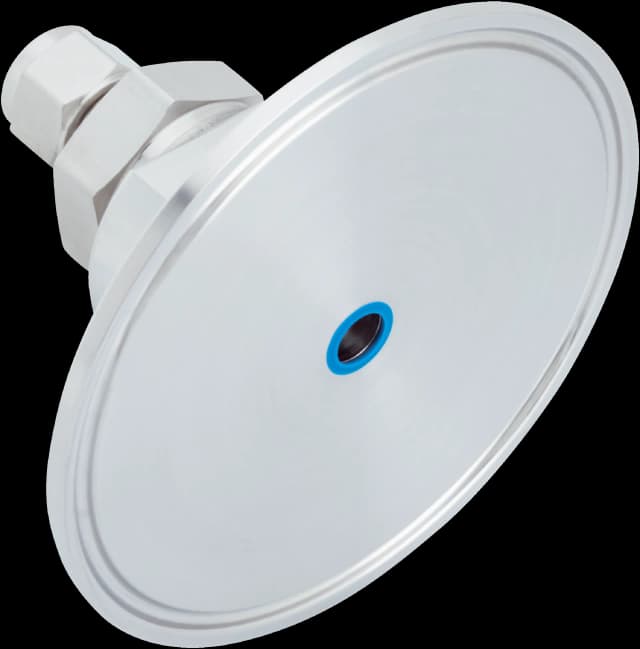

BEF-HA-TCLI25-FTS1
Mounting systems | Flanges and nozzles | BEF-HA-TCLI25-FTS1 | Description: Hygienic process adapter for T-Easic FTS, clamp (DIN 32676), DN 65 (3") | Material: Stainless steel | Details: Stainless steel 1.4404 / 316L | Usable for: FKM
BEF-HA-TCLI25-LFP1
Mounting systems | Flanges and nozzles | BEF-HA-TCLI25-LFP1 | Description: Hygienic process connection adapter, Tri-Clamp 2 ½''; hygienic in accordance with EHEDG in combination with T-seals or Tri-Clamp seals from Combifit International B.V.
BEF-HA-TCLI30-LFP1
Mounting systems | Flanges and nozzles | BEF-HA-TCLI30-LFP1 | Description: Hygienic process connection adapter, Tri-Clamp 3''; hygienic in accordance with EHEDG in combination with T-seals or Tri-Clamp seals from Combifit International B.V.

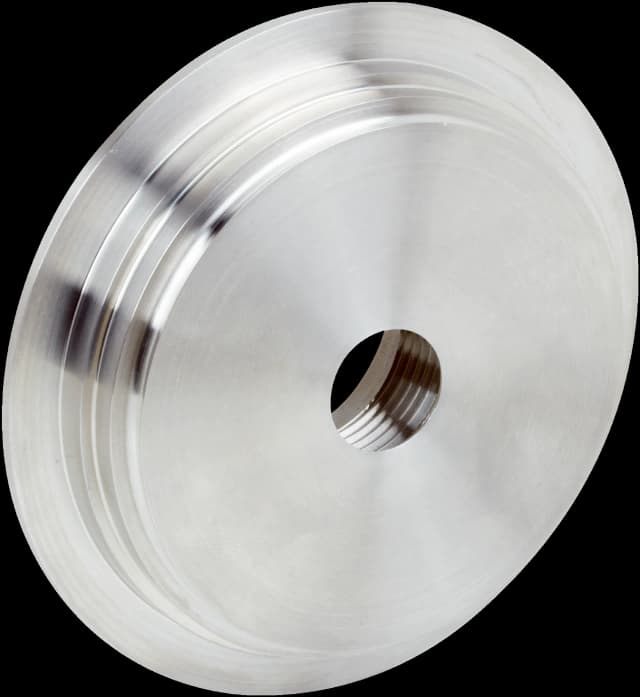

BEF-HA-VARTYN-LFP1
Mounting systems | Flanges and nozzles | BEF-HA-VARTYN-LFP1 | Description: Hygienic process connection adapter, Varivent connection form N; hygienic in accordance with EHEDG in combination with EPDM O-ring

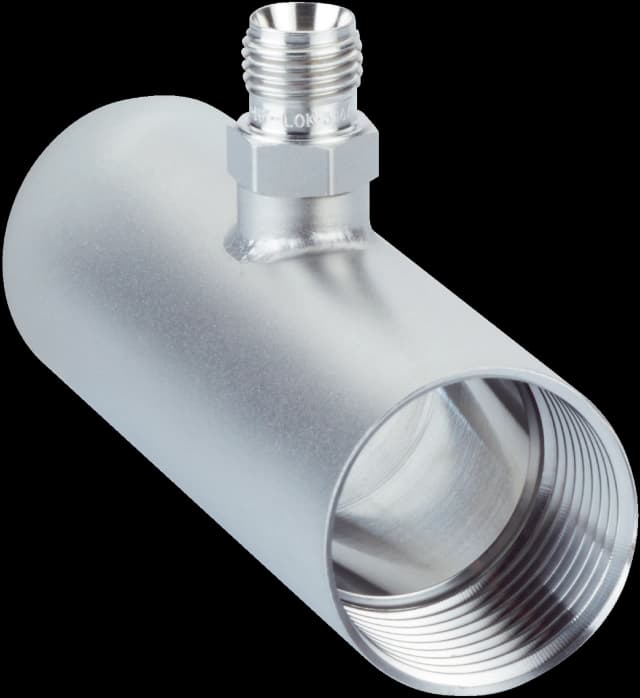

BEF-TCFR10-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFR10-FTS1 | Description: T-piece DN25 Rp1 thread for T-Easic® FTS

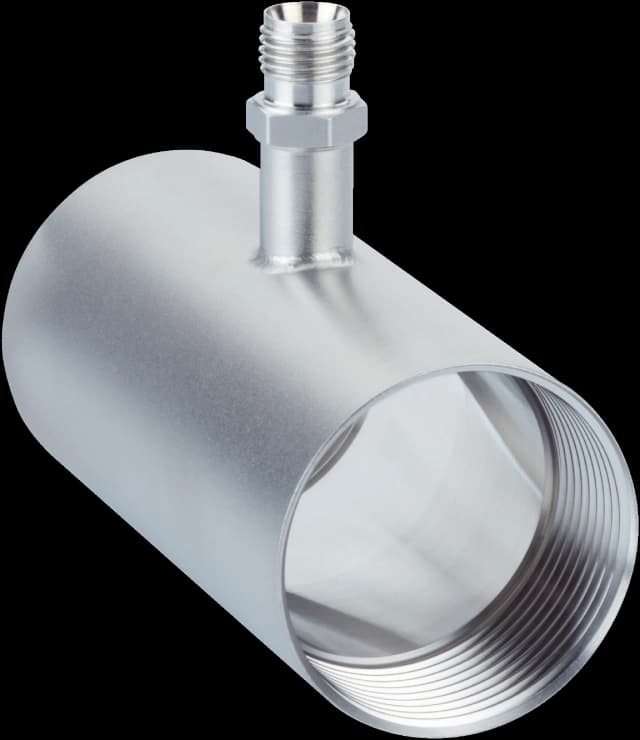

BEF-TCFR11-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFR11-FTS1 | Description: T-piece DN40 Rp1 1/2 thread for T-Easic® FTS

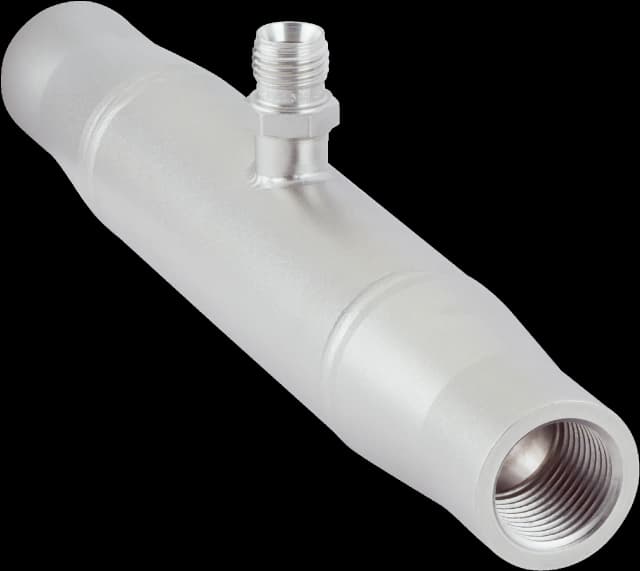

BEF-TCFR12-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFR12-FTS1 | Description: T-piece DN15 Rp1/2 thread for T-Easic® FTS

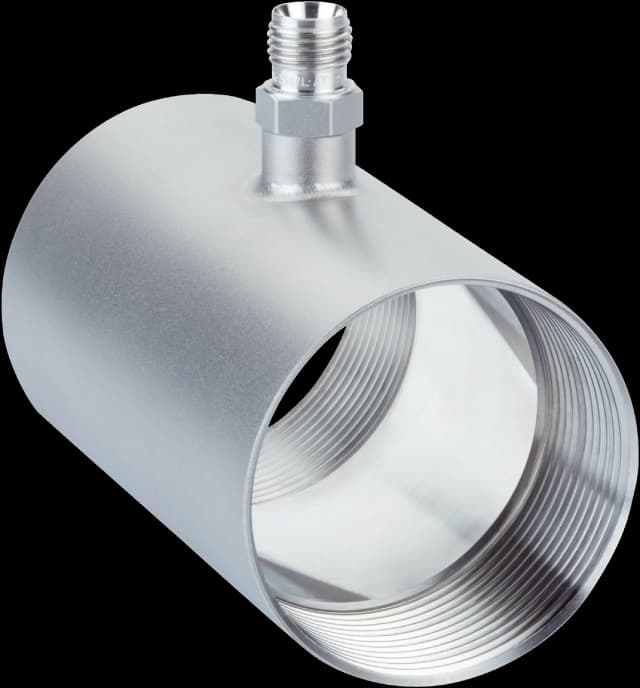

BEF-TCFR20-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFR20-FTS1 | Description: T-piece DN50 Rp2 thread for T-Easic® FTS

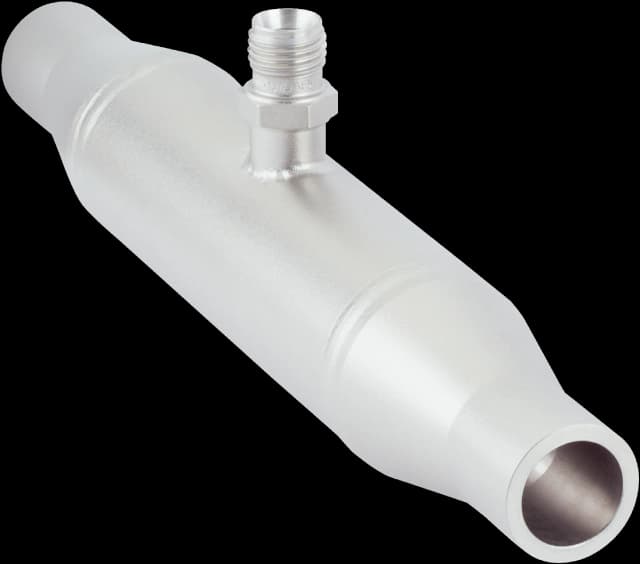

BEF-TCFW15-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFW15-FTS1 | Description: T-piece DN15 weld end for T-Easic® FTS

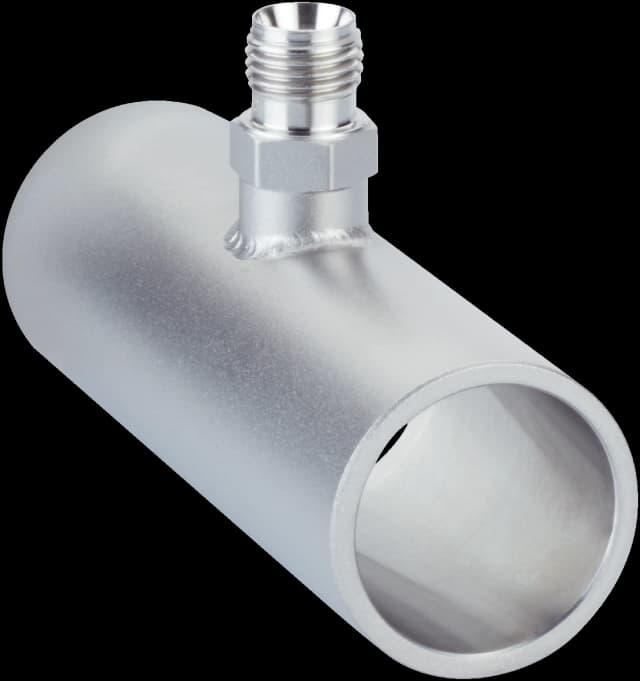

BEF-TCFW25-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFW25-FTS1 | Description: T-piece DN25 weld end for T-Easic® FTS

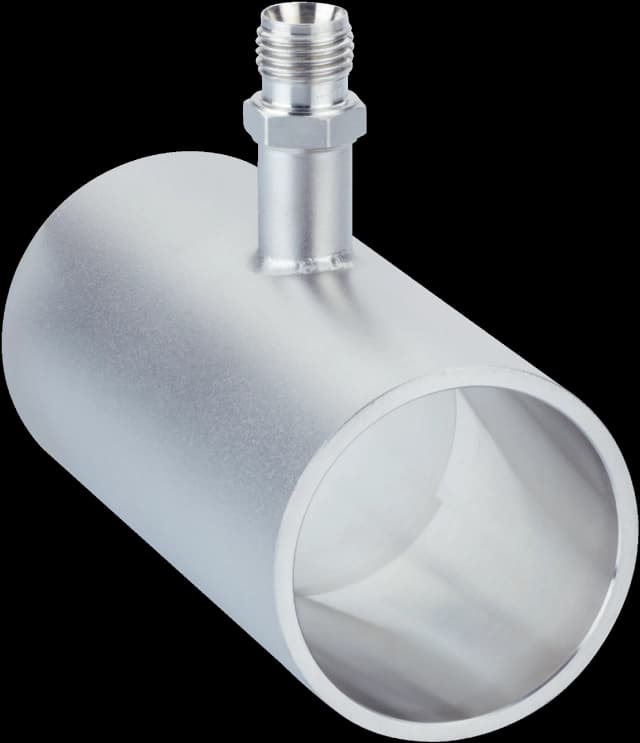

BEF-TCFW40-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFW40-FTS1 | Description: T-piece DN40 weld end for T-Easic® FTS

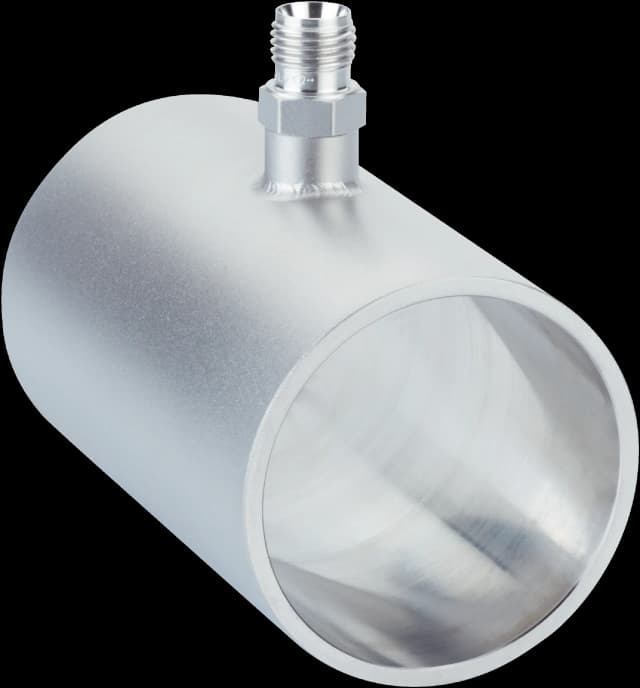

BEF-TCFW50-FTS1
Mounting systems | Flanges and nozzles | BEF-TCFW50-FTS1 | Description: T-piece DN50 weld end for T-Easic® FTS

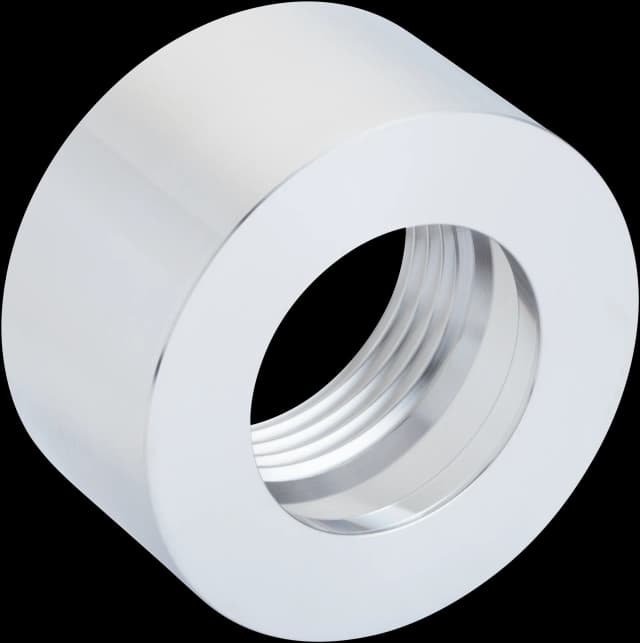

HYGADAPT-L.X7F
Mounting systems | Flanges and nozzles | HYGADAPT-L.X7F | Description: Direct weld-in connection / 1.4435 (Ra < 0.76 µm)

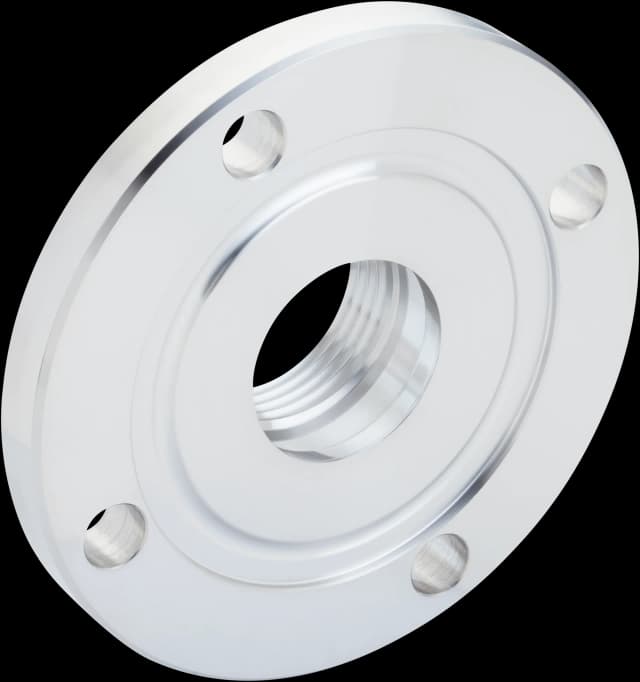

HYGADAPT-L.XAC
Mounting systems | Flanges and nozzles | HYGADAPT-L.XAC | Description: Lap-joint flange DN50 to DIN, form A, DIN11864-2; for 53 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

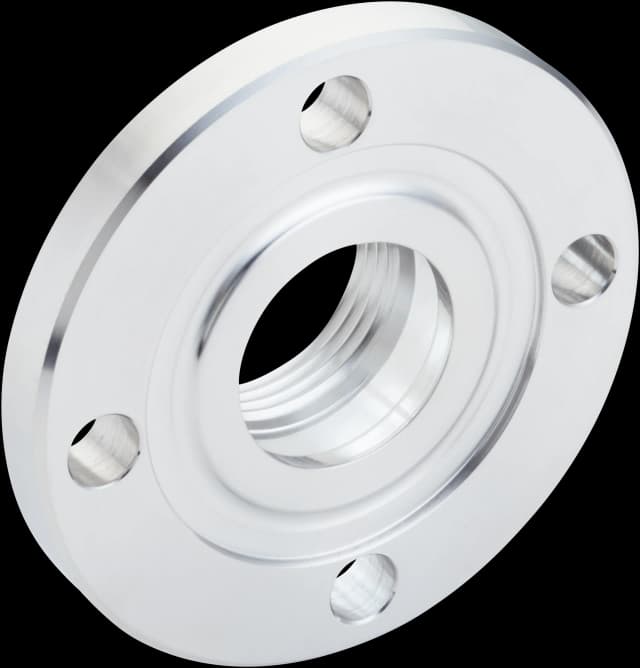

HYGADAPT-L.XAD
Mounting systems | Flanges and nozzles | HYGADAPT-L.XAD | Description: Lap-joint flange DN40 to DIN, form A, DIN11864-2; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

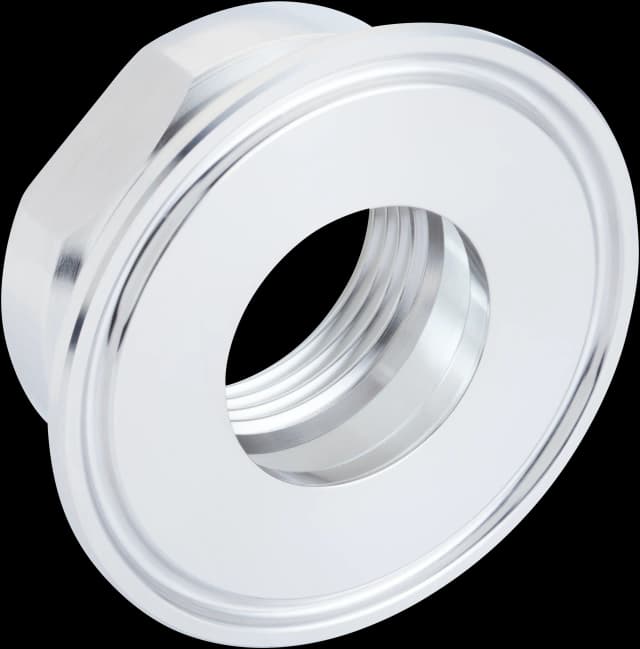

HYGADAPT-L.XAR
Mounting systems | Flanges and nozzles | HYGADAPT-L.XAR | Description: Clamp 2" DN40-51 PN40 (DIN32676, ISO2852) / 1.4435 (Ra < 0.76 µm)

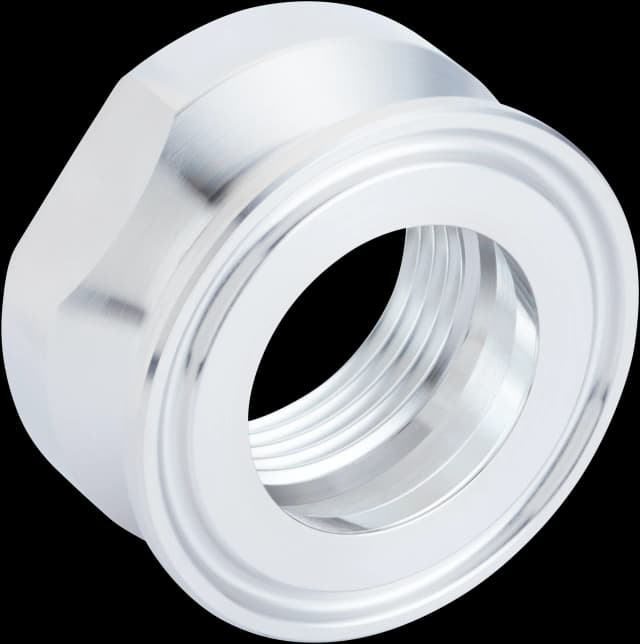

HYGADAPT-L.XAT
Mounting systems | Flanges and nozzles | HYGADAPT-L.XAT | Description: Clamp 1-1½" DN25-38 PN40 (DIN32676, ISO2852) / 1.4435 (Ra < 0.76 µm)

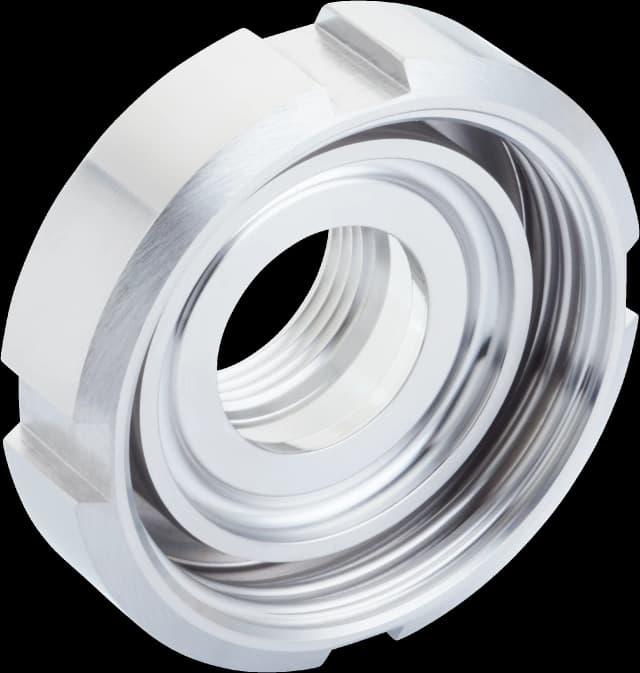

HYGADAPT-L.XE2
Mounting systems | Flanges and nozzles | HYGADAPT-L.XE2 | Description: Coupling DN40 to DIN, form A, DIN11864-1; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

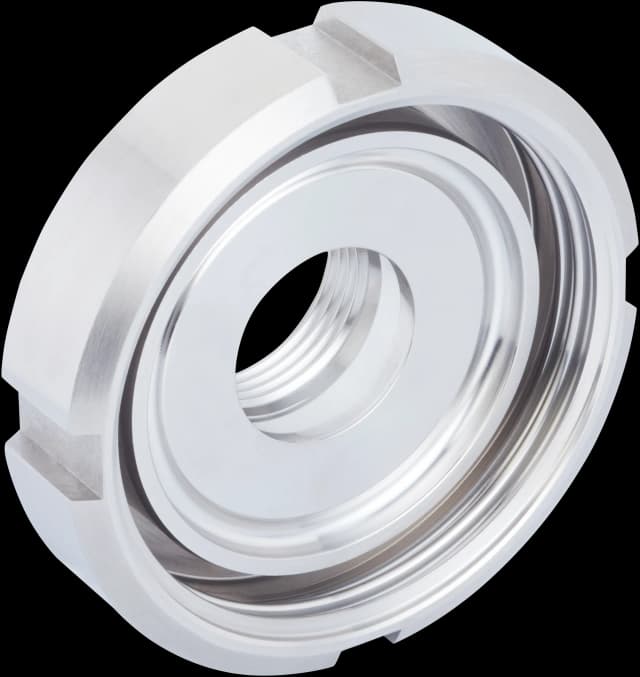

HYGADAPT-L.XE3
Mounting systems | Flanges and nozzles | HYGADAPT-L.XE3 | Description: Coupling DN50 to DIN, form A, DIN11864-1; for 53 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

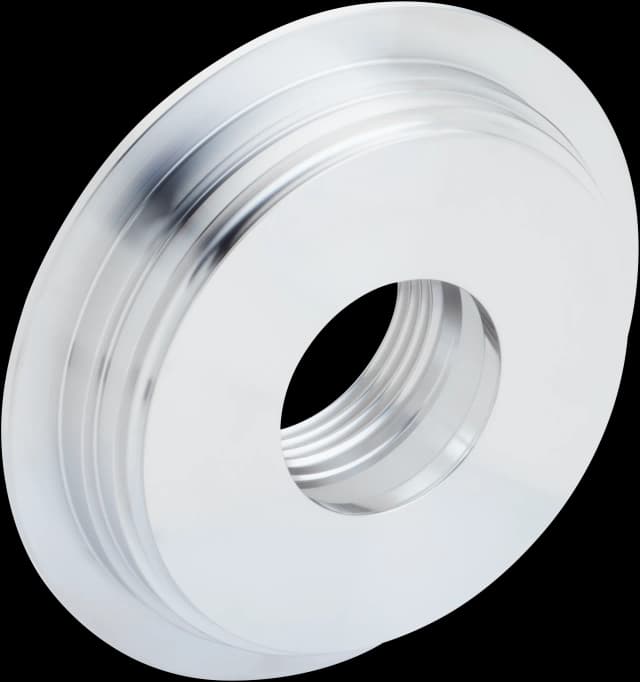

HYGADAPT-L.XFR
Mounting systems | Flanges and nozzles | HYGADAPT-L.XFR | Description: Varivent form N, DN40...DN150 (1.5...6"), D = 68/1.4435 (Ra < 0.76 µm)

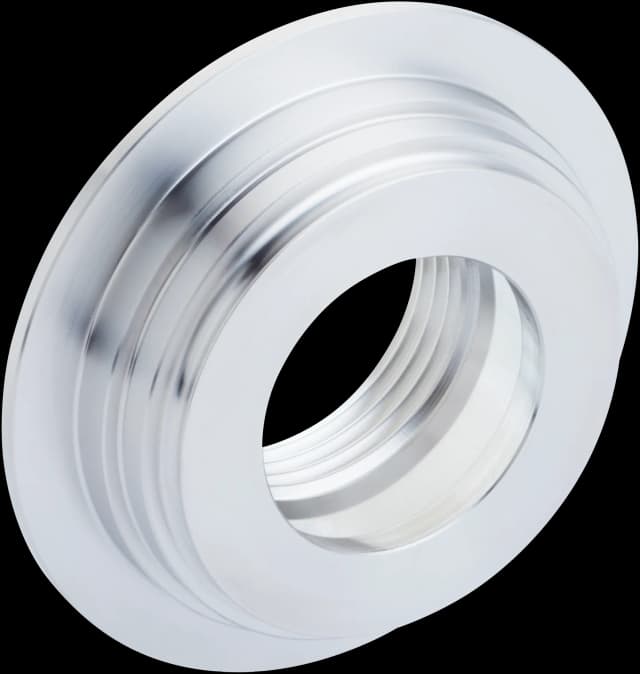

HYGADAPT-L.XFS
Mounting systems | Flanges and nozzles | HYGADAPT-L.XFS | Description: Varivent form F, DN25 (1"), D = 50 / 1.4435 (Ra < 0.76 µm)

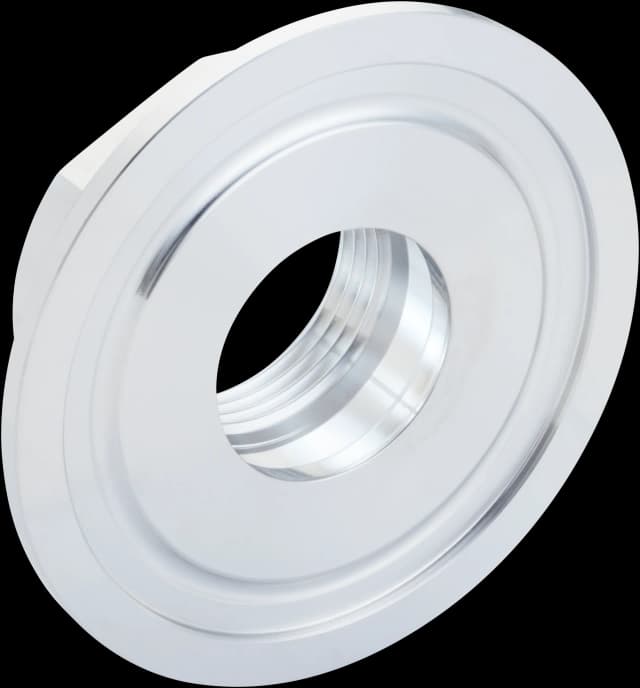

HYGADAPT-L.XKW
Mounting systems | Flanges and nozzles | HYGADAPT-L.XKW | Description: Clamp coupling DN50 to DIN, form A, DIN11864-3; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

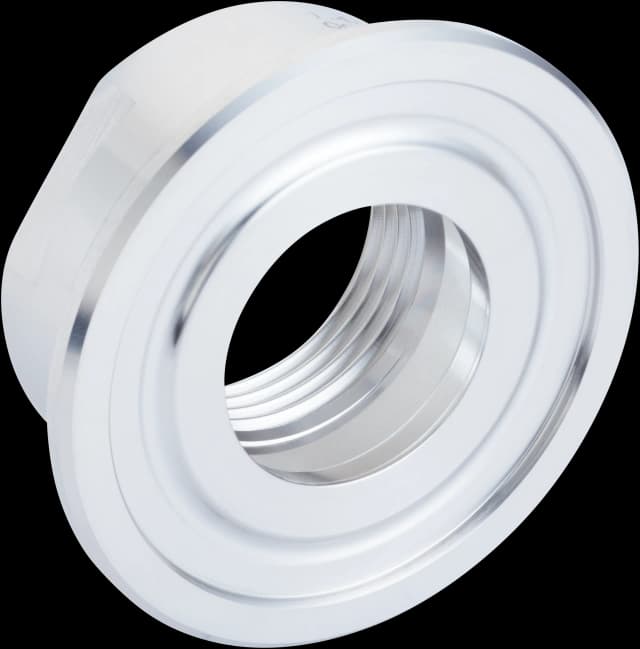

HYGADAPT-L.XQ6
Mounting systems | Flanges and nozzles | HYGADAPT-L.XQ6 | Description: Clamp coupling DN40 to DIN, form A, DIN11864-3; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

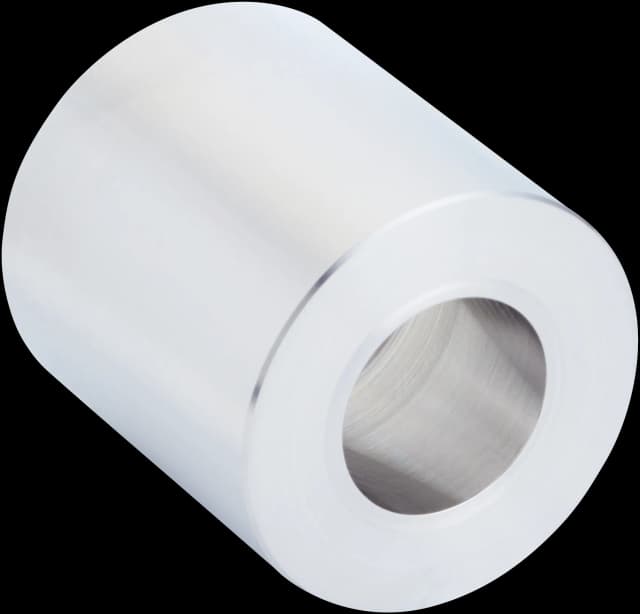

HYGADAPT-P.X7F
Mounting systems | Flanges and nozzles | HYGADAPT-P.X7F | Description: Direct weld-in connection / 1.4435 (Ra< 0.76µm)

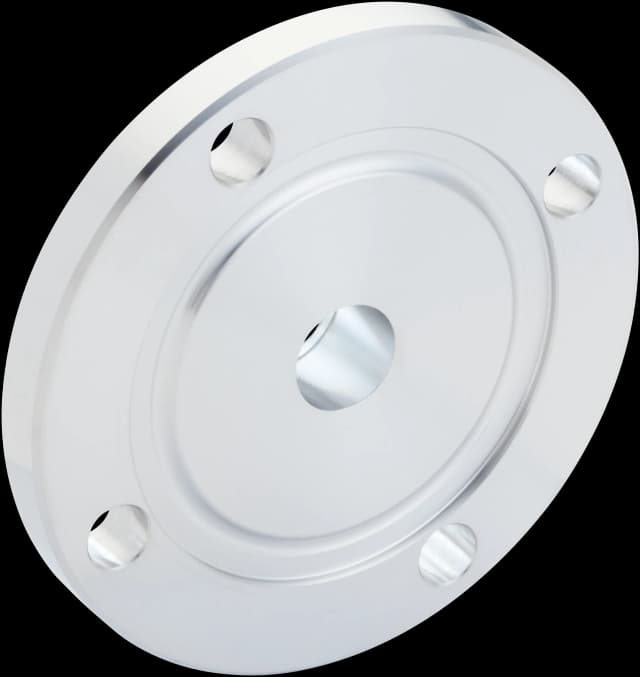

HYGADAPT-P.XAC
Mounting systems | Flanges and nozzles | HYGADAPT-P.XAC | Description: Lap-joint flange DN50 to DIN, form A, DIN11864-2; for 53 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

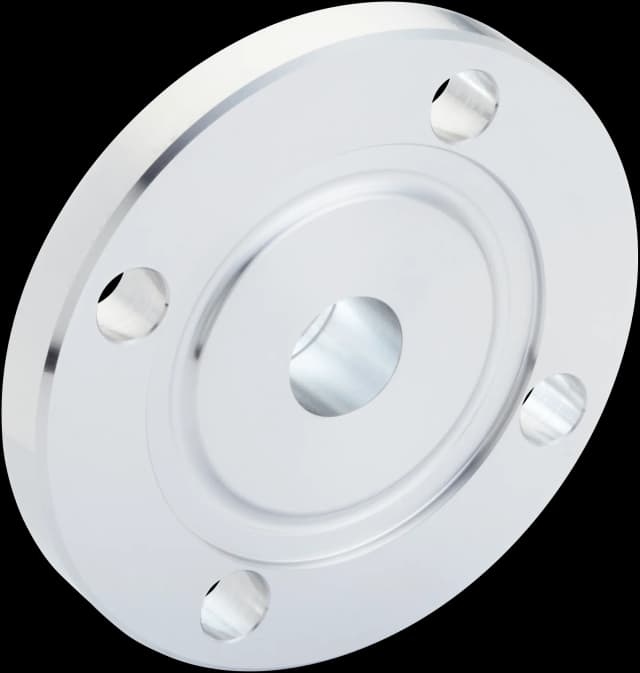

HYGADAPT-P.XAD
Mounting systems | Flanges and nozzles | HYGADAPT-P.XAD | Description: Lap-joint flange DN40 to DIN, form A, DIN11864-2; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

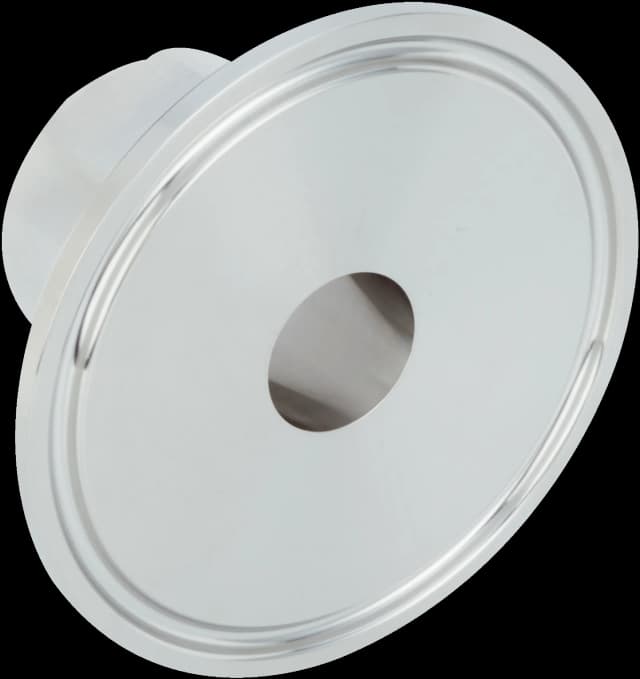

HYGADAPT-P.XAR
Mounting systems | Flanges and nozzles | HYGADAPT-P.XAR | Description: Clamp 2" DN40-51 PN40 (DIN32676, ISO2852) / 1.4435 (Ra < 0.76 µm)

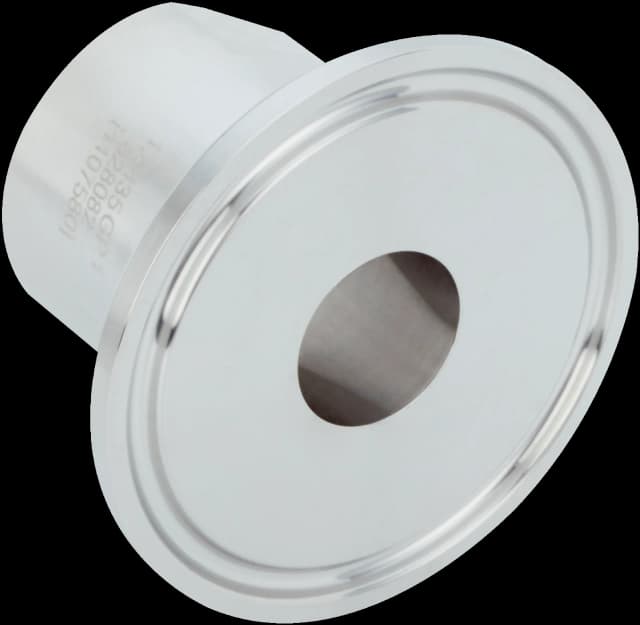

HYGADAPT-P.XAT
Mounting systems | Flanges and nozzles | HYGADAPT-P.XAT | Description: Clamp 1-1½" DN25-38 PN40 (DIN32676, ISO2852) / 1.4435 (Ra < 0.76 µm)

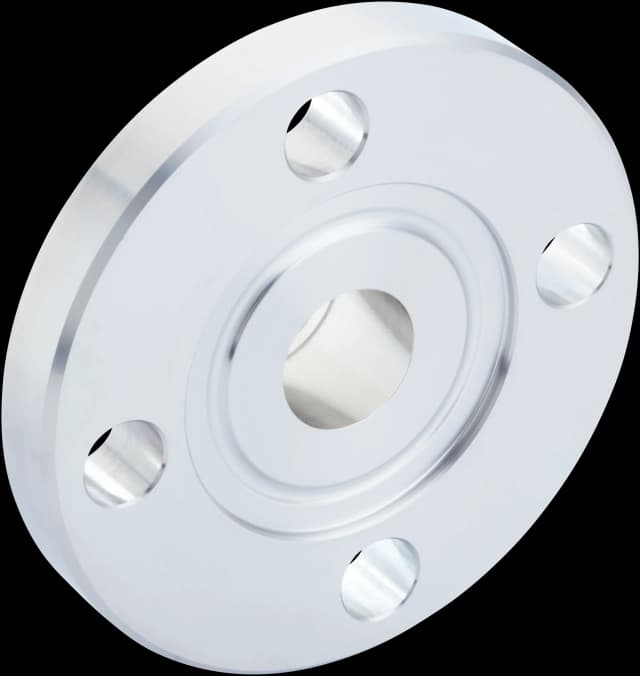

HYGADAPT-P.XBA
Mounting systems | Flanges and nozzles | HYGADAPT-P.XBA | Description: Lap-joint flange DN25 to DIN, form A, DIN11864-2; for 29 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

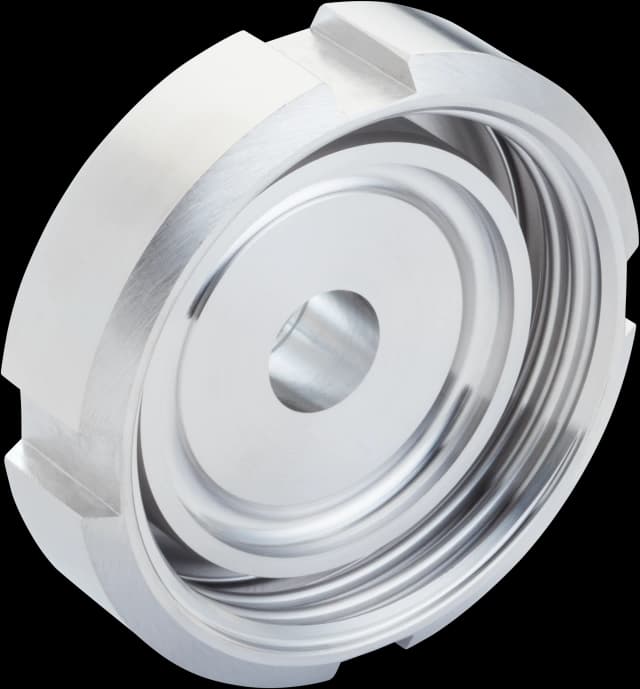

HYGADAPT-P.XE2
Mounting systems | Flanges and nozzles | HYGADAPT-P.XE2 | Description: Coupling DN40 to DIN, form A, DIN11864-1; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

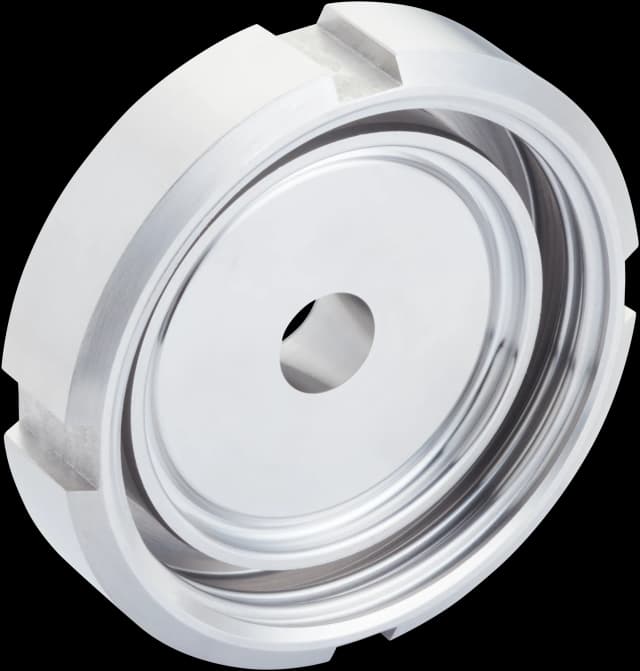

HYGADAPT-P.XE3
Mounting systems | Flanges and nozzles | HYGADAPT-P.XE3 | Description: Coupling DN50 to DIN, form A, DIN11864-1; for 53 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

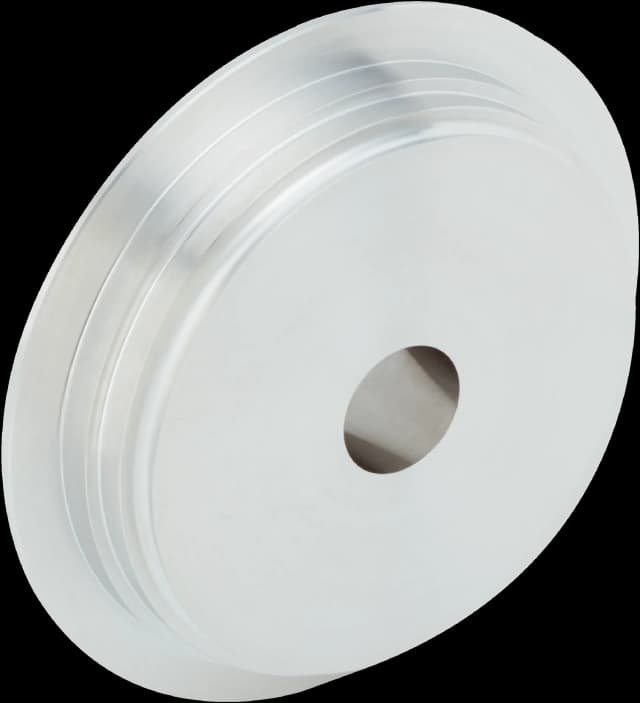

HYGADAPT-P.XFR
Mounting systems | Flanges and nozzles | HYGADAPT-P.XFR | Description: Varivent form N, DN40...DN150 (1.5...6"), D = 68/1.4435 (Ra < 0.76 µm)

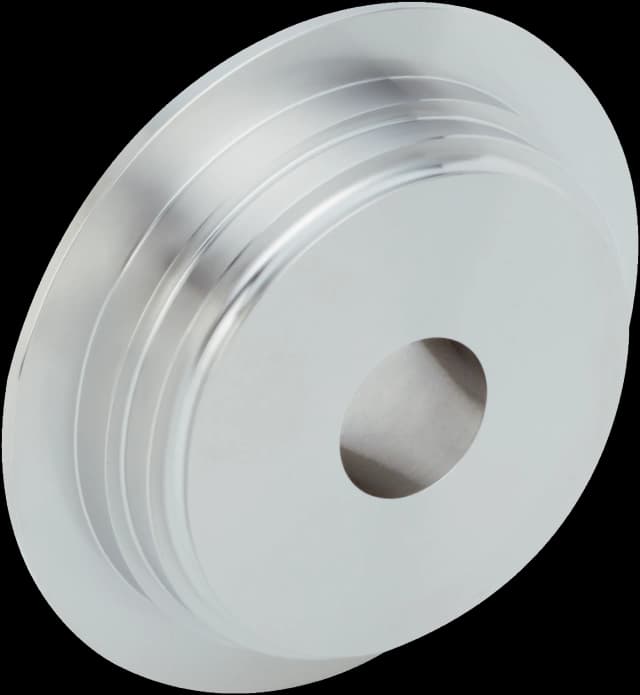

HYGADAPT-P.XFS
Mounting systems | Flanges and nozzles | HYGADAPT-P.XFS | Description: Varivent form F, DN25 (1"), D = 50 / 1.4435 (Ra < 0.76 µm)

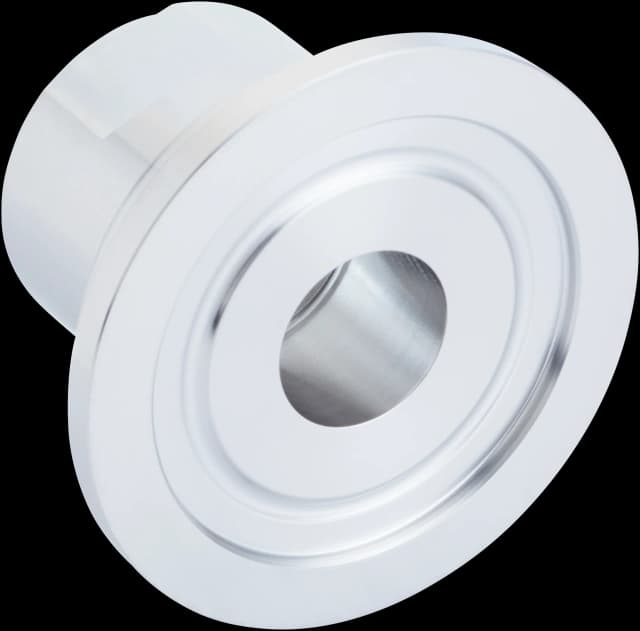

HYGADAPT-P.XKA
Mounting systems | Flanges and nozzles | HYGADAPT-P.XKA | Description: Clamp coupling DN25 to DIN, form A, DIN11864-3; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

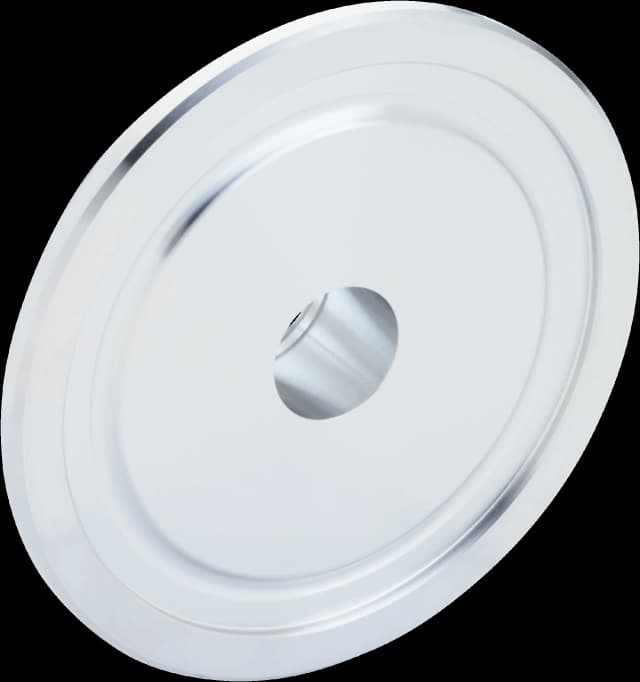

HYGADAPT-P.XKW
Mounting systems | Flanges and nozzles | HYGADAPT-P.XKW | Description: Clamp coupling DN50 to DIN, form A, DIN11864-3; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

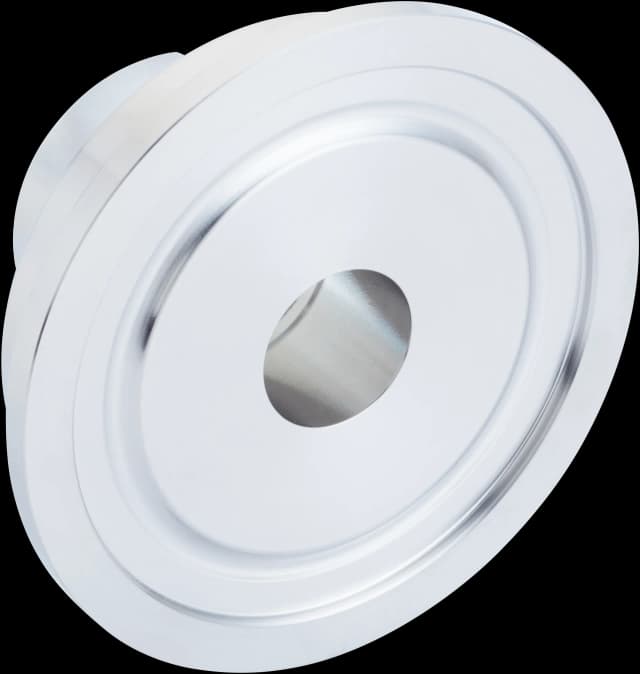

HYGADAPT-P.XQ6
Mounting systems | Flanges and nozzles | HYGADAPT-P.XQ6 | Description: Clamp coupling DN40 to DIN, form A, DIN11864-3; for 41 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)

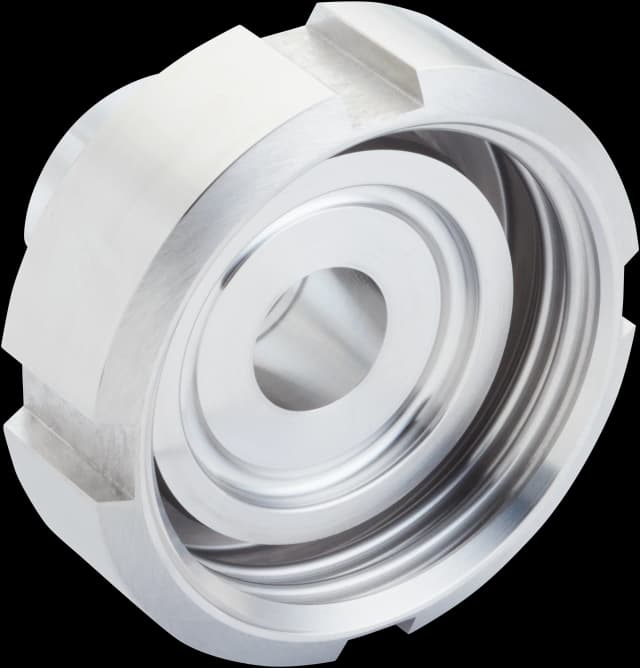

HYGADAPT-P.XU5
Mounting systems | Flanges and nozzles | HYGADAPT-P.XU5 | Description: Coupling DN25 to DIN, form A, DIN11864-1; for 29 x 1.5 pipe / 1.4435 (Ra < 0.76 µm)
