Серия flanges and nozzles
138 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.
Показани 1–48 · страница 1 от 3

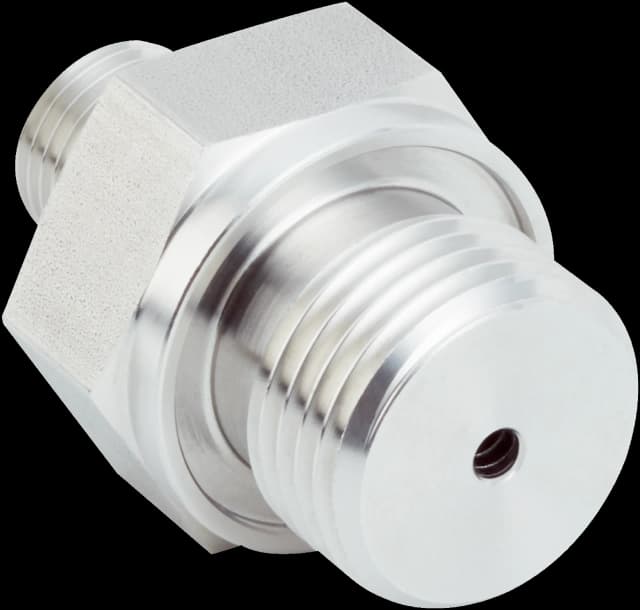

BEF-AD-G14-G12A-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-G12A-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: G 1/2”A (according to EN ISO 1179-2) including seal (NBR+FKM); width across flats: 27; pressure resistance according to standard, but max. 400 bar (possible classification according to Pressure Equipment Directive (DGRL) i

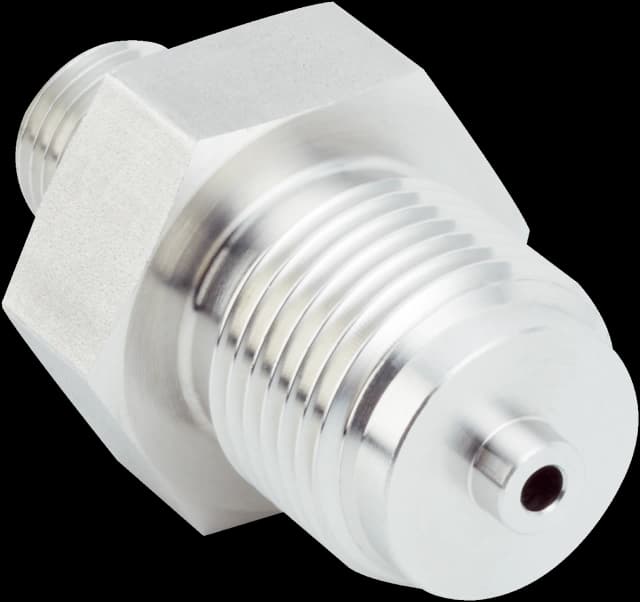

BEF-AD-G14-G12B-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-G12B-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: G 1/2”B (according to EN 837-1) including seal (stainless steel); width across flats: 27; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL

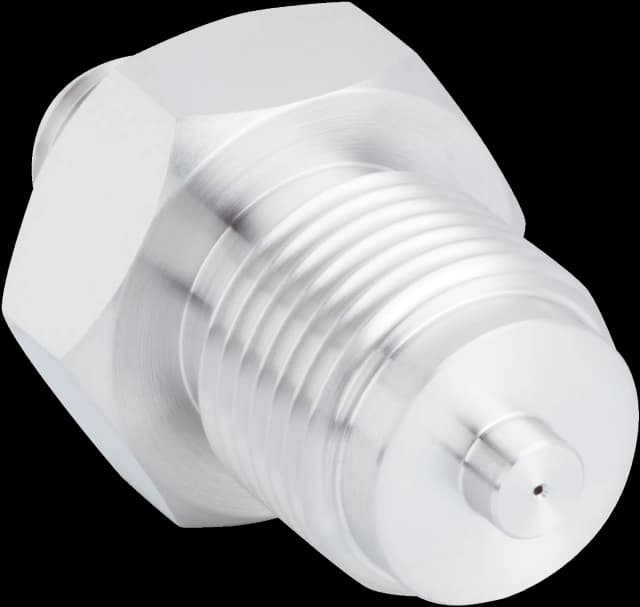

BEF-AD-G14-G12B06-PXX
Mounting systems | Flanges and nozzles | BEF-AD-G14-G12B06-PXX | Description: Process adapter for pressure sensors with G 1/4” female thread; material: stainless steel 1.4404, width across flats: 27; connection on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: G 1/2”B (according to EN 837-1) with 0.6 mm erosion drilling for pressure peak damping, including seal (stainless steel); pressure resistance according to standard, but max. 600 b

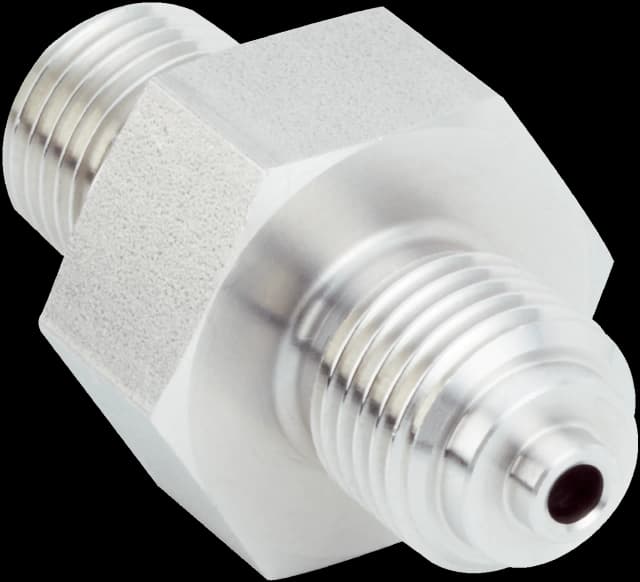

BEF-AD-G14-G14B-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-G14B-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side:G 1/4”B (according to EN 837-1) including seal (stainless steel); width across flats: 21; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL)

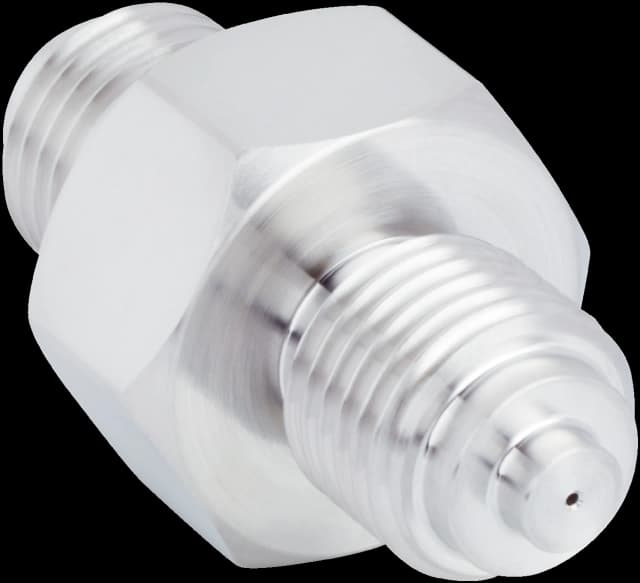

BEF-AD-G14-G14B06-PXX
Mounting systems | Flanges and nozzles | BEF-AD-G14-G14B06-PXX | Description: Process adapter for pressure sensors with G 1/4” female thread; material: stainless steel 1.4404, width across flats: 27; connection on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side:G 1/4”B (according to EN 837-1) with 0.6 mm erosion drilling for pressure peak damping, including seal (stainless steel); pressure resistance according to standard, but max. 600 ba

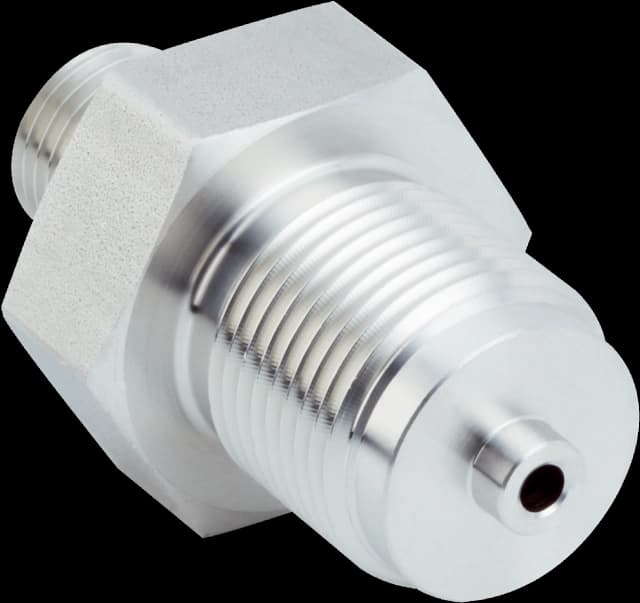

BEF-AD-G14-M20-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-M20-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837) including seal (stainless steel); connection on process side: M20x1.5 (according to EN 837-1) including seal (stainless steel); width across flats: 27; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL) i

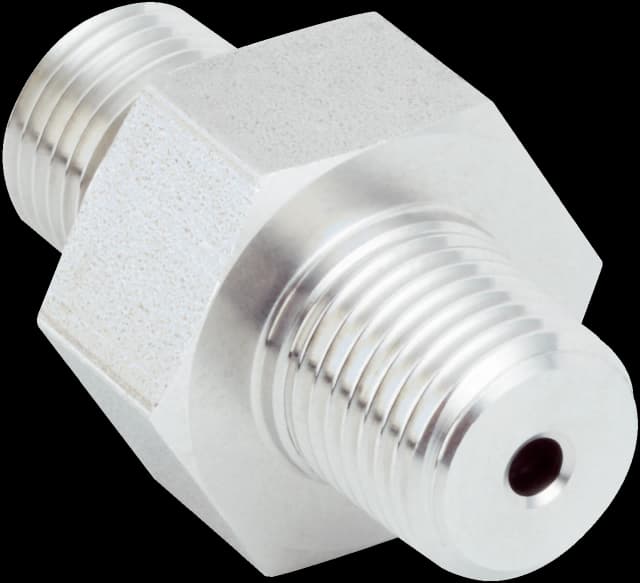

BEF-AD-G14-R14-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-R14-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: R 1/4”A (according to ISO 10226); width across flats: 21; pressure resistance according to standard, but max. 600 bar (possible classification according to Pressure Equipment Directive (DGRL) is application-specific and the

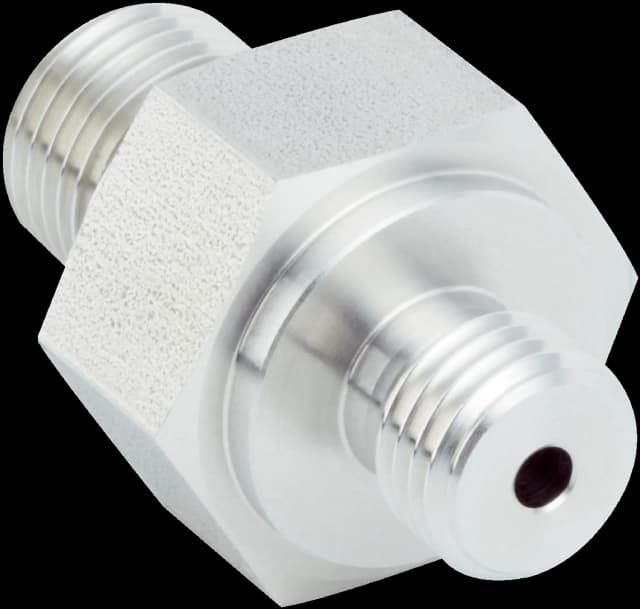

BEF-AD-G14-SAE-PXX SCREW-IN ADAPTER
Mounting systems | Flanges and nozzles | BEF-AD-G14-SAE-PXX SCREW-IN ADAPTER | Description: Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: SAE 7/16-20 (according to SAE J514) including seal (FKM); width across flats: 21; pressure resistance according to standard, but max. 345 bar (possible classification according to Pressure Equipment Directive (DGRL) is appl

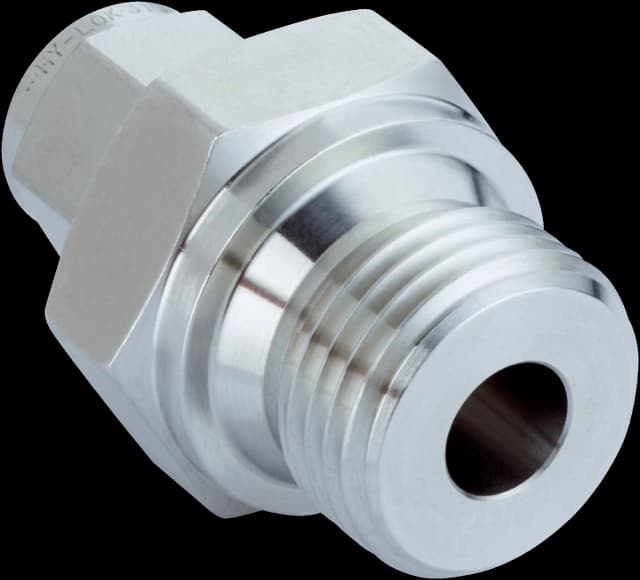

BEF-CFSG12-FTS1
Mounting systems | Flanges and nozzles | BEF-CFSG12-FTS1 | Description: Compression fitting for T-Easic FTS, G ½
BEF-CFSM18-FTS1
Mounting systems | Flanges and nozzles | BEF-CFSM18-FTS1 | Description: Compression fitting for T-Easic FTS, M18 x 1.5
BEF-CFSN12-FTS1
Mounting systems | Flanges and nozzles | BEF-CFSN12-FTS1 | Description: Compression fitting for T-Easic FTS, ½'' NPT

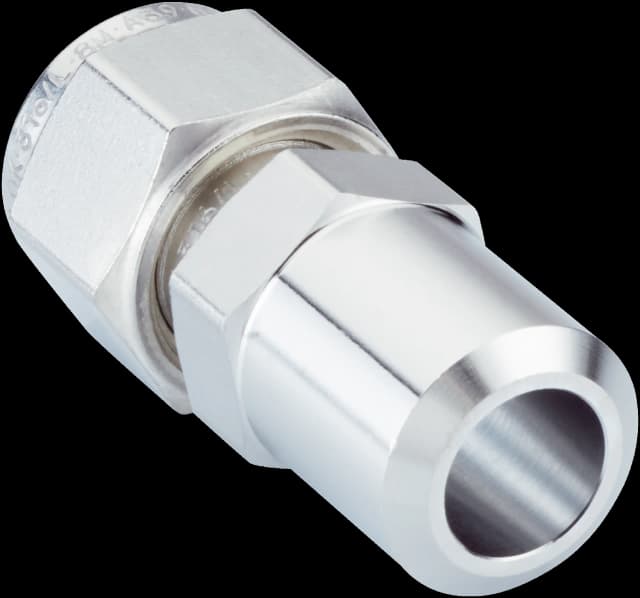

BEF-CFWAXX-FTS1
Mounting systems | Flanges and nozzles | BEF-CFWAXX-FTS1 | Description: Compression fitting with weld end for T-Easic® FTS

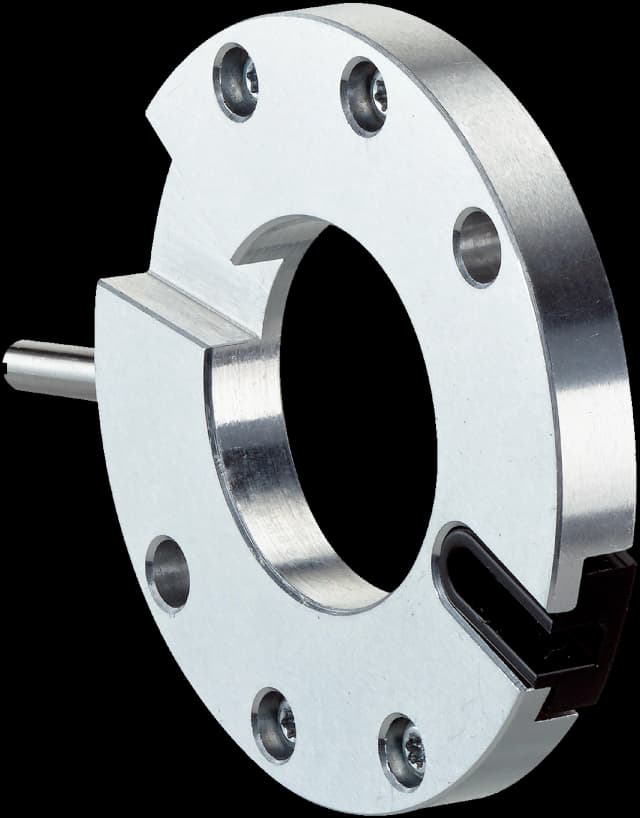

BEF-DS-13
Mounting systems | Flanges and nozzles | BEF-DS-13 | Description: Flange adapter (for hollow shaft) for register pin mounting (pin 4 mm)

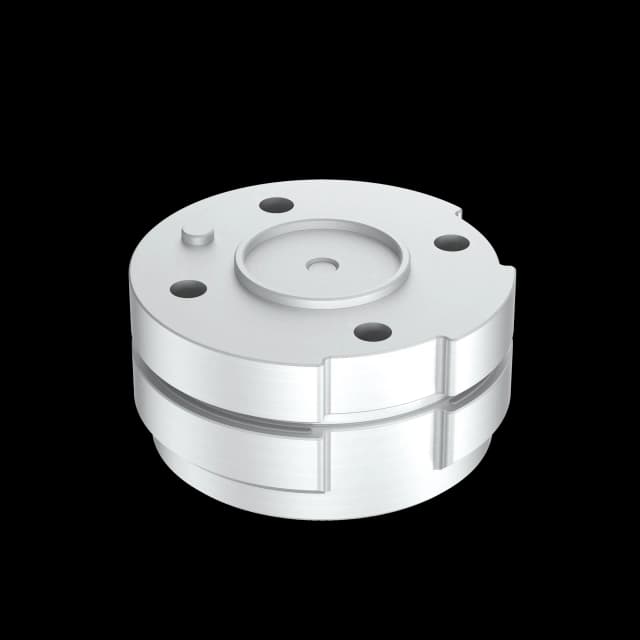

BEF-EOAS-A
Mounting systems | Flanges and nozzles | BEF-EOAS-A | Dimensions (W x H x L): 69 mm x 34.5 mm x 69 mm | Material: Aluminum | Details: Aluminum (anodised) | Suitable for: UR3e, UR5e, UR7e, UR10e, UR12e, UR16e, UR8L, UR15, UR18

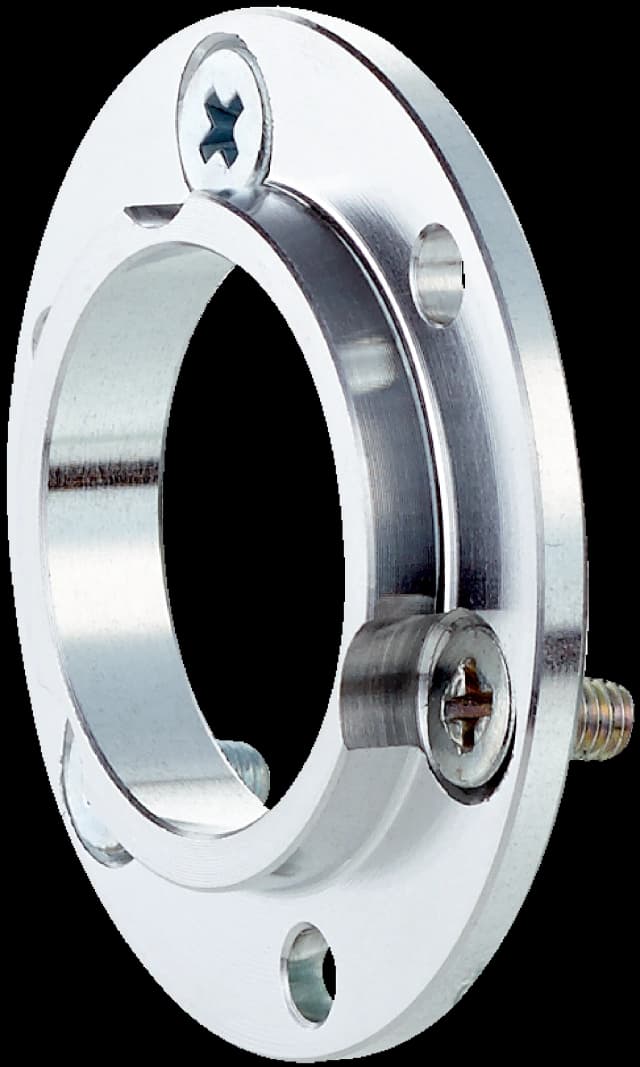

BEF-FA-020-024
Mounting systems | Flanges and nozzles | BEF-FA-020-024 | Description: Flange adapter centering collar D20 to D24
BEF-FA-020-024-I
Mounting systems | Flanges and nozzles | BEF-FA-020-024-I | Description: Flange adapter centering collar D20 on D24, material: stainless steel

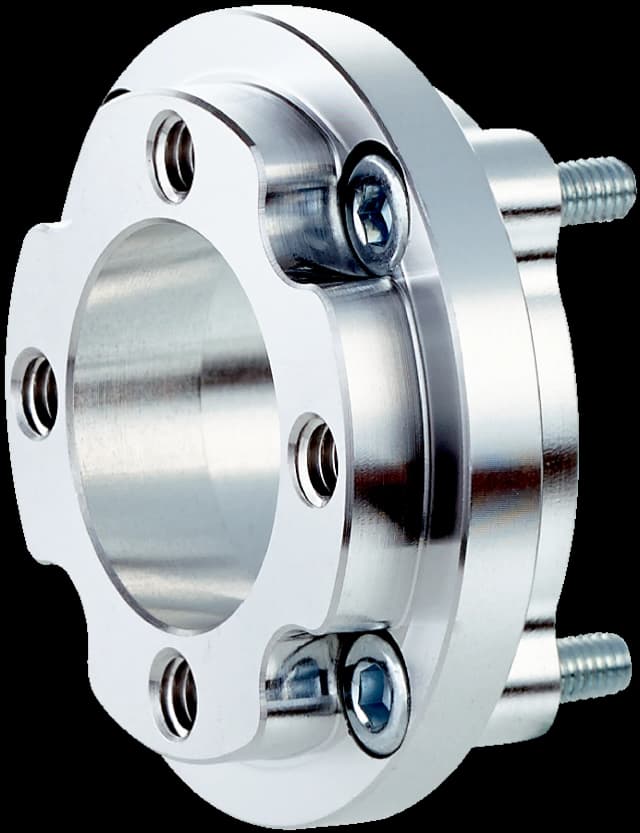

BEF-FA-020-030
Mounting systems | Flanges and nozzles | BEF-FA-020-030 | Description: Flange adapter, adapts face mount flange with 20 mm centering collar to face mount flange with 30 mm centering collar
BEF-FA-020-030-DBV50
Mounting systems | Flanges and nozzles | BEF-FA-020-030-DBV50 | Description: Flange adapter centering collar D20 on D30 around AHS/AHM36?-SC* on DBV50 Mechanics to build Encoder: face mount flange, solid shaft: Ø10 mm x 24 mm
BEF-FA-020-030-I
Mounting systems | Flanges and nozzles | BEF-FA-020-030-I | Description: Flange adapter centering collar D20 on D30, material: stainless steel | Material: Stainless steel | Details: Stainless steel

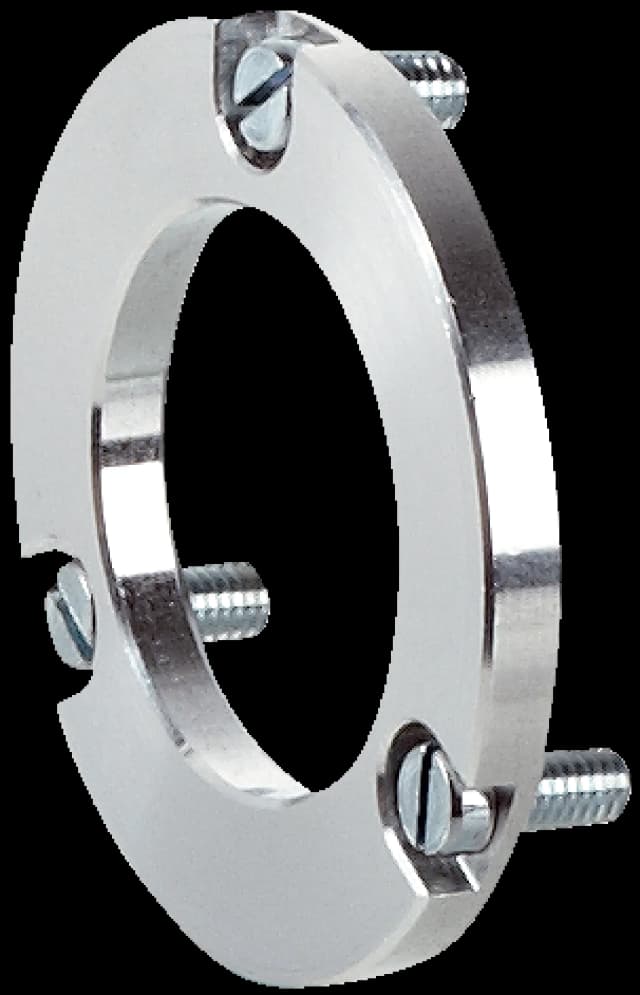

BEF-FA-020-033
Mounting systems | Flanges and nozzles | BEF-FA-020-033 | Description: Flange adapter, adapts face mount flange with 20 mm centering collar to 33 mm servo flange | Material: Aluminum | Details: Aluminum

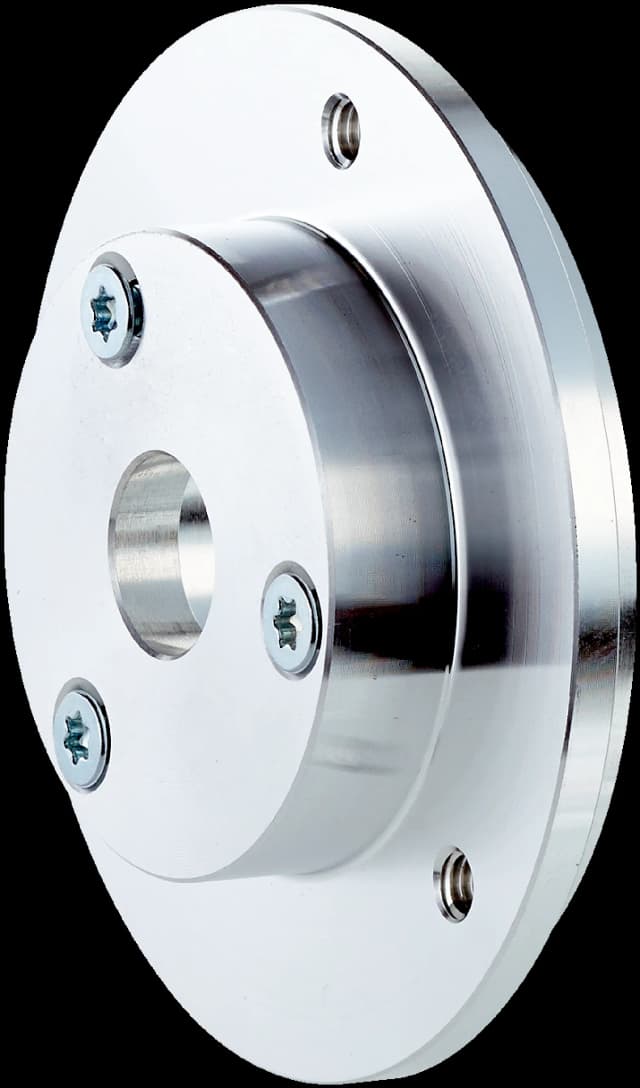

BEF-FA-020-036
Mounting systems | Flanges and nozzles | BEF-FA-020-036 | Description: Flange adapter, adapts face mount flange with 20 mm centering collar to 36 mm servo flange | Items supplied: Flange adapter, screws for encoder mounting (3 pcs. M3 x 14 cylinder head)

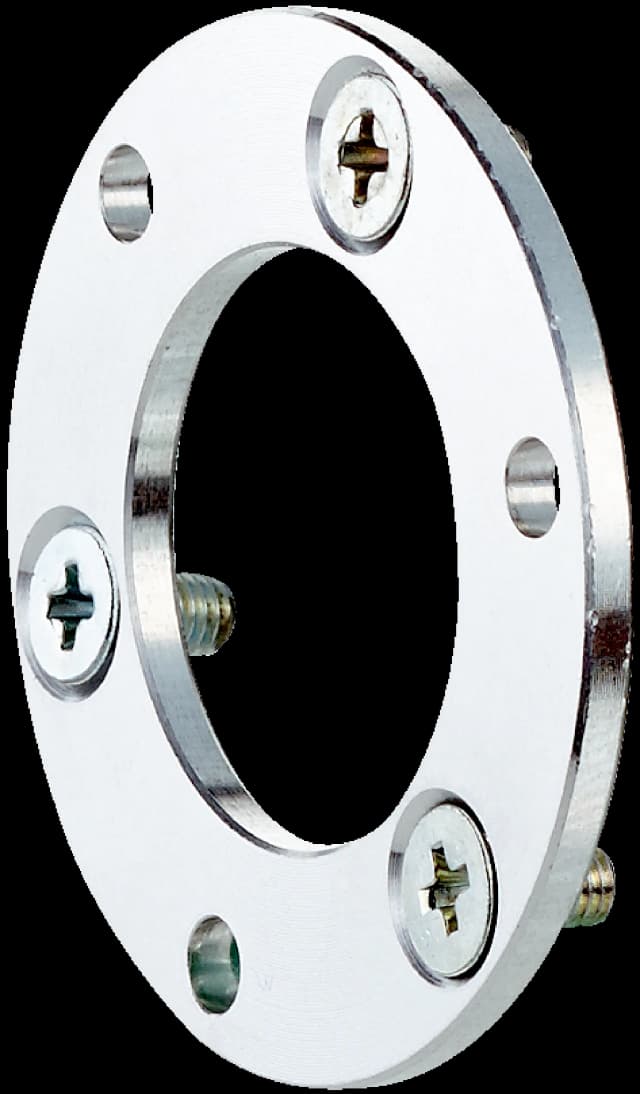

BEF-FA-020-036-002
Mounting systems | Flanges and nozzles | BEF-FA-020-036-002 | Description: Flange adapter centering collar D20 to D36, 2 mm high
BEF-FA-020-036-2-I
Mounting systems | Flanges and nozzles | BEF-FA-020-036-2-I | Description: Flange adapter centering collar D20 on D36, 2 mm high, material: stainless steel | Material: Stainless steel | Details: Stainless steel
BEF-FA-020-036-I
Mounting systems | Flanges and nozzles | BEF-FA-020-036-I | Description: Flange adapter centering collar D20 on D36, material: stainless steel | Material: Stainless steel | Details: Stainless steel

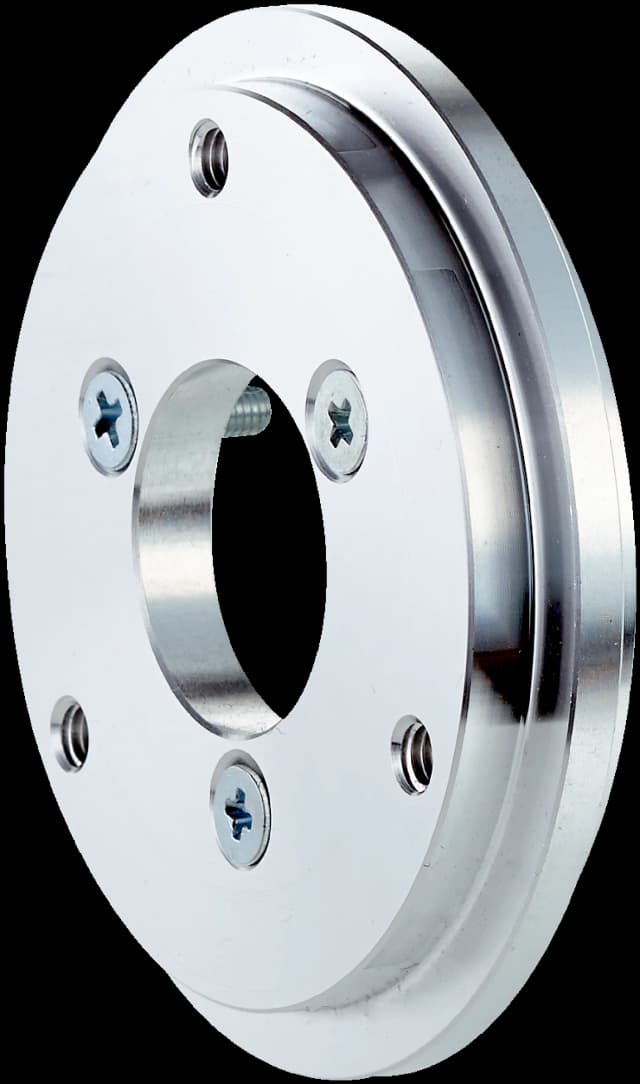

BEF-FA-020-050
Mounting systems | Flanges and nozzles | BEF-FA-020-050 | Description: Flange adapter for EcoLine and VarioLine wire draw mechanisms, for adapting AHS/AHM36

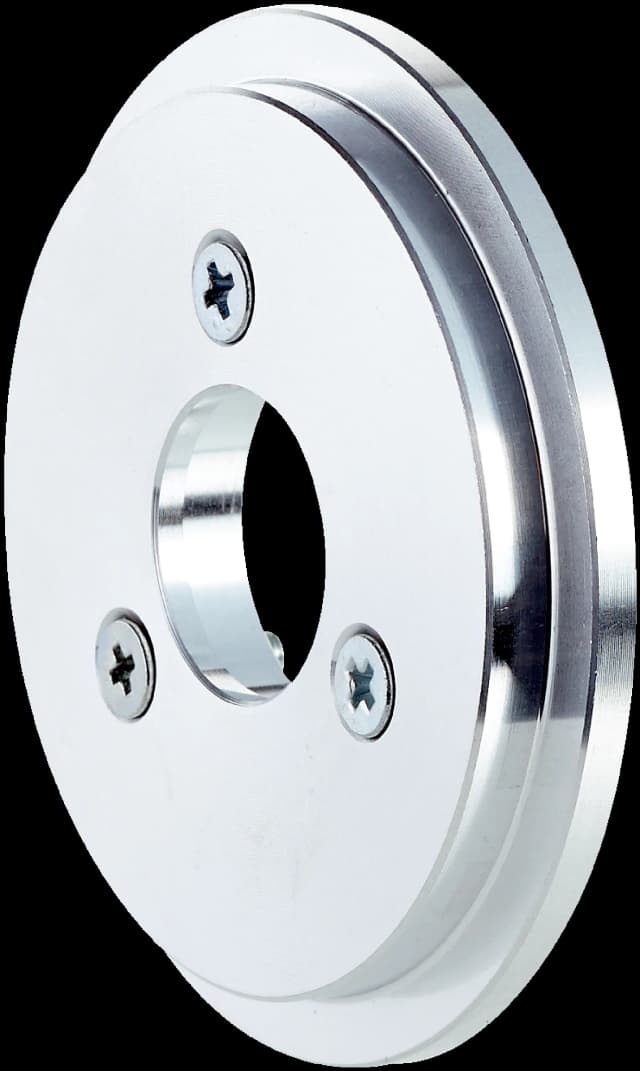

BEF-FA-020-050-007
Mounting systems | Flanges and nozzles | BEF-FA-020-050-007 | Description: Flange adapter for EcoLine wire draw mechanisms, adaption of face mount flange with centering hub 20 mm to 50 mm servo flange | Material: Aluminum | Details: Aluminum | Items supplied: Including 3 countersunk screws M3 x 10
BEF-FA-020-050-AC36
Mounting systems | Flanges and nozzles | BEF-FA-020-050-AC36 | Description: Flange adapter for EcoLine and VarioLine wire draw mechanisms, for adapting ACS/ACM36 | Material: Aluminum | Details: Aluminum | Items supplied: Including 3 countersunk screws M3 x 10
BEF-FA-020-050-I
Mounting systems | Flanges and nozzles | BEF-FA-020-050-I | Description: Flange adapter centering collar D20 on D50, material: stainless steel | Material: Stainless steel | Details: Stainless steel

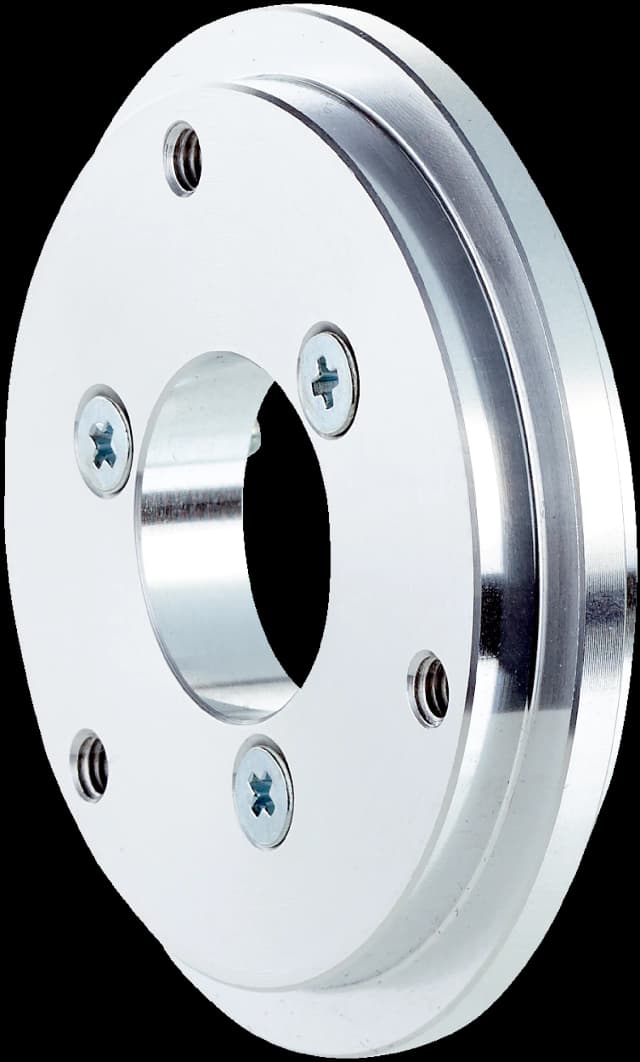

BEF-FA-020-050WDE
Mounting systems | Flanges and nozzles | BEF-FA-020-050WDE | Description: Flange adapter for HighLine wire draw mechanisms, adaption of face mount flange with centering hub 20 mm to 50 mm servo flange | Material: Aluminum | Details: Aluminum | Items supplied: Including 3 countersunk screws M3 x 10
BEF-FA-020-S001
Mounting systems | Flanges and nozzles | BEF-FA-020-S001 | Description: Flange adapter centering collar D20 on D36, material: stainless steel, customised drill pattern | Material: Stainless steel | Details: Stainless steel

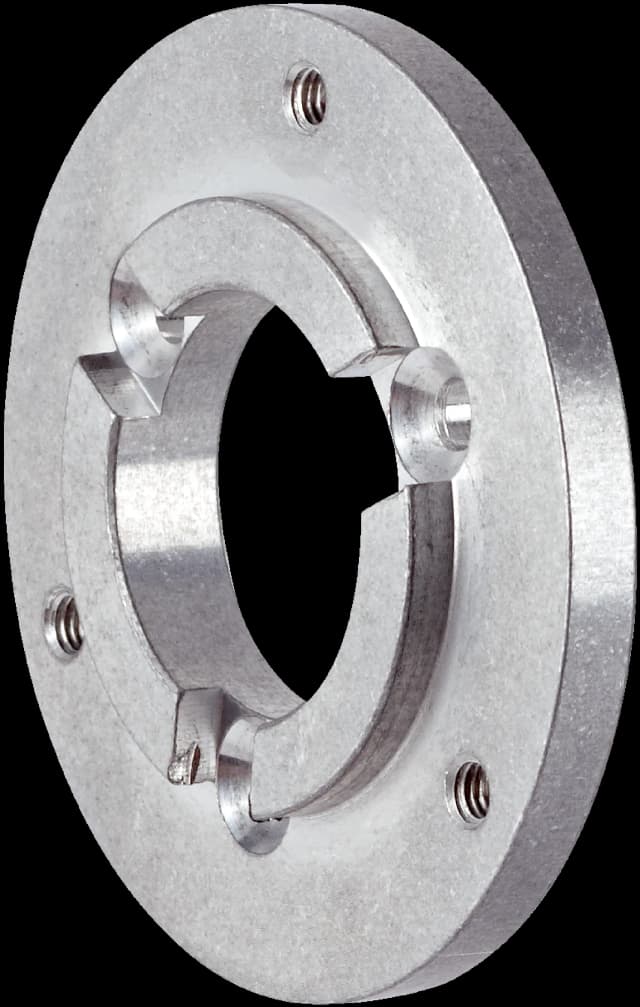

BEF-FA-025-036
Mounting systems | Flanges and nozzles | BEF-FA-025-036 | Description: Flange adapter, adaption of 25 mm spigot face mount flange to 60s face mount flange with 36 mm centering collar | Material: Aluminum | Details: Aluminum
BEF-FA-025-036-SK
Mounting systems | Flanges and nozzles | BEF-FA-025-036-SK | Description: Flange adapter, adapts SKS/SKM36 servo/face mount flange encoder with 25 mm centering collar to size 60 mm face mount flange with 36 mm centering collar | Material: Aluminum | Details: Aluminum

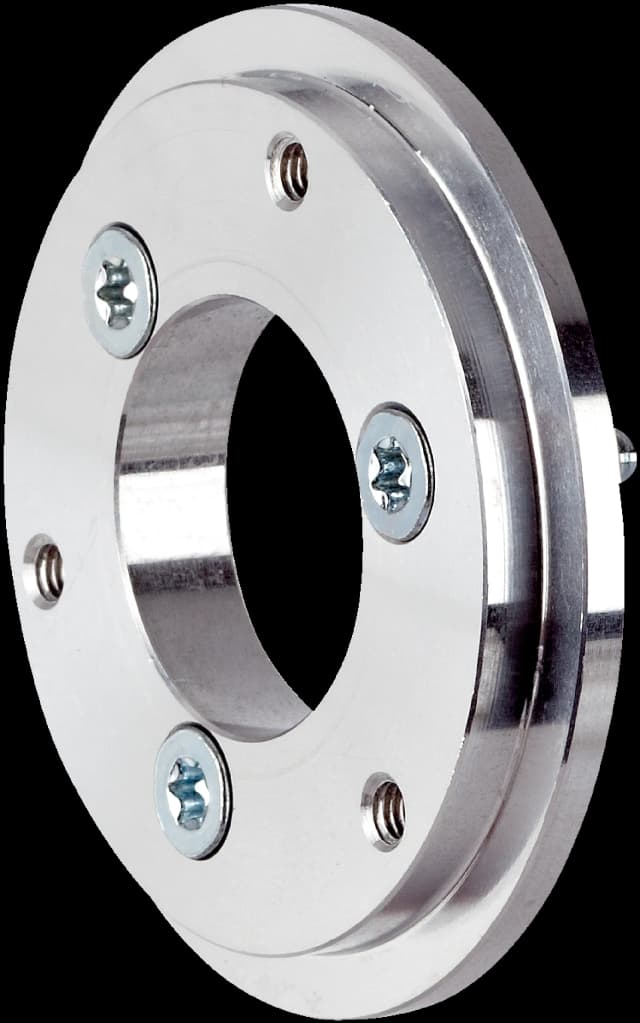

BEF-FA-025-050
Mounting systems | Flanges and nozzles | BEF-FA-025-050 | Description: Flange adapter, adaption of 25 mm spigot face mount flange to 50 mm servo flange | Material: Aluminum | Details: Aluminum
BEF-FA-025-050-SK
Mounting systems | Flanges and nozzles | BEF-FA-025-050-SK | Description: Flange adapter, adapts SKS/SKM36 face mount flange encoder with 25 mm centering collar to 50 mm servo flange | Material: Aluminum | Details: Aluminum

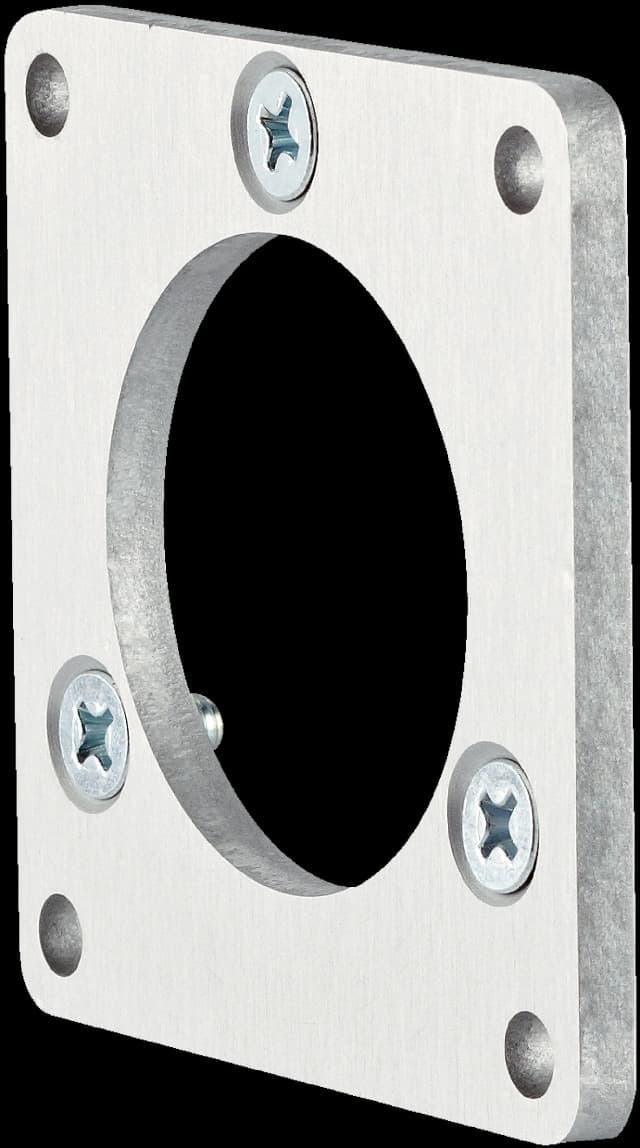

BEF-FA-025-060RCA
Mounting systems | Flanges and nozzles | BEF-FA-025-060RCA | Description: Flange adapter, adaption of 25 mm spigot face mount flange to 60 mm square installation plate | Material: Aluminum | Details: Aluminum

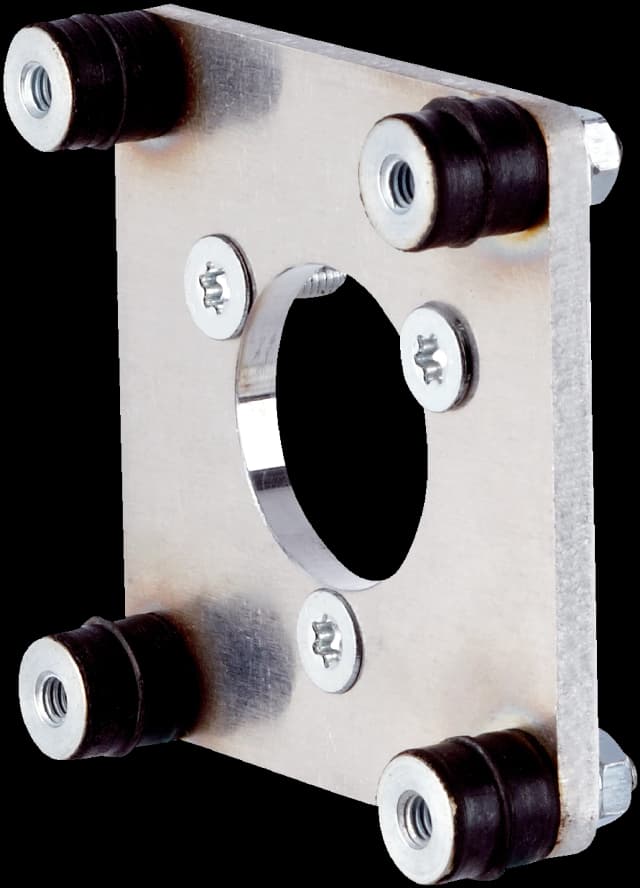

BEF-FA-025-060RSA
Mounting systems | Flanges and nozzles | BEF-FA-025-060RSA | Description: Flange adapter, adaption of 25 mm spigot face mount flange to 60 mm square installation plate with shock-absorber | Material: Aluminum | Details: Aluminum

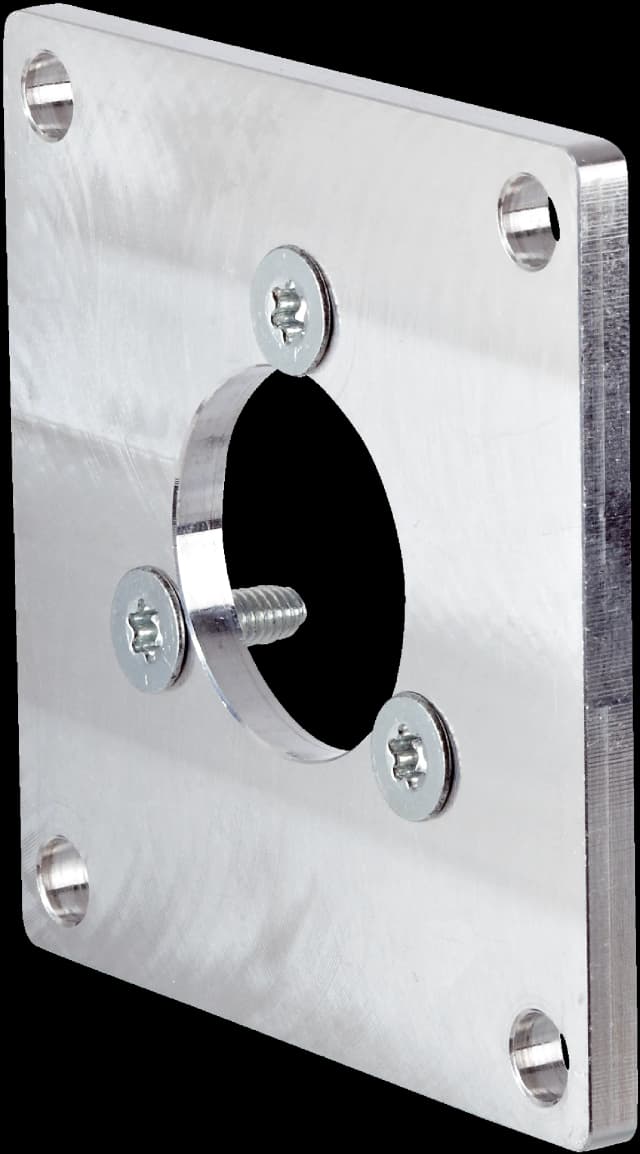

BEF-FA-025-063-REC
Mounting systems | Flanges and nozzles | BEF-FA-025-063-REC | Description: Flange adapter, adapts face mount flange with 25 mm centering collar to 63 mm square mounting plate | Material: Aluminum | Details: Aluminum

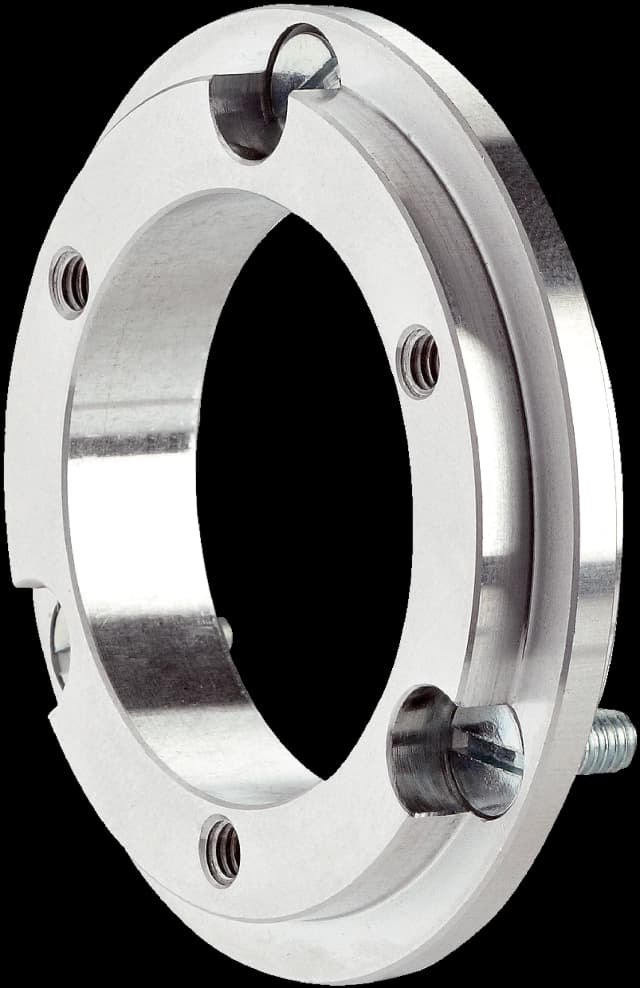

BEF-FA-036-050
Mounting systems | Flanges and nozzles | BEF-FA-036-050 | Description: Flange adapter, adaptation of face mount flange with 36 mm centering hub to 50 mm servo flange, aluminum, including 3 flat head screws M4 x 10 | Material: Aluminum | Details: Aluminum | Items supplied: Including 3 countersunk screws M3 x 10

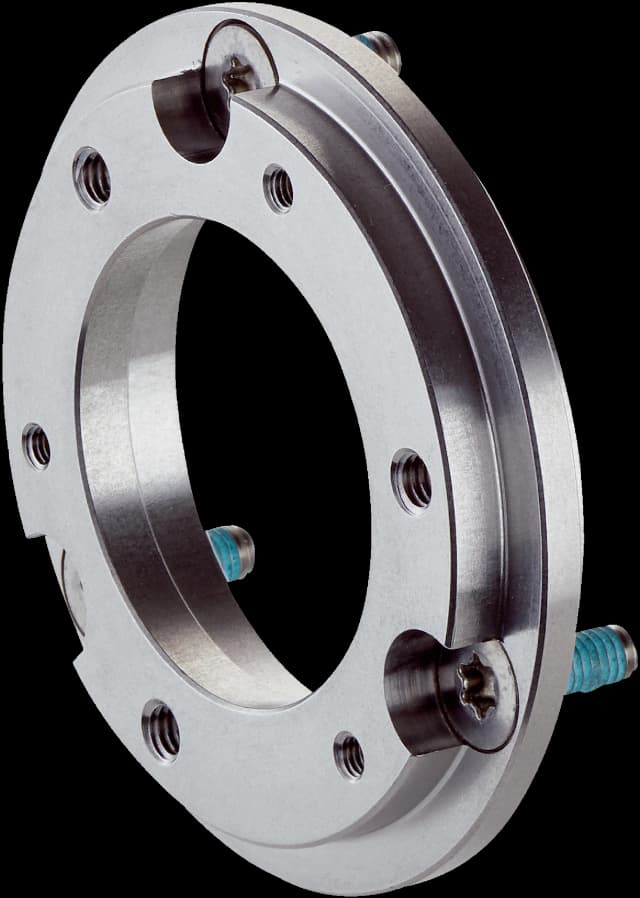

BEF-FA-036-050-I
Mounting systems | Flanges and nozzles | BEF-FA-036-050-I | Description: Flange adapter, adaptation of face mount flange with 36 mm centering hub to 50 mm servo flange | Material: Stainless steel | Details: Stainless steel | Items supplied: Including 3 countersunk screws with Precote 85-8 coating; M4*12
BEF-FA-036-060REC
Mounting systems | Flanges and nozzles | BEF-FA-036-060REC | Description: Flange adapter, adaptation of face mount flange with 36 mm centering hub to 60 mm square mounting plate, aluminum, including 3 flat head screws M4 x 8 | Material: Aluminum | Details: Aluminum | Items supplied: Including 3 countersunk screws M4 x 8

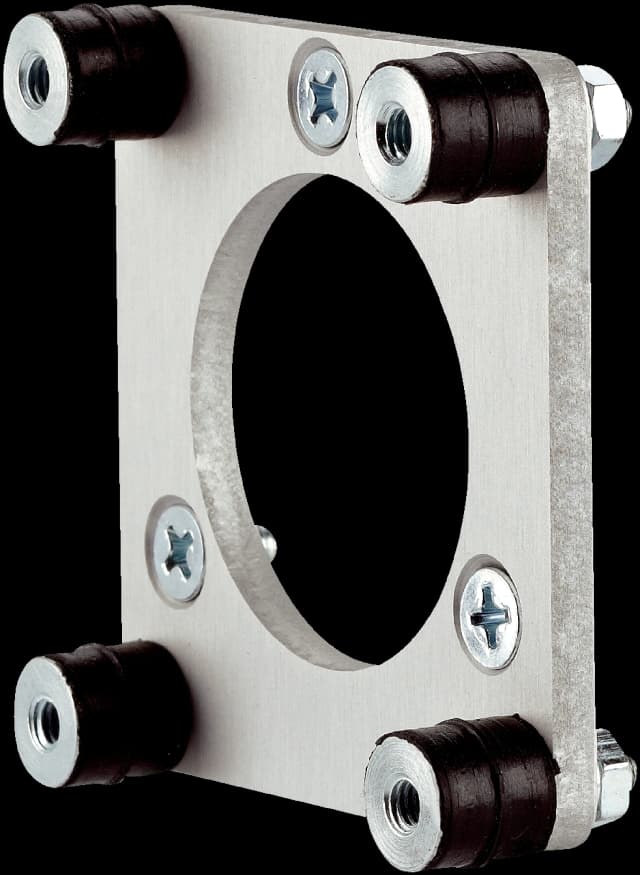

BEF-FA-036-060RSA
Mounting systems | Flanges and nozzles | BEF-FA-036-060RSA | Description: Flange adapter, adaptation of face mount flange with 36 mm centering hub to 58 mm square mounting plate with shock absorbers, aluminum | Material: Aluminum | Details: Aluminum

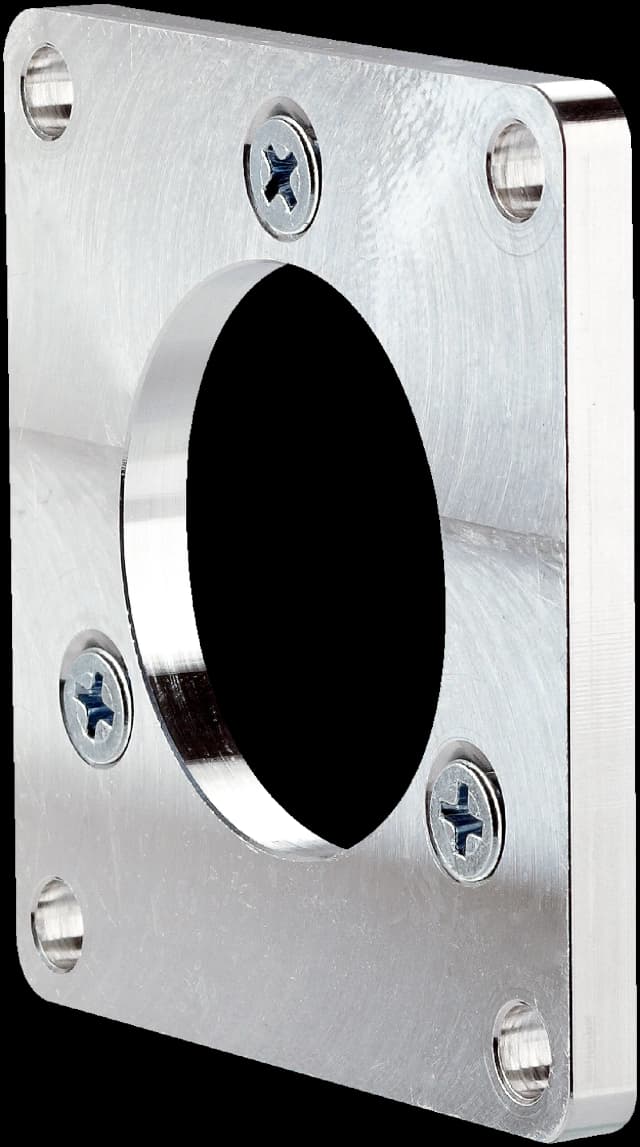

BEF-FA-036-063REC
Mounting systems | Flanges and nozzles | BEF-FA-036-063REC | Description: Flange adapter, adaptation of face mount flange with 36 mm centering hub to 63 mm square mounting plate, aluminum, including 3 flat head screws M4 x 8 | Material: Aluminum | Details: Aluminum | Items supplied: Including 3 countersunk screws M4 x 8

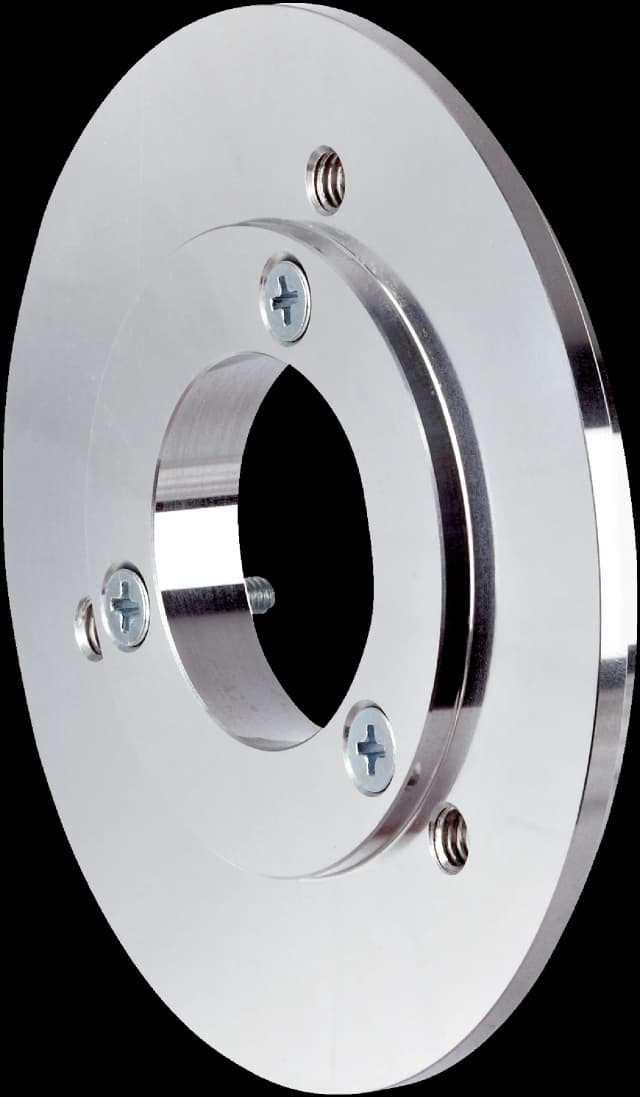

BEF-FA-036-090S1
Mounting systems | Flanges and nozzles | BEF-FA-036-090S1 | Description: Flange adapter, adaptation of face mount flange with 36 mm centering collar to 90 mm servo flange, aluminum, including 3 flat head screws M4 x 10 | Material: Aluminum | Details: Aluminum | Items supplied: Includes three M4 x 10 countersunk screws
BEF-FA-036-100
Mounting systems | Flanges and nozzles | BEF-FA-036-100 | Description: Flange adapter, adaptation of face mount flange with 36 mm centering hub to 100 mm servo flange with 60 mm centering hub, aluminum | Material: Aluminum | Details: Aluminum
BEF-FA-20-30-MWS075
Mounting systems | Flanges and nozzles | BEF-FA-20-30-MWS075 | Description: Flange adapter centering collar d20 on d30 around AHS/AHM36?-SC* on MWS075 Mechanics to build Encoder: face mount flange, solid shaft: Ø10 mm x 24 mm
BEF-FA-25-30-MWS075
Mounting systems | Flanges and nozzles | BEF-FA-25-30-MWS075 | Description: Flange adapter centering collar d25 on d30 around DLS40 on MWS075 Mechanics to build
BEF-FA-36-49-MWS075
Mounting systems | Flanges and nozzles | BEF-FA-36-49-MWS075 | Description: Flange adapter centering collar d36 on d49 around DBS60x-S4*, DFS60x-S4* and AFS/AFM60x-S4* on MWS075 Mechanics to build
BEF-FA-AN58-MRA-G-V
Mounting systems | Flanges and nozzles | BEF-FA-AN58-MRA-G-V | Description: Adapter plate for attaching ANS/ANM58 radial outlet to EcoLine and VarioLine. | Items supplied: 1x adapter plate 1 EcoLine-ANx58, 1x adapter plate 2 EcoLine-ANX58, 3x M3x8 countersunk screw, 3x M4 4x8 countersunk screw
