Серия Dx35
12 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.
DL35-B15552
Laser distance sensors | Dx35 | DL35-B15552 | Communication interface: IO-Link | Measuring range: 200 mm ... 35,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, red | Minimum response time: 2.5 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x
DL35-B15852
Laser distance sensors | Dx35 | DL35-B15852 | Communication interface: IO-Link | Measuring range: 200 mm ... 35,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, infrared | Minimum response time: 2.5 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x
DR35-B15522
Laser distance sensors | Dx35 | DR35-B15522 | Communication interface: IO-Link | Measuring range: 200 mm ... 35,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, red | Minimum response time: 2.5 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x
DR35-B15822
Laser distance sensors | Dx35 | DR35-B15822 | Communication interface: IO-Link | Measuring range: 200 mm ... 35,000 mm, on “diamond grade” reflective tape | Laser class: 1 | Light source: Laser, infrared | Minimum response time: 2.5 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x
DS35-B15221
Laser distance sensors | Dx35 | DS35-B15221 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 2.5 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x
DS35-B15521
Laser distance sensors | Dx35 | DS35-B15521 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 1 | Light source: Laser, red | Minimum response time: 4.5 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x
DS35-B15821
Laser distance sensors | Dx35 | DS35-B15821 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 1 | Light source: Laser, infrared | Minimum response time: 2.5 ms | Digital output: 2 x push-pull: PNP/NPN | Multifunctional input (MF): 1 x
DT35-B15251
Laser distance sensors | Dx35 | DT35-B15251 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 2 | Light source: Laser, red | Minimum response time: 2.5 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x
DT35-B15551
Laser distance sensors | Dx35 | DT35-B15551 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 1 | Light source: Laser, red | Minimum response time: 4.5 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x
DT35-B15851
Laser distance sensors | Dx35 | DT35-B15851 | Communication interface: IO-Link | Measuring range: 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% remission factor, 50 mm ... 3,100 mm, 6% remission factor | Laser class: 1 | Light source: Laser, infrared | Minimum response time: 2.5 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output / voltage output | Multifunctional input (MF): 1 x

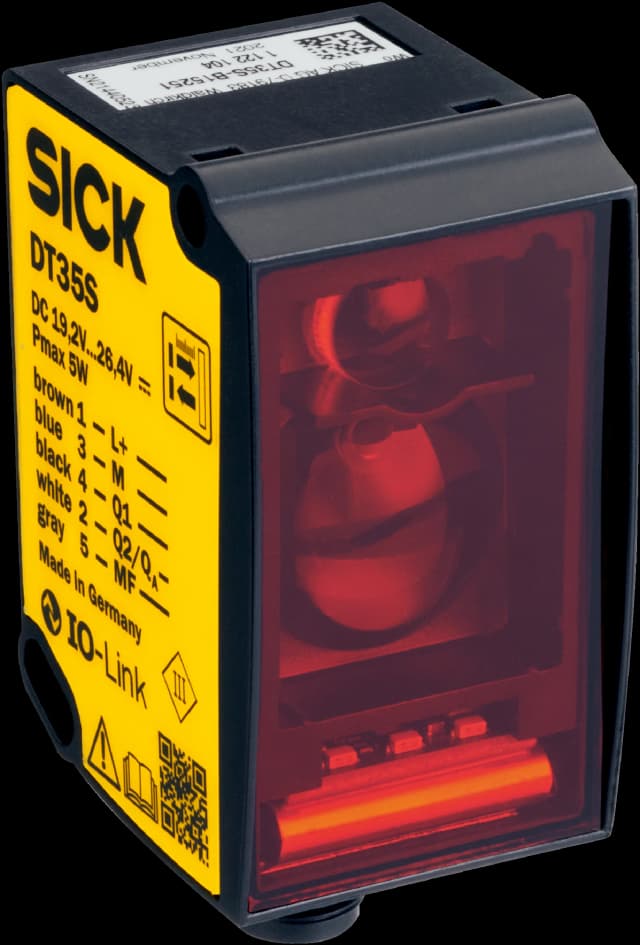

DT35S-B15251
Laser distance sensors | Dx35 | DT35S-B15251 | Communication interface: IO-Link | Laser class: 2 | Light source: Laser, red | Minimum response time: 15 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output | Multifunctional input (MF): 1 x, Voltage level MF input active: High ≥ 14 V (applies only in the specified supply voltage range), Voltage level MF input inactive: Low ≤ 5 V (applies only in the specified supply voltage range)
DT35S-B15551
Laser distance sensors | Dx35 | DT35S-B15551 | Communication interface: IO-Link | Laser class: 1 | Light source: Laser, red | Minimum response time: 15 ms | Digital output: 1 ... 2 x push-pull: PNP/NPN | Type of analog output: Current output | Multifunctional input (MF): 1 x, Voltage level MF input active: High ≥ 14 V (applies only in the specified supply voltage range), Voltage level MF input inactive: Low ≤ 5 V (applies only in the specified supply voltage range)
