Серия Dx1000
8 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

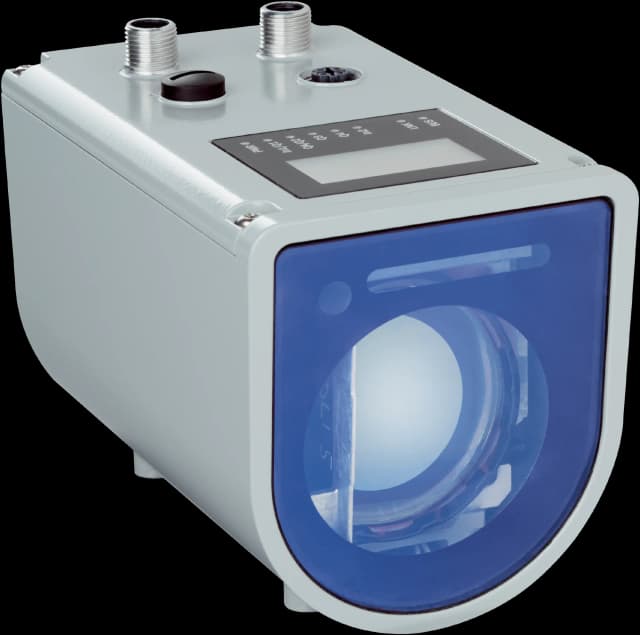

DL1000-S11101
Laser distance sensors | Dx1000 | DL1000-S11101 | Target: Reflector | Measuring range: 0.2 m ... 1,500 m, on “diamond grade” reflective tape | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm See measurement accuracy diagram | Communication interface: Ethernet, Serial, SSI | Type of analog output: Current output

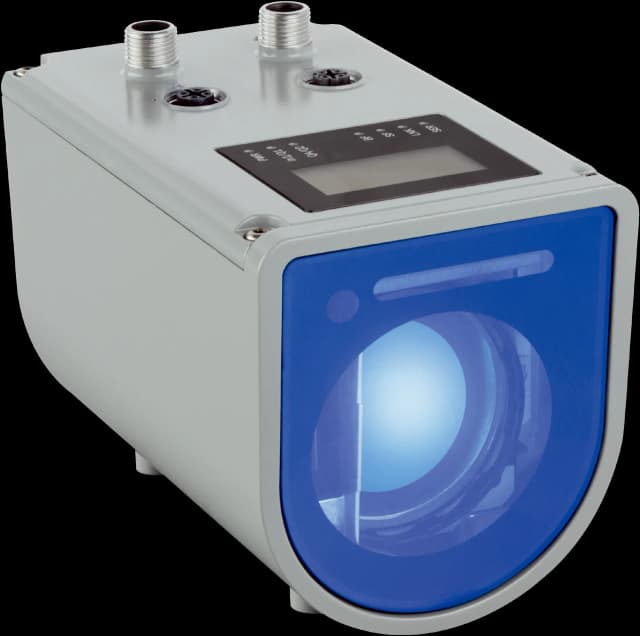

DL1000-S11102
Laser distance sensors | Dx1000 | DL1000-S11102 | Target: Reflector | Measuring range: 0.2 m ... 1,500 m, on “diamond grade” reflective tape | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm See measurement accuracy diagram | Communication interface: Ethernet, PROFIBUS DP, Serial, SSI | Type of analog output: Current output

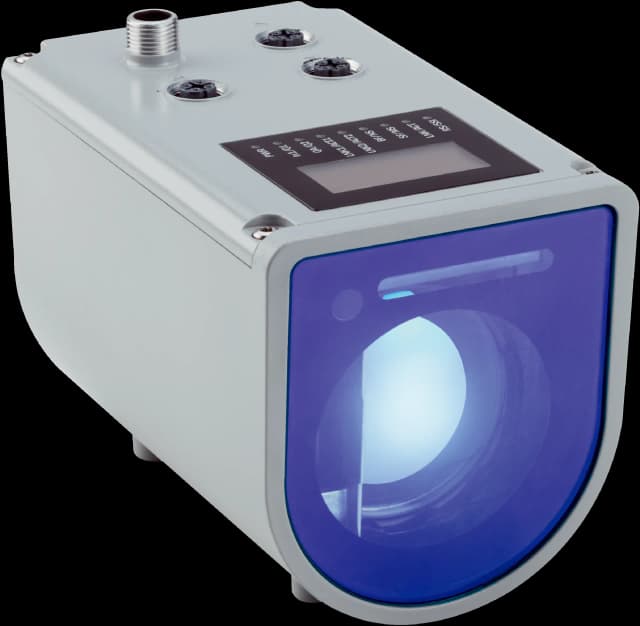

DL1000-S11110
Laser distance sensors | Dx1000 | DL1000-S11110 | Target: Reflector | Measuring range: 0.2 m ... 1,500 m, on “diamond grade” reflective tape | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm See measurement accuracy diagram | Communication interface: Ethernet, Serial, SSI, EtherNet/IP™ | Type of analog output: Current output
DL1000-S11112
Laser distance sensors | Dx1000 | DL1000-S11112 | Target: Reflector | Measuring range: 0.2 m ... 1,500 m, on “diamond grade” reflective tape | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm See measurement accuracy diagram | Communication interface: Ethernet, Serial, SSI, PROFINET | Type of analog output: Current output
DT1000-S11101
Laser distance sensors | Dx1000 | DT1000-S11101 | Target: Natural objects | Measuring range: 0.2 m ... 155 m, 6% remission factor, 0.2 m ... 460 m, 90% remission factor | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm | Communication interface: Ethernet, Serial, SSI | Type of analog output: Current output
DT1000-S11102
Laser distance sensors | Dx1000 | DT1000-S11102 | Target: Natural objects | Measuring range: 0.2 m ... 155 m, 6% remission factor, 0.2 m ... 460 m, 90% remission factor | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm | Communication interface: Ethernet, PROFIBUS DP, Serial, SSI | Type of analog output: Current output
DT1000-S11110
Laser distance sensors | Dx1000 | DT1000-S11110 | Target: Natural objects | Measuring range: 0.2 m ... 155 m, 6% remission factor, 0.2 m ... 460 m, 90% remission factor | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm | Communication interface: Ethernet, Serial, SSI, EtherNet/IP™ | Type of analog output: Current output
DT1000-S11112
Laser distance sensors | Dx1000 | DT1000-S11112 | Target: Natural objects | Measuring range: 0.2 m ... 155 m, 6% remission factor, 0.2 m ... 460 m, 90% remission factor | Repeatability: ≥ 1 mm, See repeatability characteristic lines | Accuracy: Typ. ± 15 mm | Communication interface: Ethernet, Serial, SSI, PROFINET | Type of analog output: Current output
