Серия DT20 Hi
10 варианта от SICK. Изберете модела, който отговаря на приложението ви, или попитайте нас.

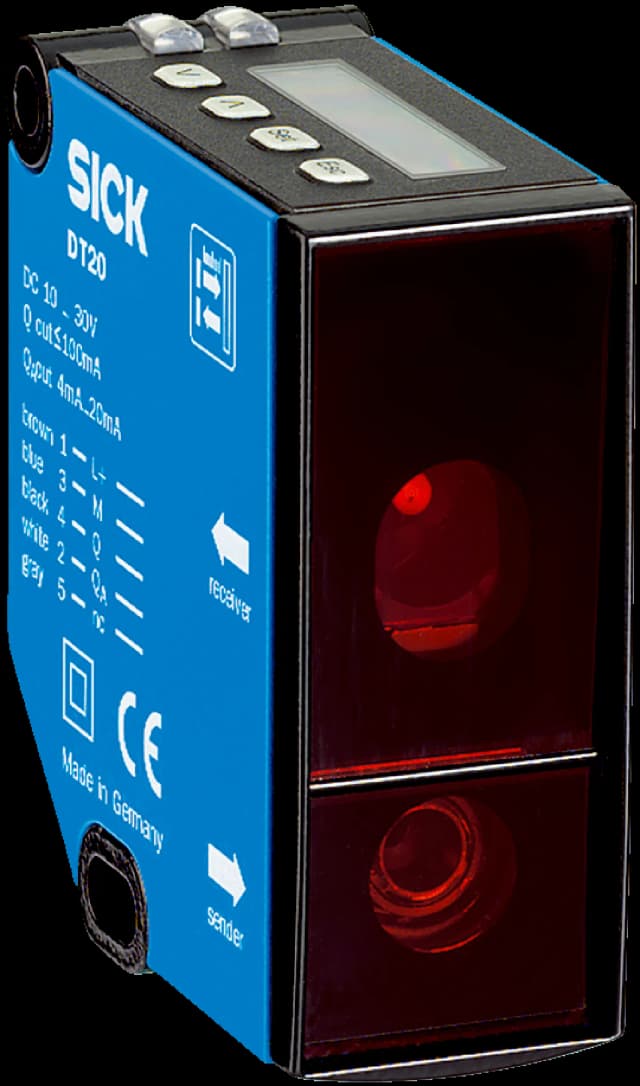

DT20-N214B
Laser distance sensors | DT20 Hi | DT20-N214B | Digital output: 1 x NPN | Type of analog output: Current output | Measuring range: 100 mm ... 600 mm | Repeatability: ≥ 0.5 mm | Laser class: 2 | Typ. light spot size (distance): 3 mm x 6 mm (600 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-N224B
Laser distance sensors | DT20 Hi | DT20-N224B | Digital output: 1 x NPN | Type of analog output: Current output | Measuring range: 100 mm ... 1,000 mm | Repeatability: ≥ 2.5 mm | Laser class: 2 | Typ. light spot size (distance): 6 mm x 12 mm (1000 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-N244B
Laser distance sensors | DT20 Hi | DT20-N244B | Digital output: 1 x NPN | Type of analog output: Current output | Measuring range: 100 mm ... 300 mm | Repeatability: ≥ 0.25 mm | Laser class: 2 | Typ. light spot size (distance): 3 mm x 6 mm (300 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-N254B
Laser distance sensors | DT20 Hi | DT20-N254B | Digital output: 1 x NPN | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: ≥ 0.125 mm | Laser class: 2 | Typ. light spot size (distance): 2 mm x 4 mm (150 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-P214B
Laser distance sensors | DT20 Hi | DT20-P214B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 600 mm | Repeatability: ≥ 0.5 mm | Laser class: 2 | Typ. light spot size (distance): 3 mm x 6 mm (600 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-P214BS03
Laser distance sensors | DT20 Hi | DT20-P214BS03 | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 600 mm | Repeatability: ≥ 0.5 mm | Laser class: 1 | Typ. light spot size (distance): 3 mm x 6 mm (600 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-P224B
Laser distance sensors | DT20 Hi | DT20-P224B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 1,000 mm | Repeatability: ≥ 2.5 mm | Laser class: 2 | Typ. light spot size (distance): 6 mm x 12 mm (1000 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-P244B
Laser distance sensors | DT20 Hi | DT20-P244B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 300 mm | Repeatability: ≥ 0.25 mm | Laser class: 2 | Typ. light spot size (distance): 3 mm x 6 mm (300 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-P244BS04
Laser distance sensors | DT20 Hi | DT20-P244BS04 | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 100 mm ... 300 mm | Repeatability: ≥ 0.25 mm | Laser class: 1 | Typ. light spot size (distance): 3 mm x 6 mm (300 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
DT20-P254B
Laser distance sensors | DT20 Hi | DT20-P254B | Digital output: 1 x PNP | Type of analog output: Current output | Measuring range: 50 mm ... 150 mm | Repeatability: ≥ 0.125 mm | Laser class: 2 | Typ. light spot size (distance): 2 mm x 4 mm (150 mm) | Housing material: Metal | Connection type: Male connector, M12, 5-pin, swivel connector unit
